Description
Details:
-
Pulse Power 15W, 450nm laser module (send glasses , power supply as free)
-
Specifications:
-
Main dimensions: length 50 mm * 50 mm * 100 mm
-
Wavelength: 445nm / 450nm
-
Output Power: 15 W pulsed, 8 W average
-
Modulation frequency: ttl can be modulated, 0v-off, 5 open, switching frequency <9 kHz
-
Operating voltage: DC = 12
-
Operating Current: I <3A
-
Focal length: not regulated
-
Operating Temperature: 15 ℃ ~ 45 ℃
Features:
-
Integrated industrial design
-
Long working hours
-
Can not processed: metals, glass, plywood,stone, ceramics, jewelry, silver, reflective material, translucent material.
-
Carving wood / bamboo / paper / plastic / leather / rubber / horn.
-
Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.

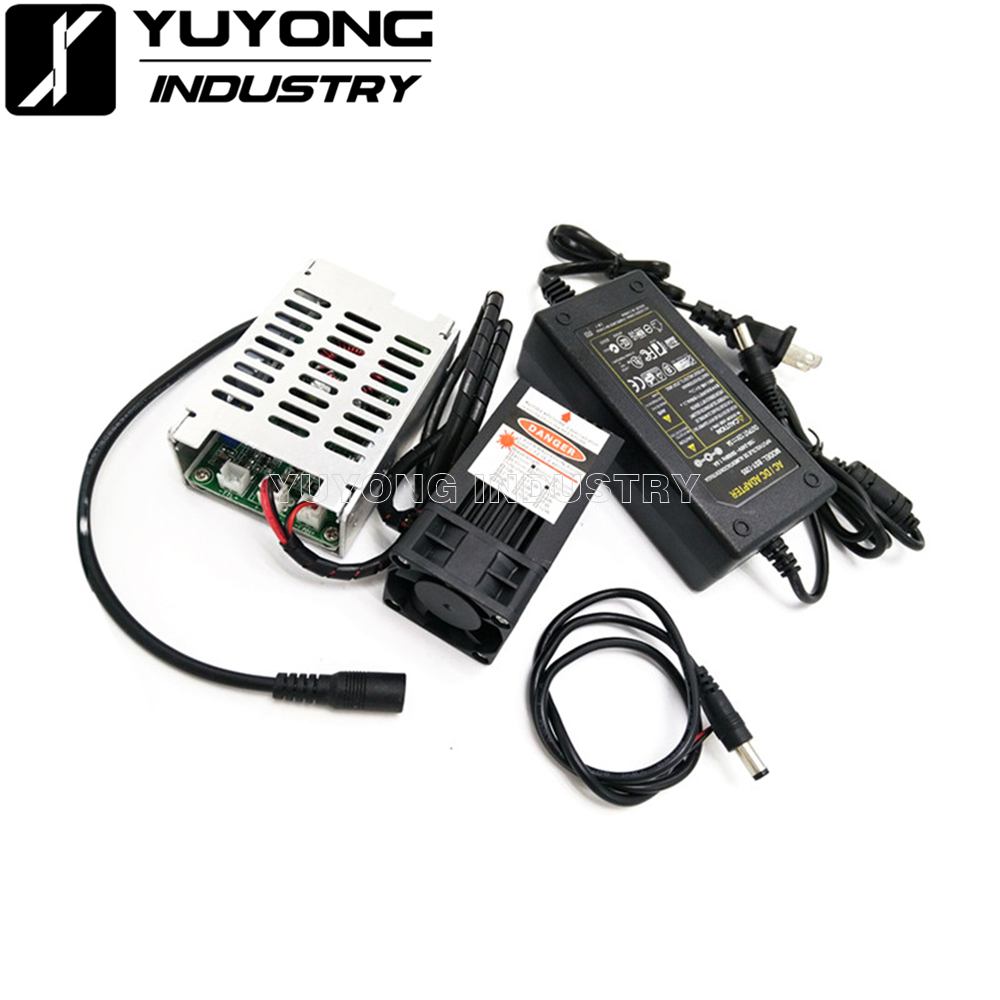

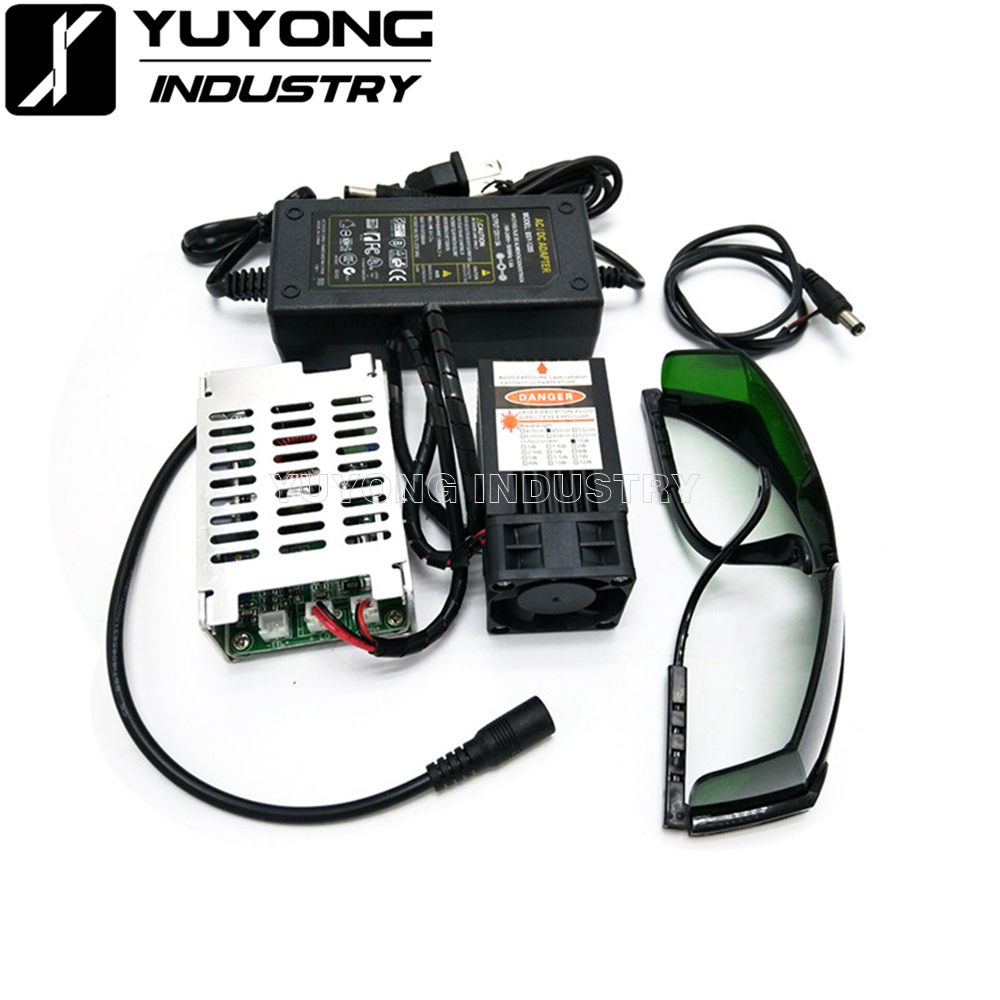

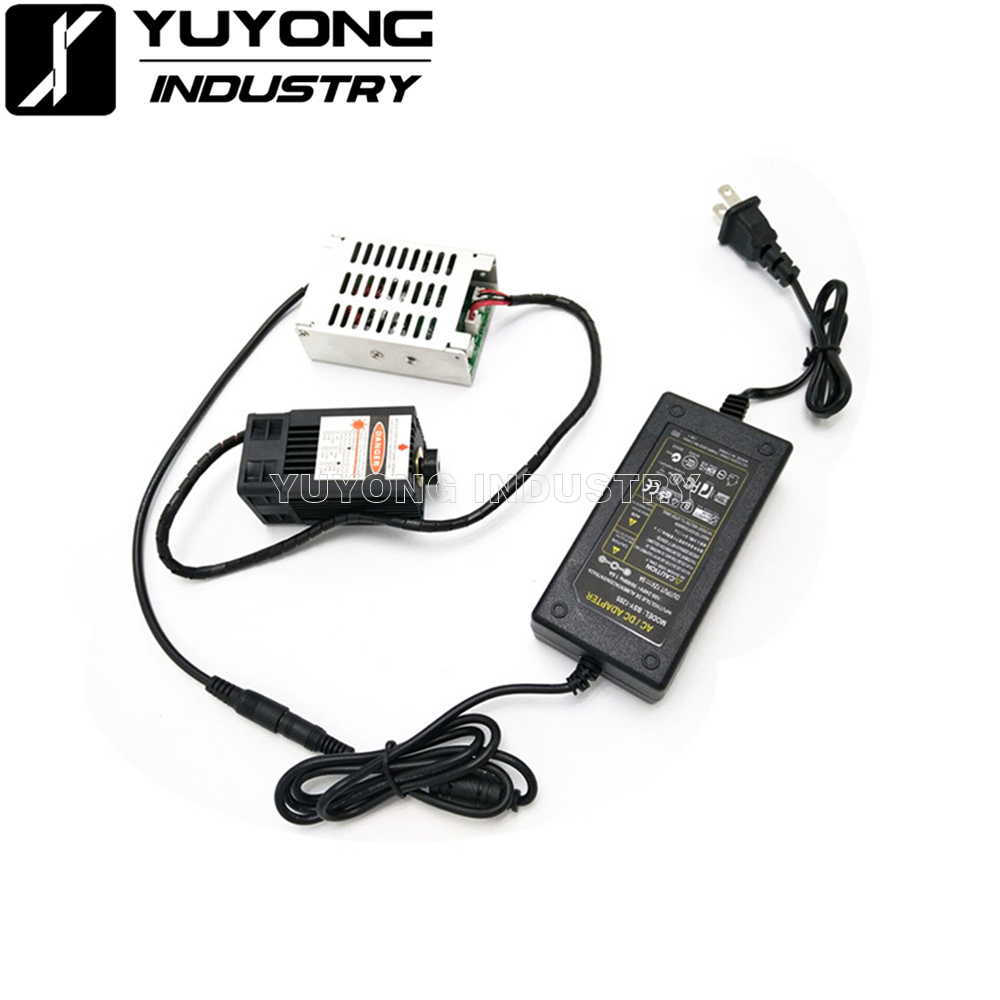

Package Includes :
15W Blue Light Laser Module
- 1pc x 15w laser head
- 1pc x driver board
- 1pc x power supply
- 1pc x protective googles
Note:
- It will be 100% of the laser intensity when you directly connect it to power supply.
- Please do NOT use it more than 10 minutes in that condition. Or else the laser would be burnt out.
- It does NOT work on any curved or cambered surfaces.
- We do NOT provide technical support or assembly manualfor this laser module,it needs to be configured to suit your application by yourself.
