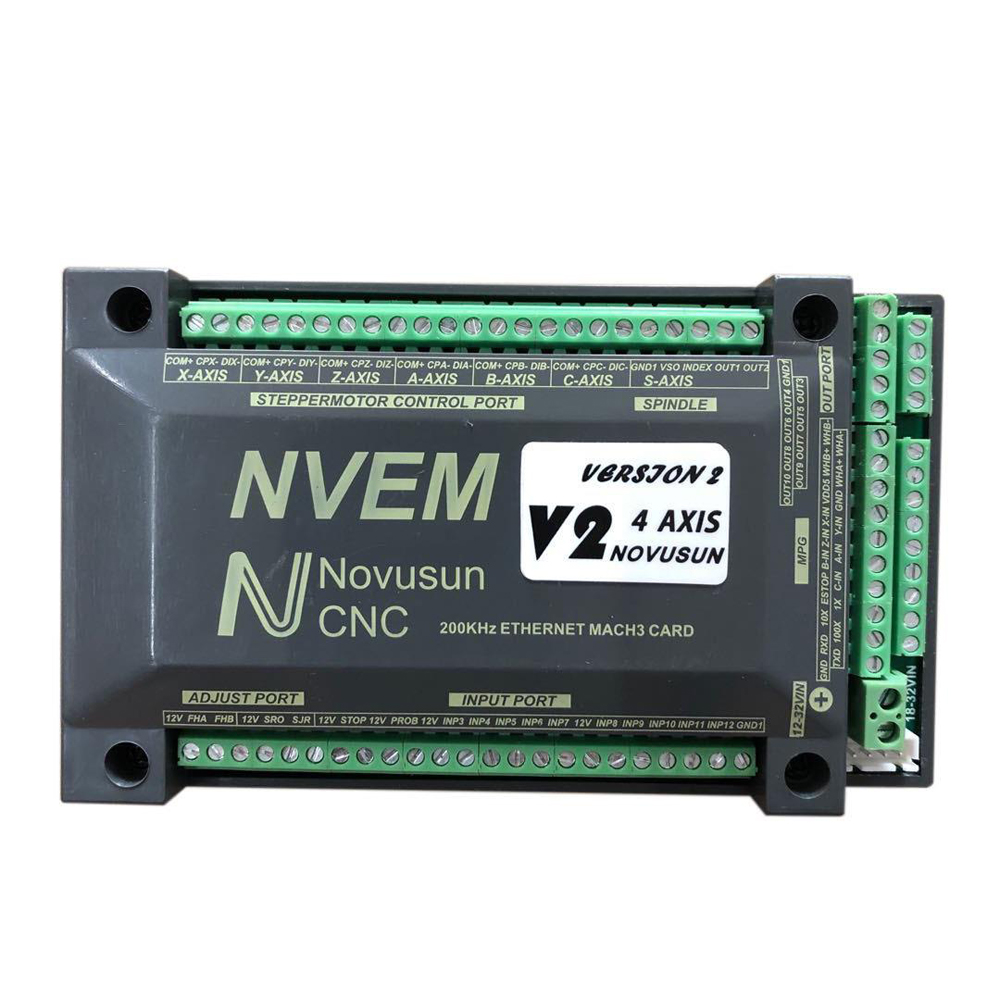

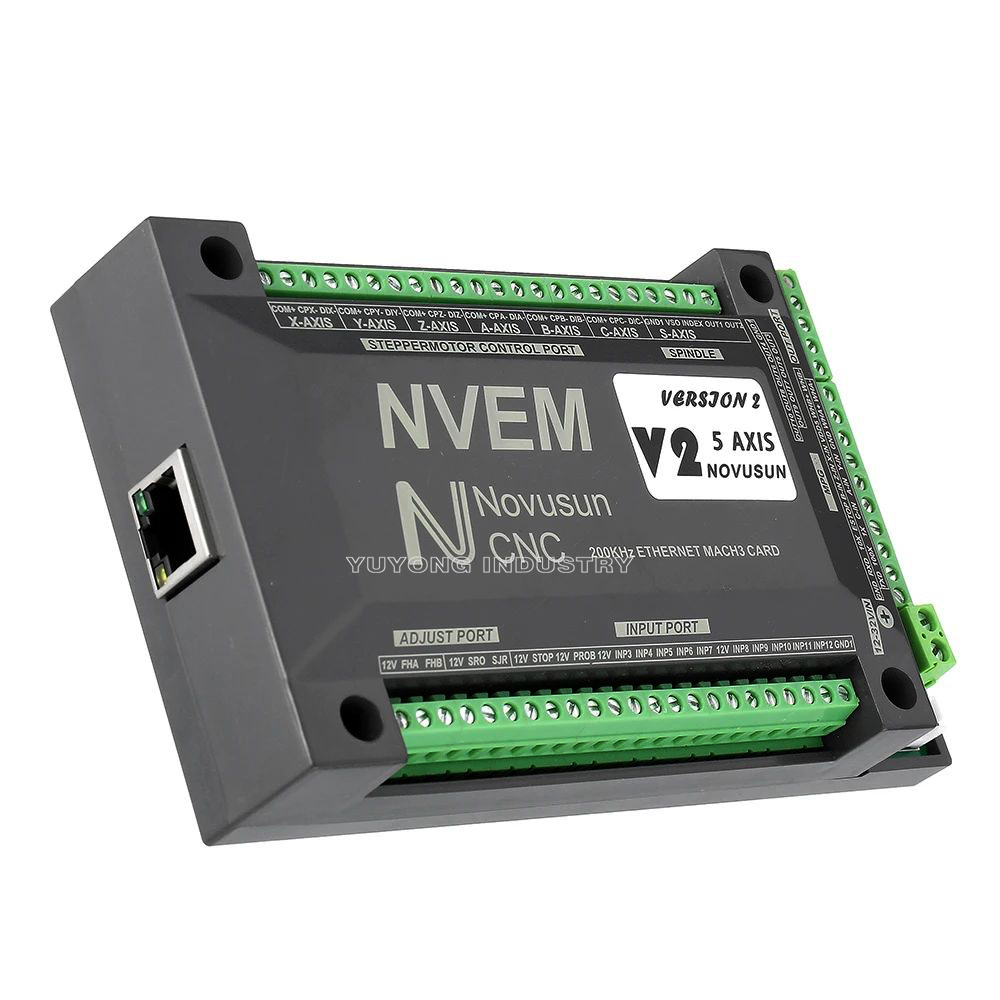

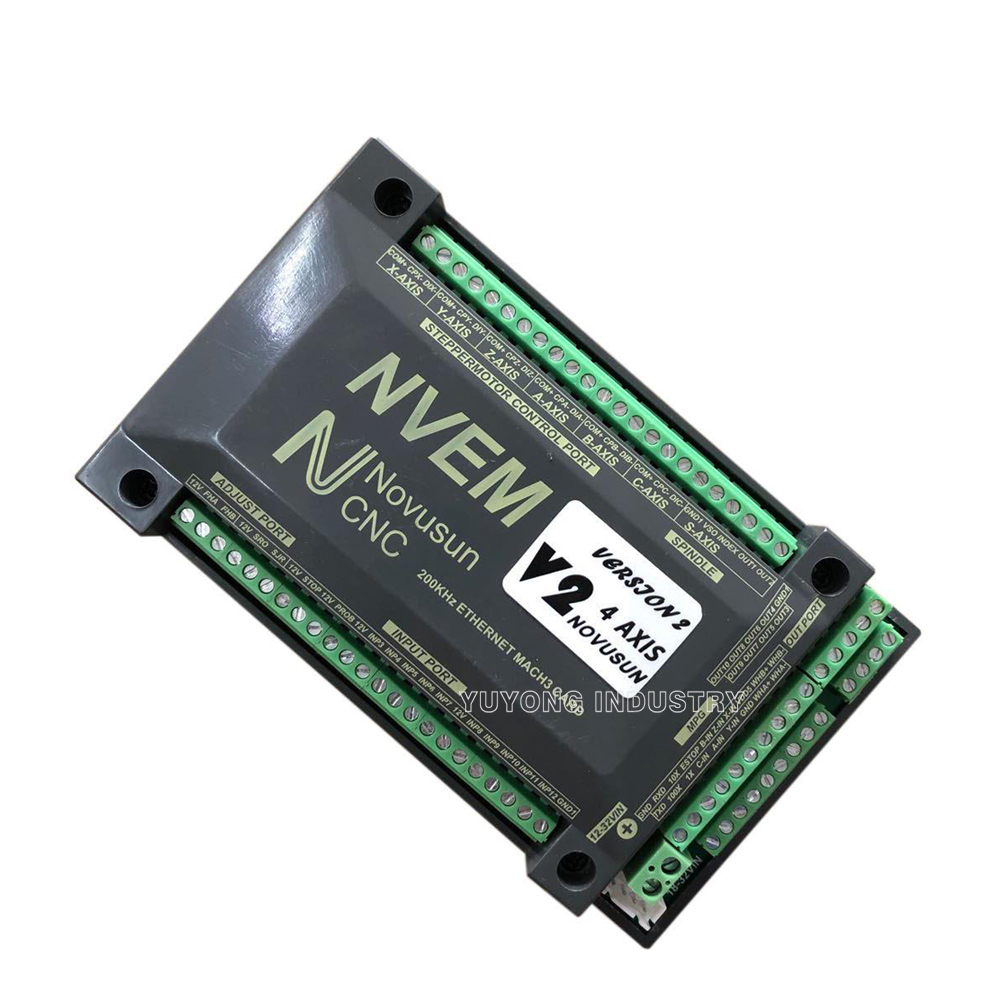

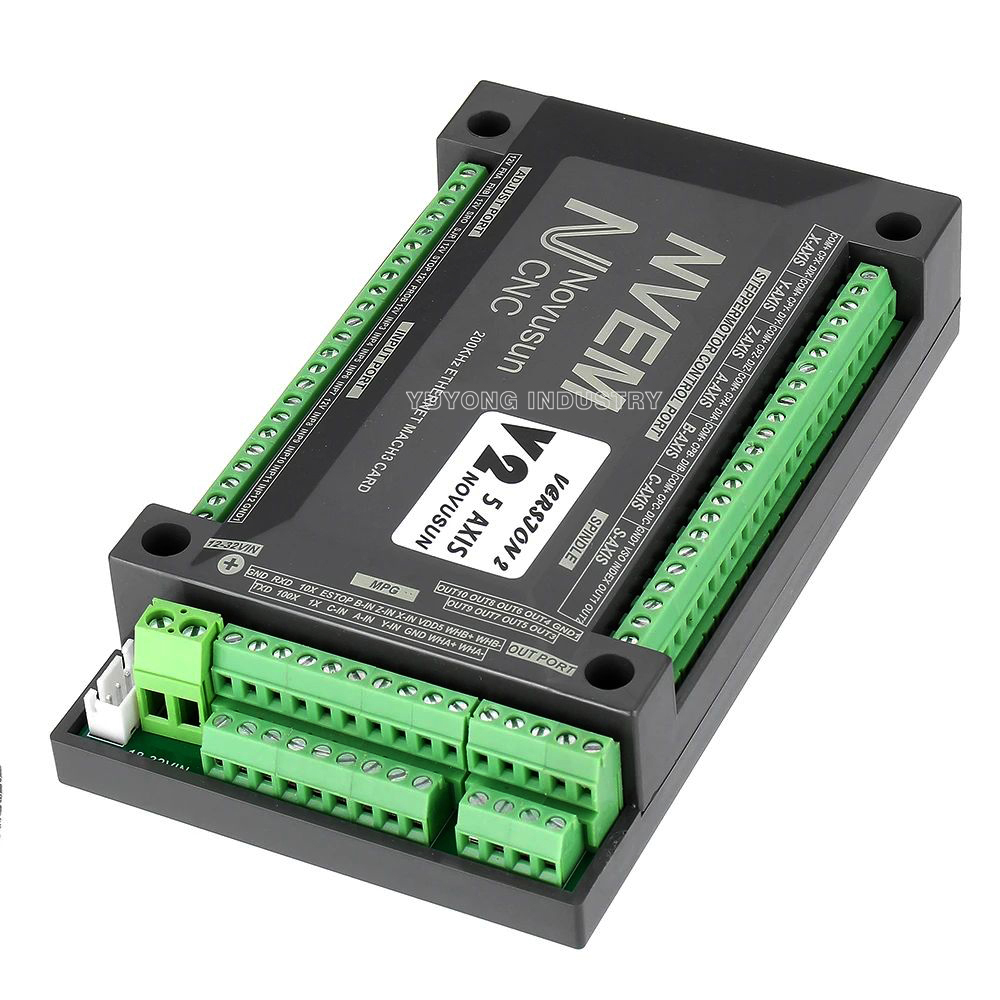

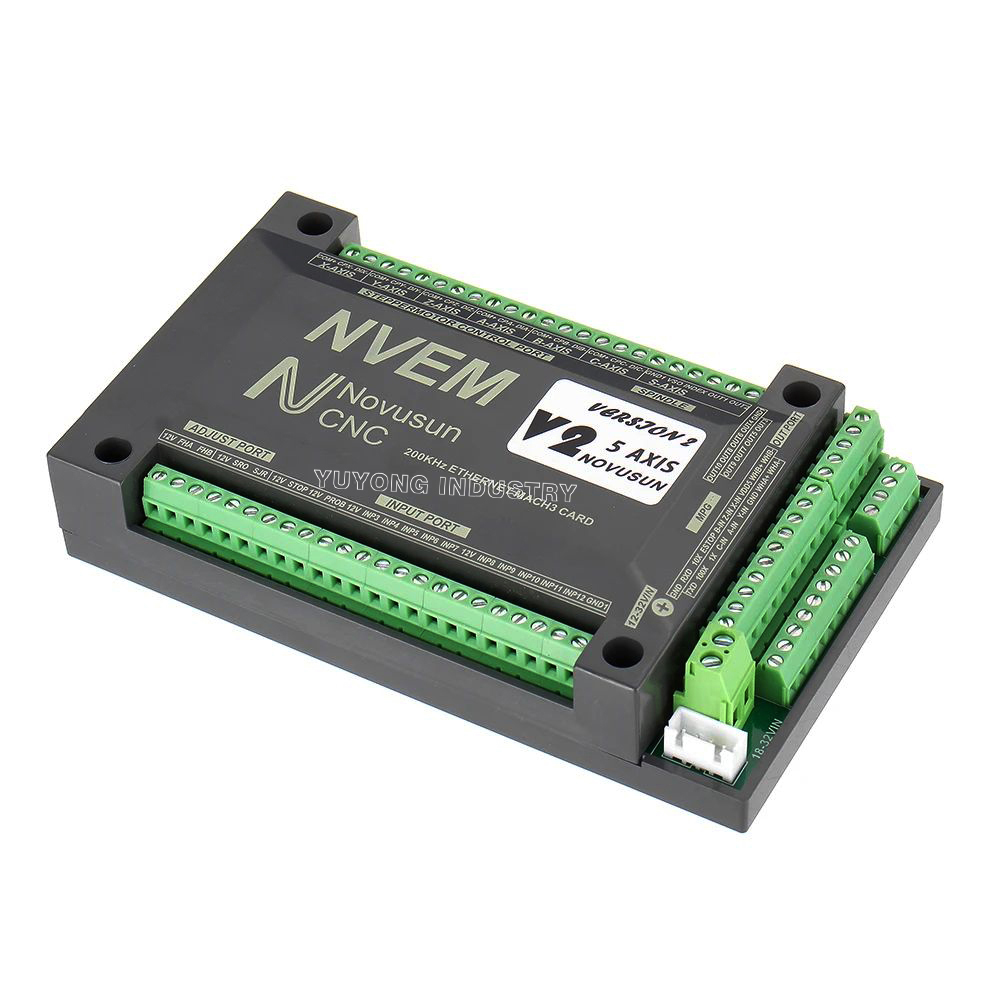

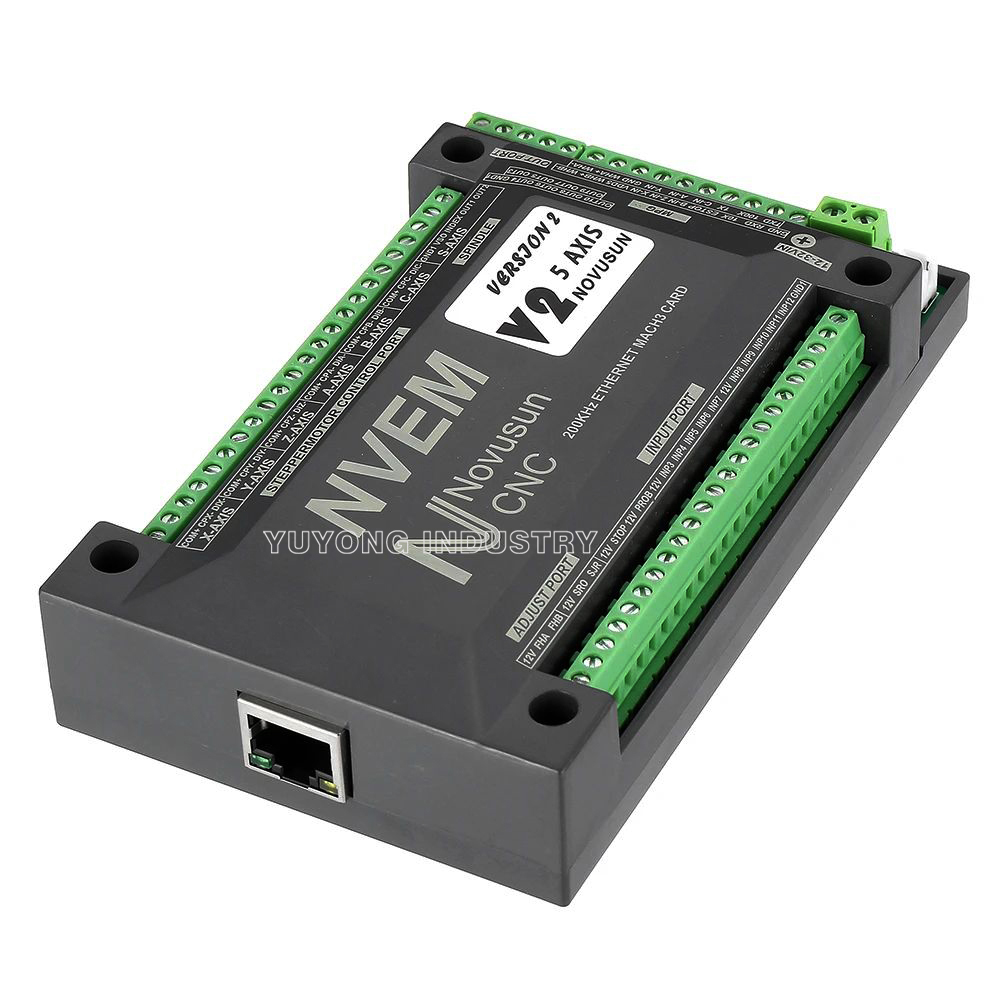

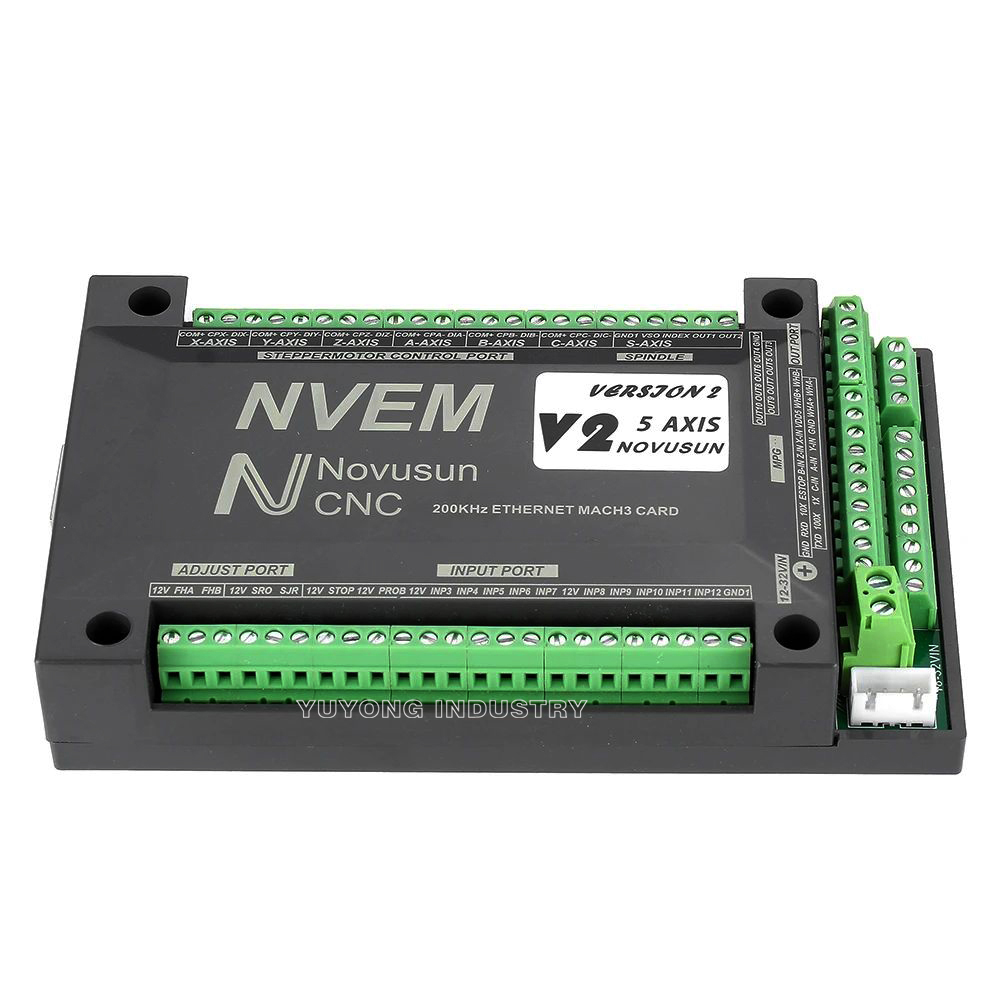

Description

It can work with Mach3 and standard MPG. It can communicate with computer through Ethernet, just need to use the Twine to connect directly or transfer with router.

This control card adopts the ARM design framework. The ARM design includes communication, code analytic, underlying algorithm and pulse generation. It is rational design, reliable control and convenient operation.

Features:

• Model: 3Axis 4axis 5axis 6axi
• With 12 channel programmable input port,can set it for emergency functio
• With 10 channel programmable output port,can set for water colling device
• With 1 channel standard handwheel pendant MPG por
• Spindle PWM output contro
• Support MACH3 softwar
• Ethernet interface, support Mach3 Softwar
• DCDC electrical isolatio
• Optocoupler isolatio
• Max 250khz stepper motor pulse output,suitable for most CNC milling machine system

Applications:

• For processing various patterns such as embossing plate, sole mould, zipper mould, pattern die and stamping die, instrument mold, glass mold etc.
• For the advertising industry such as: our brand, signs, architectural models, badges, nameplate, panels, logo, numbers, signs, craft decoration, furniture decoration etc
• For the portrait, landscape, calligraphy lettering, seals and other graphic art sculpture, calligraphy, Basso relievo, etc.
• With the CNC controller, suitable for all kinds of small and medium-sized automation equipment and instruments.

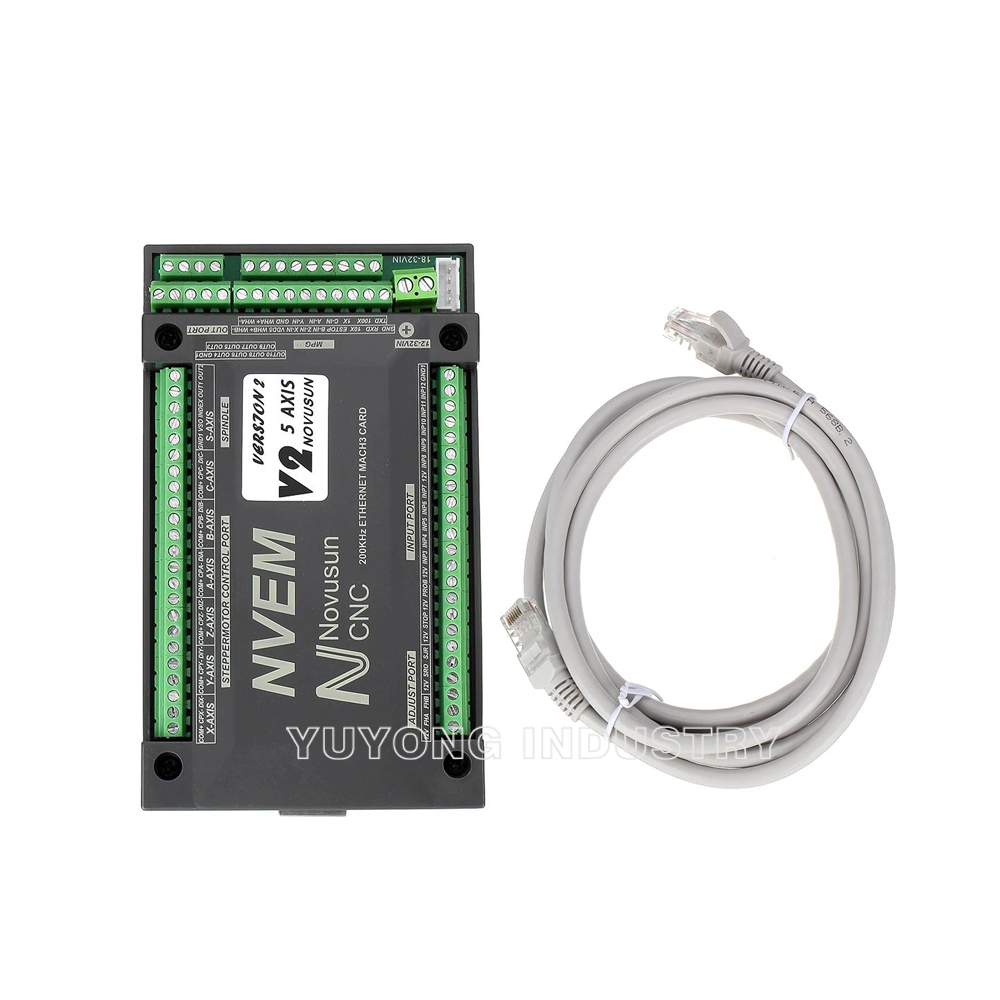

Package Includes:

• 1 x CNC Motion Control Card
• 1 x Ethernet Cable
