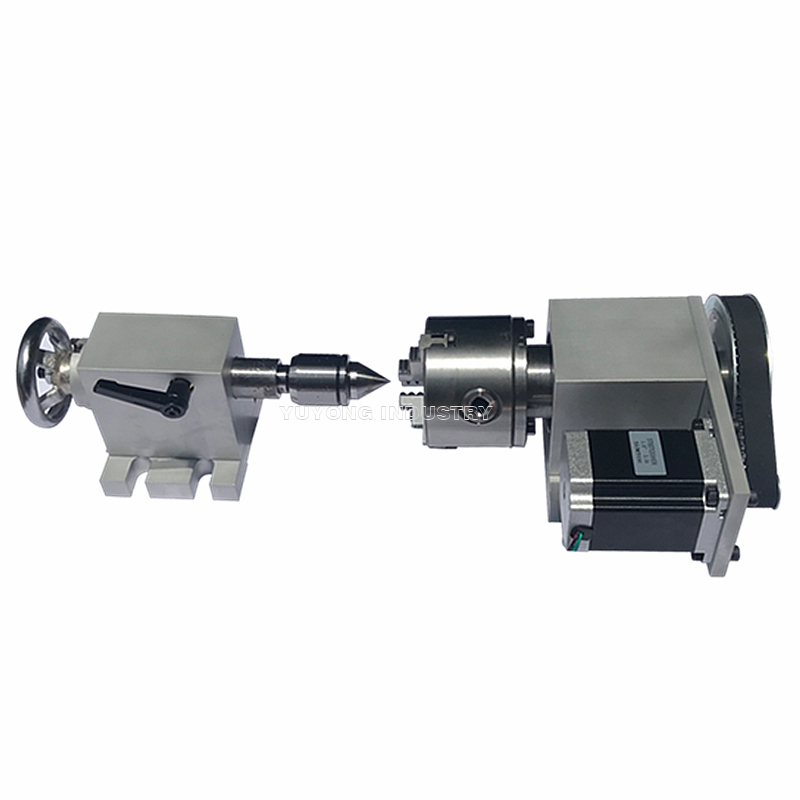

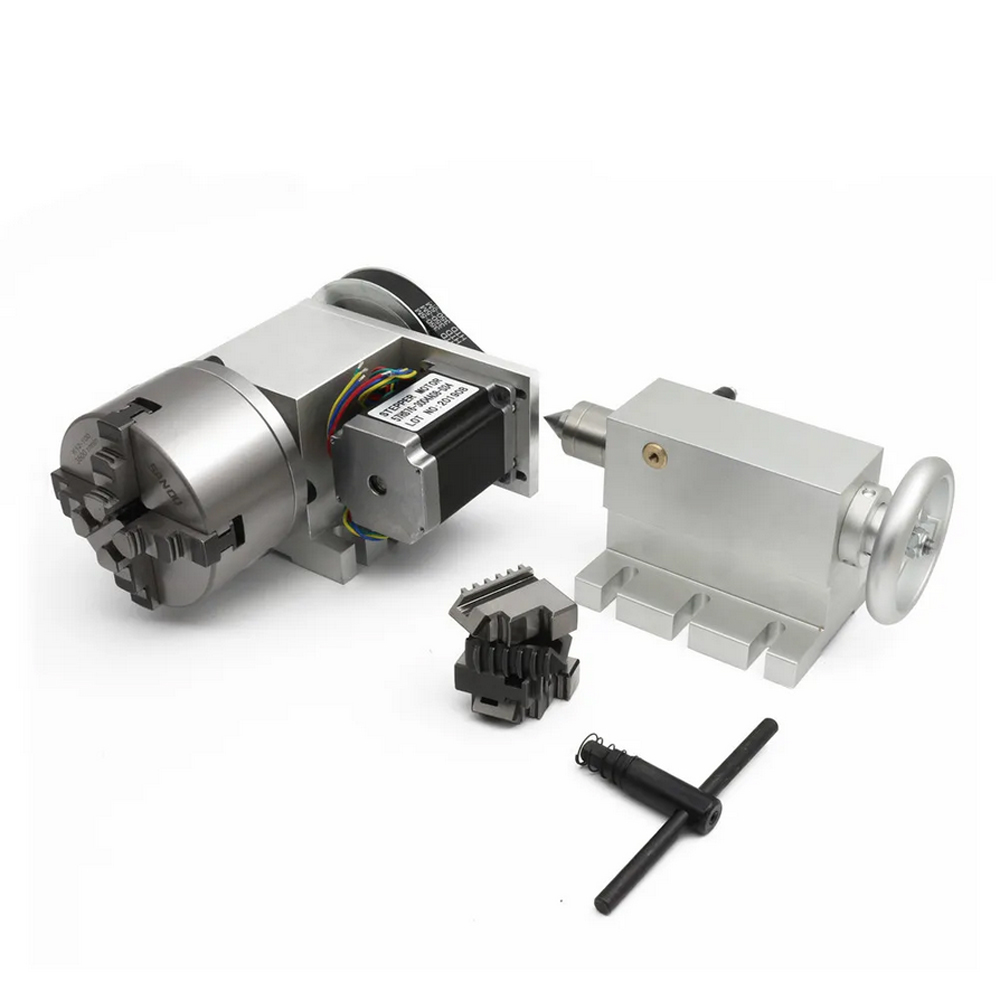

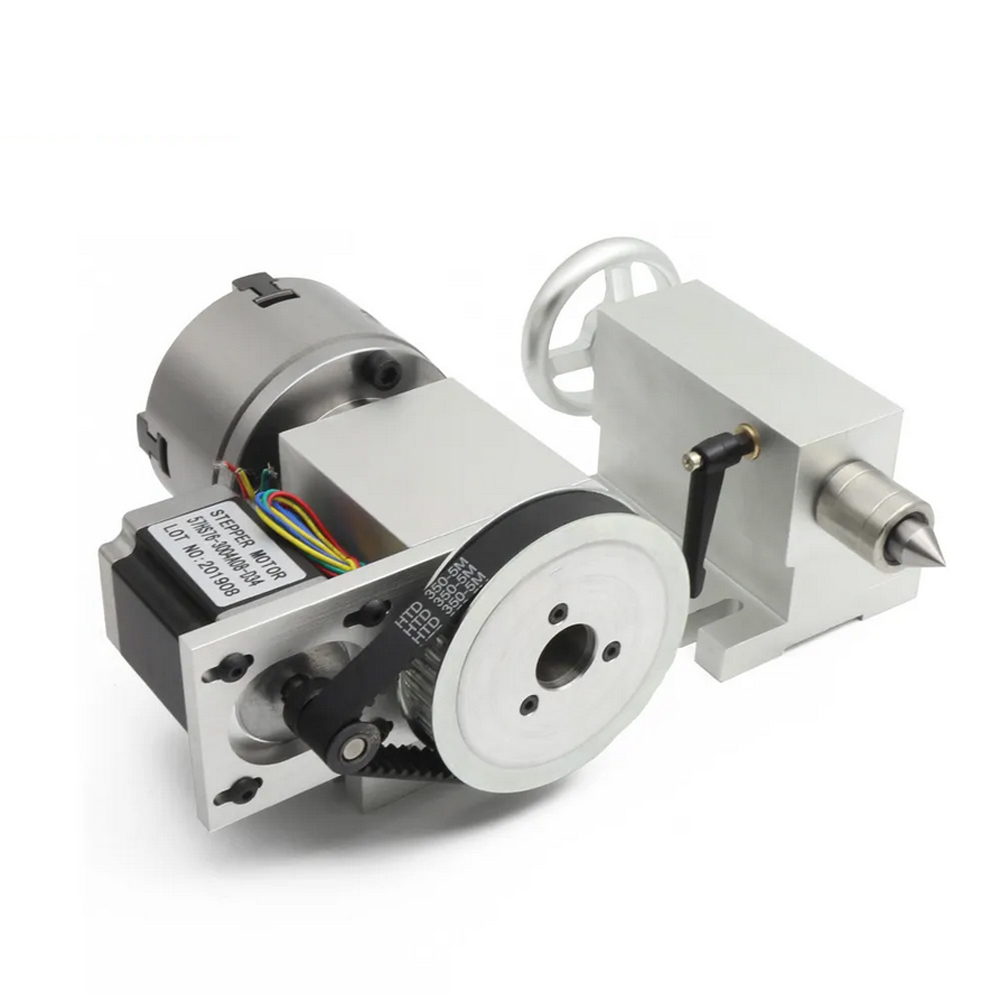

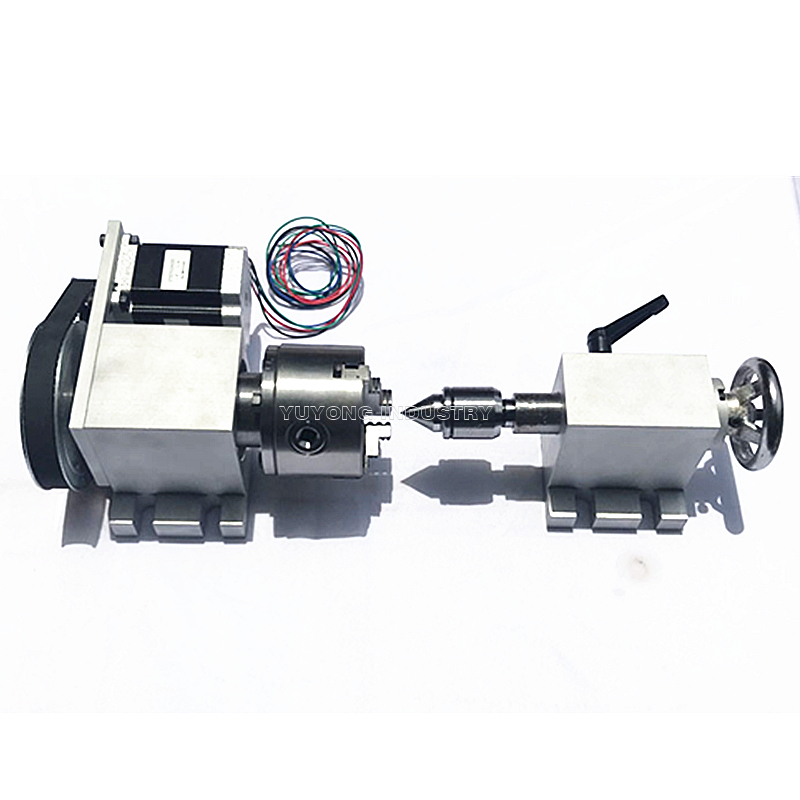

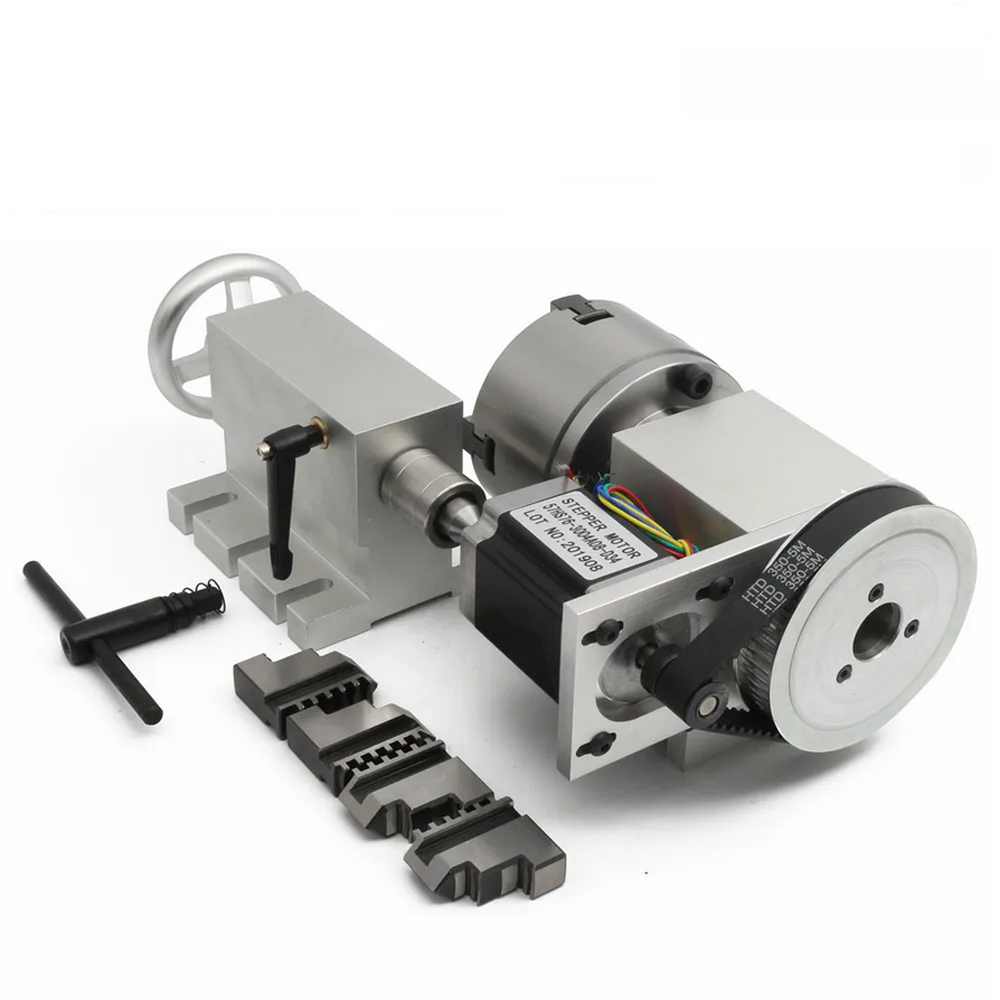

3 Jaw/4 Jaw dividing head cnc Rotation Axis activity tailstock A axis 4th Axis

Description

Specifications:

3 Jaw/4 Jaw:

• Model Number: K-80
• Chuck: 80MM 3-jaw/4-jaw chuck
• Center height: 65MM
• Speed reducing ratio: 6:1
• Stepper motor: Two phase 57 stepper motor
• Size: 205MM*168MM*117MM
• Weight: 6KG

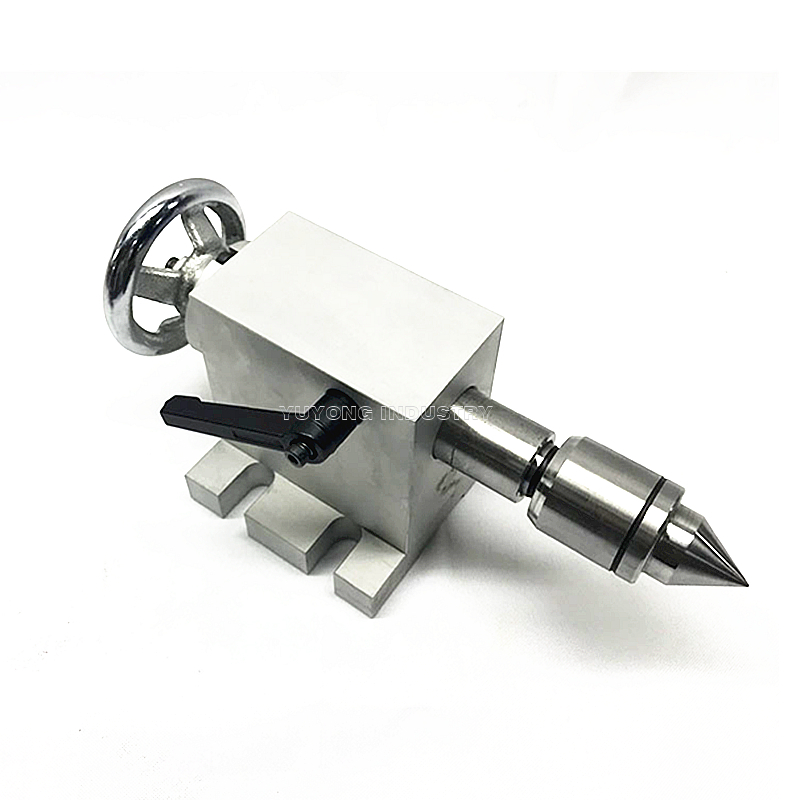

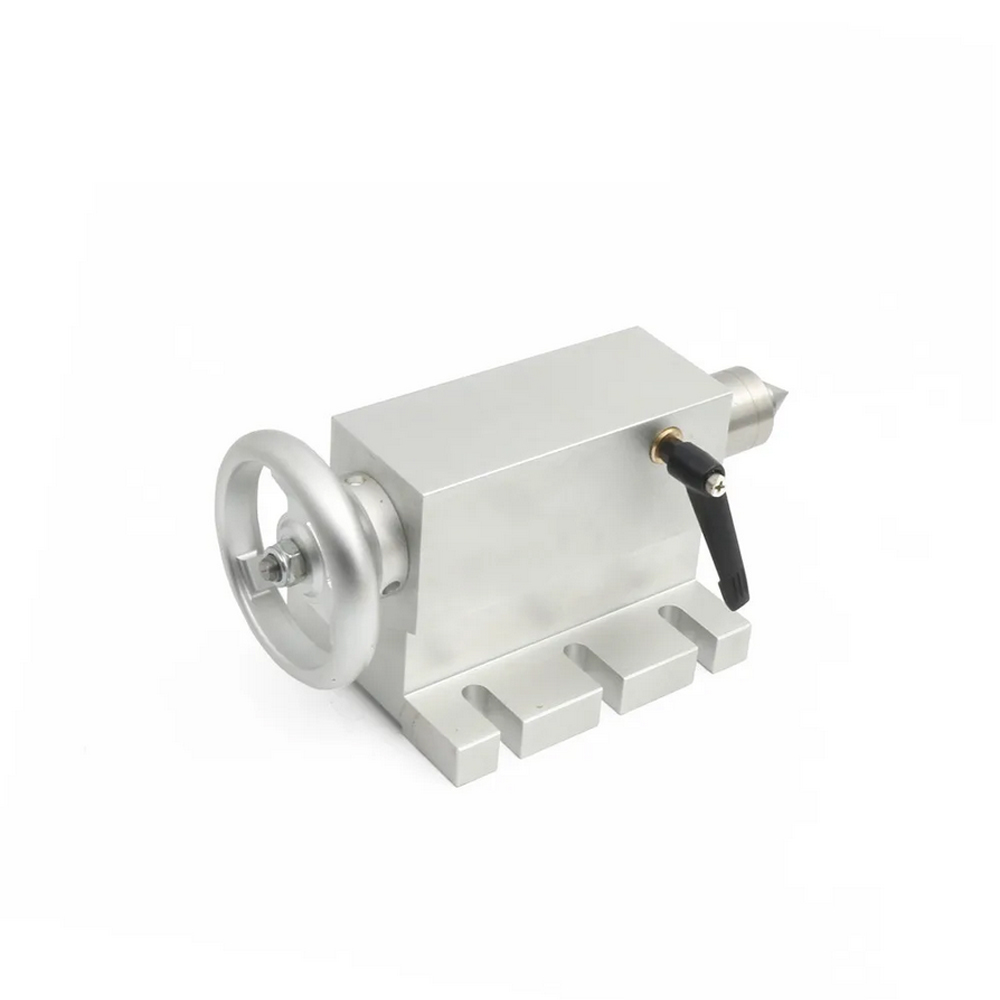

Tailstock:

• Center height: 65MM
• Telescopic stroke: 35 mm
• Weight: 2KG

Please note:

We do NOT provide technical support or assembly manual for this Rotary Axis, it needs to be configured to suit your application by yourself.
