Description
The Lead CNC Machine is the result of years of experience, feedback,and suggestions,and through rigorous beta testing and staying true to the modular nature of YUYONG INDUSTRY Linear Rail system.
It has been designed from scratch, and can accurately cut foams, woods, plastics and aluminium to 0.05mm accuracy or better.
The LEAD CNC has proven itself as a workhorse capable of not only cutting large/hard material cuts, but also having the ability to transform and grow into any configuration.

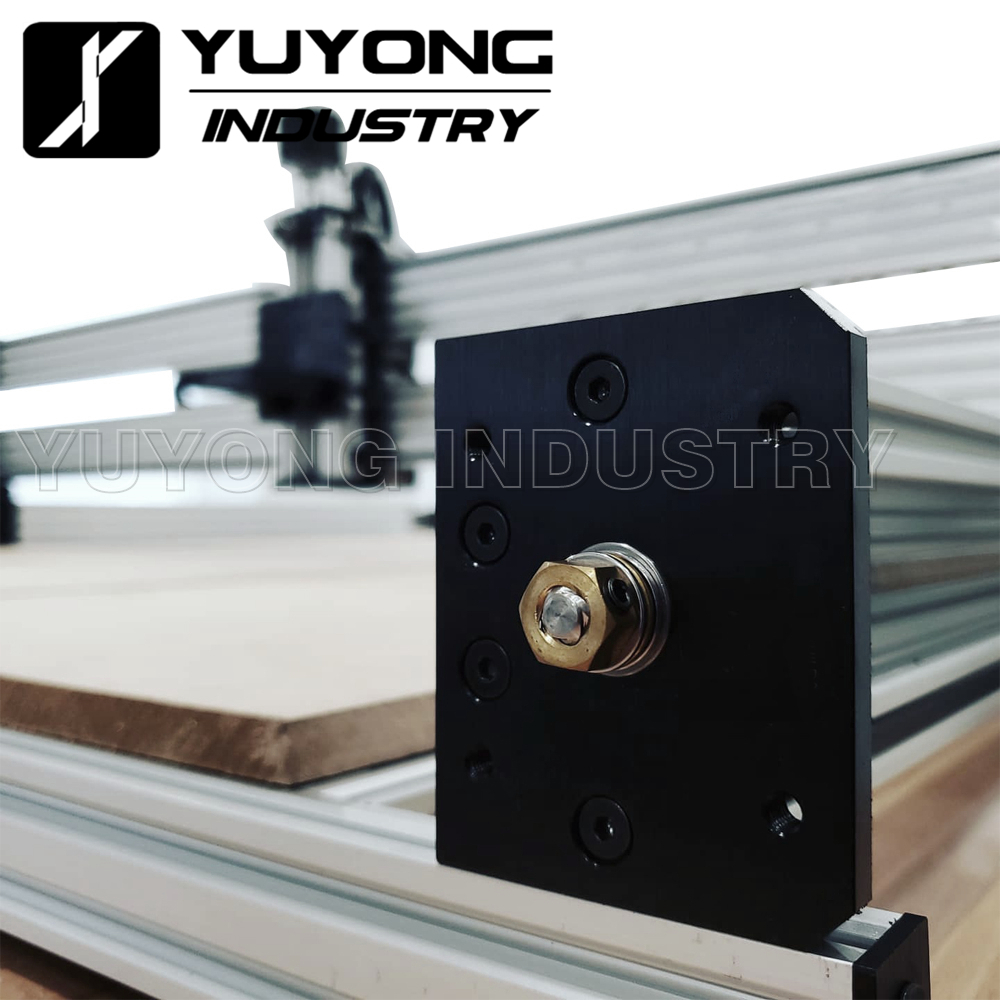

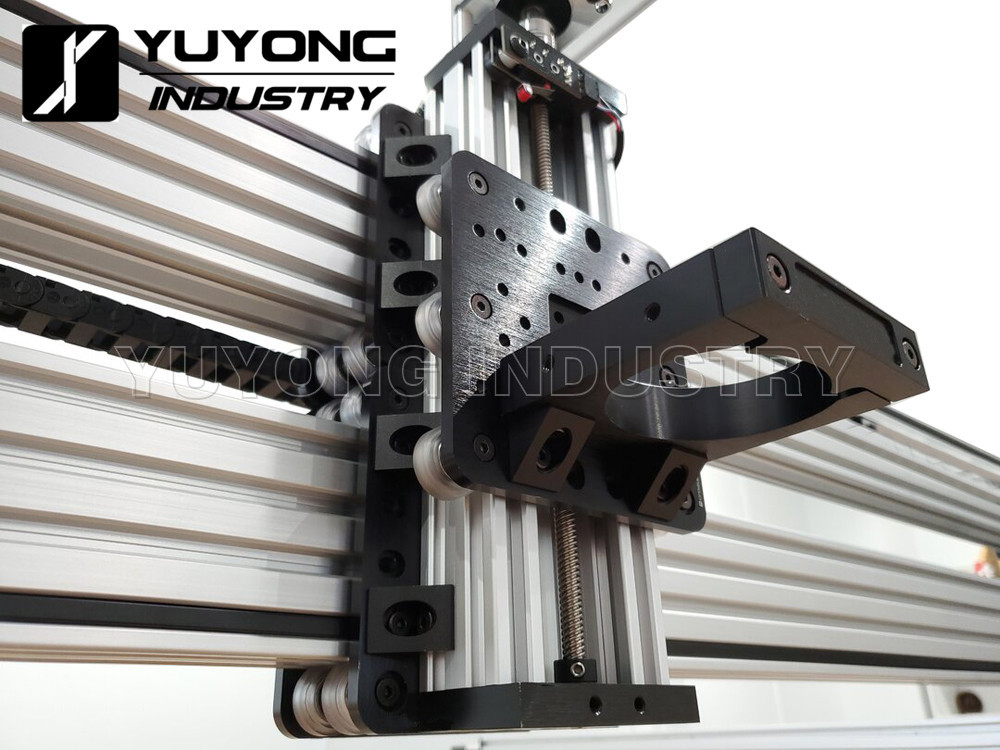

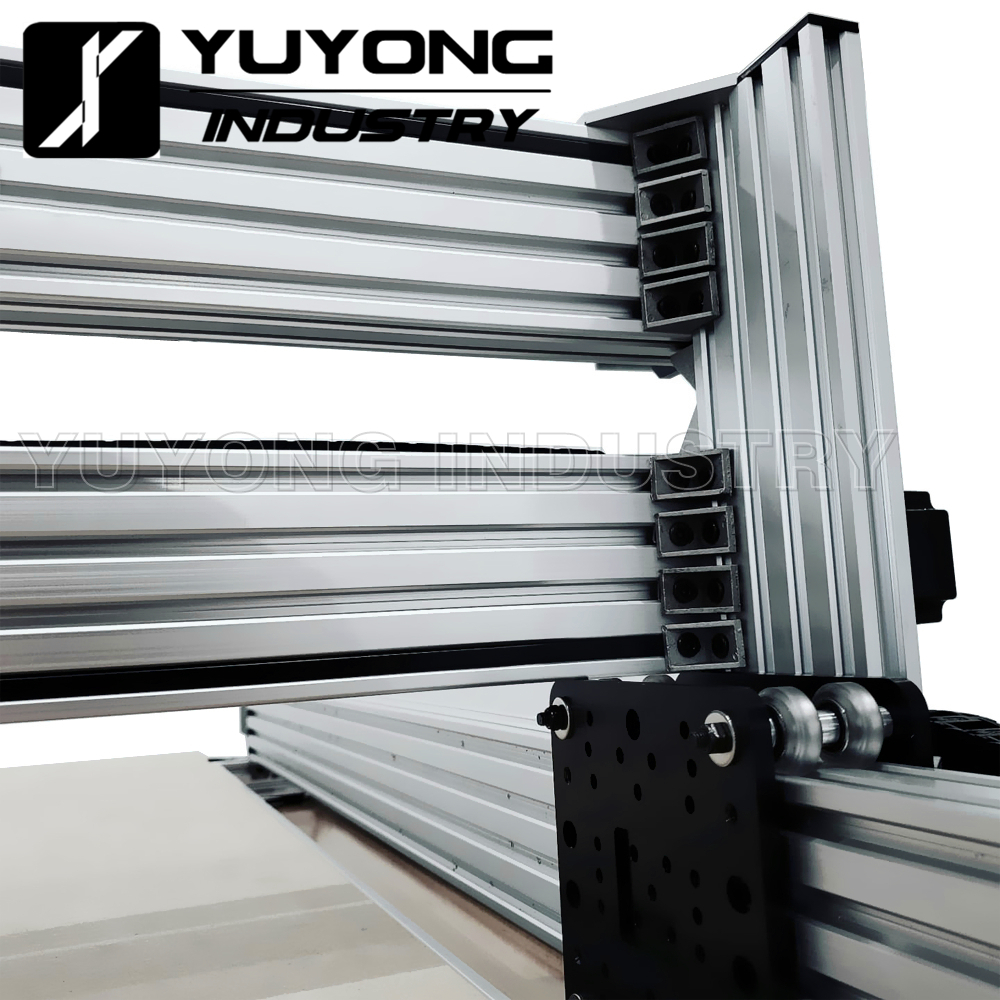

In order to let the Lead CNC more stable and stronger,then BELLWether Lead CNC Born! Many precise upgrades on Frame,Tensioning,Hardware Part etc to make this machine More Perfect!

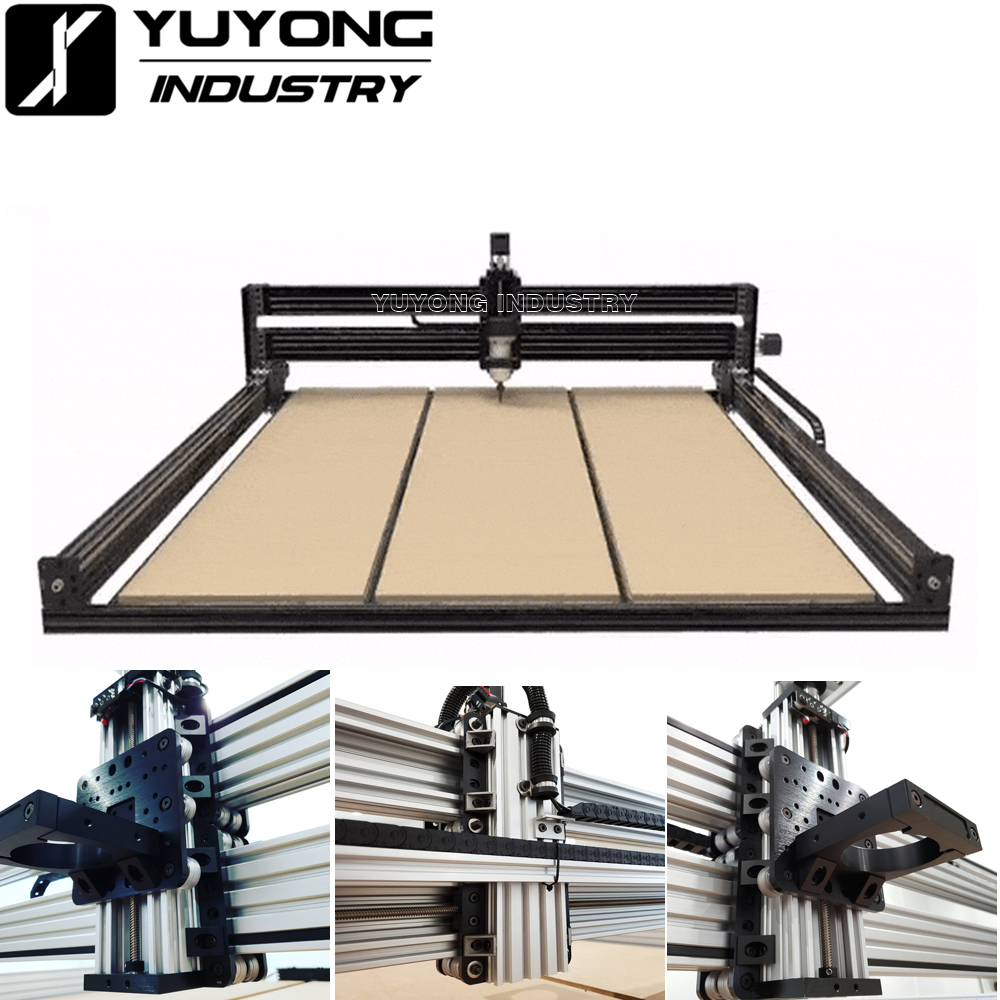

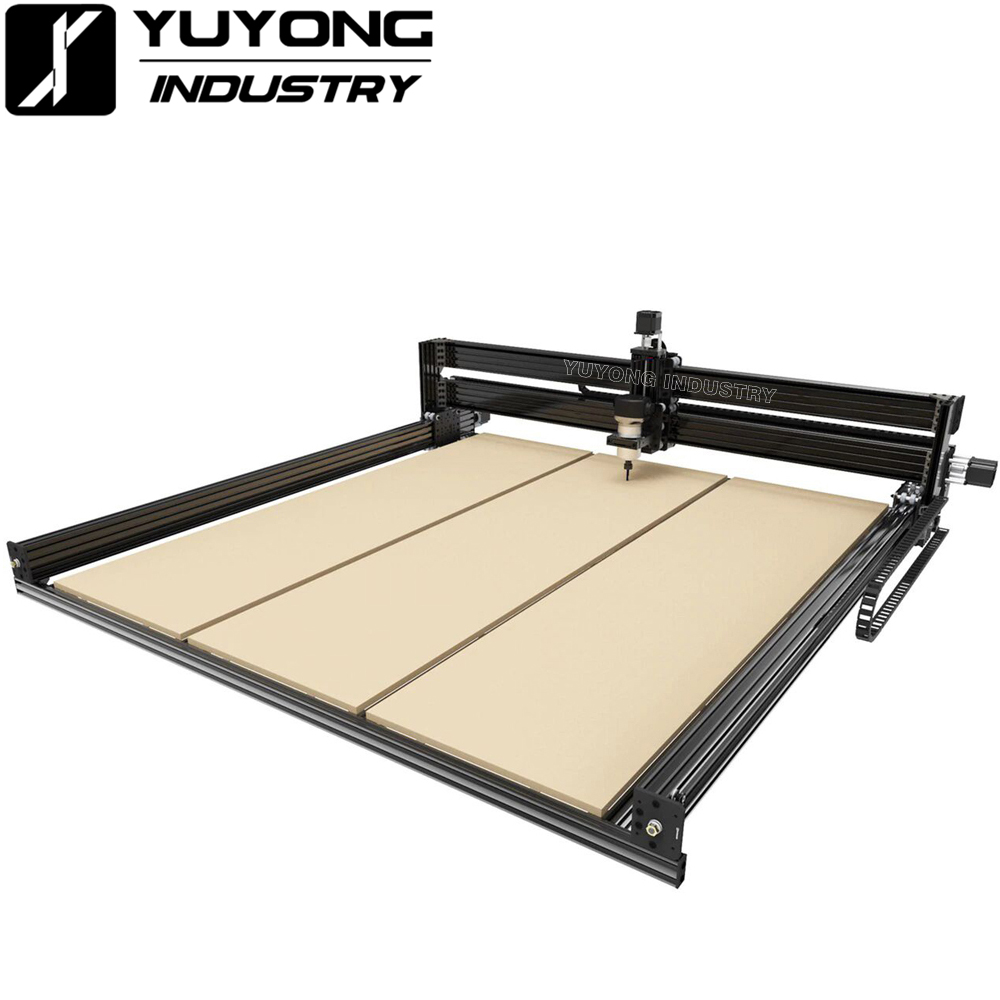

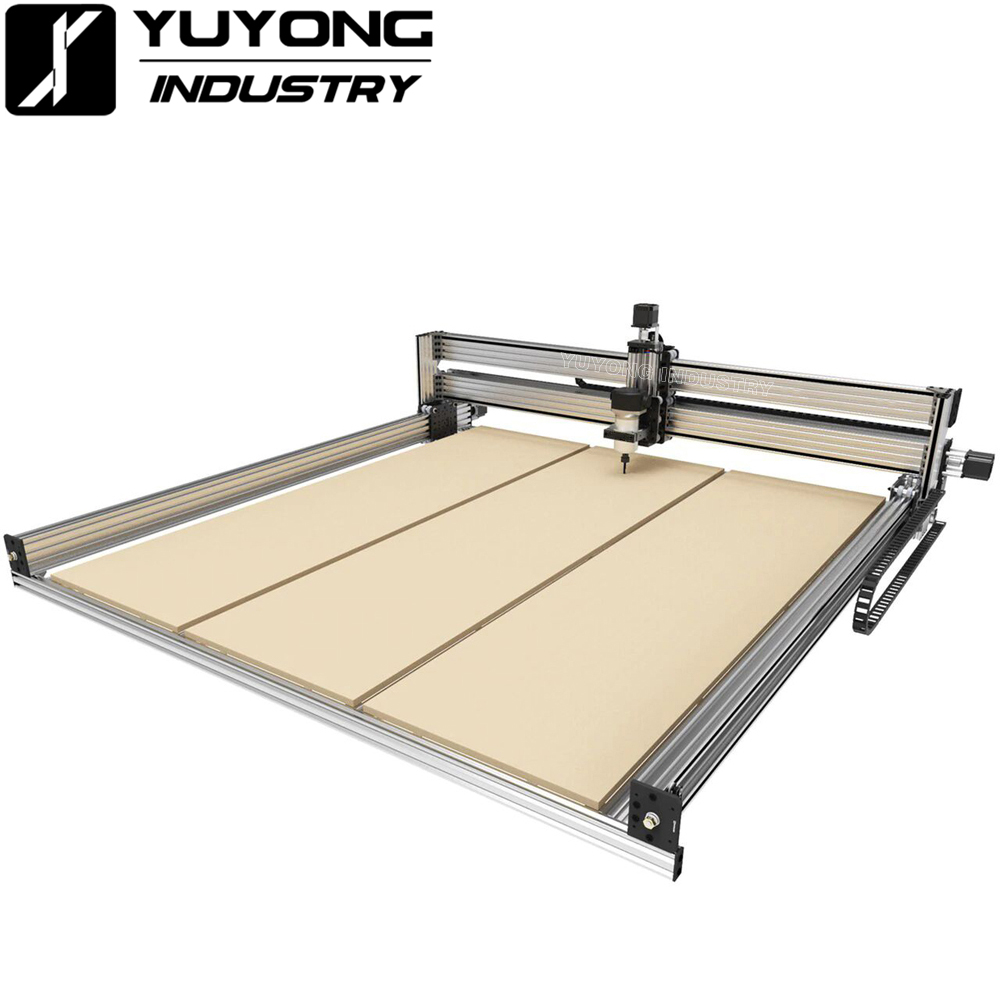

The BELLWETHER Lead CNC is a large, fully capable, rigid machine ready for you to put into production. It’s powerful and has high-resolution output to get the job done time and time again.

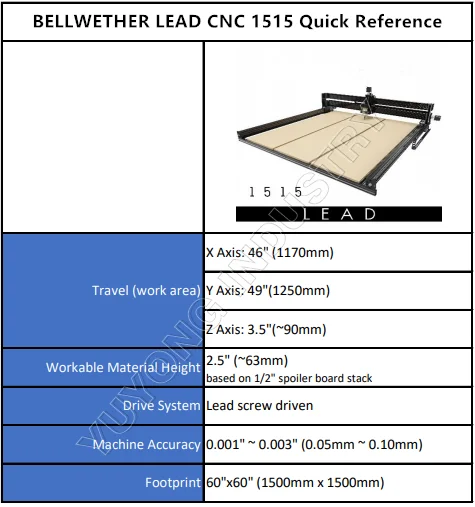

Create large projects with 4’x 4’ sheets of material and Cut or 3D carve wood, plastics, aluminum, etc. to create big and beautiful intricate 3D carvings, inlays, furniture, signs, plaques, amazing works of art and so much more.
At this amazing price point, there is no doubt that the LEAD 1515 will be a staple in workshops everywhere.
Compatible Material for Cutting/Milling/Engraving:
-
Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam
The Kit Includes:
- Bellwether Lead CNC Mechanical Kit
- 4xNema 23 Stepper Motors(Optional) or 4x Close-Loop Motors and Drivers(Optional)
-

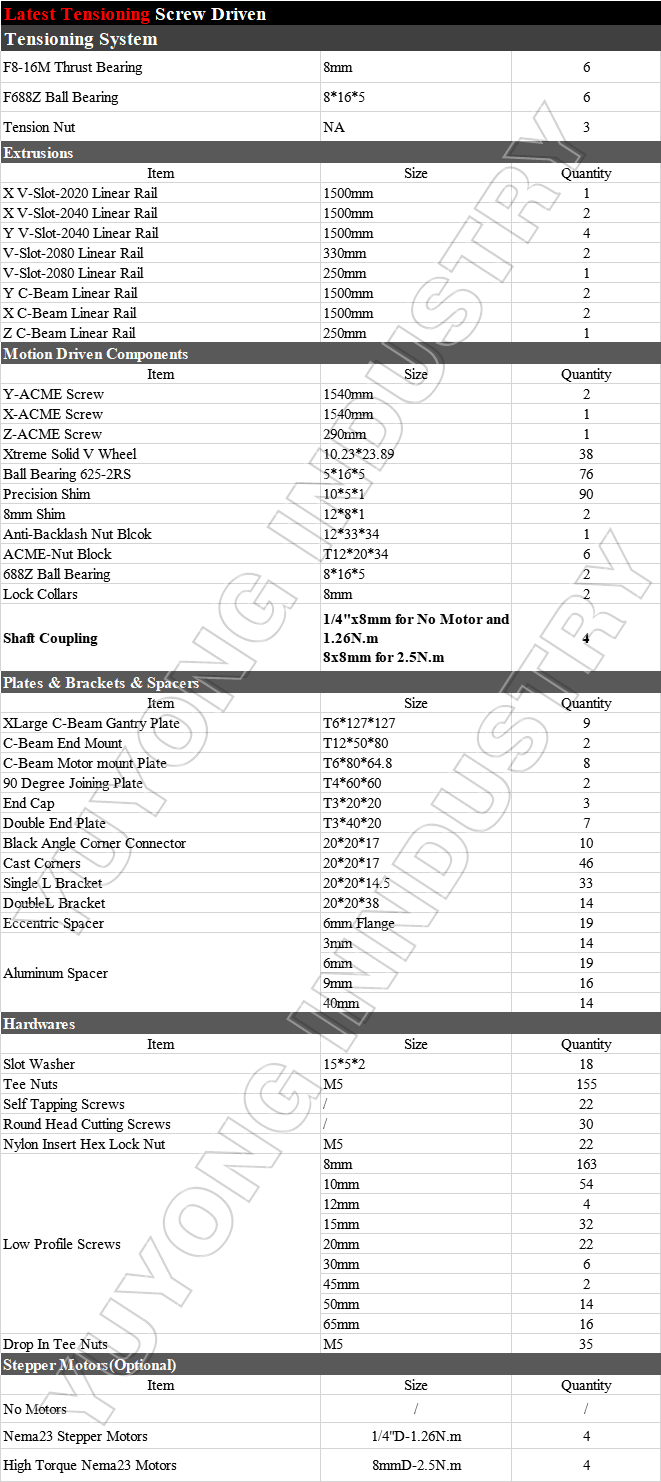

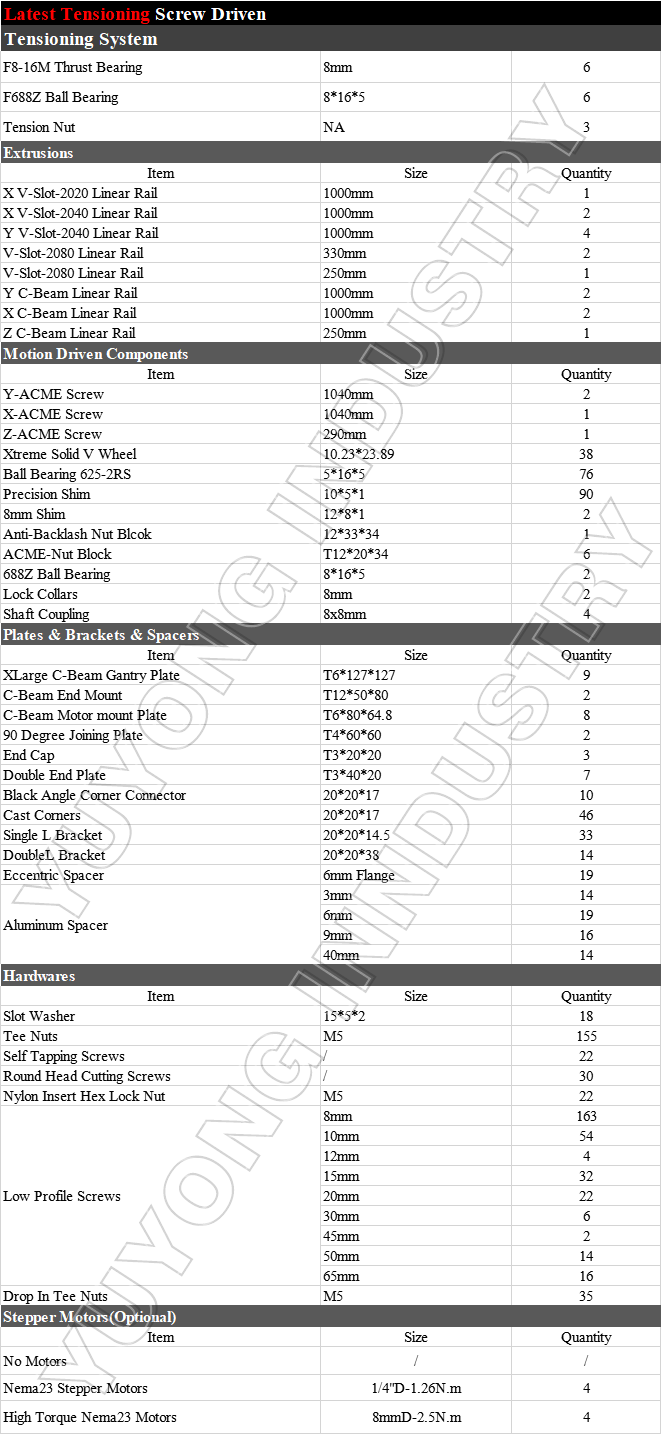

The Bellwether LEAD CNC Mechanical Kit Specs:
Specs of 1.26N.m Nema23 Stepper Motor:
- Nema 23
- Shaft Size: 1/4″
- Step Angle: 1.8
- Holding Turque: 175 oz*in
- Rated current: 2.8A
- Specs of High Torque 2.45N.m Nema23 Stepper Motor:
- Nema 23
- Size:57x57x83mm
- Phase Number:2 Phase
- Shaft Size: 1/4″
- Step Angle: 1.8
- Holding Turque: 2.45N.M(＞345Oz.in)
- Rated current: 3A

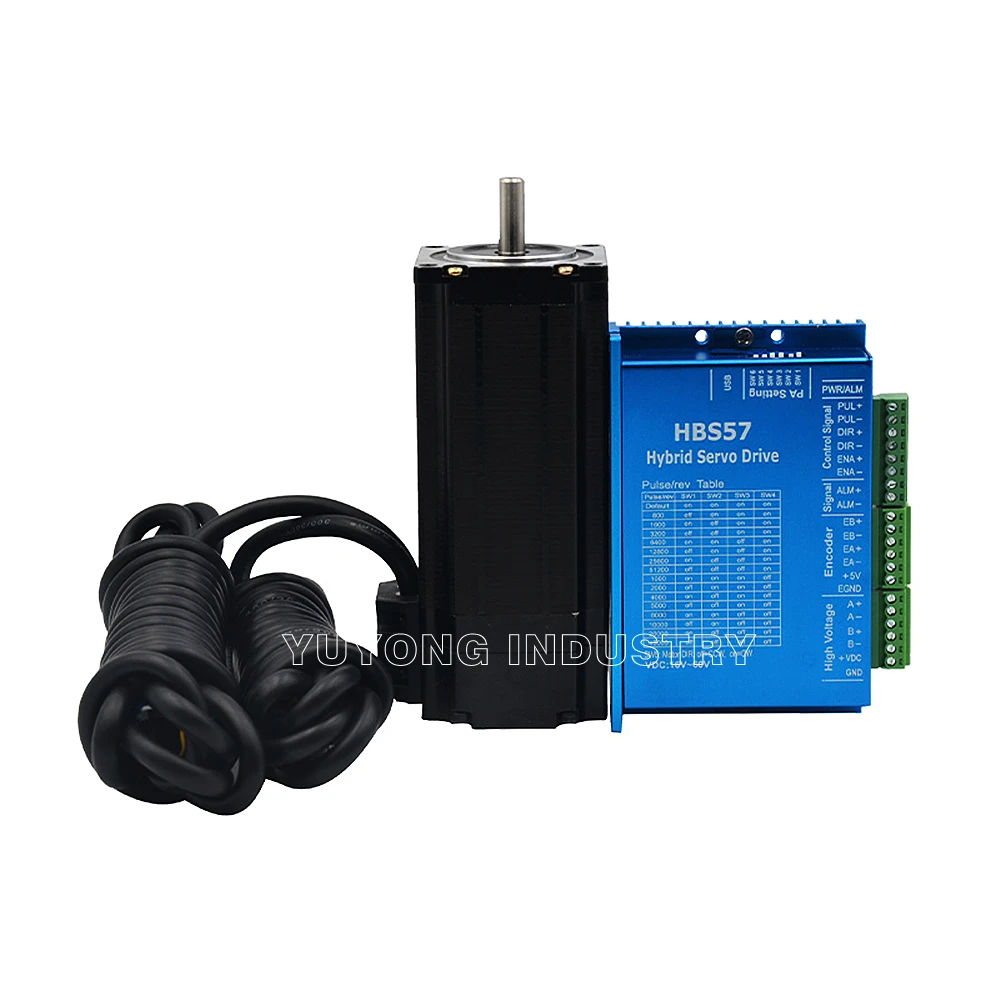

Specs of Close-Loop Stepper Motors and Close-Loop Drivers:
Drive characteristics:
- Model:HBS57
- Type: DSP Closed loop stepper drive
- Maximum peak current: 5A
- Impulse response frequency: 200KHz
- Micro-stepping driver: 2-256ppr
- Voltage: DC16-80V
- Protective function: Over voltage, over current, tracking error, over proof
- Signal input Compatible:5-24V signal (Don’t need a resistor)
- Control Way: 32 bit DSP Vector Closed Loop
- Advantage: No step to lose, Low noise, little vibration and high efficiency, low heat
Motor electric parameter:
- Shaft Diamater:8mm
- Step angle/phase: 1.8 Degree
- Hold torque: 2.45N.m/3.6N.M
- Encoder: 1000line
- Rated voltage/current: 4.2A
- Resistance: 0.85ohm
- Inductance: 3.6mH
- Class of insulation: B
