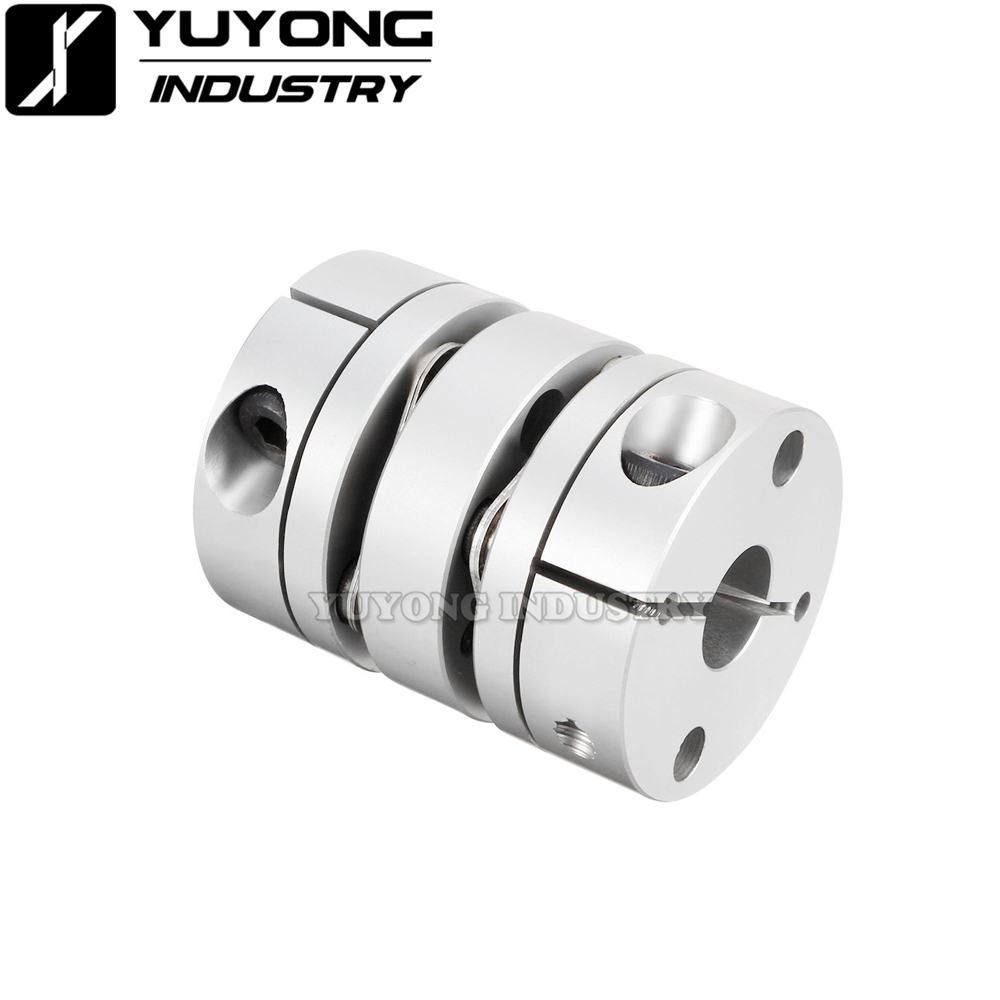

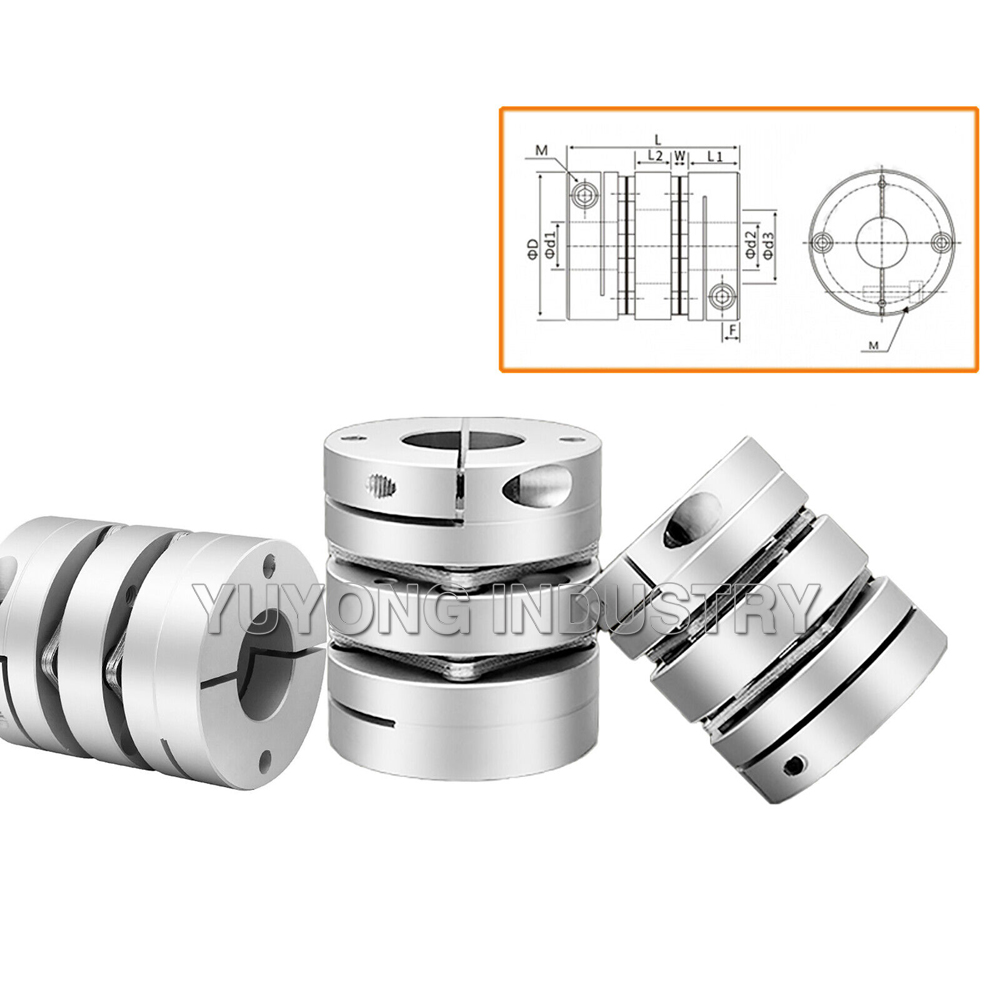

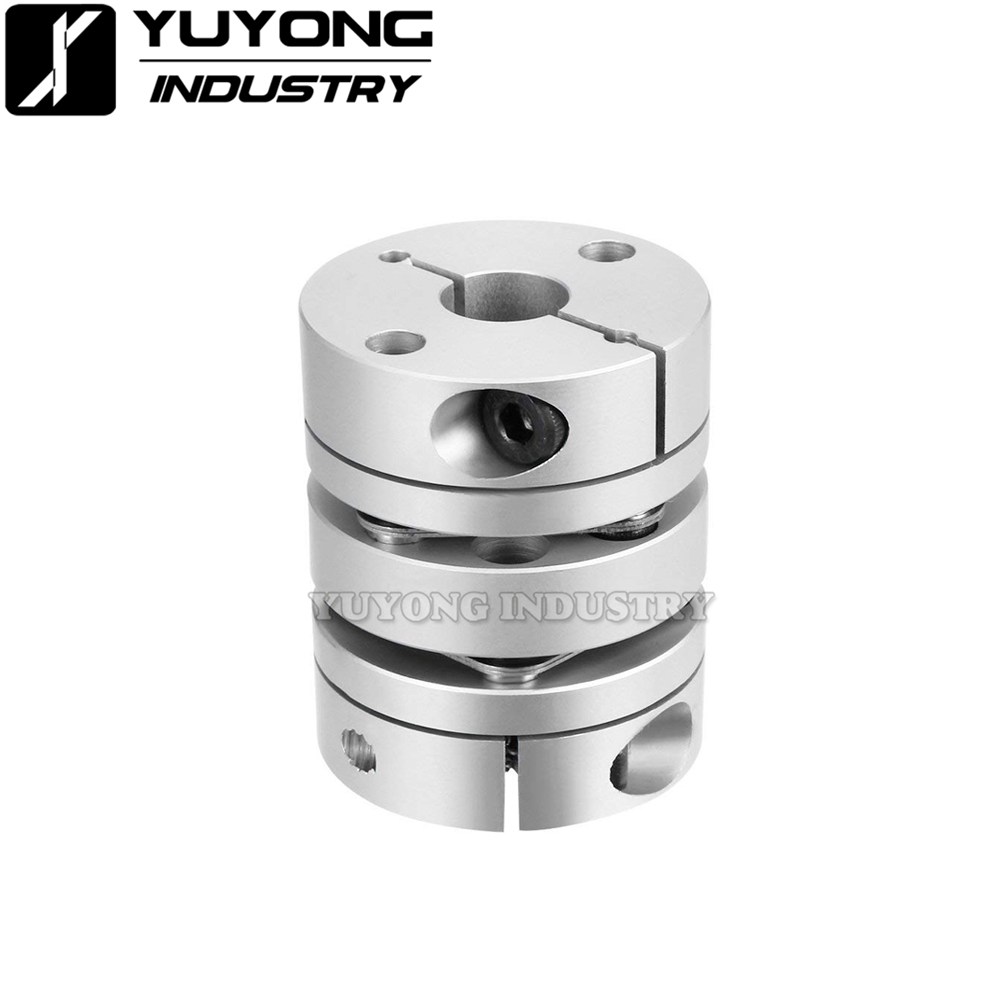

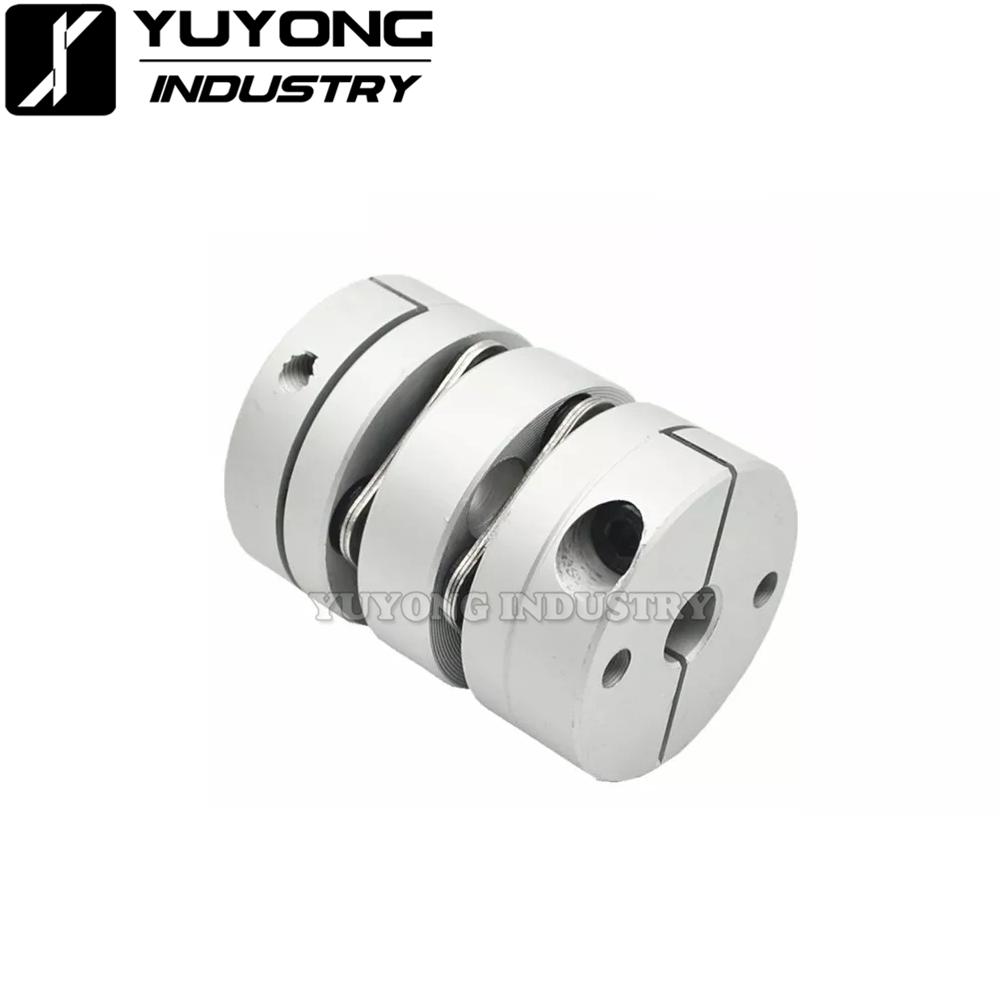

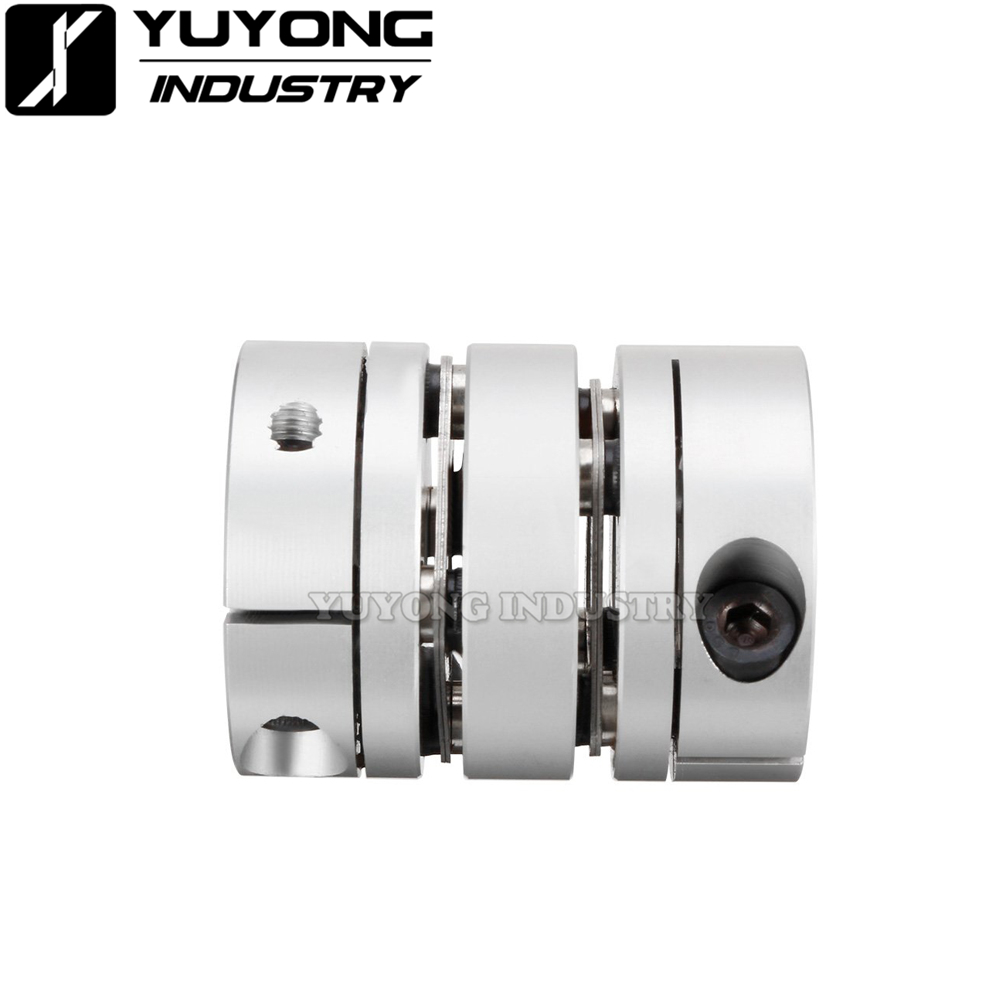

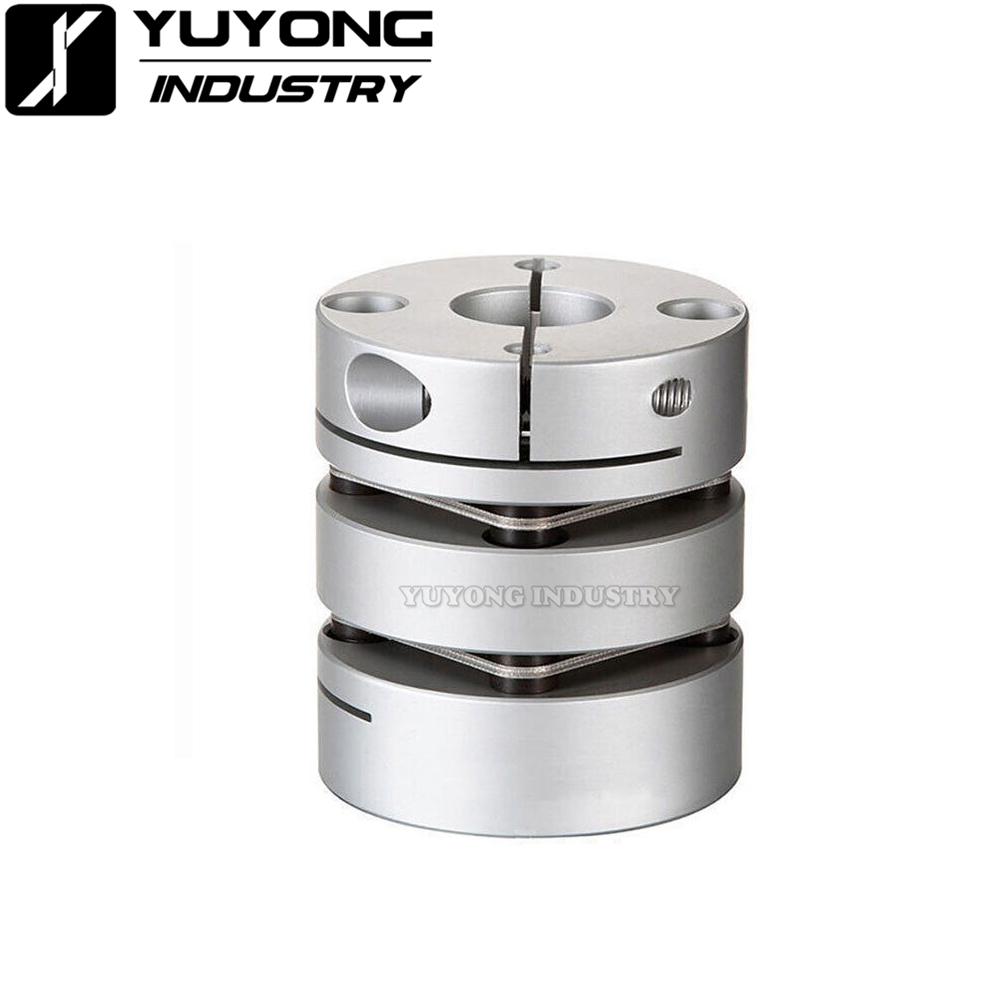

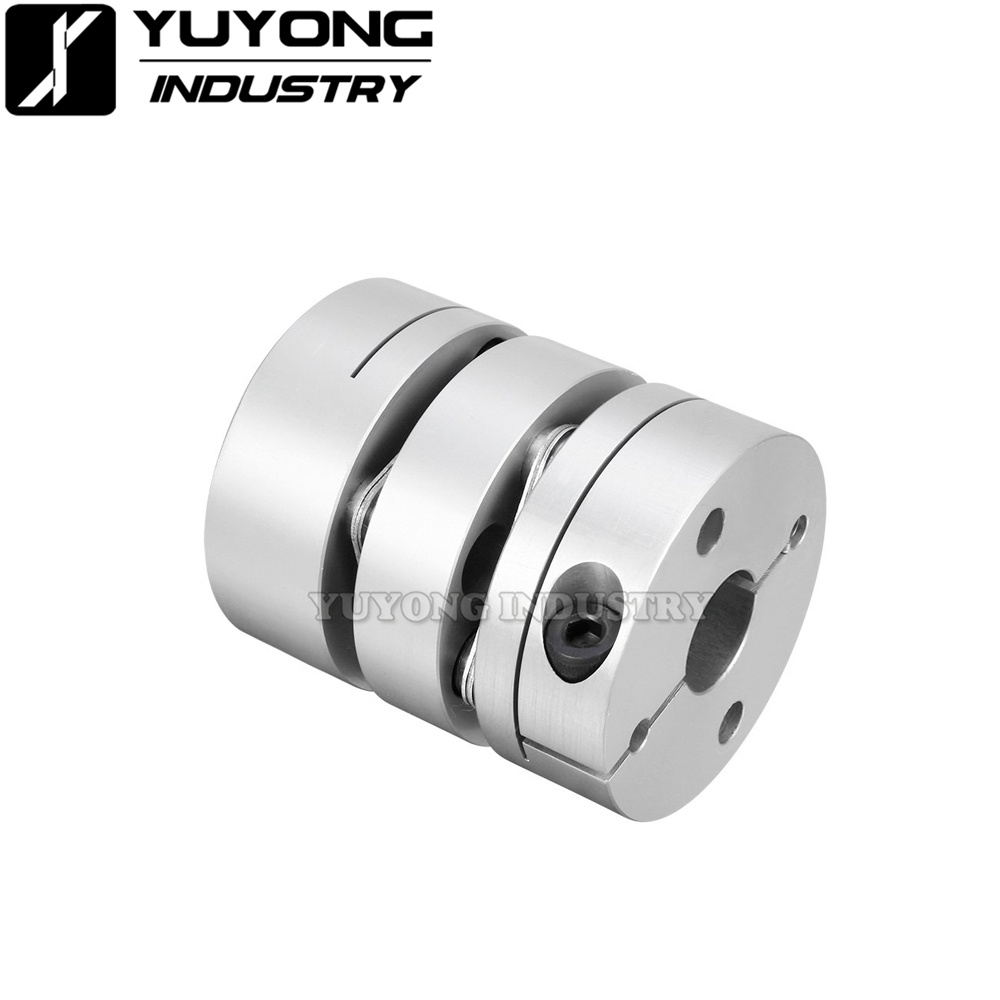

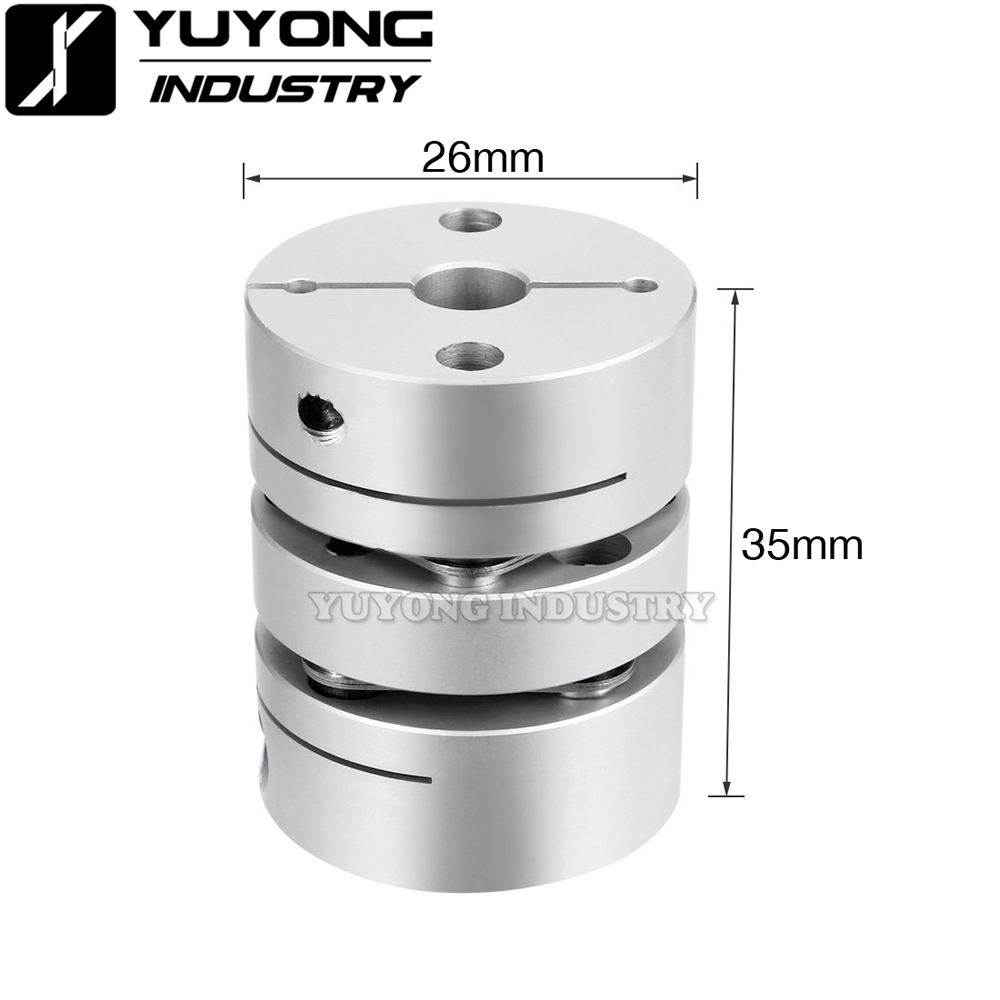

Diaphragm Coupling D26L35

Description



Features:

1. concise structure, tight connection, easy to disassem.

2. High torsional rigidity, can control precisely about spin of rod, it can process high precision control.

3. can excecut the accurate transmission speed, run correctly, can use in the transmission of precision machinery.

4. Stainless steel diaphragm can tolerate eccentricity, deflection angle, and shaft deviation, good fatigue resistance.

5. High efficiency transmission, can reach 99.86%. Especially used in medium and high power transmission parts.

6. Suffer high temperature(-80+300), it can work with a powerful and safety way in a hard environment.

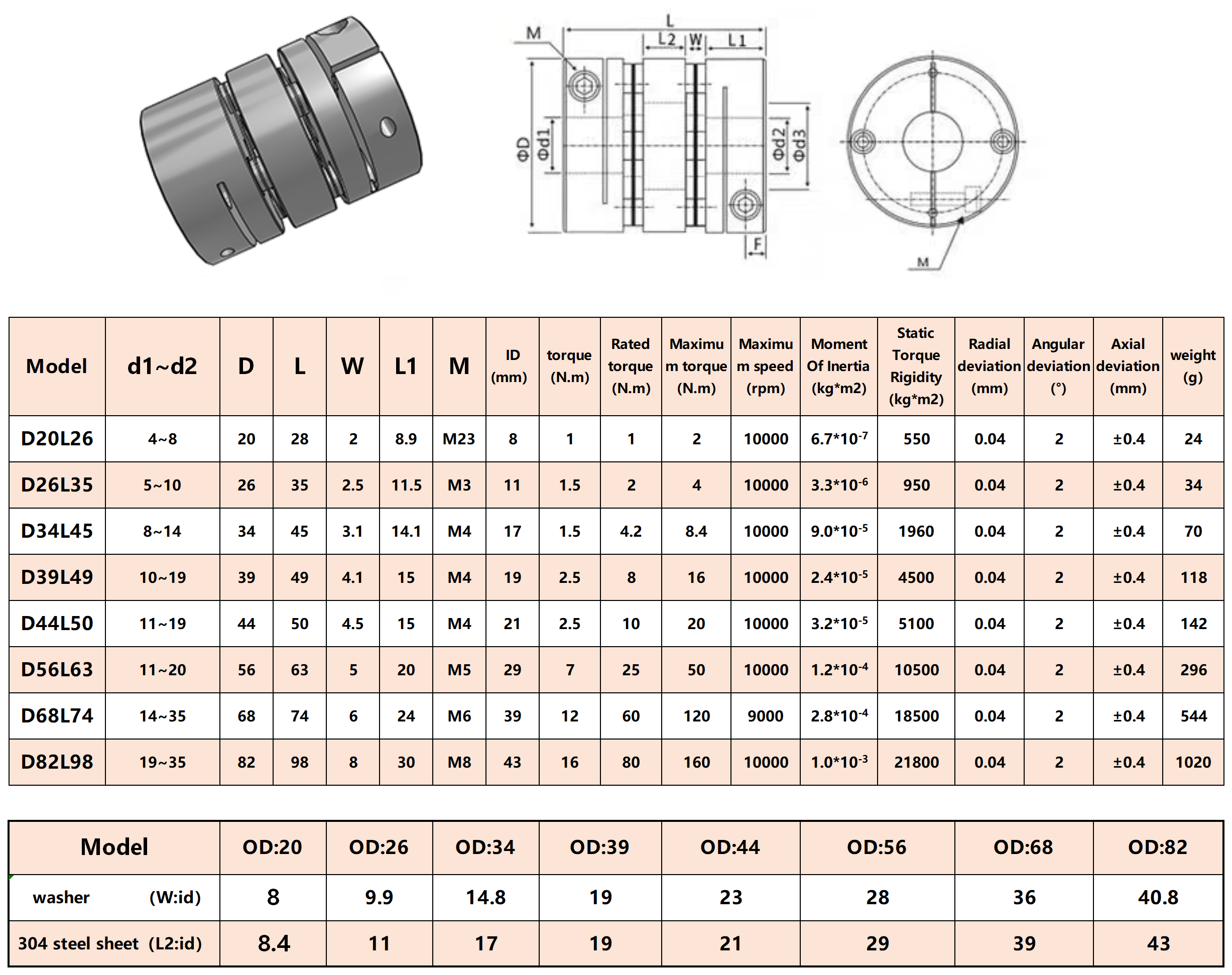

Specifications:

Type : Coupler

Diameter : 26mm

Length : 35mm

For example d1xd2 (mm) : 5*5 , 5*6 , 5*8 , 6*6 , 6*10 , 6.35*6.35 , 6.35*8 , 6.35*9.52 , 6.35*10, 6.35*12 , 8*8 , 8*10 , 9.52*9.52 , 9.52*10 , 10*10

Material : Aluminum alloy

Package content : 1 coupling
