Description

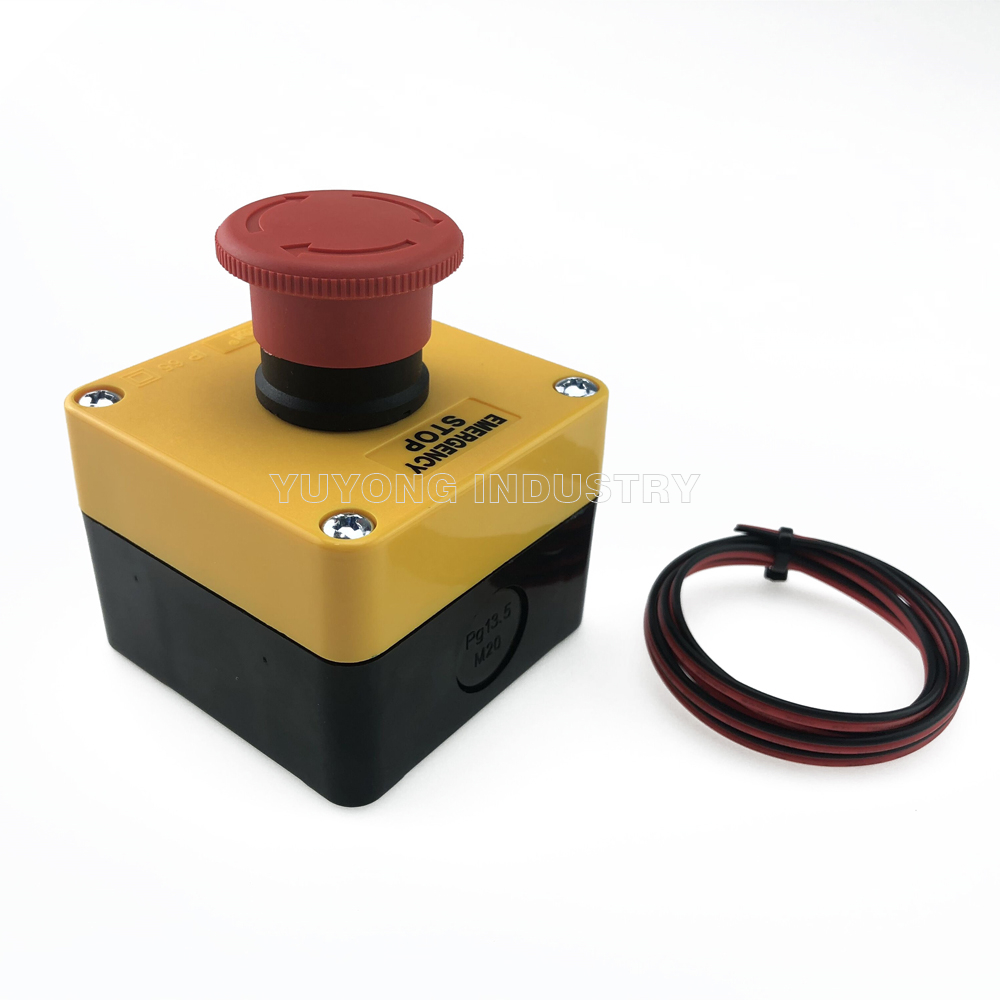

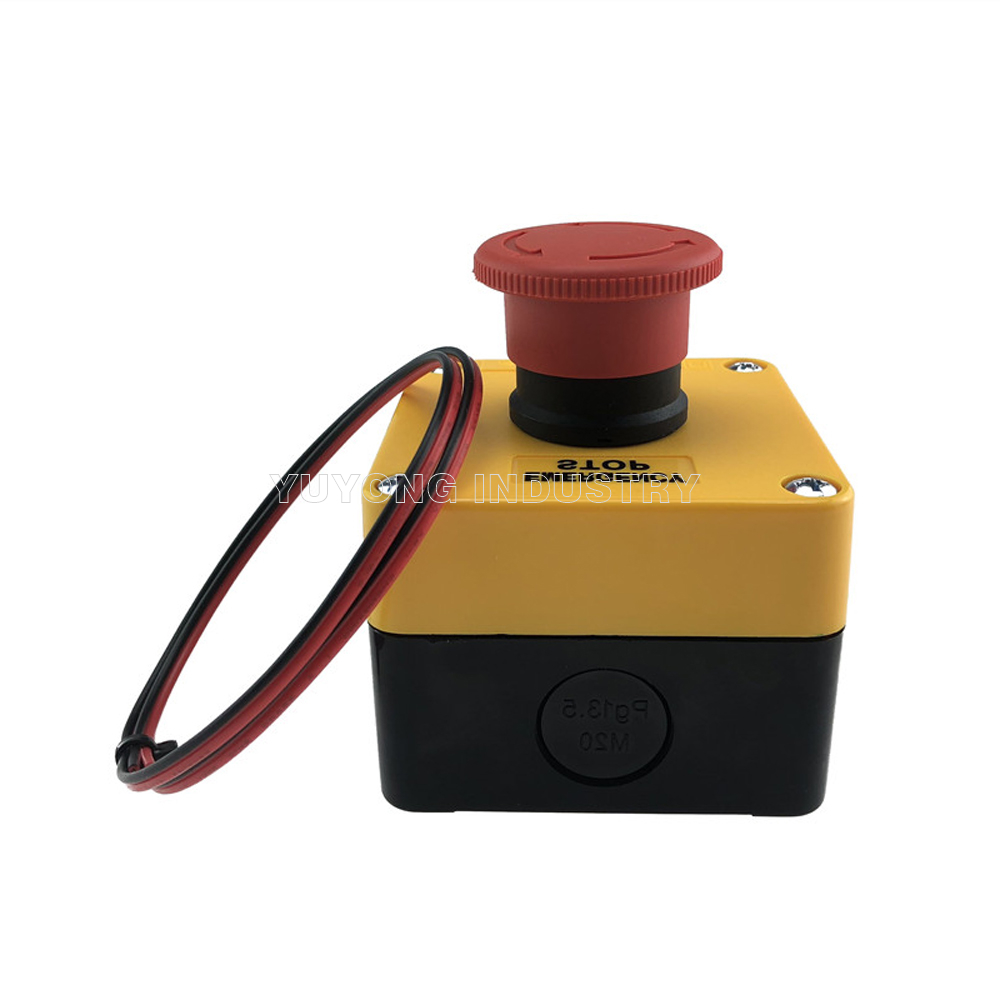

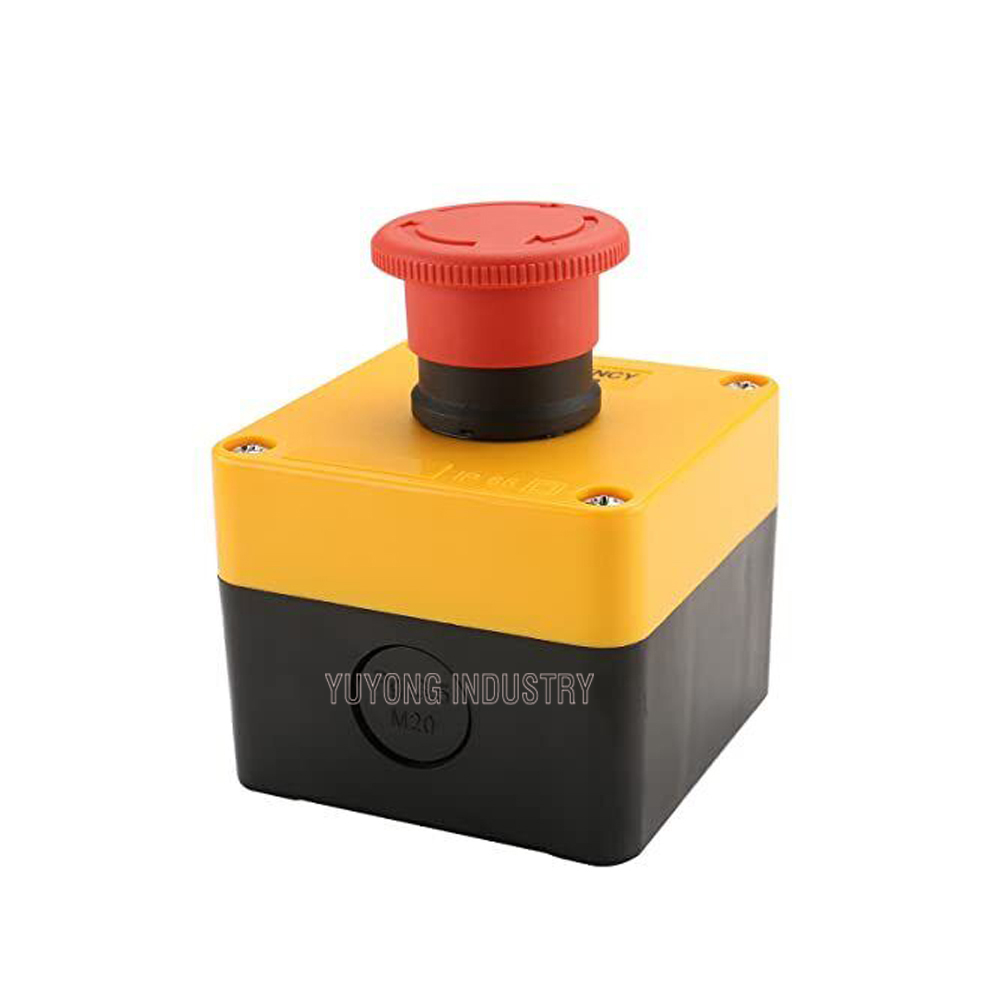

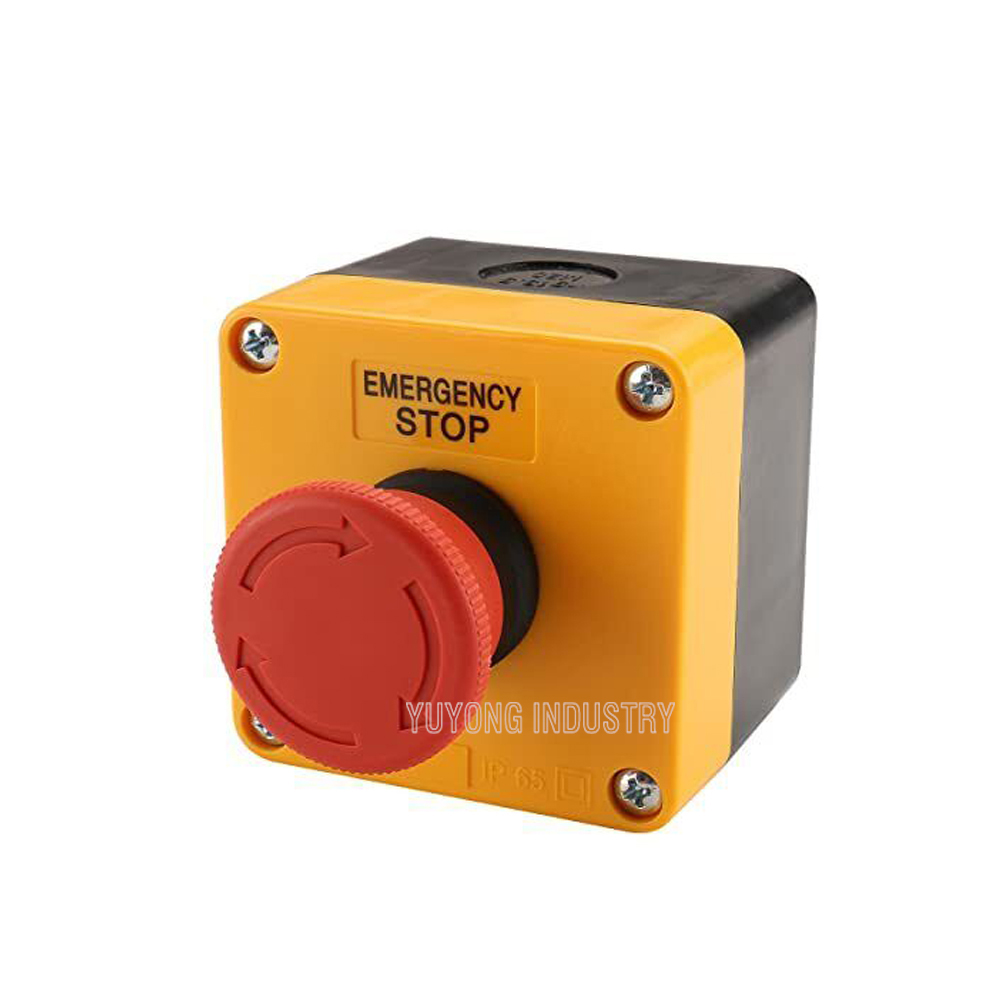

Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency.
When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.
Mechanical Specifications:
- Diameter of Red Mushroom: 40 mm
- Turn to release type

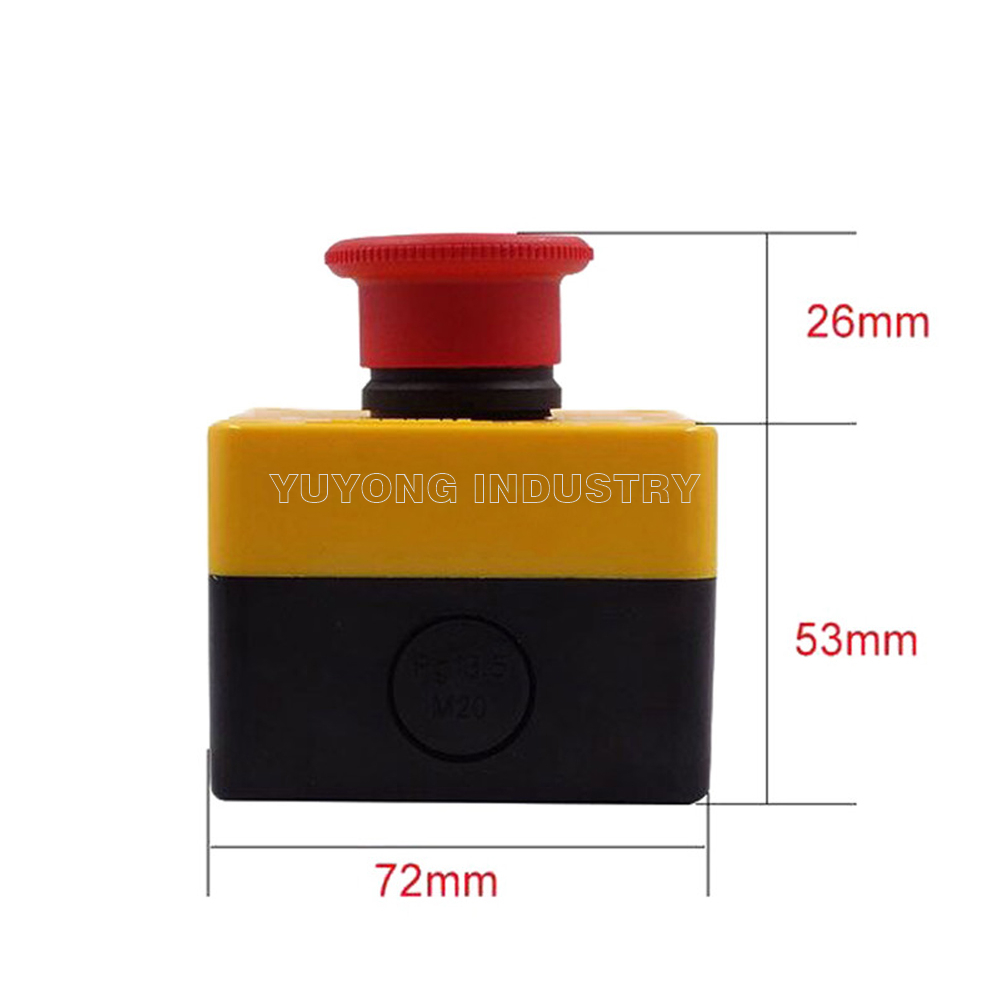

- Dimension: 66mm X 66m
- Torque: 0.9 Nms
- Waterproof and Impermeable IP65
- Mechanical Life: 300,000
Electrical Specifications:
- Ith: 10A, UI AC 660V.
- Rated Load: 220VAC/6A 380VAC/4A 660VAC/2A 440VDC/0.3A 220VDC/0.5A 110VDC/1A

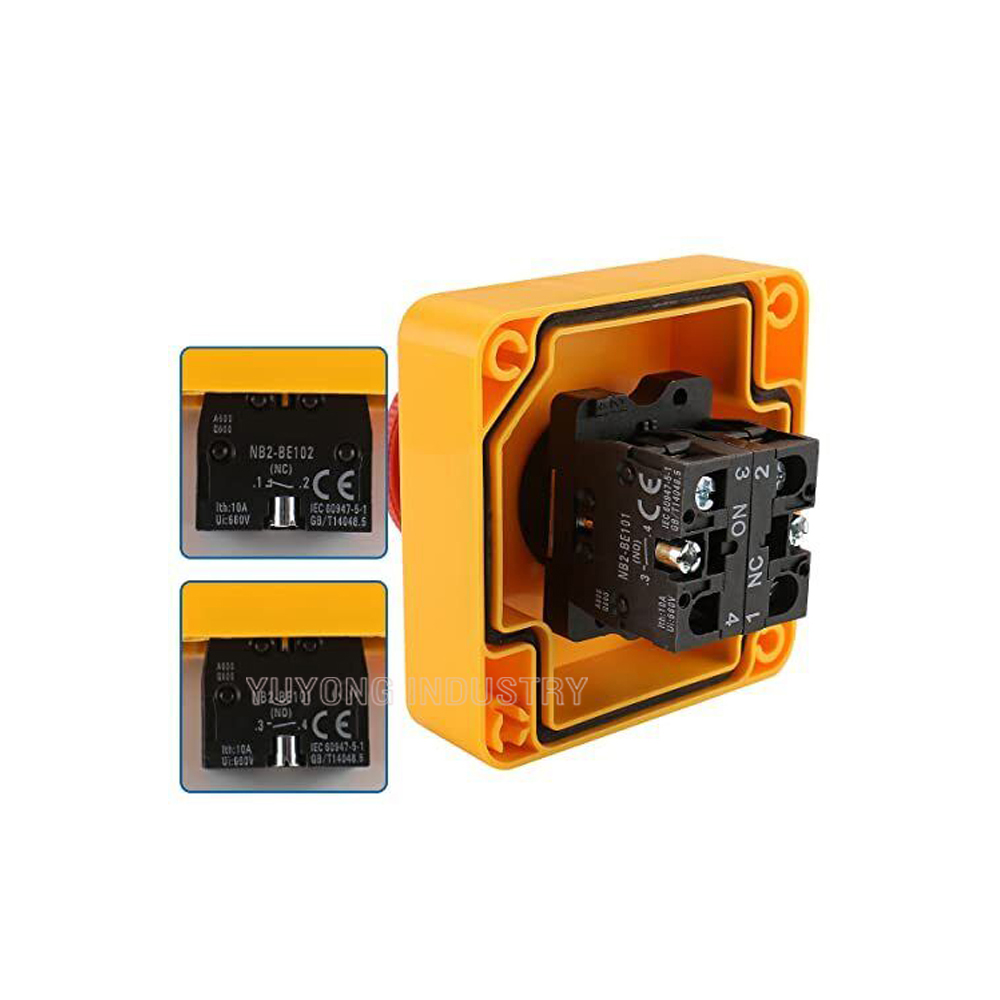

- TYPE: N/C
- Withstand Voltage: 2500V /60S
- Temperature: -25~+55
- Contact resistance: <25mΩ
Package Includes:

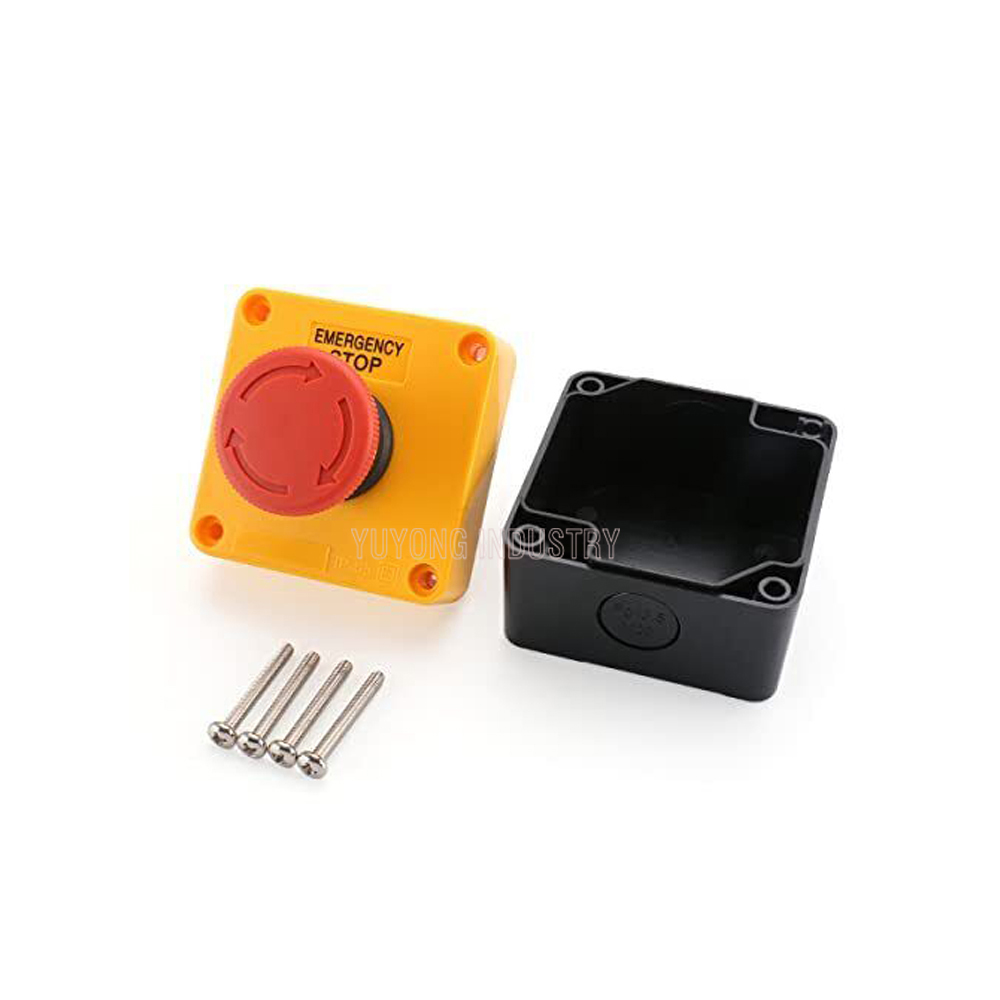

- 1xE-Stop Switch
- 1xE-Stop Cable
