F8-16M Axial Ball Miniature Thrust Bearing

Description

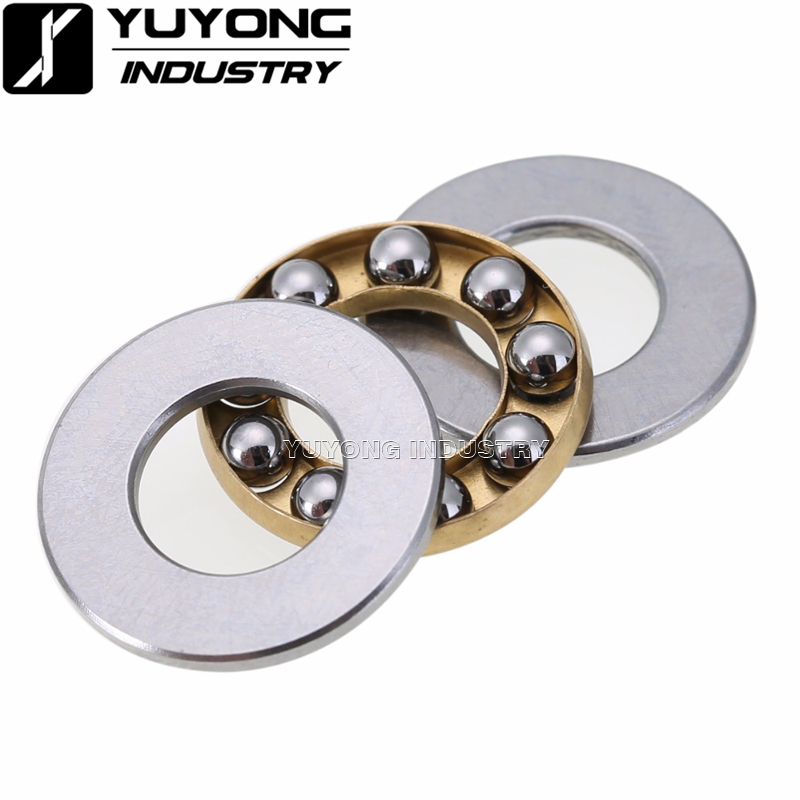

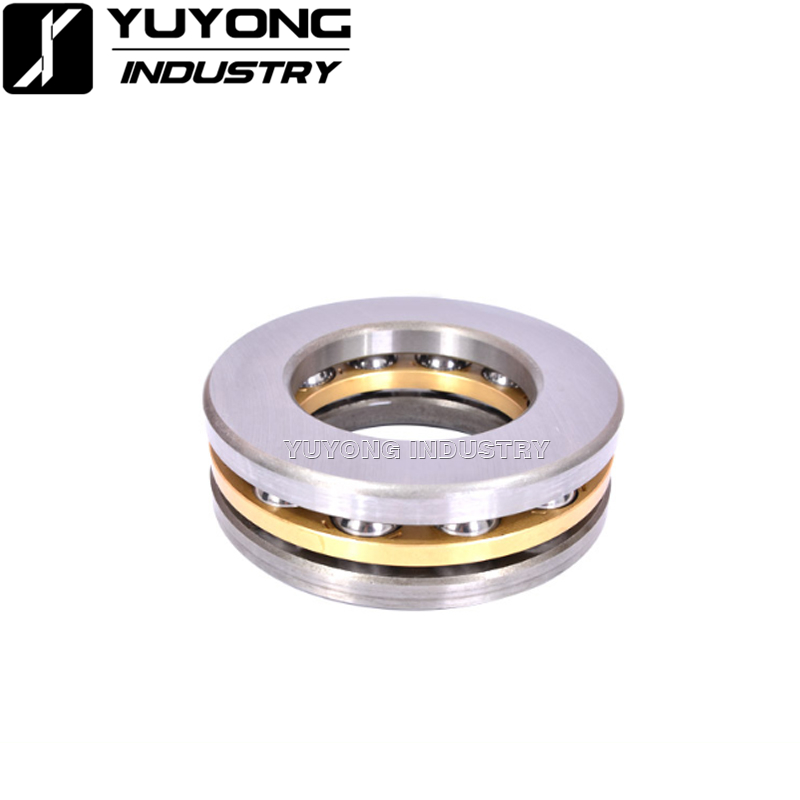

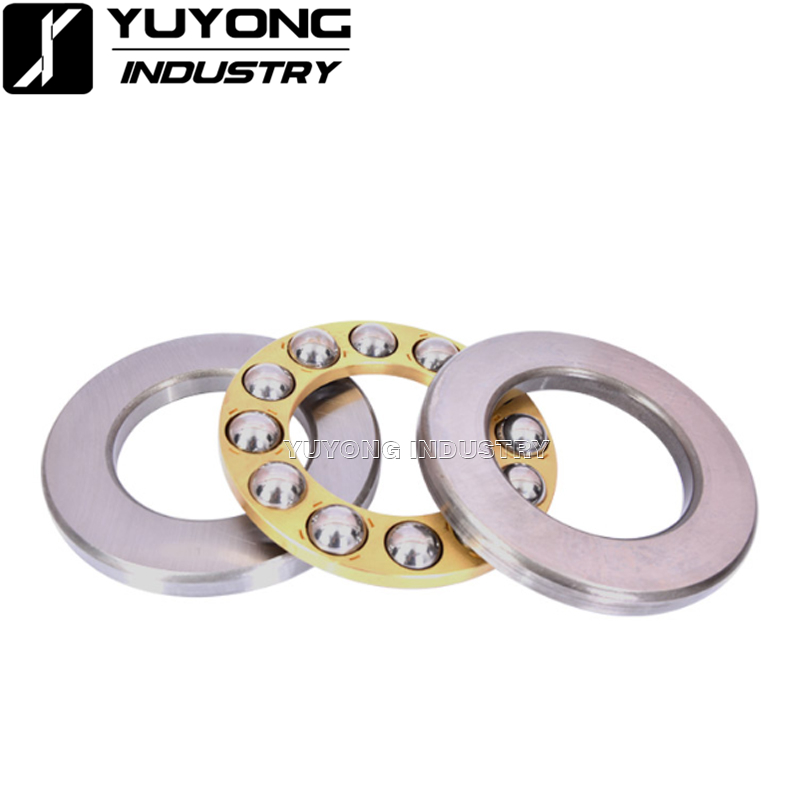

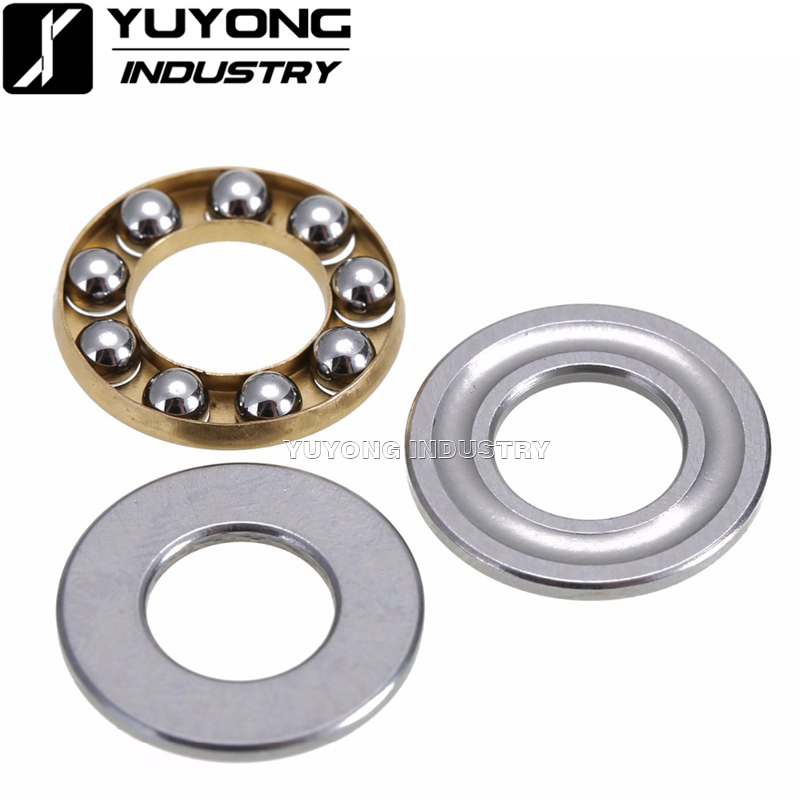

These F8-16M 8 x 16 x 5mm Thrust Bearings including two washers and a cage, the washers use high hardness chrome steel which can bear a large load.

These are great bearings and can be used in our Actuator Kits and C-Beam Kits

Specifications:

• Quantity: 10 pcs/lot
• Type: Thrust Bearing
• Material: Bearing Steel Gcr15
• Cage Material: Brass
• Outside Diameter: 16mm
• Inner Diameter: 8mm
• Thickness: 5mm
• Dynamic Load Rating (Cr): 2500 (Newtons)
• Static Load Rating (Cor): 3000 (Newtons)
• Max Speed (Grease): 4000 RPM
• Max Speed (Oil): 8000 RPM
