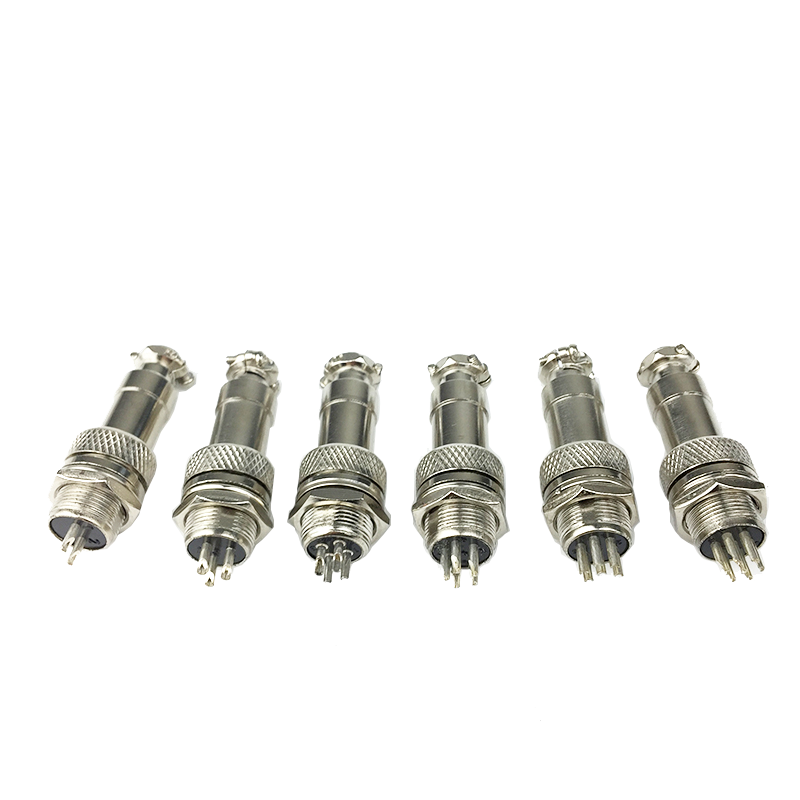

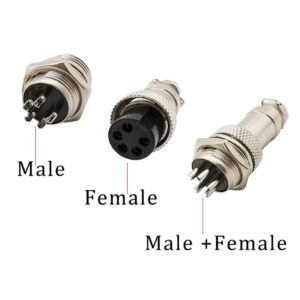

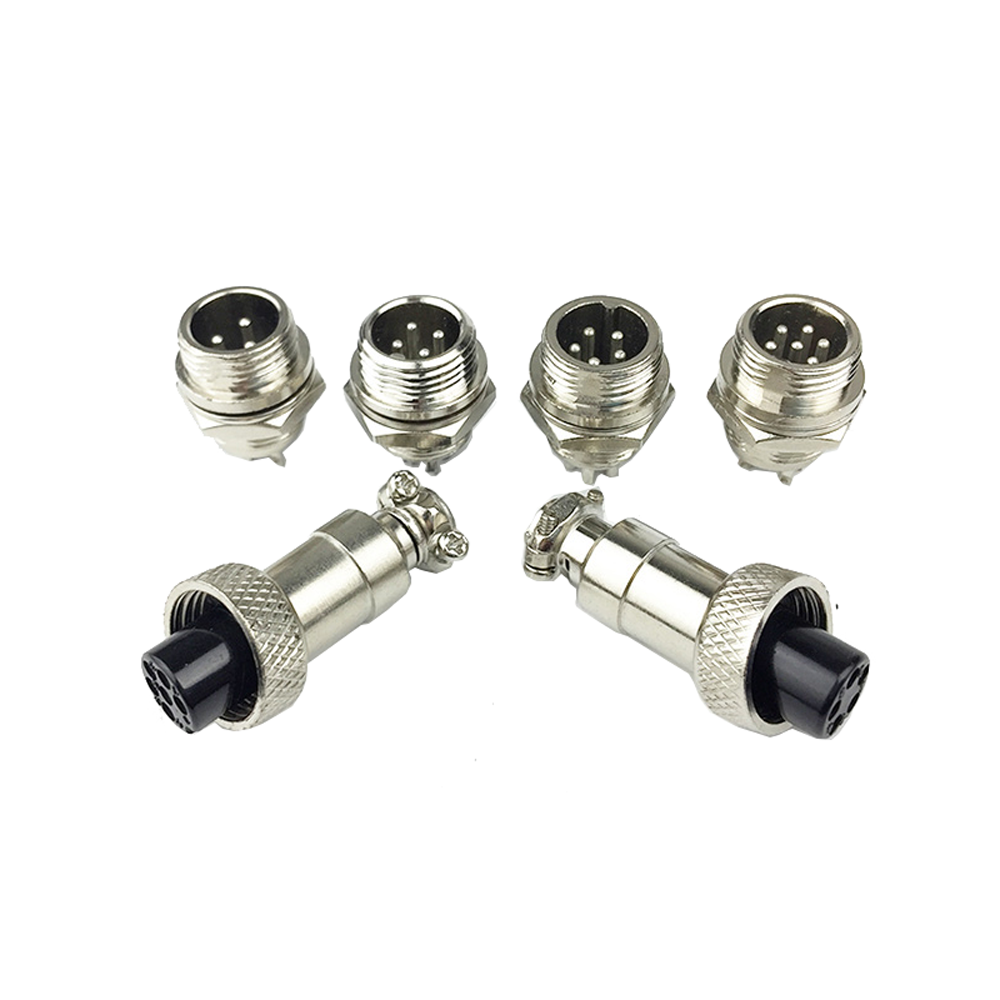

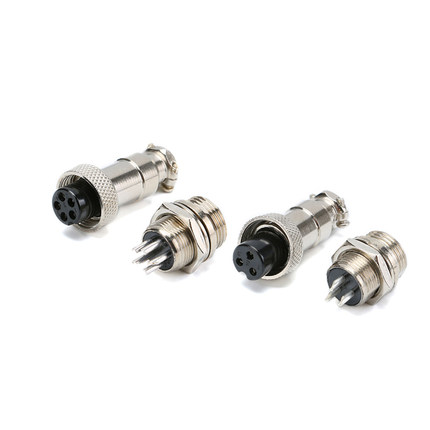

GX12 Male And Female Connector

Description

Feature：

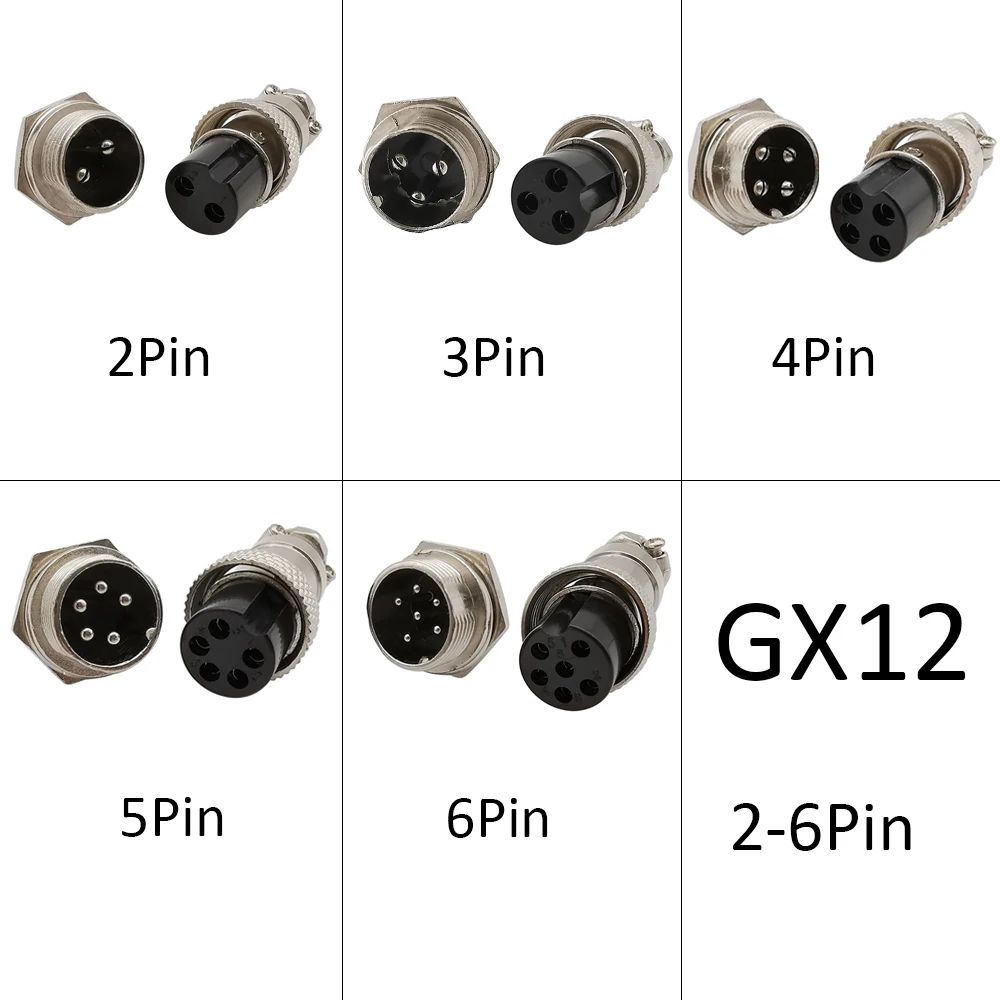

• Type: 2 pin / 3 pin / 4 pin / 5 pin / 6 pin
• Install type: Screw thread tighten

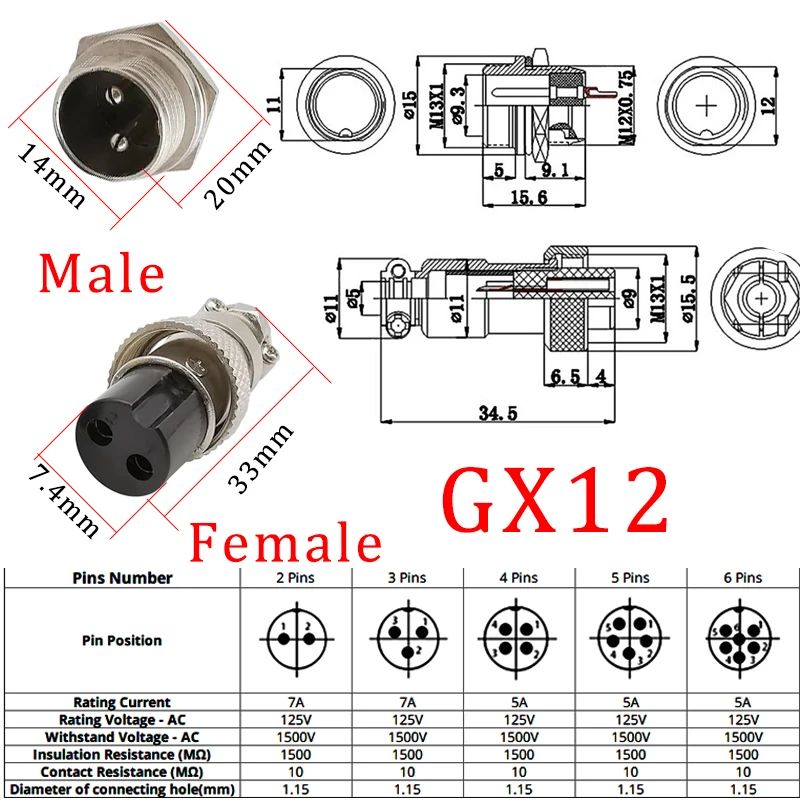

• Screw head diameter: approx. 12mm
• Size: approx. 45*15mm
• Rated voltage: 400V
• Rated current: 5A
• Contact resistance: less than 0.005ohm
• Insulation resistance: more than 1000ohm
• Test voltage: 1500V
• Separating force: 1–3N per pin
• Temperature: rated load, the contact temperature rise should not exceed the ambient temperature + 50 °
• Life: Plug 500 times should not appear harmful plug seats machinery and performance

Environmental conditions:

1. Ambient temperature: -50 ~ + 70 °
2. Relative humidity: 98%(40°)
3. Atmospheric pressure: up 4,4kpa
4. Vibration: vibration frequency 10~100Hz, acceleration up to 100m/s2
5. Impact: frequency 60 to 80 times/min, acceleration up to 250m/s2
6. Centrifugal: acceleration up to 250m/s2
