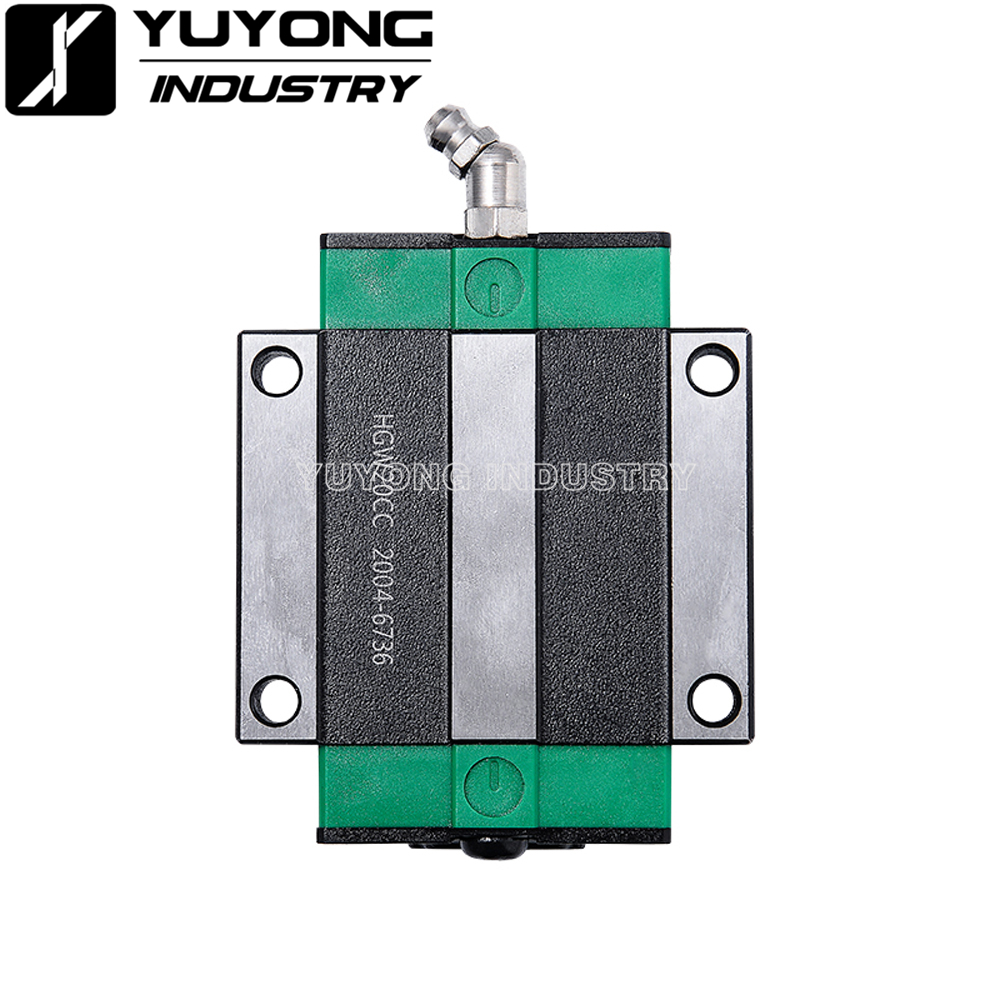

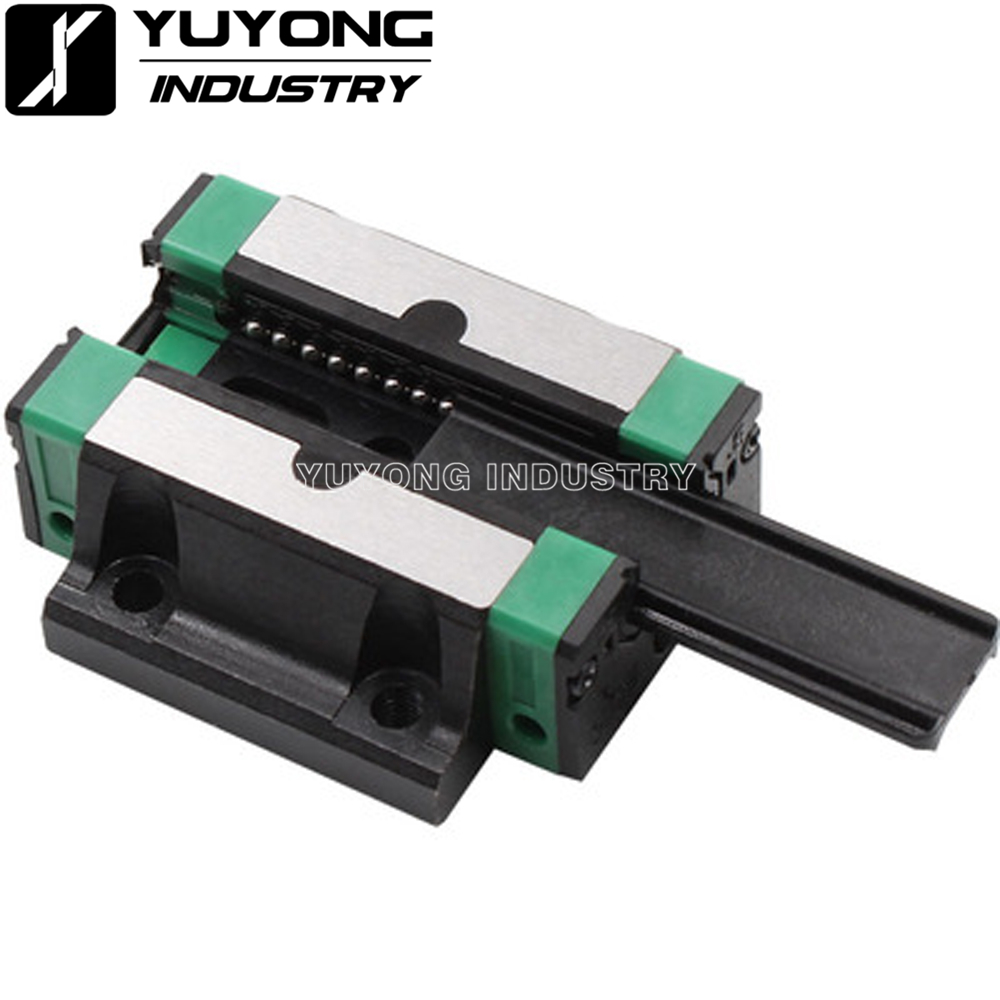

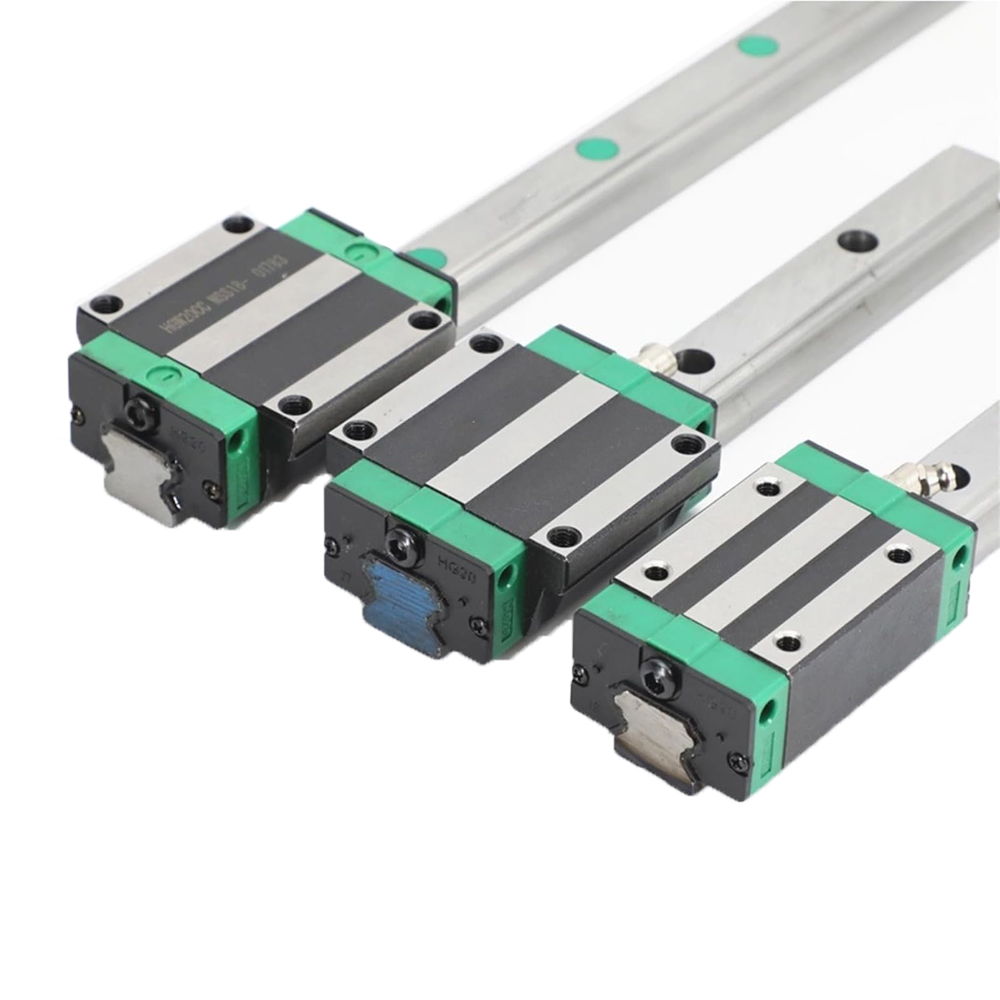

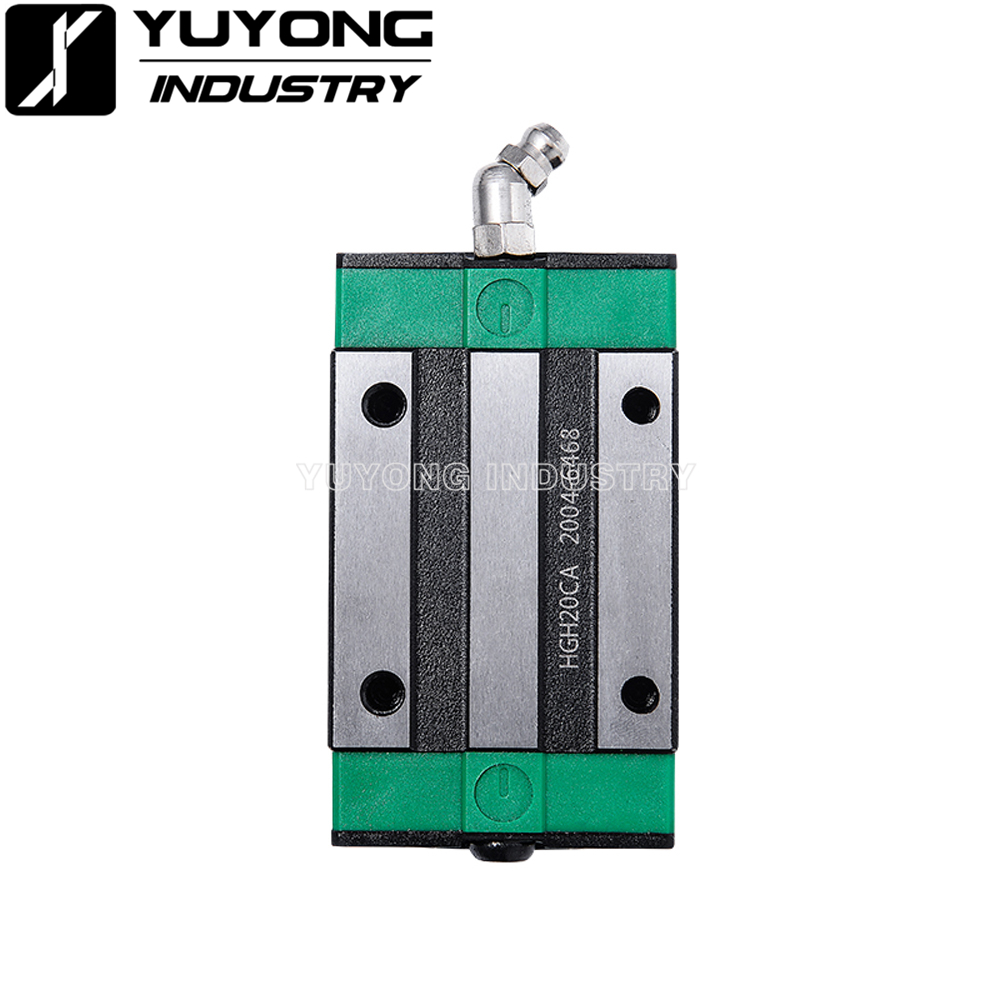

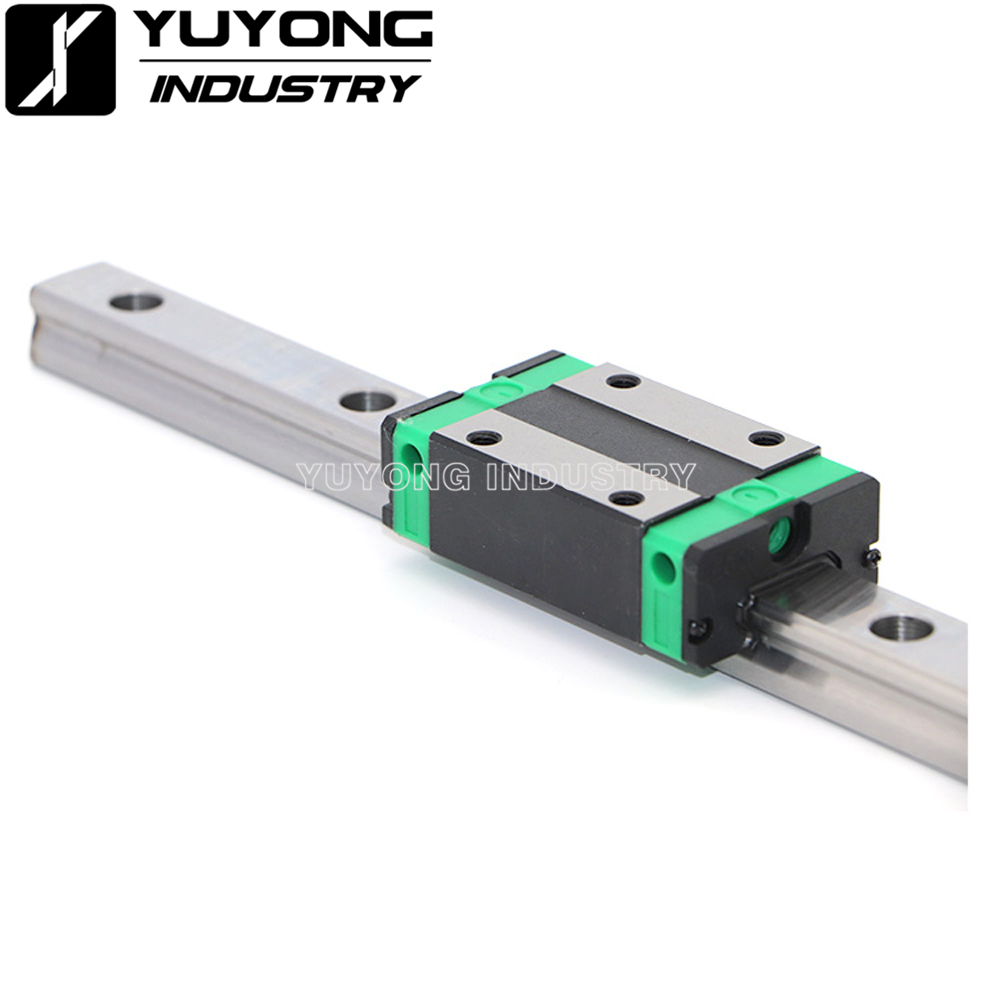

HGR Linear Slide Bearing Block

Description

• This special HGR Linear Slide Bearing Block offers high rigidity and precision accuracy in linear motion.Uses include 3D Printing, CNC Machining, Robotics, Measuring Equipment and Other Machinery. Along with the HGR15 20 25 30Linear Guide Rail this block offers high rigidity and precision accuracy.All metallic components of the Block and Rolling Balls made from Stainless Steel for Anti-Corrosion Arch contact design offers high rigidity and precision accuracy Steel Balls held captive by a retainer Sustains loads from all directions Ues a Rolling Circulation System

Specifications:

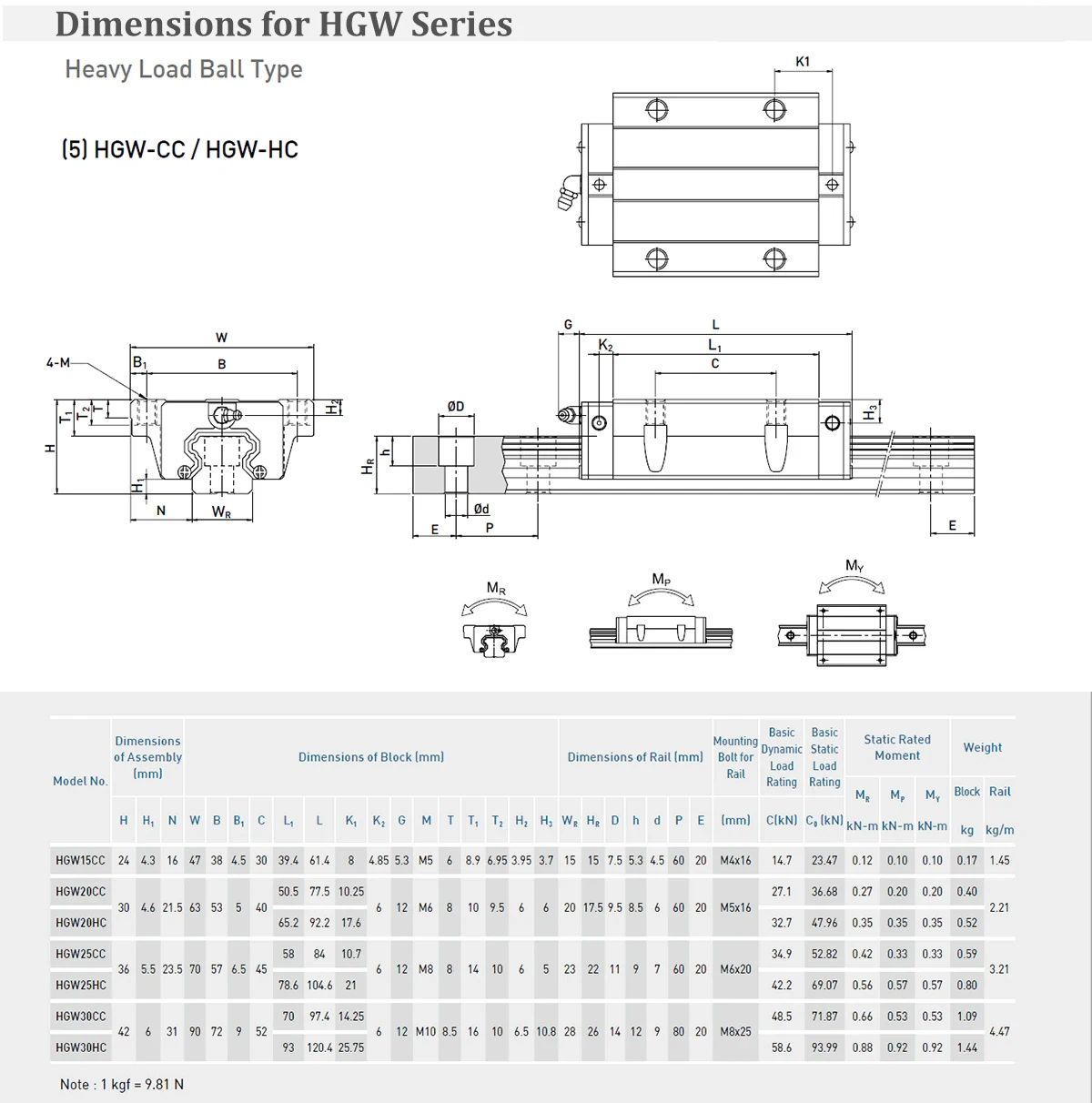

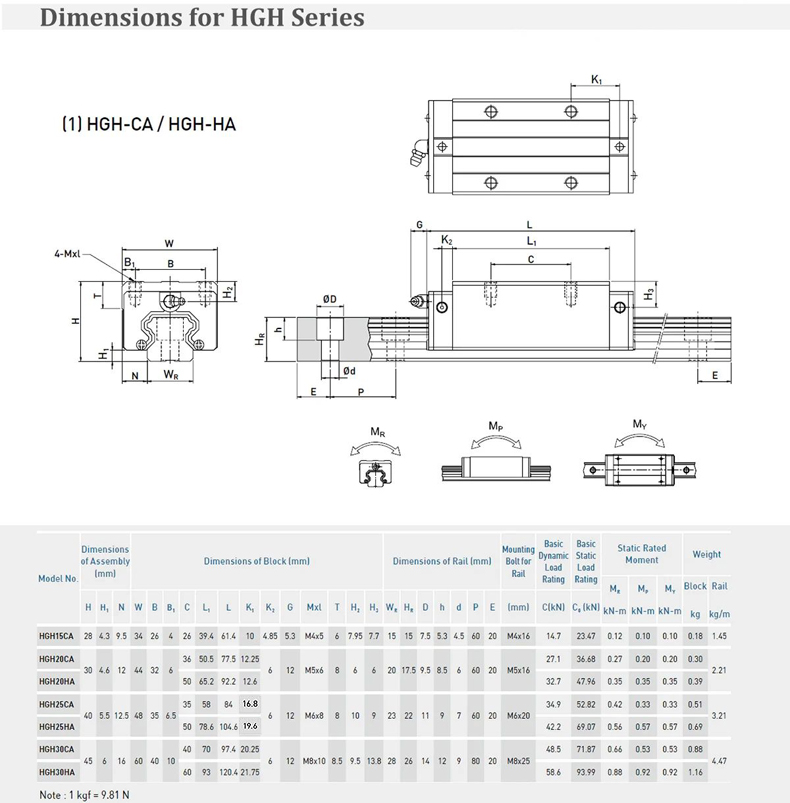

• Model: HGH15CA / HGW15CC / HGH20CA / HGW20CC / HGH25CA / HGW25CC / HGH30CA / HGW30CC
• Quantity: 1pcs x Slide Block
• Colour: As shown
• Material: Bearing Steel

Note:

• Please allow minor error due to manual measurement. Thank you! Due to the difference between different monitors, the picture may not reflect the actual color of the item.
• The plastic spacer inside the bearing block should be pushed out by the rail as you install it onto the rail; Removing this spacer prior to installation on the rail can cause bearings to be lost.
