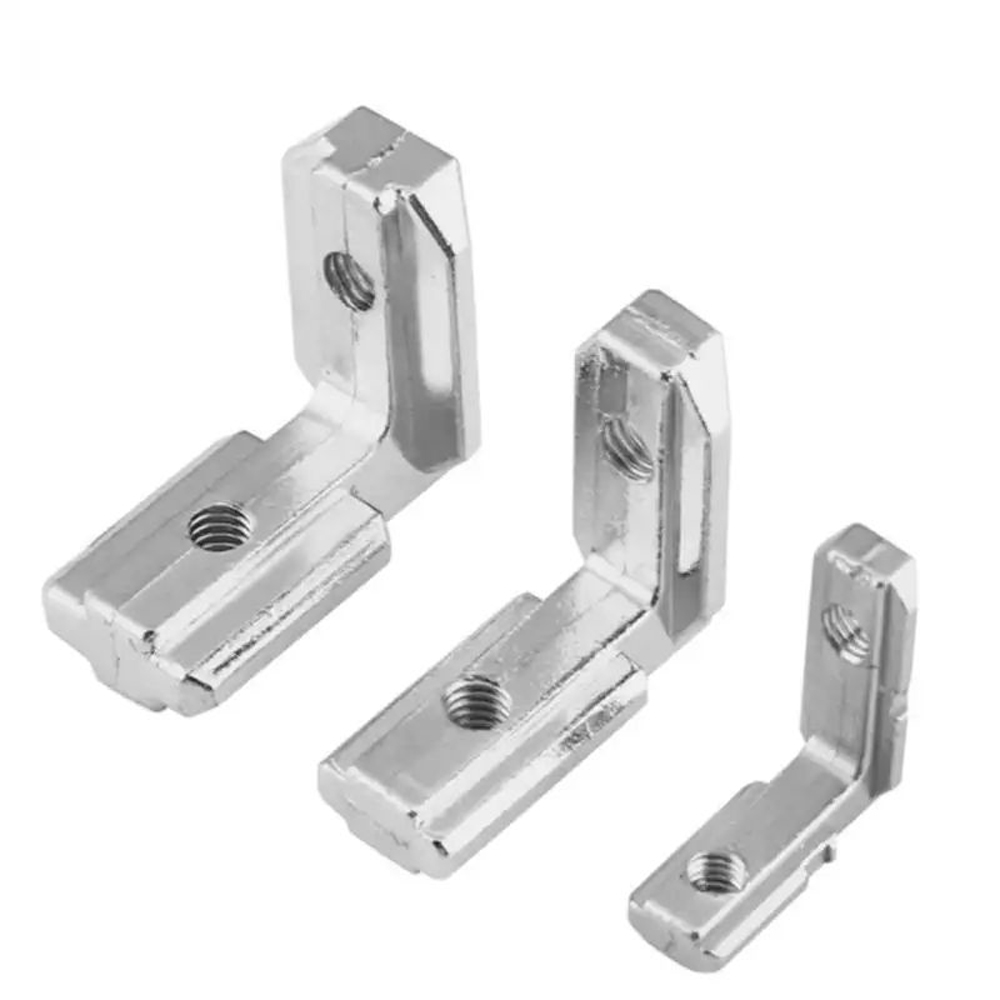

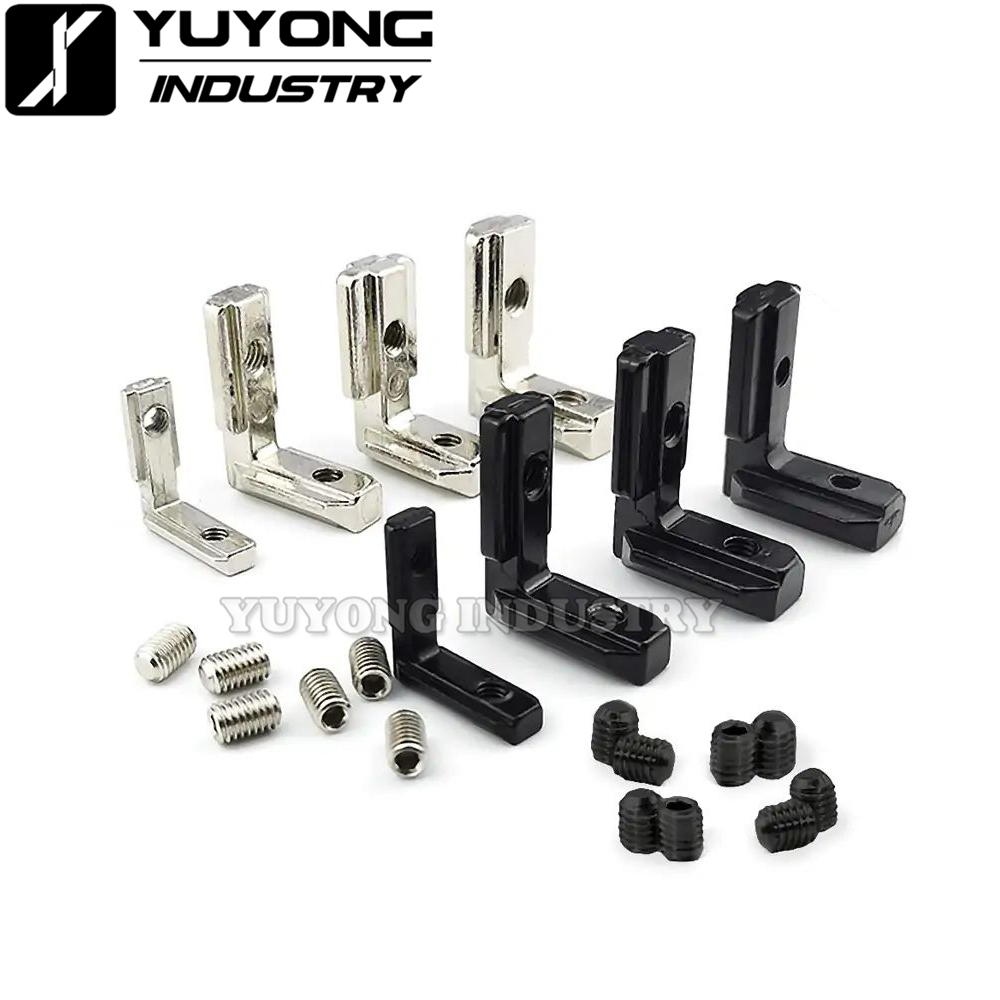

Inside Hidden Corner Bracket

Description



These connectors provide a hidden inside 90-degree corner connection for V-Slot or 2020/3030/4040/4545 series compatible extrusion system. Connection is quick and easy with included set screws.

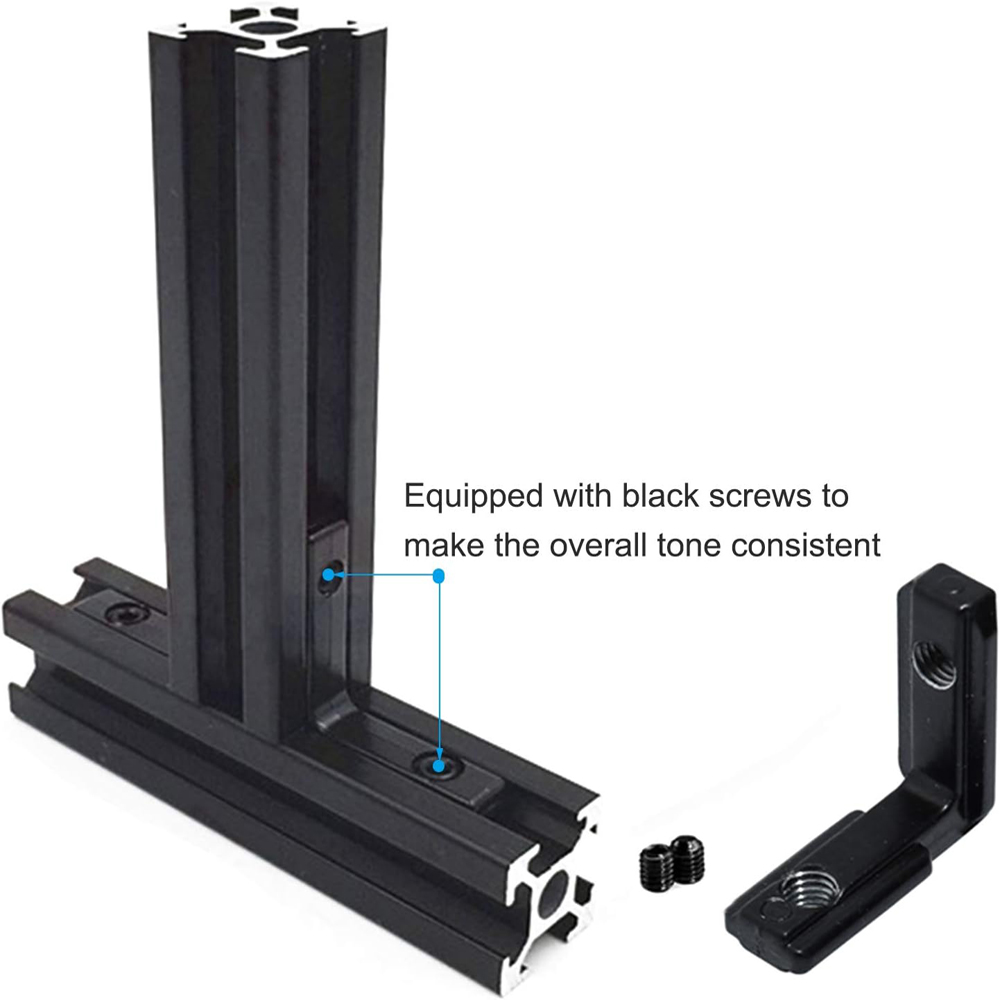

The L shape hidden corner bracket used for setting up a right angle connection of the two aluminum profiles, insert the two ends of the L bracket into the groove of the profile, and tighten the set screw to fix the two profiles Connect two alumnum profile together

Strong connection function at inner of aluminum profile slot Widely used for printers, CNC Routers, CNC laser cutters, Robotics Projects,Machine guards etc

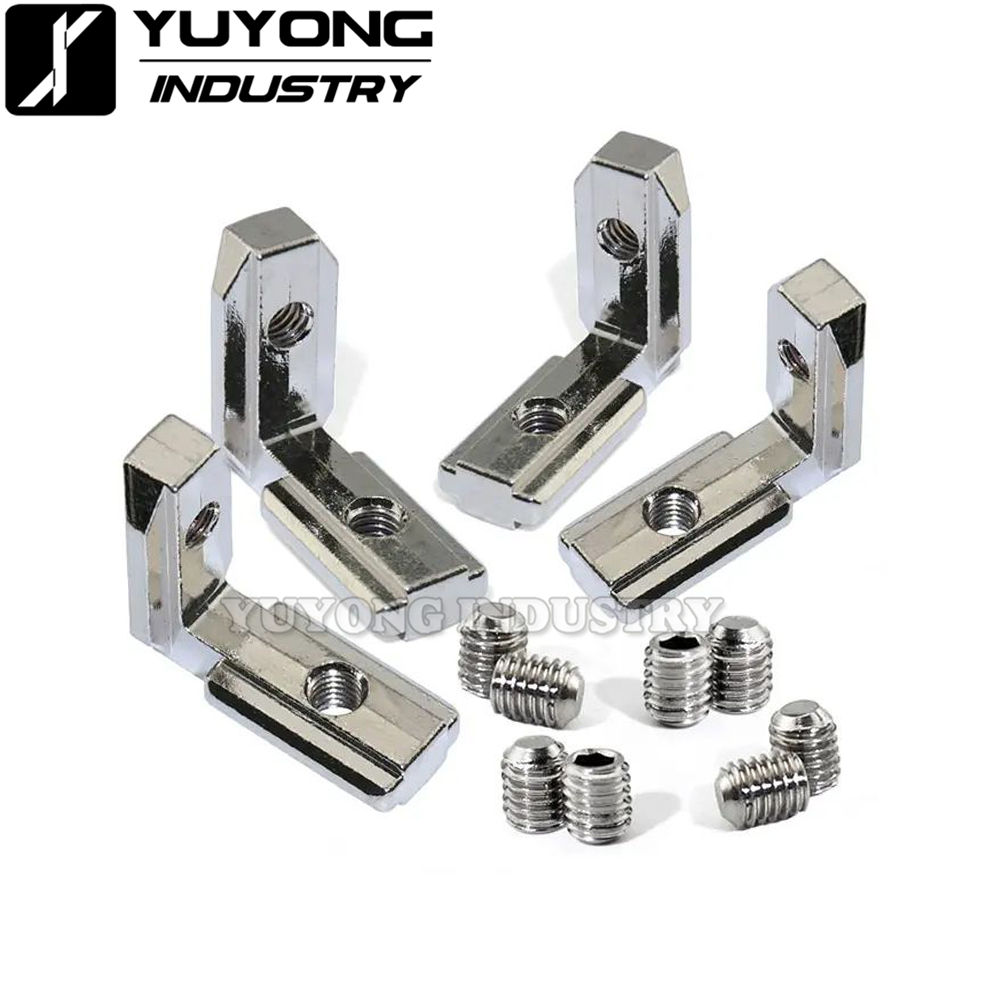

Each package includes:

• 1x Bracket
• 2x Screw



Specifications:

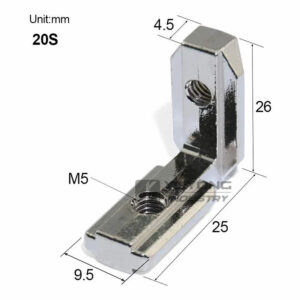

• Item Name: 2020 Inside Hidden Corner
• Thread Size:M5
• Material: Zinc Alloy

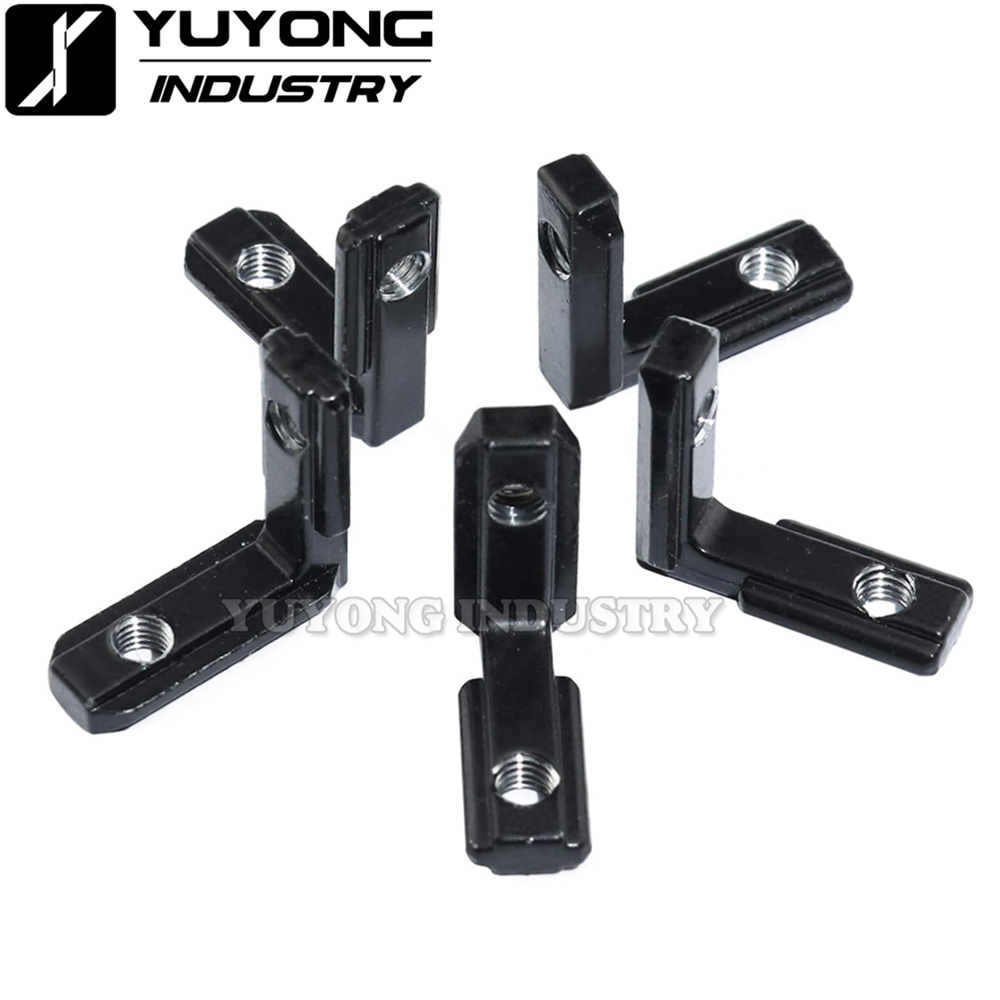

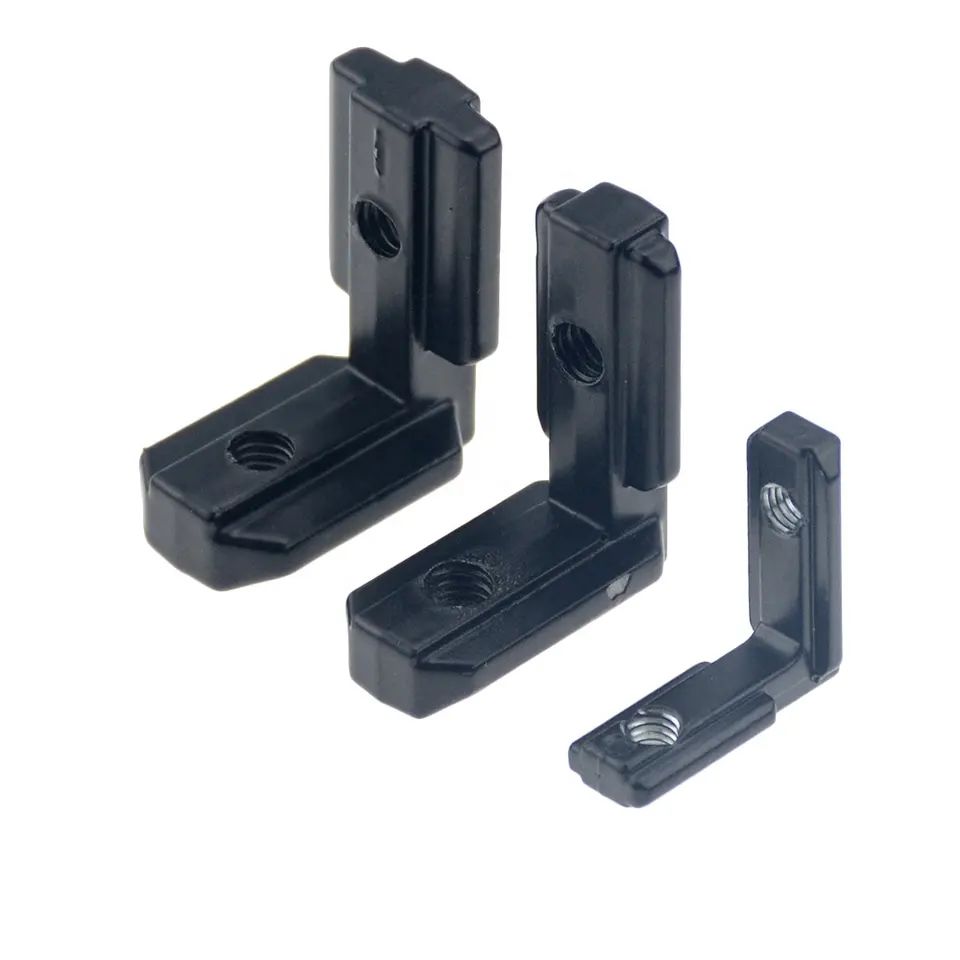

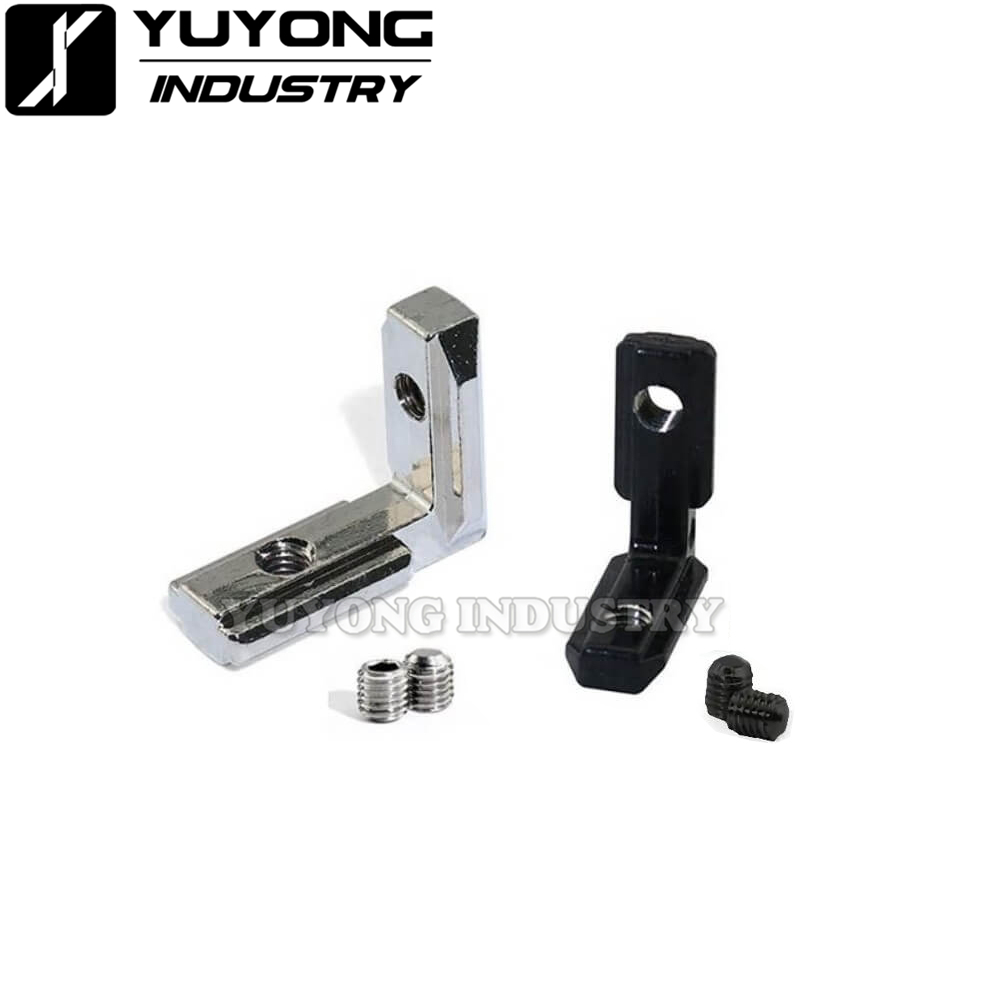

• Finish: Silver Anodized or Black Anodized
• Compatible with 20mm  Series V-Slot Linear Rail

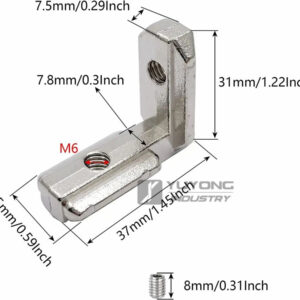

• Item Name:Inside Hidden Corner

• Thread Size:M6
• Material: Zinc Alloy
• Finish: Silver Anodized or Black Anodized
• Compatible with 30mm  Series V-Slot Linear Rail

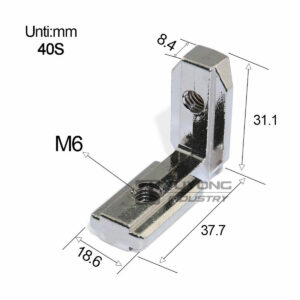

• Item Name:Inside Hidden Corner
• Thread Size:M6
• Material: Zinc Alloy
• Finish: Silver Anodized or Black Anodized
• Compatible with 40mm  Series V-Slot Linear Rail

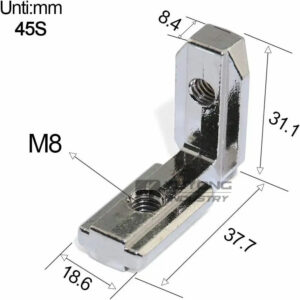

• Name:Inside Hidden Corner
• Thread Size:M8
• Material: Zinc Alloy
• Finish: Silver Anodized or Black Anodized
• Compatible with 45 Series V-Slot Linear Rail
