Latest Version with Tensioning system WorkBee CNC Mechanical kit with 4pcs 1.26N.m/2.45N.m Nema 23 Stepper Motors
The WorkBee CNC Machine is the result of years of experience, feedback,and suggestions from selling the OX CNC Machine. It has been designedfrom scratch, and can accurately cut foams, woods, plastics and aluminiumto 0.2mm accuracy or better. Functional engineering parts, toys, signs oranything else that can be imagined, can be made on the WorkBee CNC Router.
All Aluminum Extrusions have been Thread Tapping M5 where it should be ,so you can assembly them directly when receive them.
Compatible Material for Cutting/Milling/Engraving:
The Kit Includes:
- WorkBee Mechanical Kit
- 4 x Nema 23 Stepper Motors(Optional)
- Detailed PDF Assembly Manual by email
Specs of Nema23( 1.26N.m) Stepper Motor:
- NEMA23
- Shaft Size: 1/4″
- Step Angle: 1.8
- Holding Torque: 1.26 N.m
- Rated voltage: 3.36 V
- Rated current: 2.8 A
Specs of Nema23( 2.45N.m) Stepper Motor:
- NEMA 23(High Torque)
- Shaft Size: 1/4″
- Step Angle: 1.8
- Holding Torque: 2.45 N.m
- Rated voltage: 3.6 V
- Rated current: 3 A
Please note:
- MDF Working Table, Spindle, Driver Board etc and other electronics are not included with this kit.
- We do not provide technical support for software debugging.
- Mach3 License is not included with this kit. This License can be purchased directly from the official website.
- Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.
Options:
- 4pcs Nema-1.26N.m: The frame kit with 4pcs Nema23 1.26N.mStepper Motors
- 4pcs Nema-2.45N.m: The frame kit with 4pcs High TorqueNema23 2.45N.m Stepper Motors
- No Motors: The frame kit only no Stepper Motors included
The WorkBee CNC Mechanical Kit Specs:
|
Item No. |
Item |
Frame Size |
Working Area |
Picture show |
||
|
YY-WB-01 |
CNC MechanicalKit |
500mmx750mm |
300X520mm |
|
||
|
YY-WB-02 |
750mmx750mm |
550X520mm |
||||
|
YY-WB-03 |
750mmx1000mm |
550X770mm |
||||
|
YY-WB-04 |
1000mmx1000mm |
800X770mm |
||||
|
YY-WB-05 |
1000mmx1500mm |
800X1270mm |
||||
|
YY-WB-06 |
1500mmx1500mm |
1300X1270mm |
||||
Motion

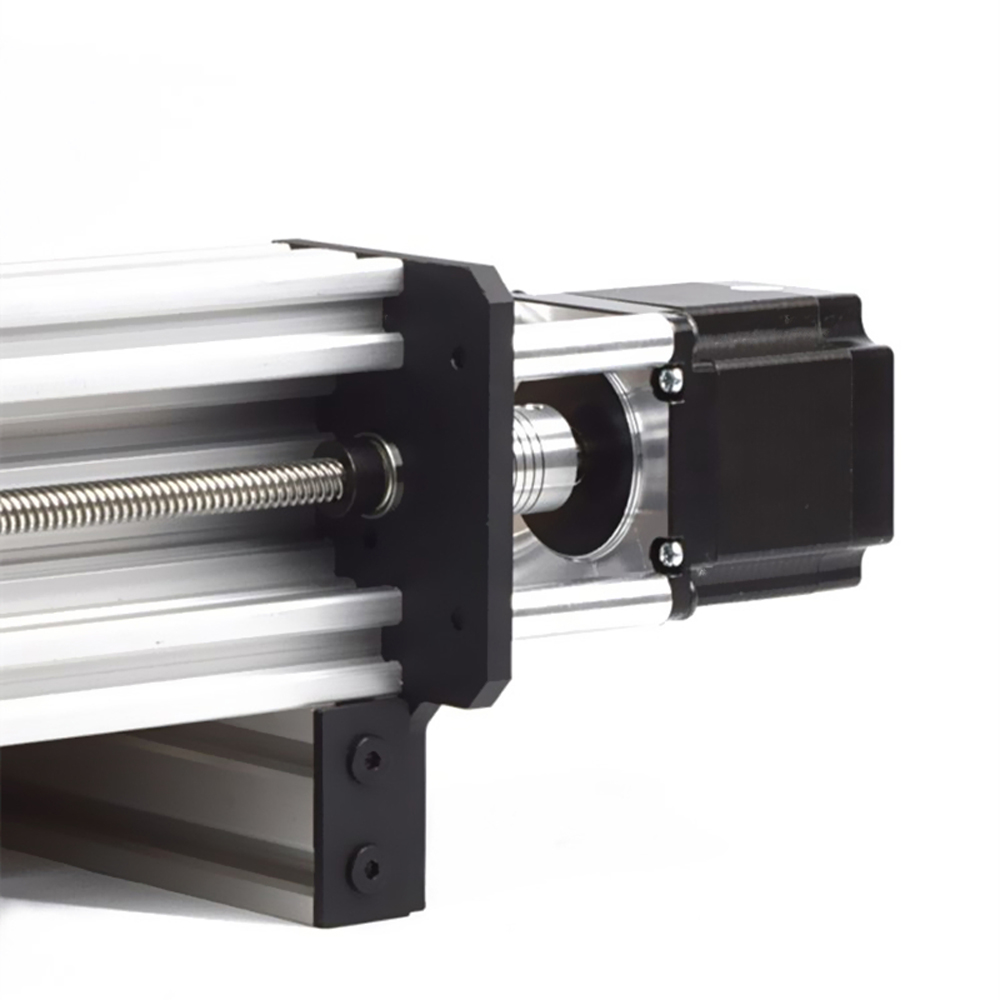

Drive System– ACME Lead Screws Or GT3 Timing Belts

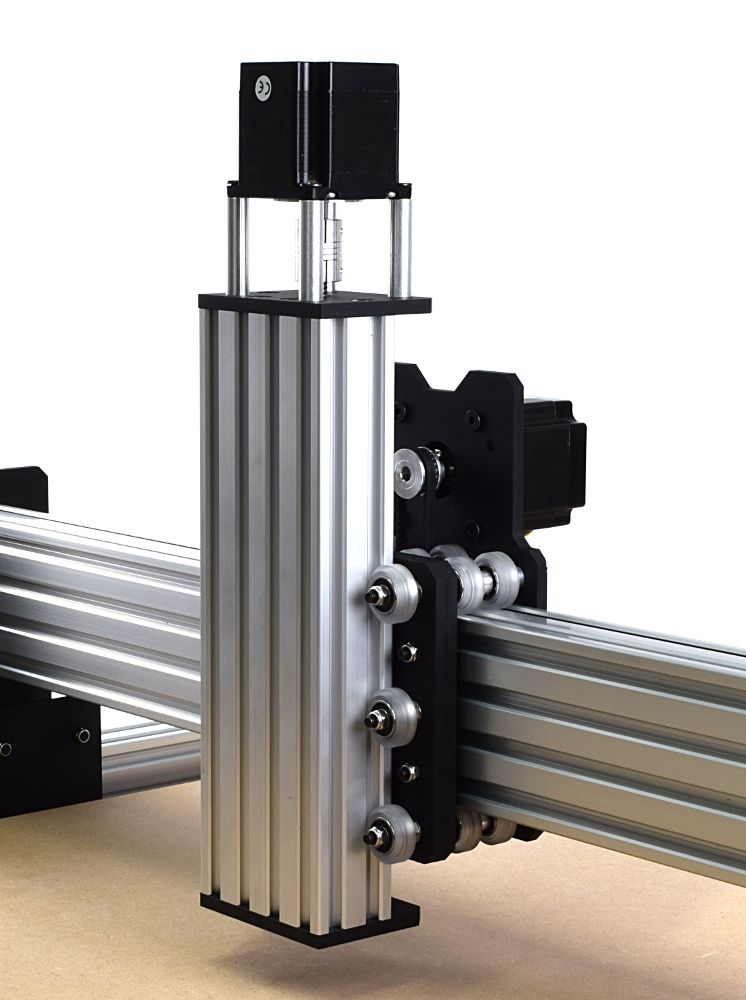

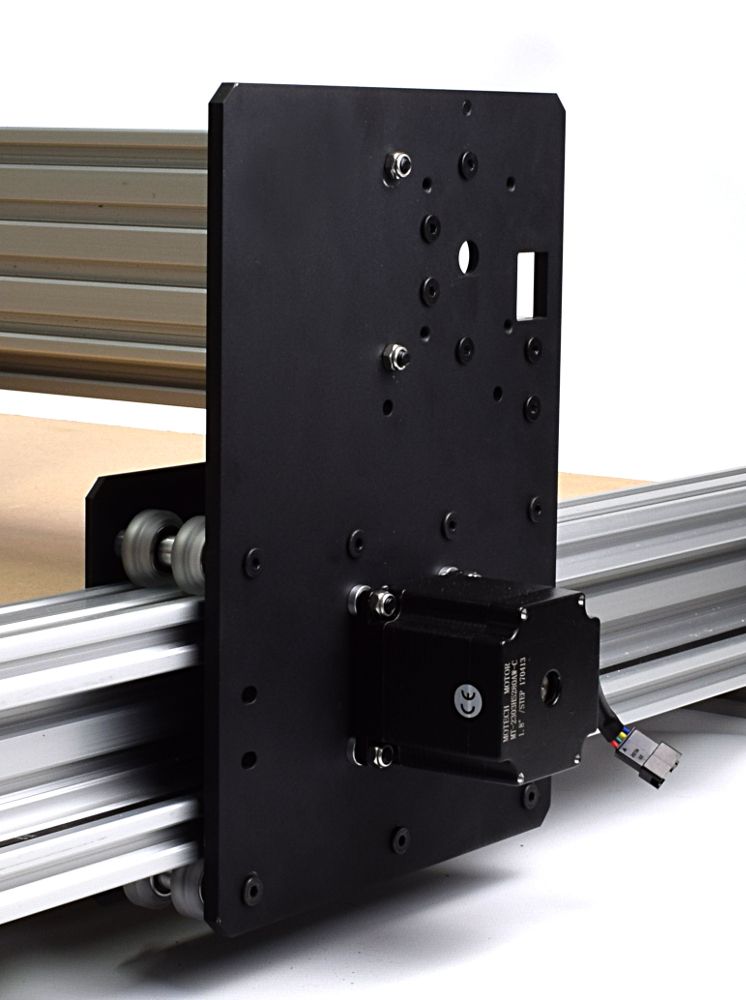

Linear Guides– Polycarbonate wheels on anodised C-Beam V-Slot Extrusion.
Motors– Close-Loop Stepper Motors (X, Y & Z)
Accuracy– 0.05 – 0.10mm (Screw Driven) Or 0.10 – 0.20mm (Belt Driven)
Z Height
54mm Or 94mm Travel, 27mm Or 47mm Workable depth, with a 12mm spoilerboard. The spoilerboard supports have two height configurations, these are the maximums for each configuration.
Z Travel Explained:
To clarify the Z Travel, this is not the max cutting depth or the travel range of the actuator. Z travel is the distance downwards it can travel before hitting the spoiler board supports.
The WorkBee has two spoilerboard support configurations. One with a travel of 66mm, and a lower one with a travel of 106mm. The reason for the two configurations is that if the machine is always used to cut thin materials, for accuracy reasons it is better to have the work piece as close to the Z-Actuator as possible, so in this case the machine should be setup in the higher 66mm travel configuration.
The higher configuration has a Z travel of 66mm, with a 12mm spoiler board, this will reduce the Z travel to 54mm. In this case 54mm is maximum thickness of material that will fit on the machine.
To calculate the max cutting depth for a chosen piece of material it is:
Max Cutting Depth = Z travel – Material Thickness
For instance a setup with a 12mm spoiler board, the max Z travel is 54mm, so when cutting into a material 30mm thick the max cutting depth would be:
Max Cutting Depth = 54 – 30 = 24mm
This means with a 30mm piece of material it would not be possible to cut it the whole way through.
The max thickness that can be cut the whole way through is half the Z travel. So with a Z travel of 55mm, 27mm is the maximum thickness of material that could be cut the whole way through. And for the lower configuration the maximum thickness that can be cut the whole way through is 47mm.
Dual Drive System:
The main request we got for the OX was for a lead screw driven version. The WorkBee has been designed from the ground up to incorporate this and more.
The WorkBee CNC Router can either by driven by screws, or by belts,it can be available up to 1500x1500mm in size.
OX TO WorkBee:
