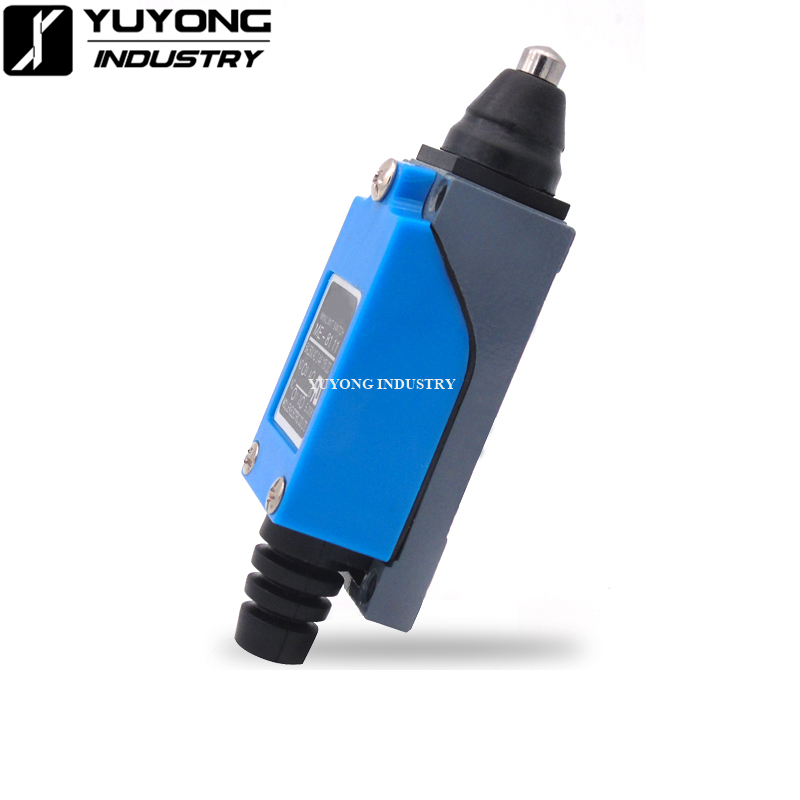

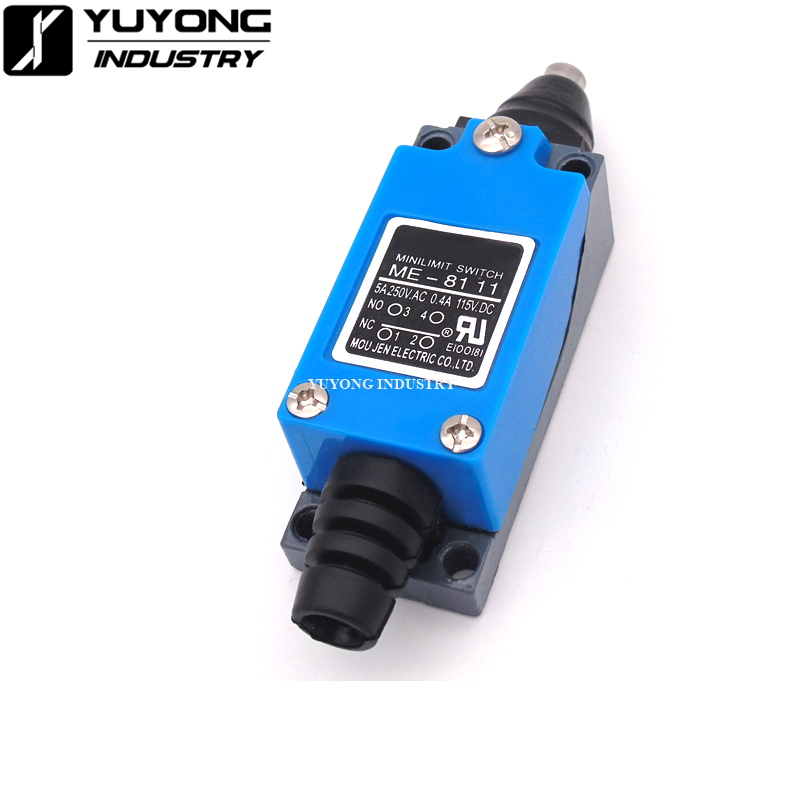

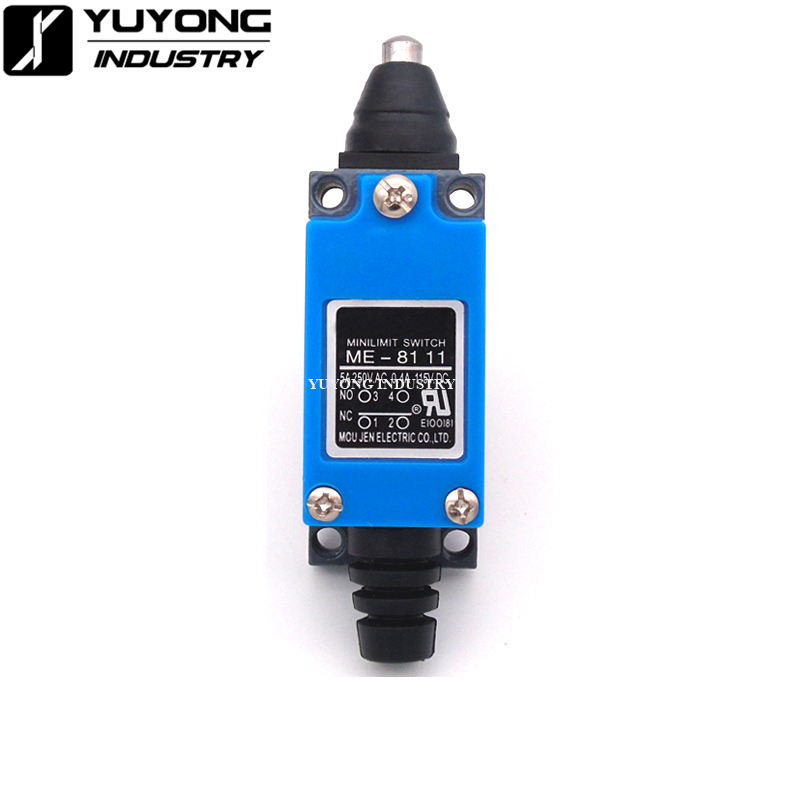

Limit Switch – ME-8111

$9.57

Description



This Limit switch features a compact design and a long mechanical life. They have easy wiring with full open terminals and dust, water, oil proof construction .

A strong body with a combination of reinforced plastic and aluminium Die Casting components.

Specifications:

  • Actuator Type: Standard Pin Plunger, Automatic Reset
  • Pin Diameter(Approx.):6.8mm / 0.27″
  • Contact Configuration: 2 NC + 2 NO
  • IP Rating: IP66
  • Power: AC 250V,5A / DC 115V. 0.4A
  • Mounting Hole Diameter: 4.5mm
  • Hole Center Point Distance: 56mm x 21mm
  • Operation speed: 0.5mm-50cm/sec
  • Mechanical: 120 operations/minute
  • Electrical: 30 operations/minute
  • Contact resistance: 25mΩ max. (initial value)
  • Insulation resistance: 100mΩ min. (at 500VDC)
  • Vibration: 10-55HZ,1.5mm double amplitude
  • Mechanical Life : 10,000,000 operations
  • Electrical Life: 500,000 operations
