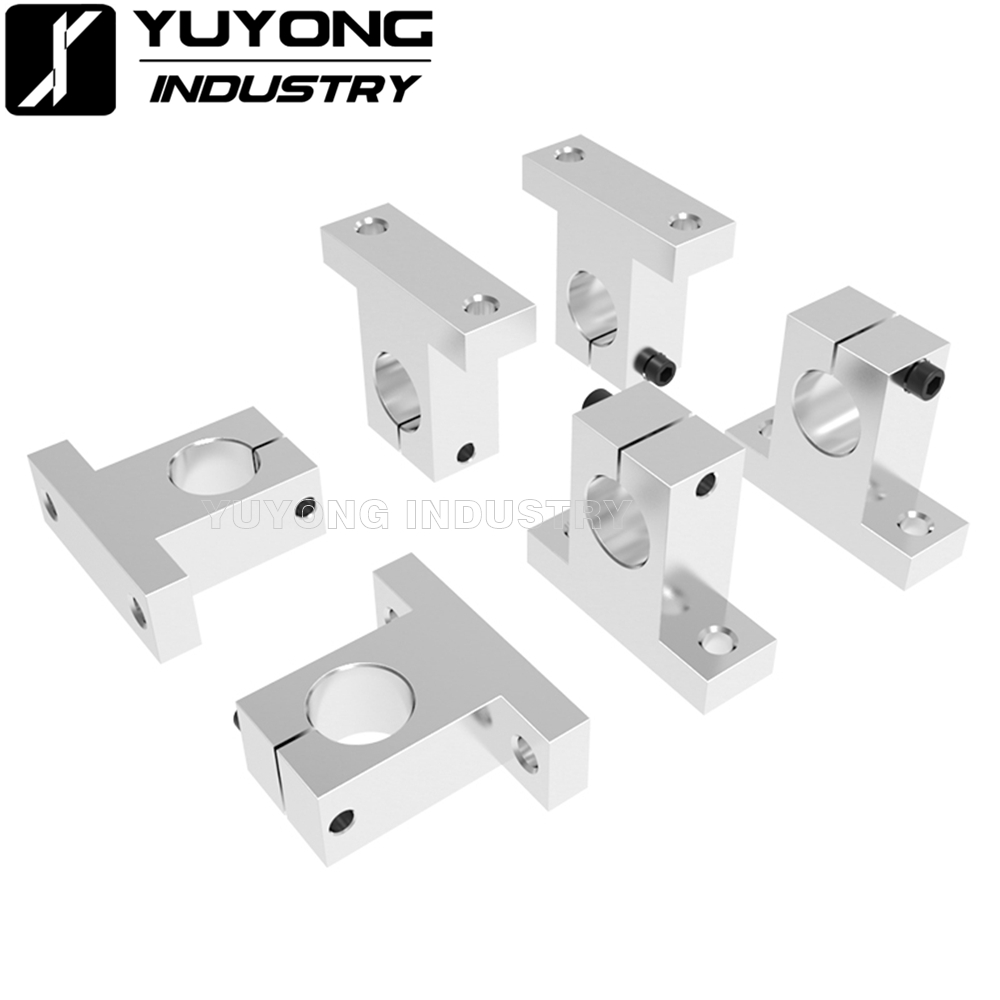

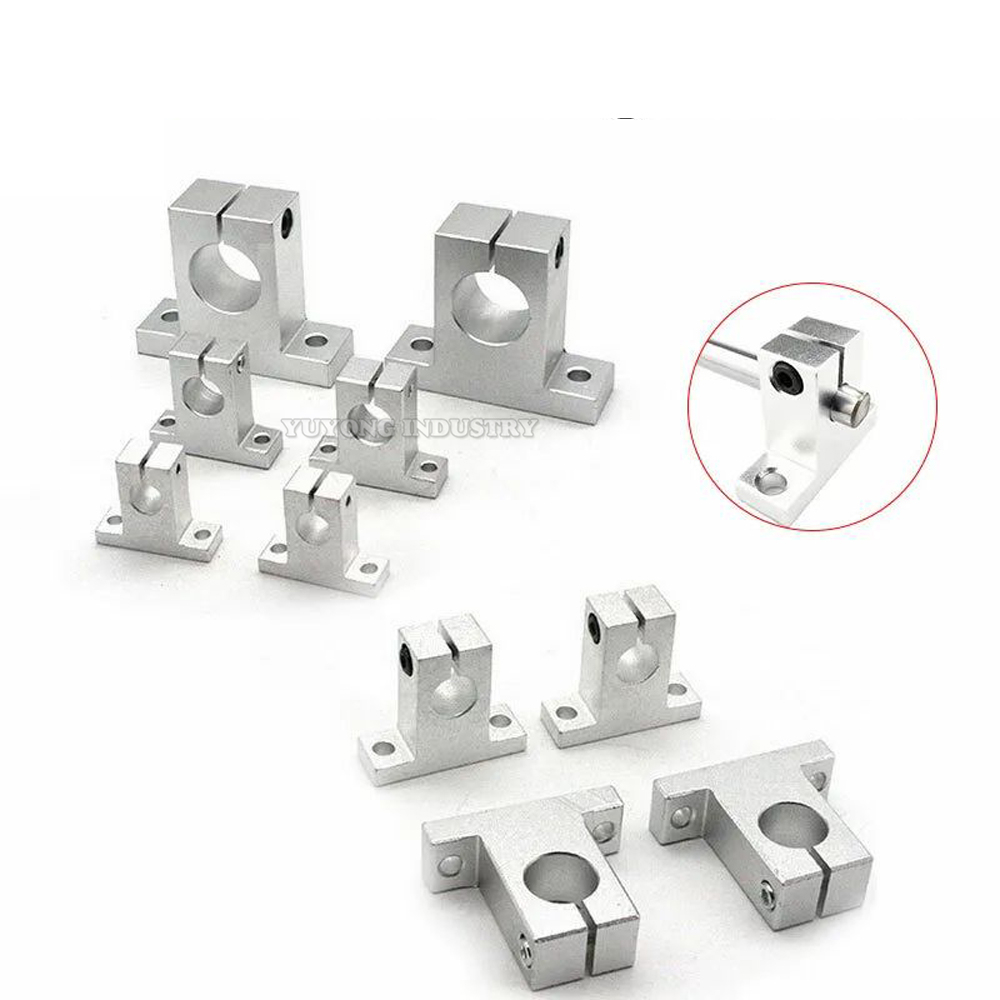

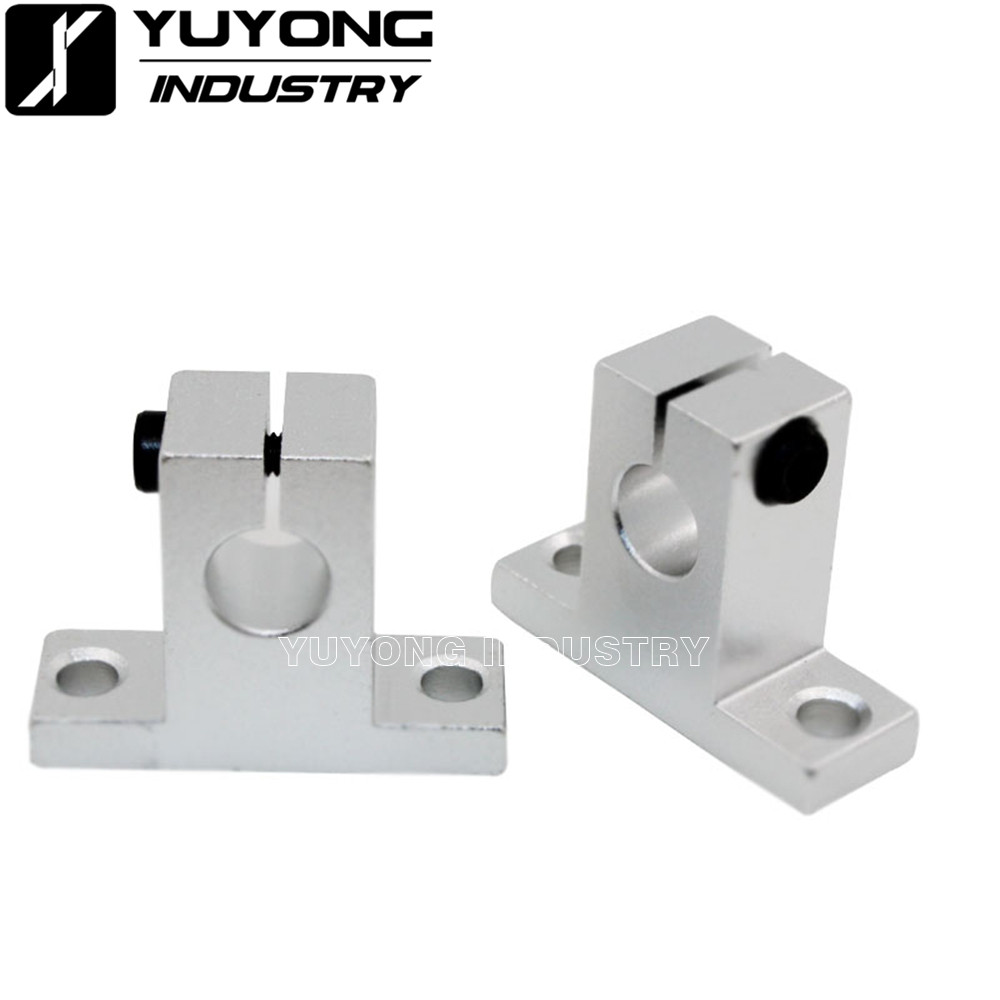

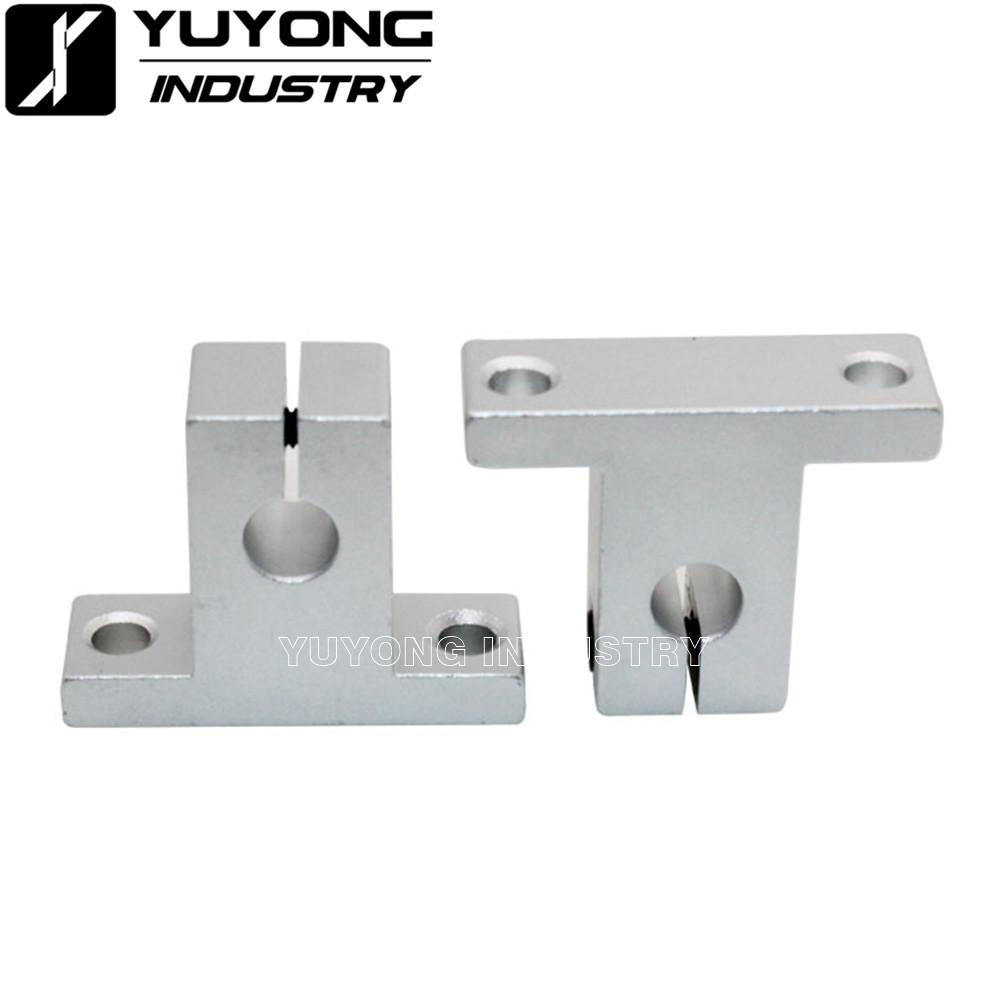

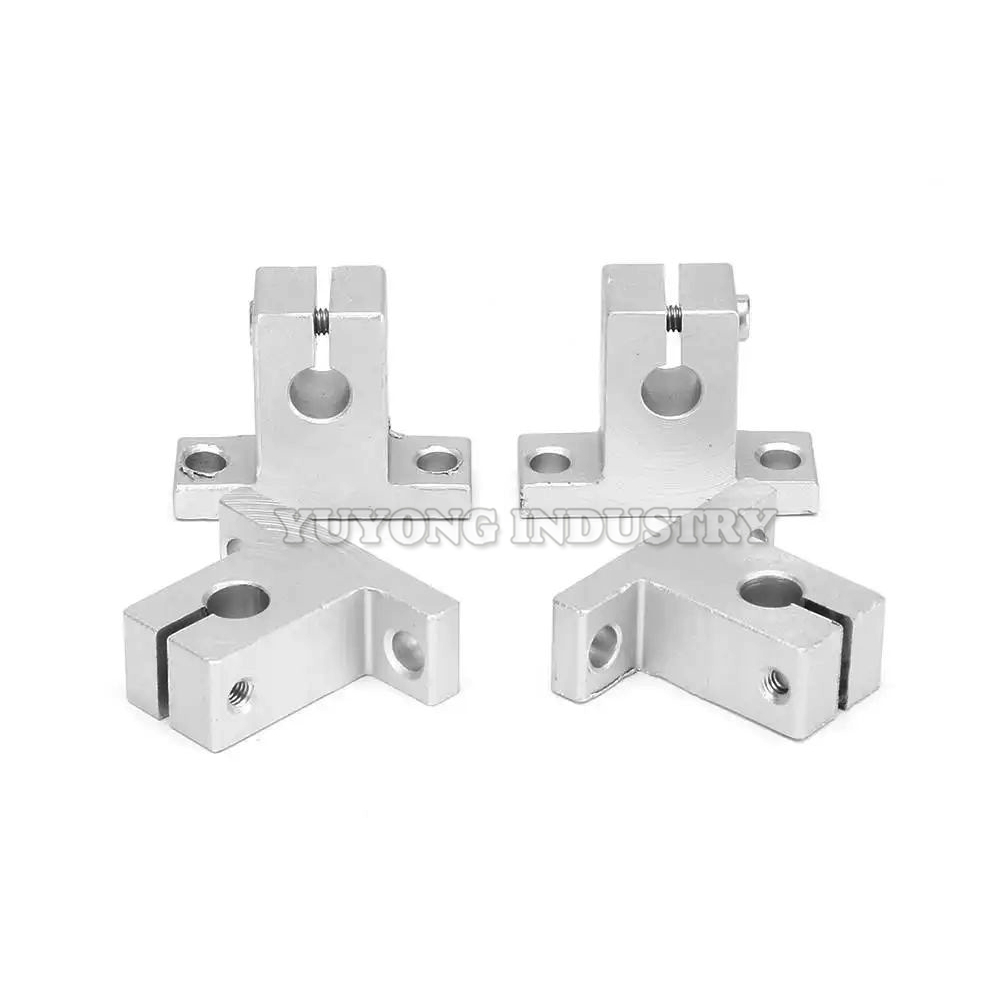

Linear Rail Shaft Support

Description

Using Special Aluminum Alloy, the Product Is Light, High Strength and Anti-deformation. Generally, It Is Suitable for the Diameter Fixing of the Shaft. in Layman’s Terms, It Is Suitable for the Fixed Horizontal Axis, but Not for the Fixed Vertical Axis. Because the Product Is Locked by Screws to Achieve the Fixed Effect, If the Force of the Vertical Shaft Exceeds the Locking Load Value, the Shaft Will Not Be Locked Firmly, and It Will Become Loose or Slippery. the Seat Is Provided with an Elastic Groove at the Shaft Diameter. After Passing Through the Shaft Diameter Hole, Locking the Screw Can Achieve the Effect of Fixing the Shaft, Which Is Simple and Convenient. There Is a Through Hole on Both Sides of the Product. When a Bolt (This Bolt and Nut Should Be Self-matched) Pass Through the Through Hole and the Through Hole of the Part That Needs to Be Fixed, the Product Can Be Fixed After Locking the Nut.

Features

Made of High-quality Aluminum Alloy Material, Safe and Reliable. Long Service Life, Light Weight, High Strength and Anti-deformation. Economical and Easy to Replace.

Application

Widely Used in Household Appliances, Industry, Cnc, 3d Printers, Low Noise High Speed Motors, Construction Machinery, Auto Parts, Pumps and Machines. Used to Support Linear Guide Shafts.

Product Information

● Product Name: Linear Rail Shaft Support
● Material: Aluminum Alloy
● Surface: Anodized / Sandblasted

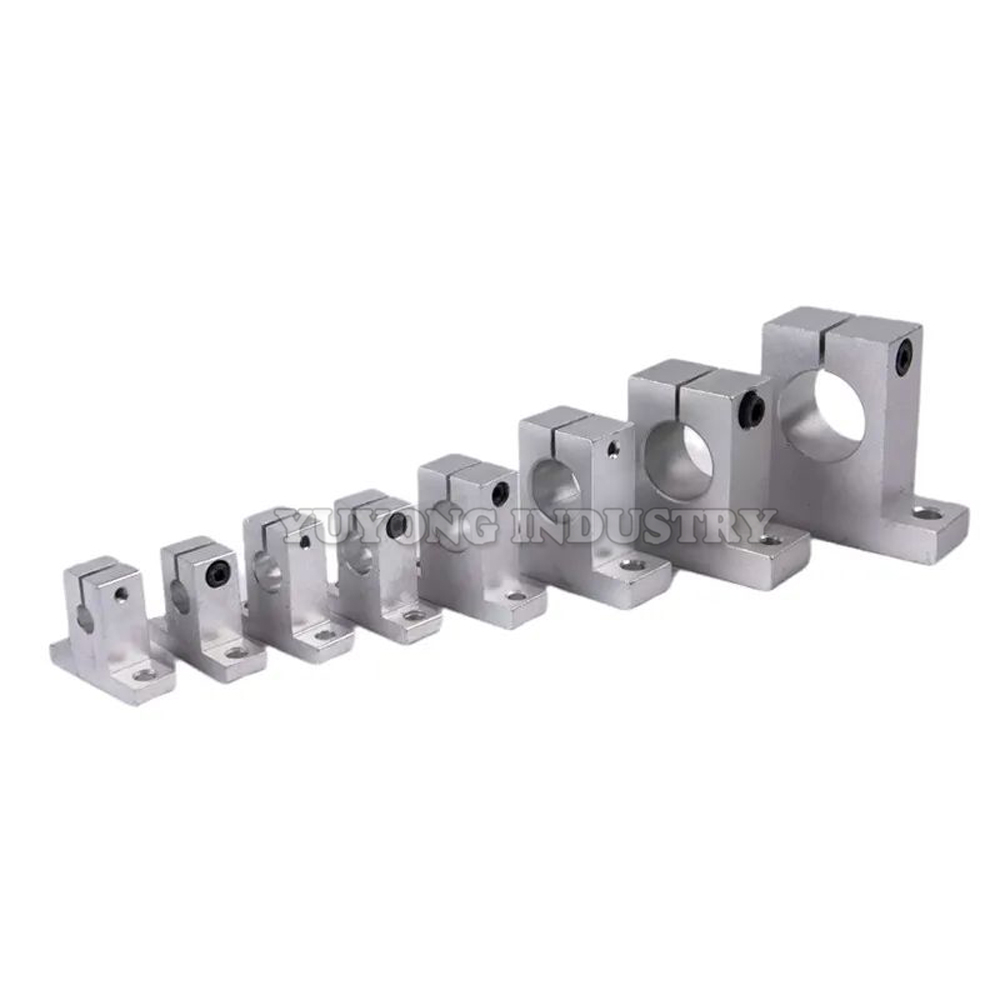

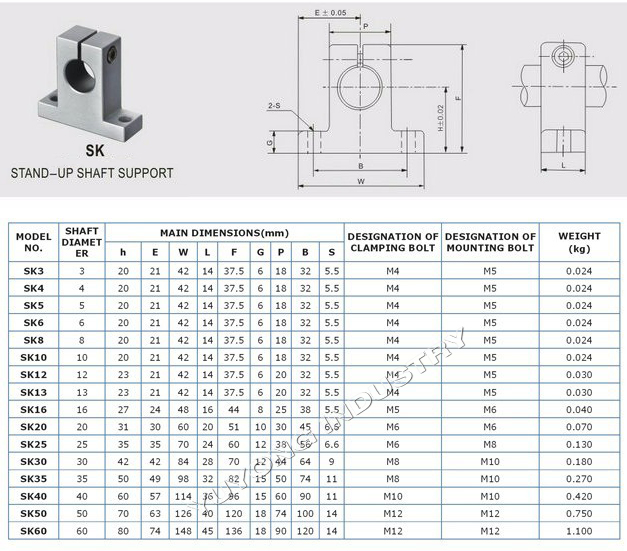

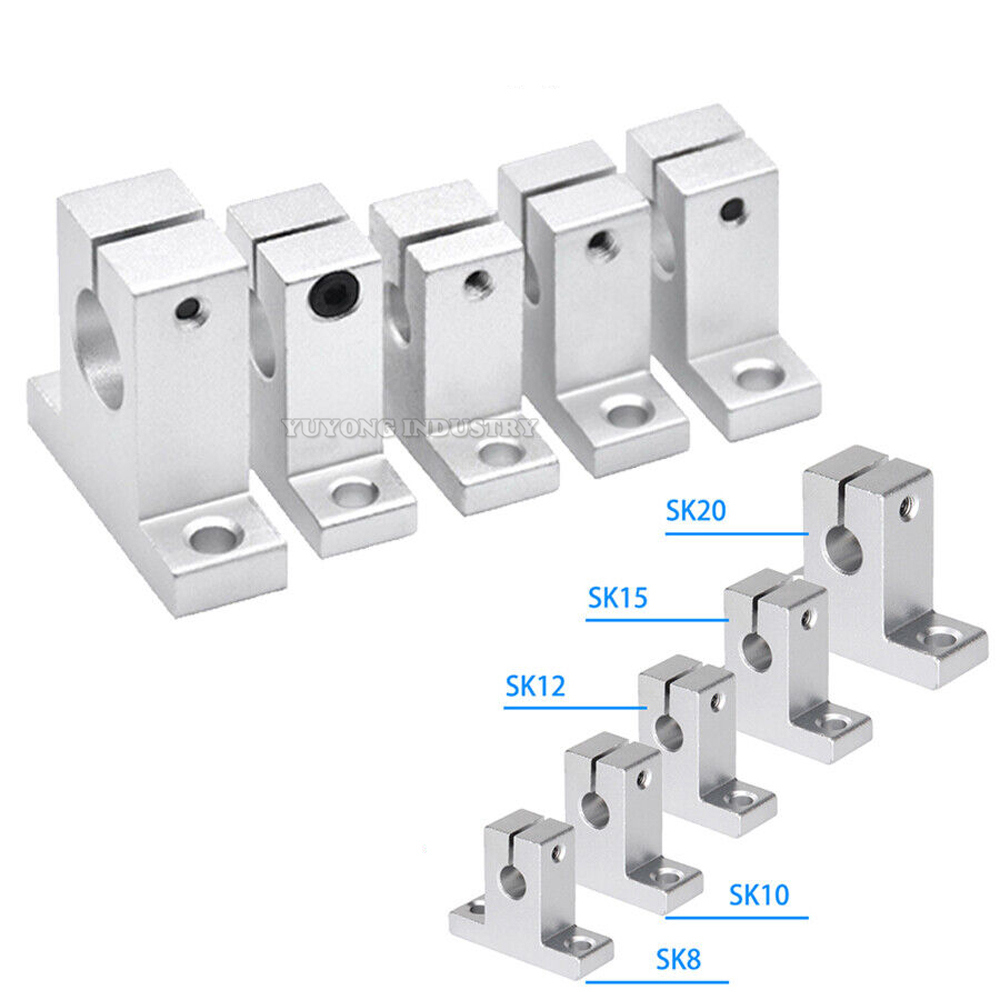

● Model: SK6,SK8, SK10, SK12, SK16
● Bore Diameter / Applicable Shaft Diameter :6mm, 8mm, 10mm, 12mm,  16mm
