Description

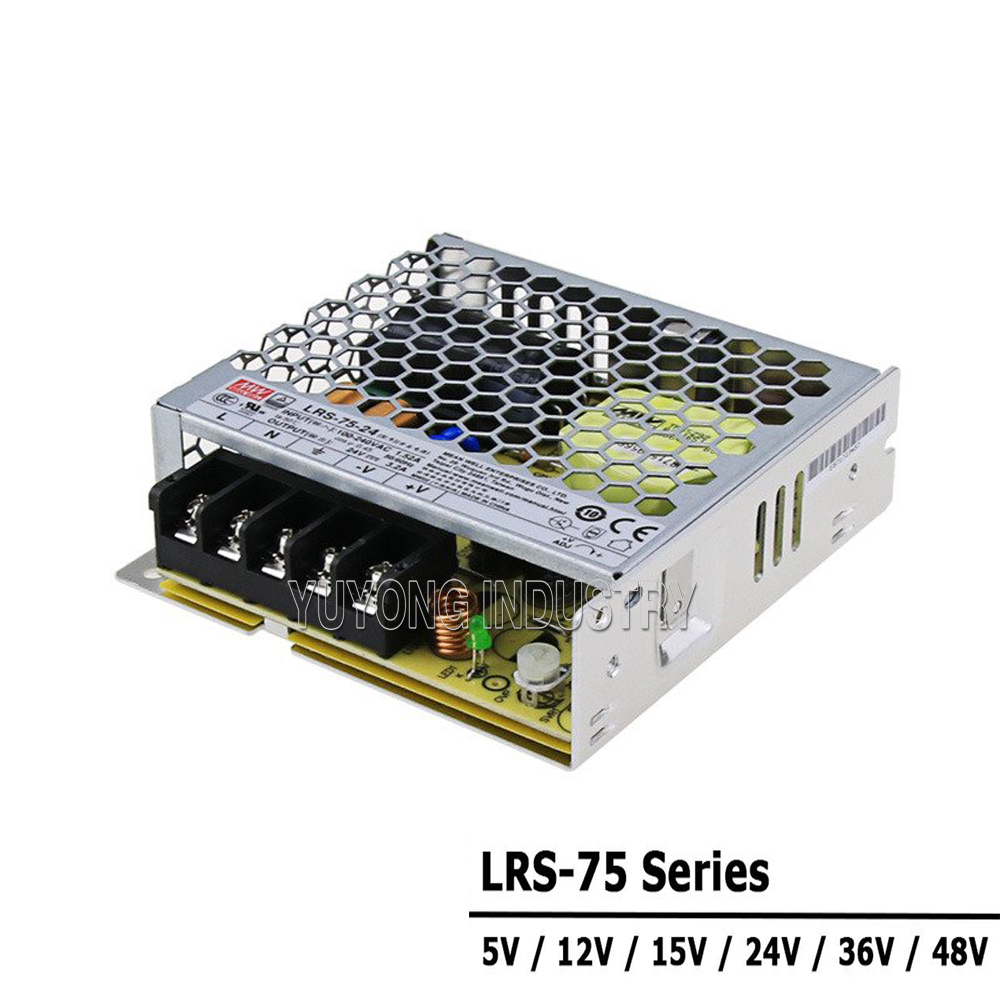

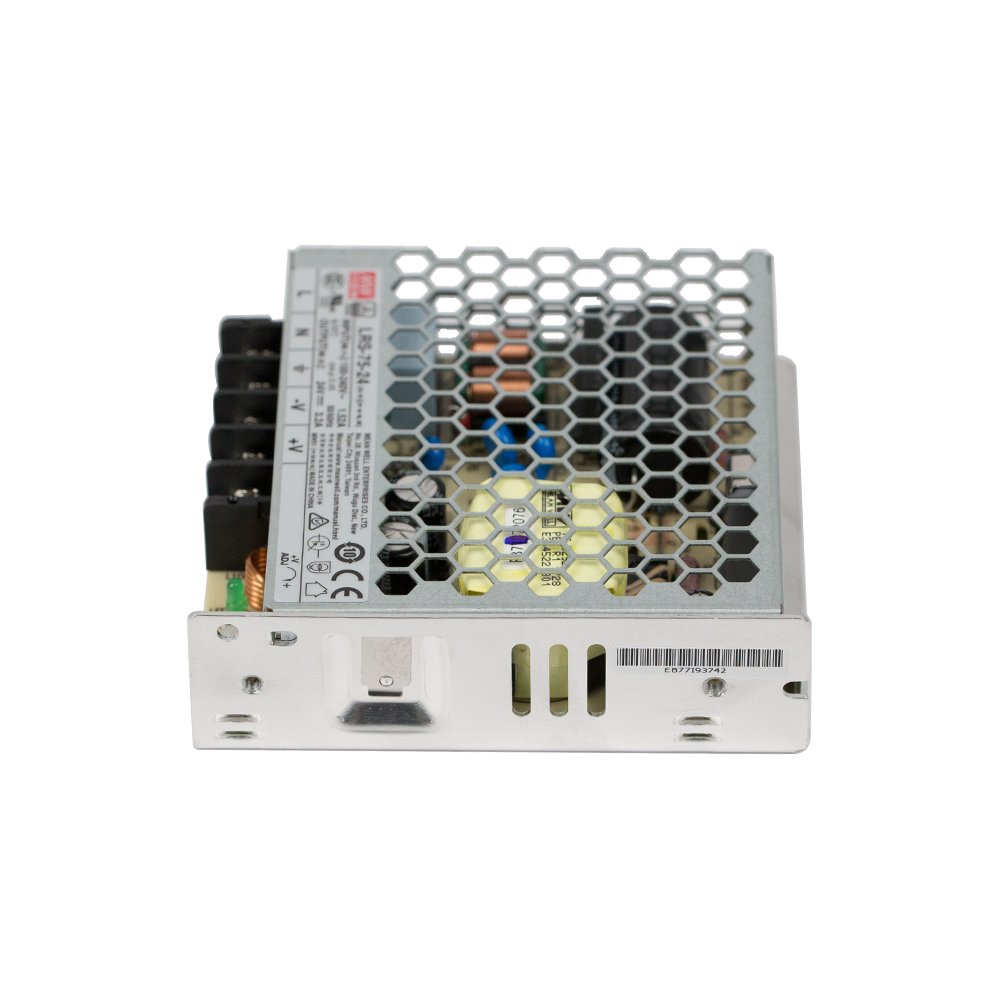

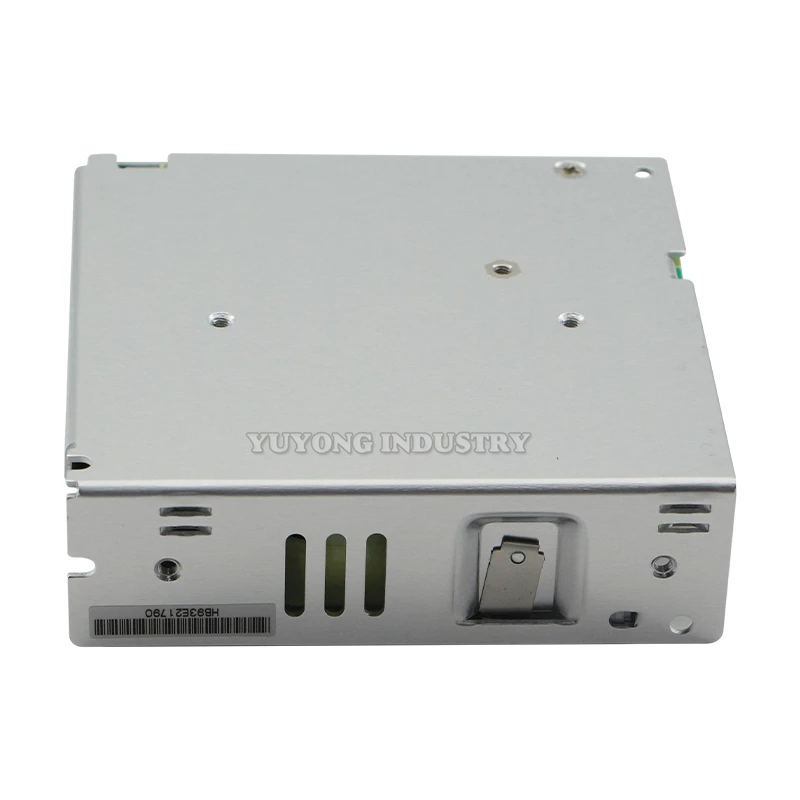

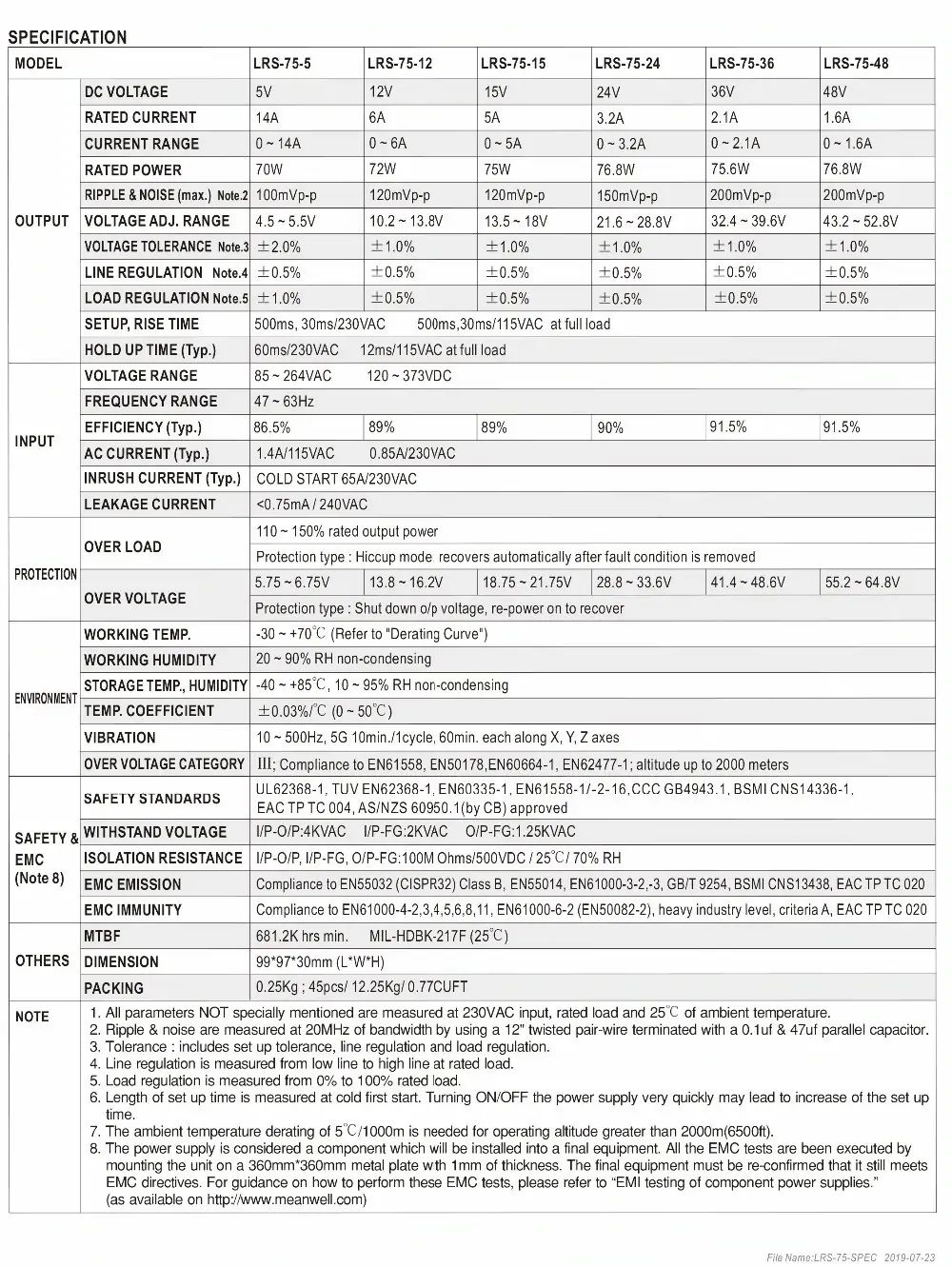

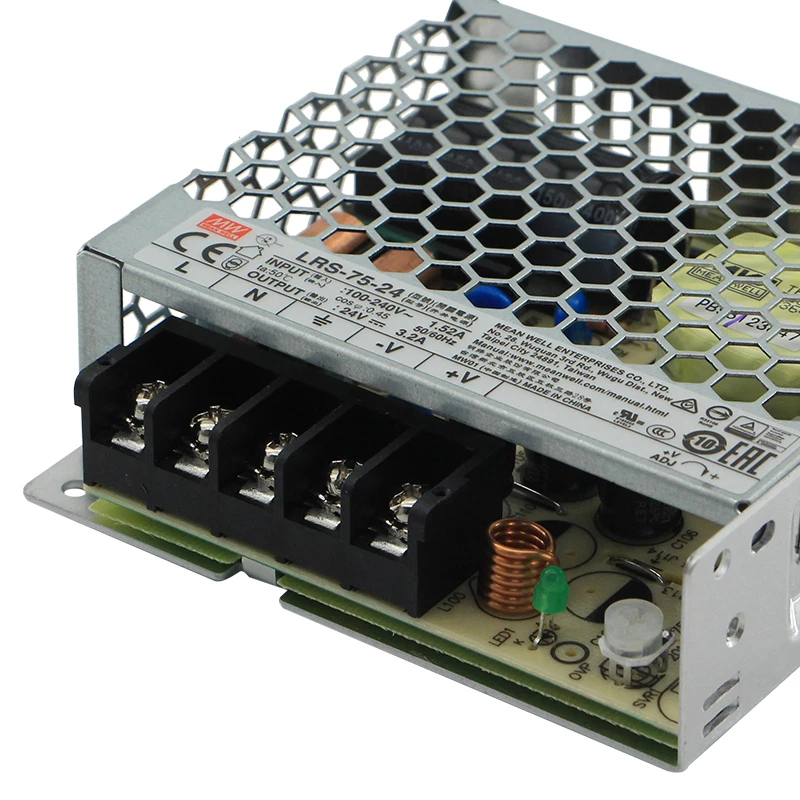

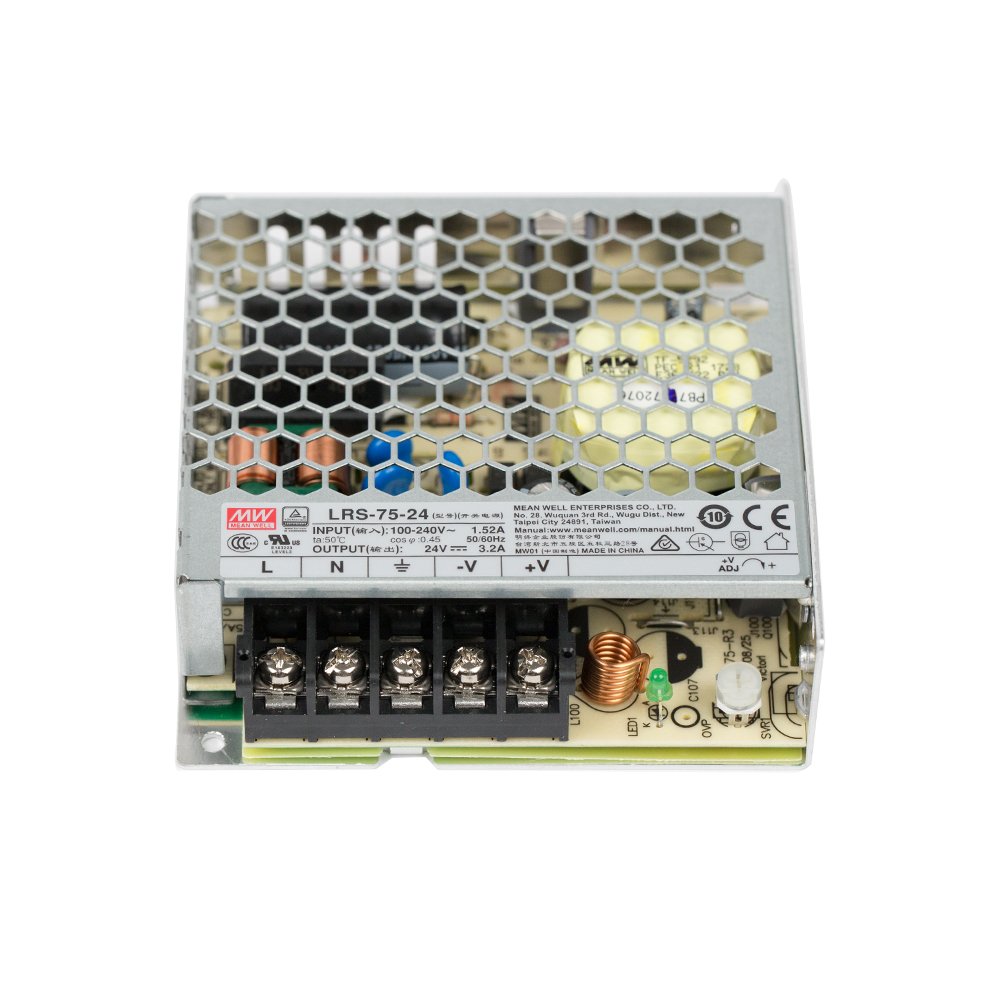

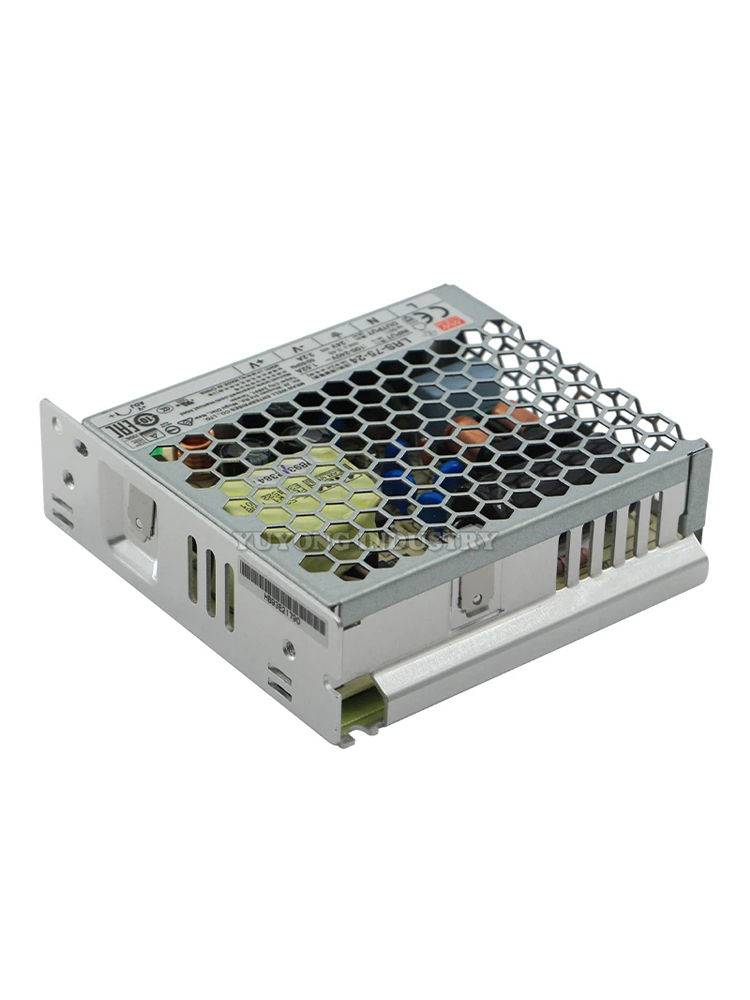

The Mean Well LRS-75 series 76.8W single output AC to DC enclosed switch mode power supply has an output current rating of 3.2A at 24VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC/120VDC to 373VDC. The device provides a metallic meshing and air convection to ensure optimum heat dissipation. This power supply can deliver an extremely low no-load power consumption. The power supply meets anti-vibration demand up to 5G capability and makes it ideal for installing in testing environments.

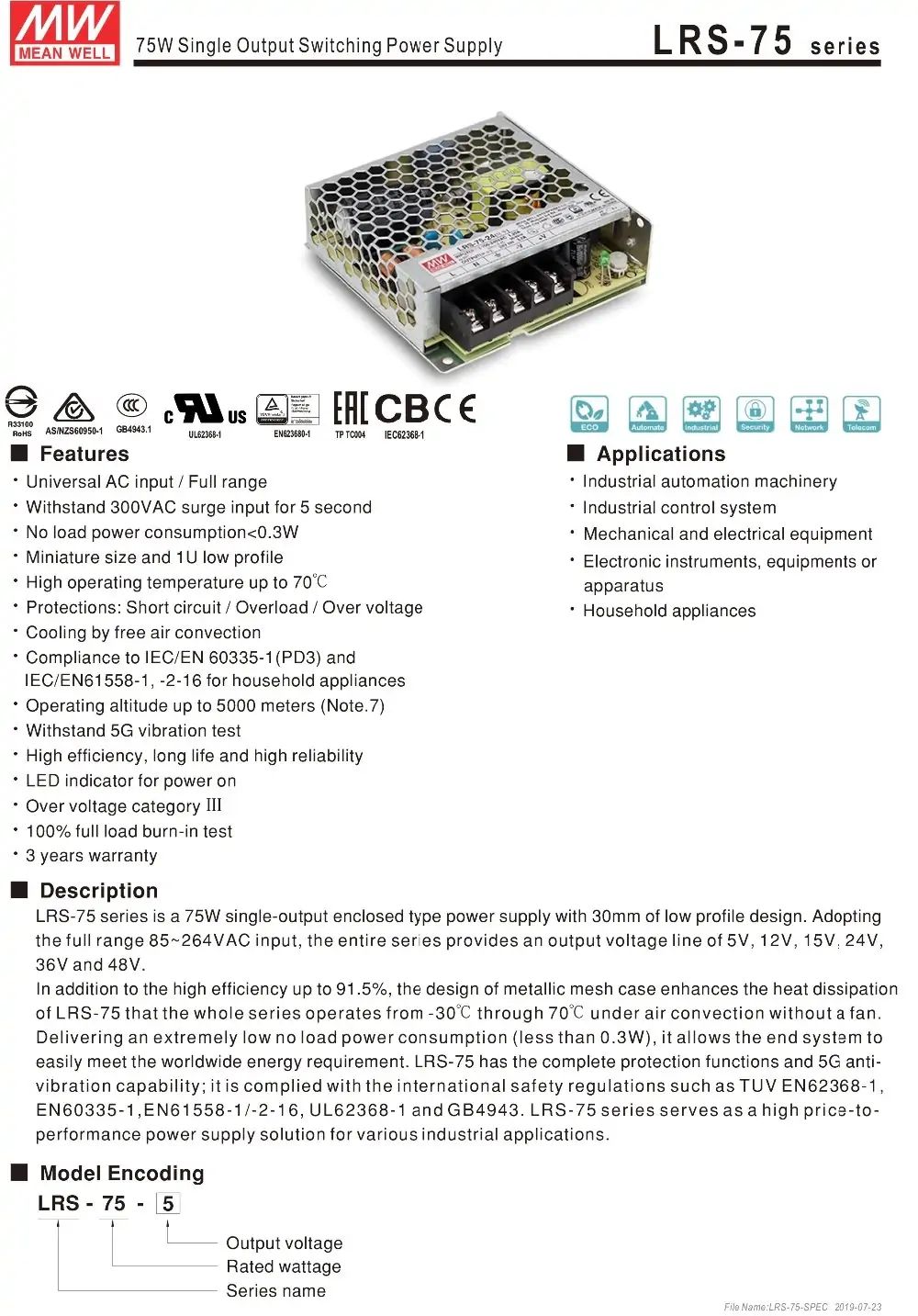

Features and Benefits
Free air convection cooling
High reliability
Highly efficient enclosed
Low profile
Operating altitude up to 5000m
Surge input is 300VAC with a duration of 5 second
Up to 91.5% efficiency rating, with less than 0.3W no load power consumption
Vibration resistance is 5G
Applications
Control machinery
Electrical equipment
Household appliances
Industrial automation
Mechanical
