Description

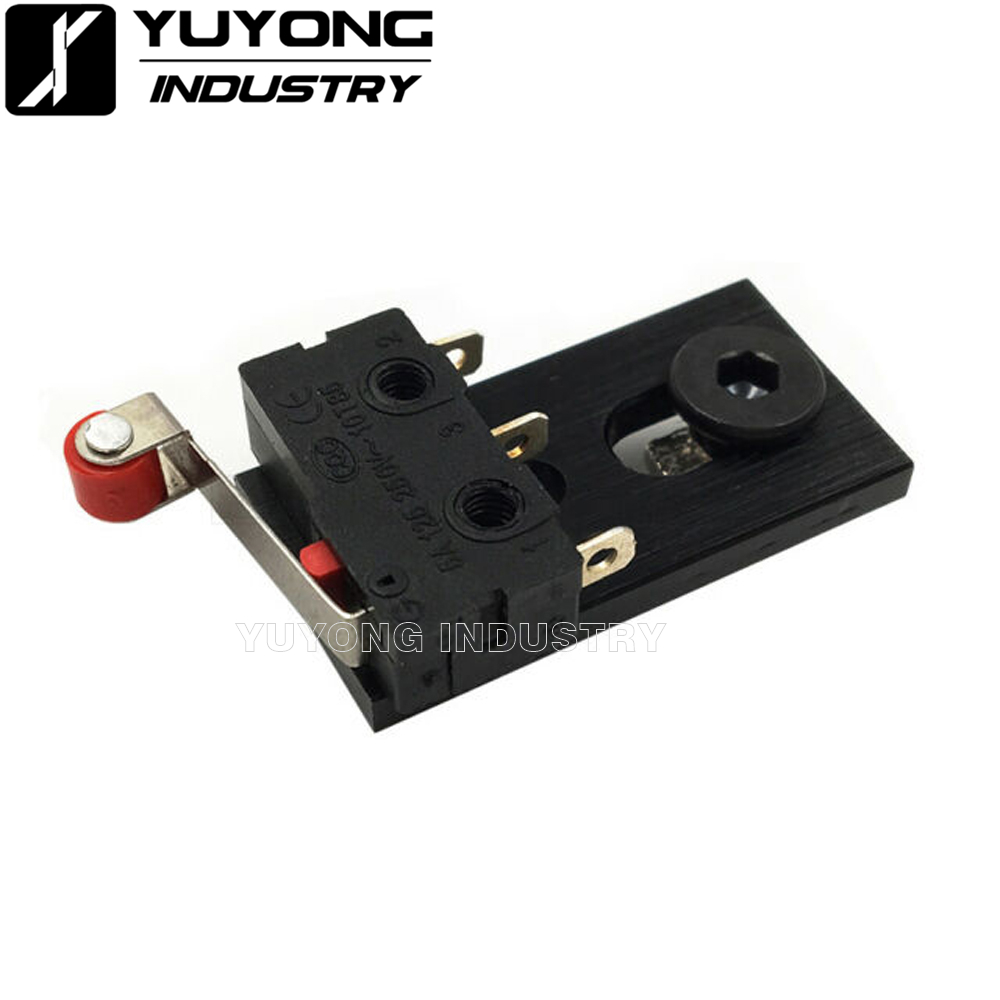

Micro Limit Switch Kit with Mounting Plate
The holes in the plastic of the switch will need to be tapped to M3 size so the included M3 Screws can be used to attach the switch to your project.

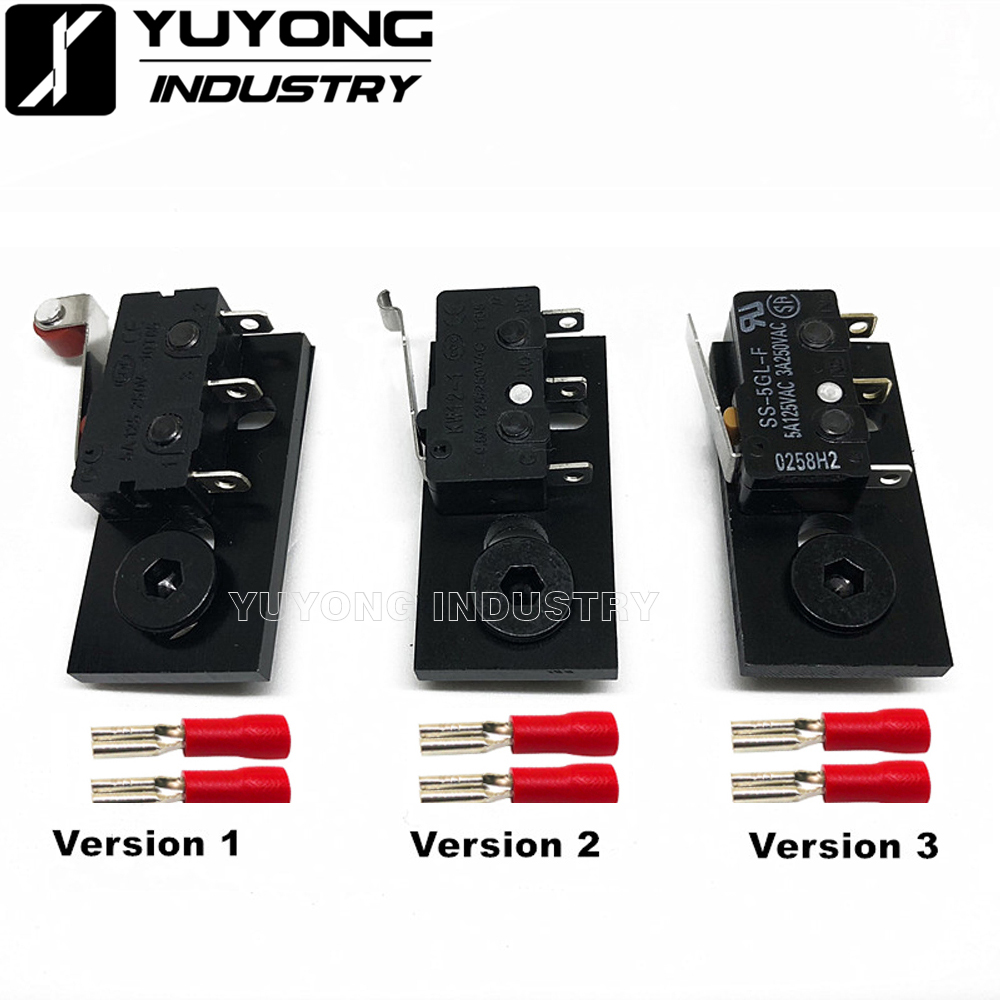

Version 1 Limit Switch Specification:
- Dimensions:0.79 in x 0.59 in x 0.24 in (2.0 cm x 1.5 cm x 0.6 cm)
- Current:5A
- Voltage:125V/250V
- Material:Plastic
- Color:Black
- Protection Degree:IP65
- Operation Temperature:-25~+80°C
- Operation Humidity:<85%
- Safety Approvals:CE,CQC
Version 2 Limit Switch Specification:
- Dimensions:0.79 in x 0.59 in x 0.24 in (2.0 cm x 1.5 cm x 0.6 cm)
- Model Number:KW12-1
- Current:0.5A
- Voltage:125V/250V
- Origin:Made in Indonesia
- Material:Plastic
- Color:Black
- Protection Degree:IP65
- Operation Temperature:-25~+80°C
- Operation Humidity:<85%
- Safety Approvals:CE,CQC
Version 3 Limit Switch Specification:
- Dimensions:0.79 in x 0.59 in x 0.24 in (2.0 cm x 1.5 cm x 0.6 cm)
- Model Number:SS-5GL-F
- Rating Load:5A125VAC,3A250VAC
- Brand:omron
- Origin:Made in Indonesia
- Material:Plastic
- Color:Black
- Protection Degree:IP65
- Operation Temperature:-25~+80°C
- Operation Humidity:<85%

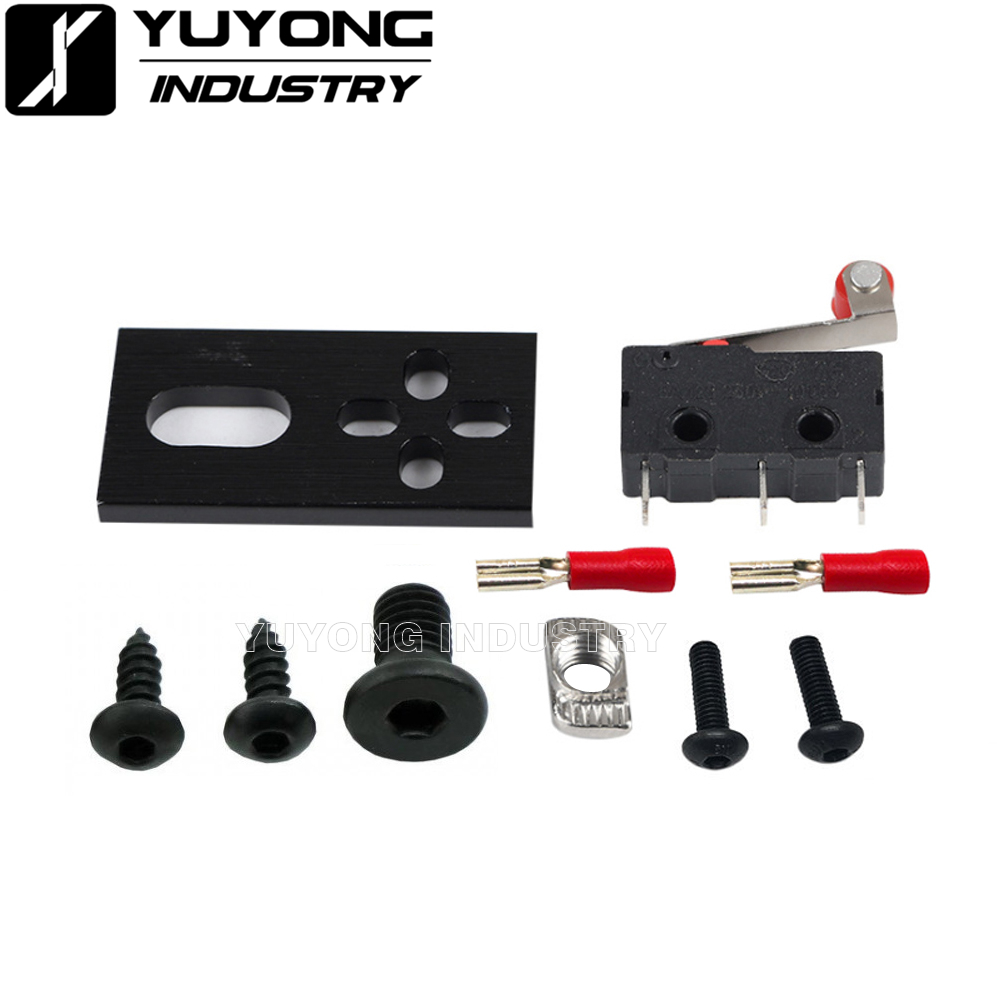

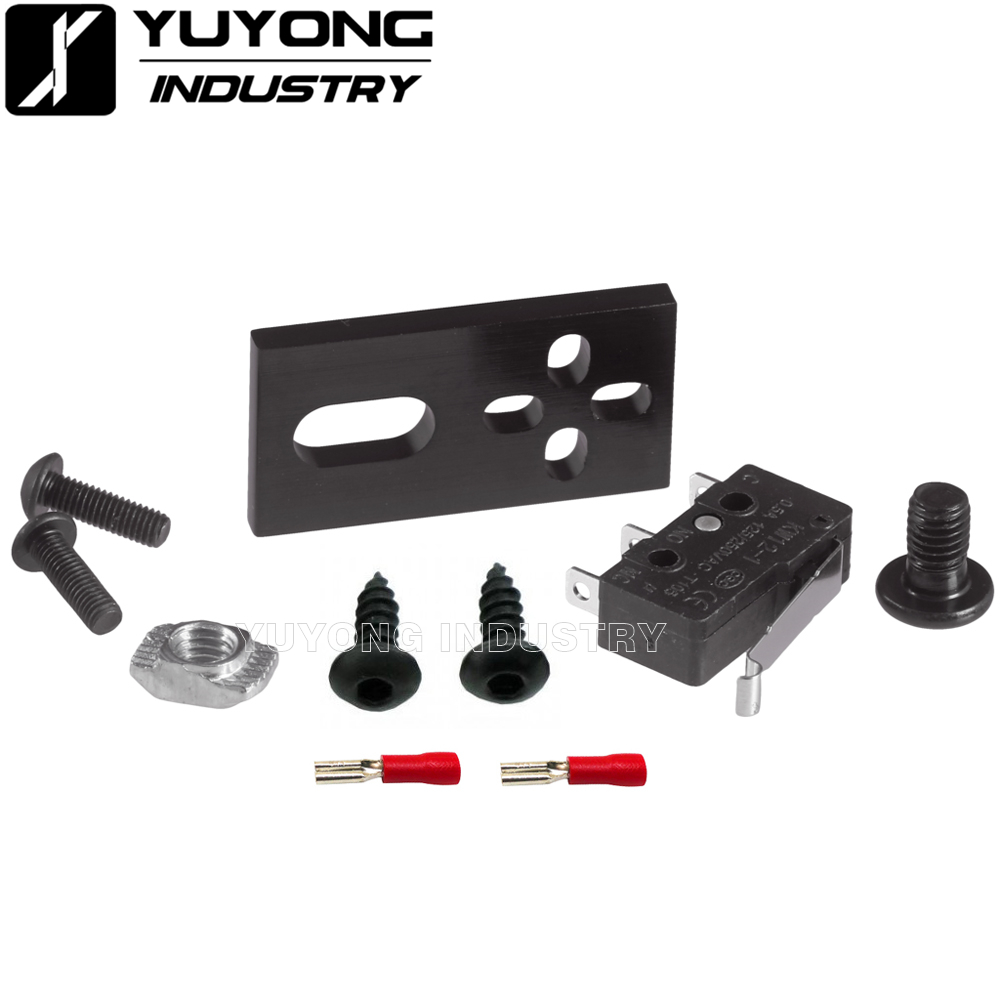

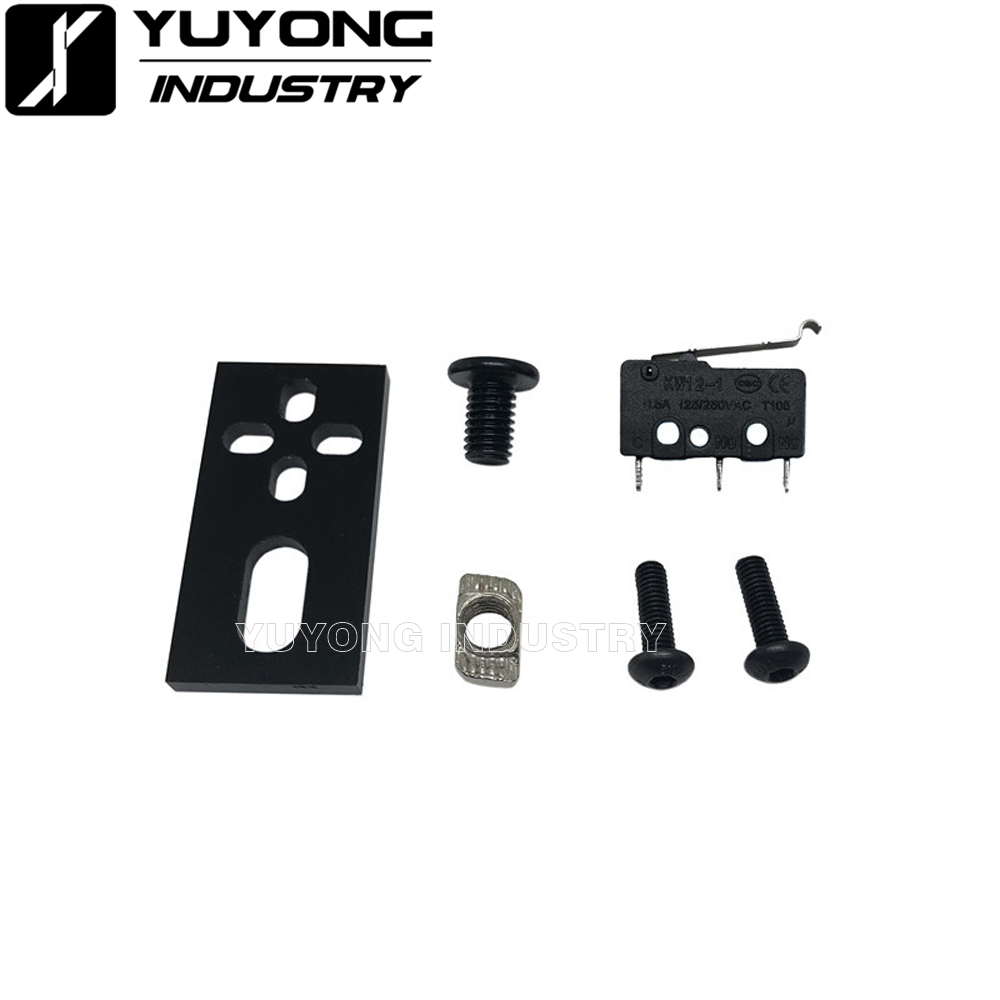

Combo Includes:
- 1 x Micro Limit Switch
- 1 x Limit Switch Plate
- 2 x Button Head Screw – M3x10mm(only for Version 1 and Version 2)
- 2 x M3 self threading screws(only for Version 1 and Version 2)
- 2 x Spader Connectos
- 1 x Low Profile Screw – M5x8mm
- 1 x Drop In Tee Nut–M5
NOTE: The holes in the plastic of the switch will need to be tapped to M3 size so the included M3 Screws can be used to attach the switch to your Build.
