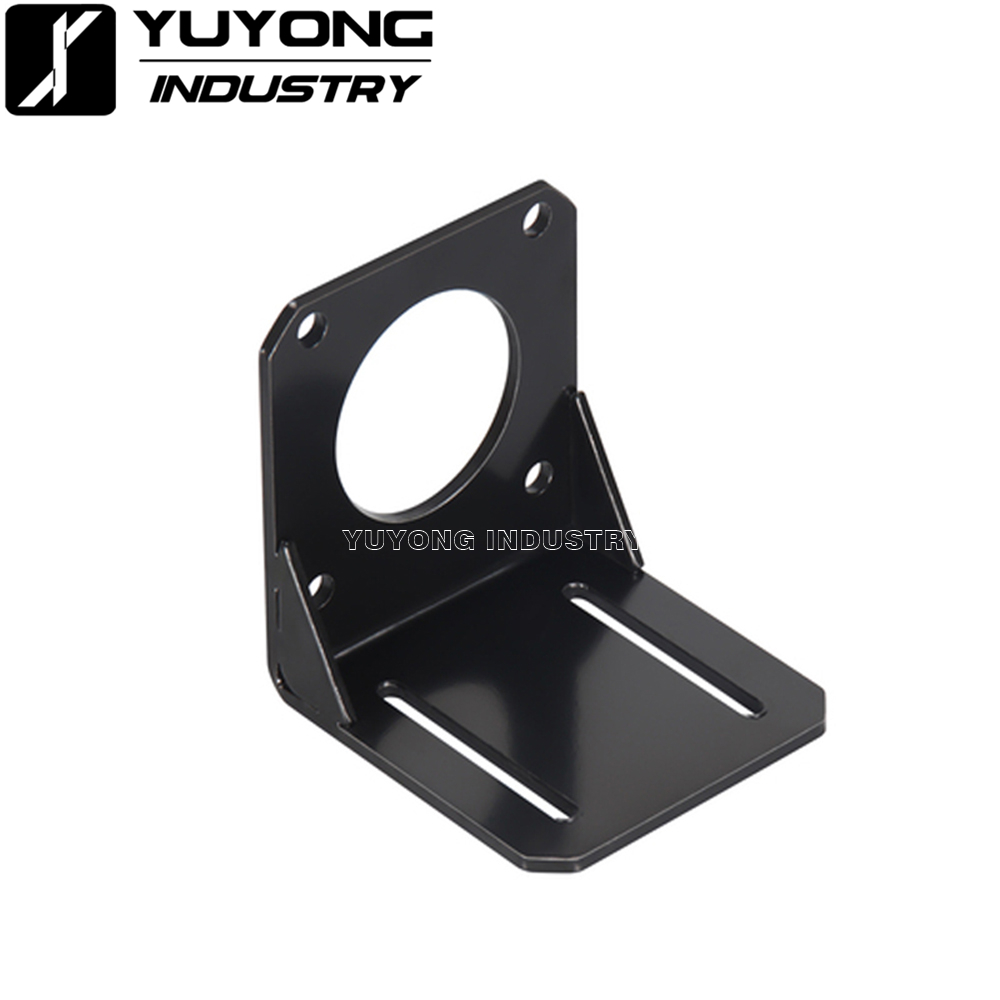

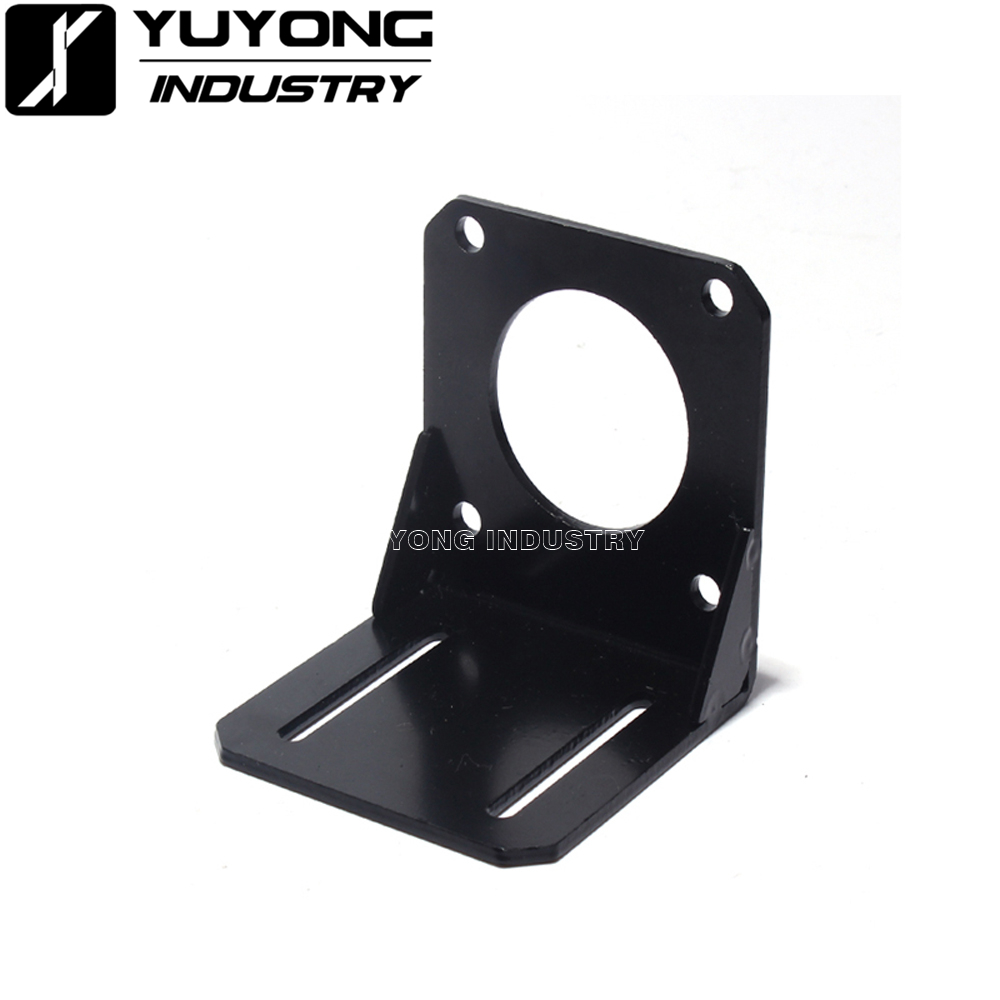

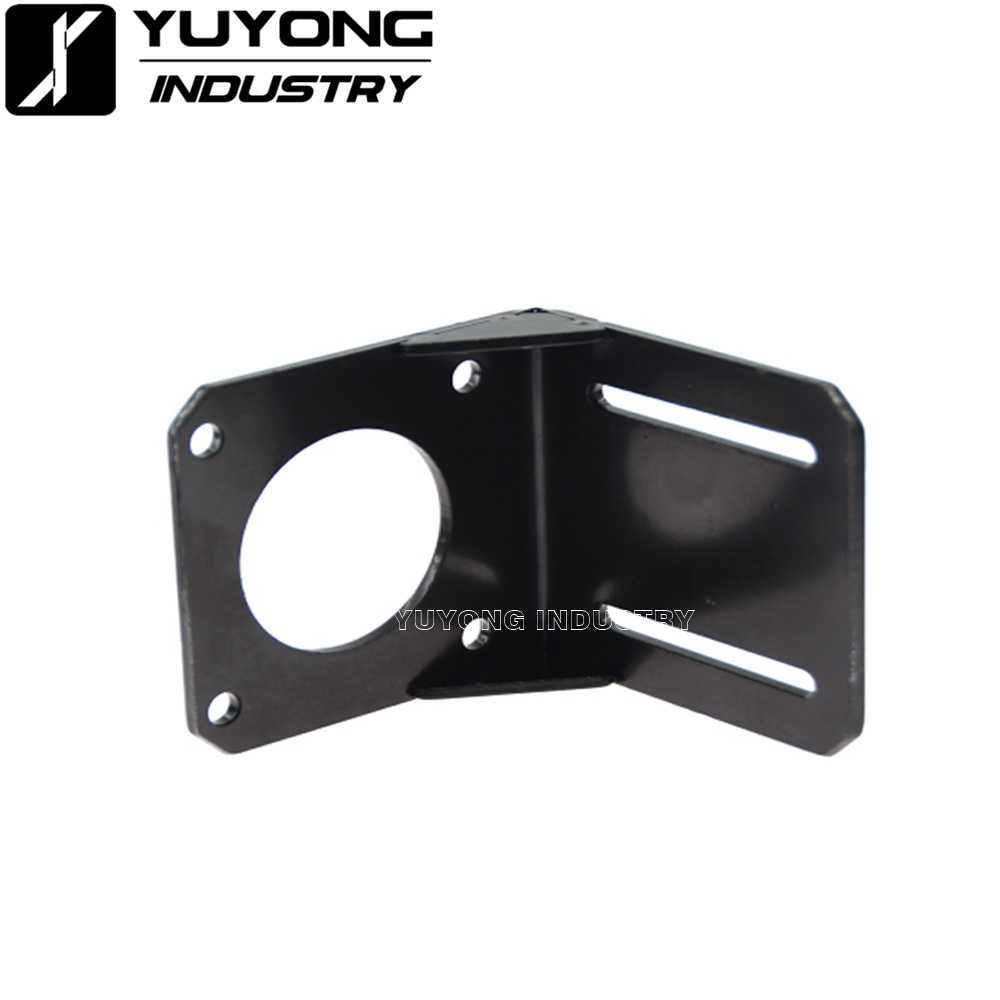

NEMA 23 Stepper Motor L-Bracket

Description

This mounting bracket is manufactured by integral forming of 3mm steel plate and welds fixed bar on each side of the holder, strong and tough. strong mounting and easy to install

Mounting Holes: The distance from the center of the hole to the ground is 39mm, all slotted and holes openings are made of high-precision punch press once stamping, ensureing that absolutely the dimensions are absolutely accurate and precise, and with the motor fit tightly.

Our motor fixed seat adopts advanced anti-rust paint technique, Durable with alloy steel material,which makes the bracket be used for a long-term

All slot hole for high precision punch a punching processing,perfect fit for your 57mm Nema 23 Stepper Motor

Materials: Alloy steel material, powder coated finish.
Color: Black
Thickness: 3mm
Max Collar Diameter: 38mm
Mounting Holes: The distance from the center of the hole to the ground is 39mm

Package include:

To mount to the rail you will need:

4 x M4 6mm Screws
4 x M4 Sliding T-Nuts

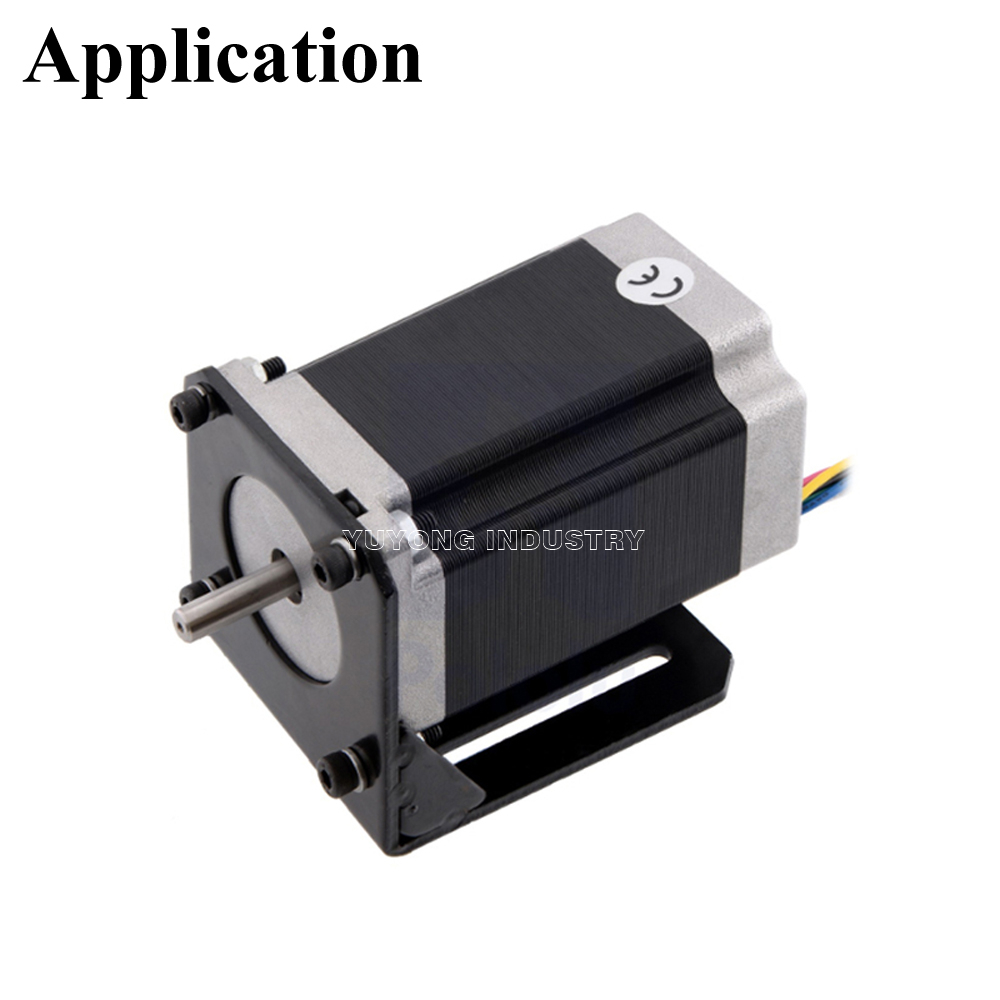

To mount a NEMA23 Stepper Motor you will need:

4 x M5 15mm Screws
4 x M5 Lock Nut
