Plastic Hinge for V-Slot 2020/3030/4040/4545

Description

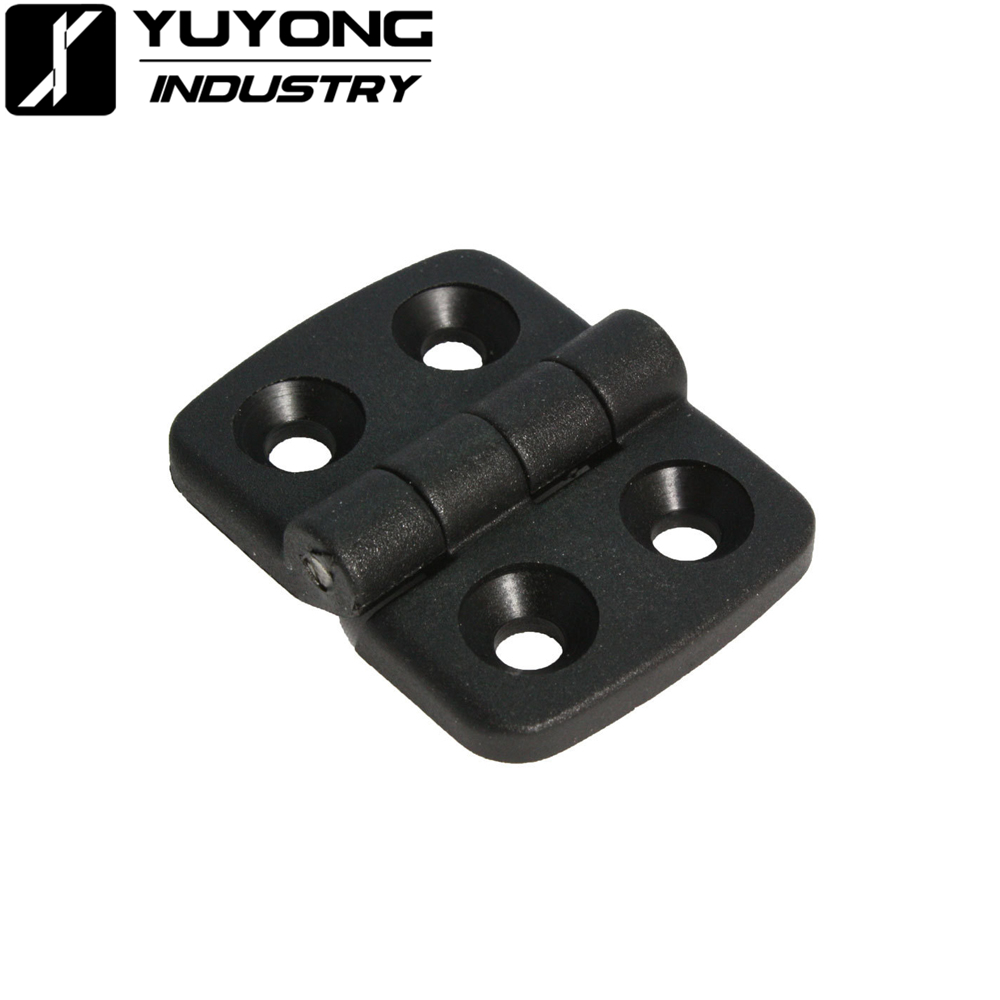

Plastic Hinge for V-Slot and other 2020/3030/4040/4545 Aluminium Extrusions.

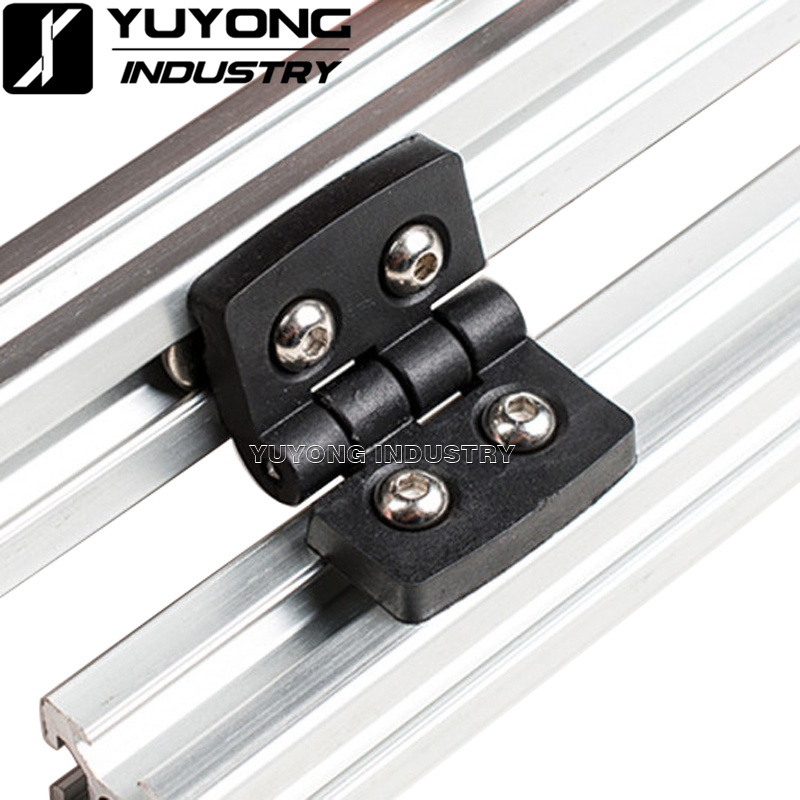

Grab some Low Profile 8mm Screws and Drop-in Tee Nuts to mount the hinge.

These Plastic Hinges can be used for many DIY applications.

Specifications:

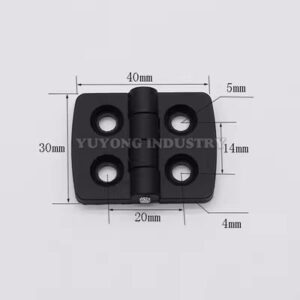

• Model: 2020
• Material: Plastic
• Colour: Black
• Open Size: 30 x 40 x 4mm (L X W X H)
• Mounting Hole Pitch(H*W): 20*14mm
• Hole Size: 5mm /Counter sunk side 9mm
• Thickness: 4mm

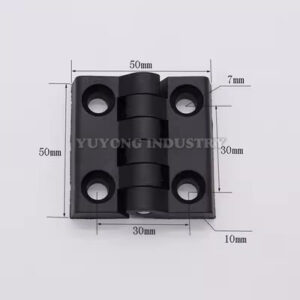

• Model: 3030
• Material: Plastic alloy
• Colour: Black
• Open Size: 50 x 50 x 10mm (L X W X H)
• Mounting Hole Pitch(H*W): 30*30mm
• Hole Size: 7mm
• Thickness: 10mm

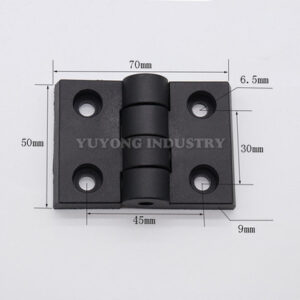

• Model: 4545
• Material: Plastic alloy
• Colour: Black
• Open Size: 50 x 70 x 9mm (L X W X H)
• Mounting Hole Pitch(H*W): 30*45mm
• Hole Size: 6.5mm
• Thickness: 9mm







Note:

• Screws are not included
• Please allow minor error due to manual measurement.
• Due to the difference between different monitors, the picture may not reflect the actual color of the item.
