Description

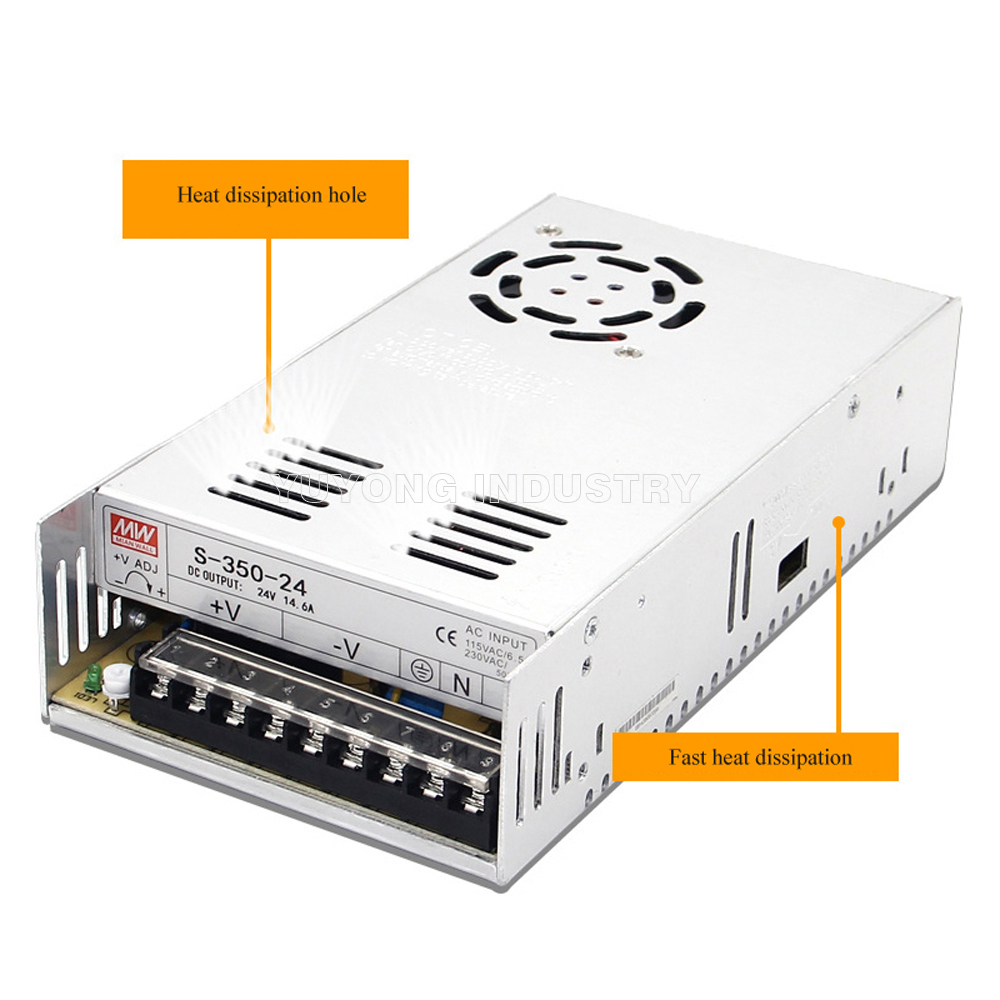

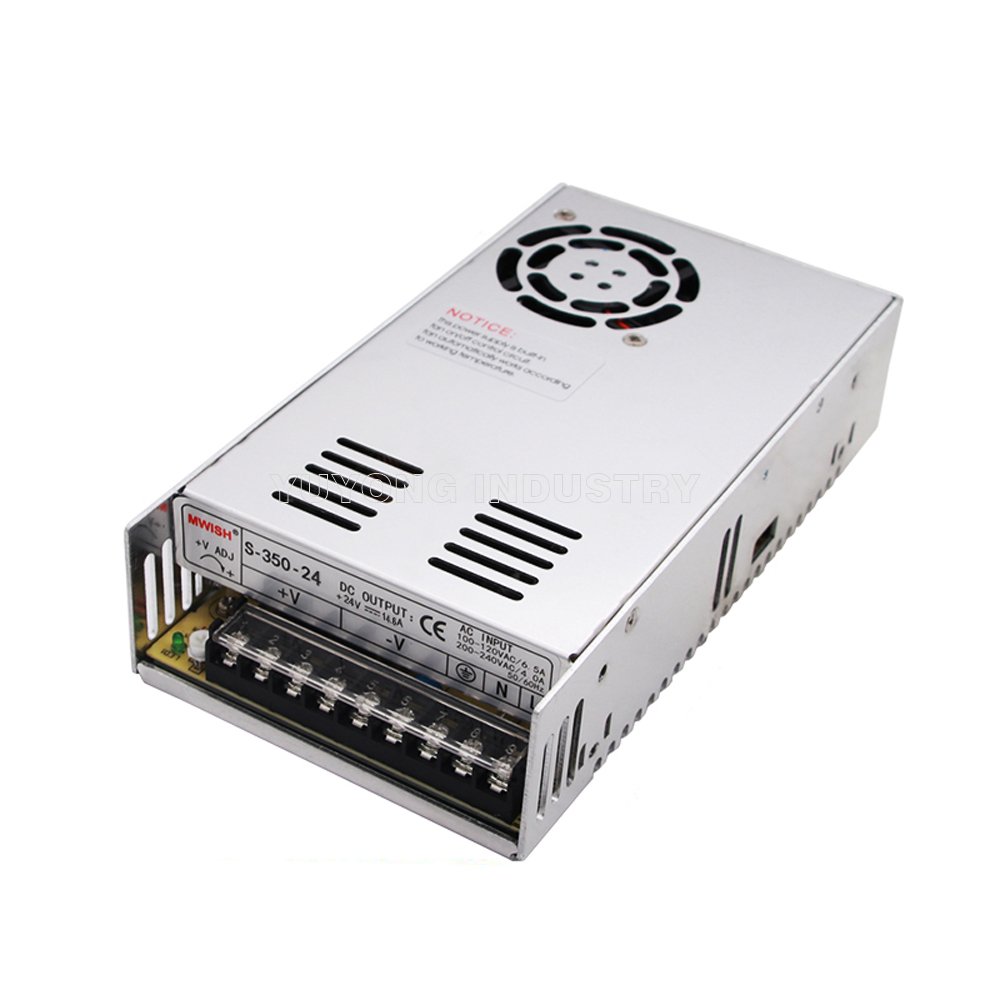

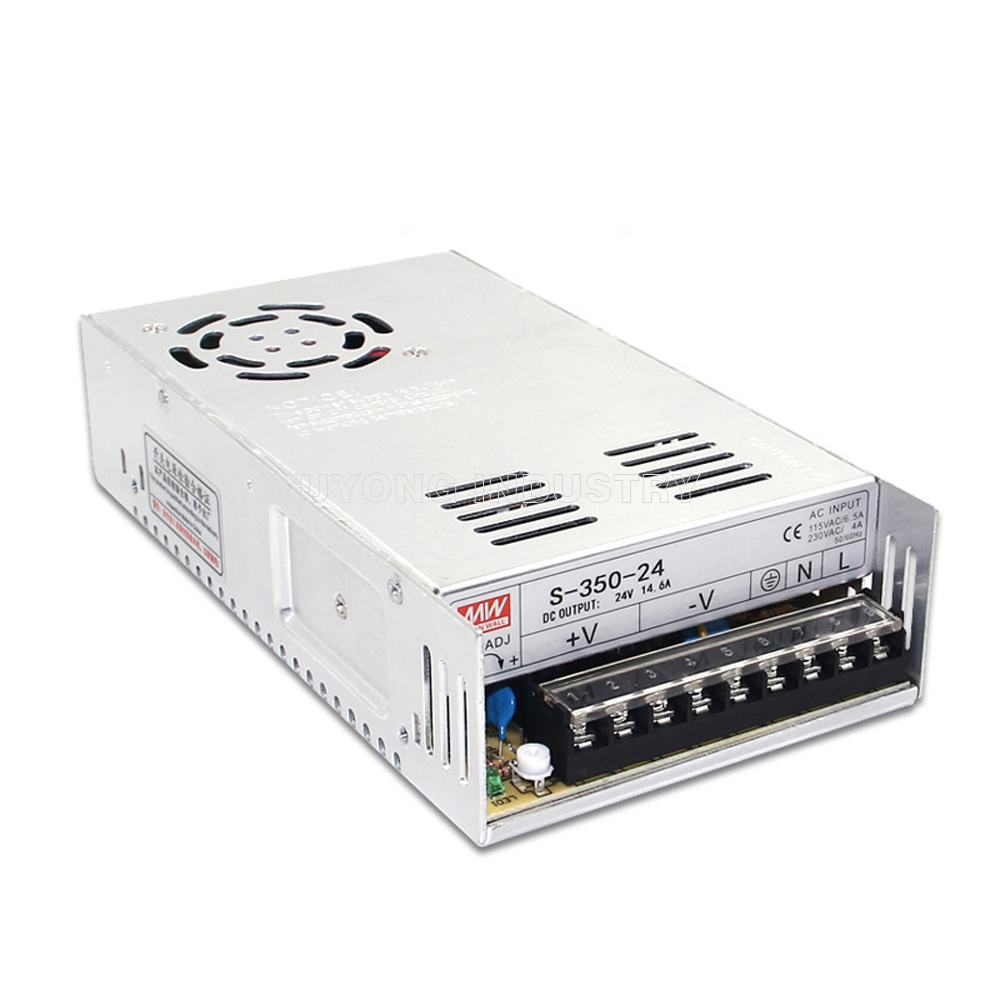

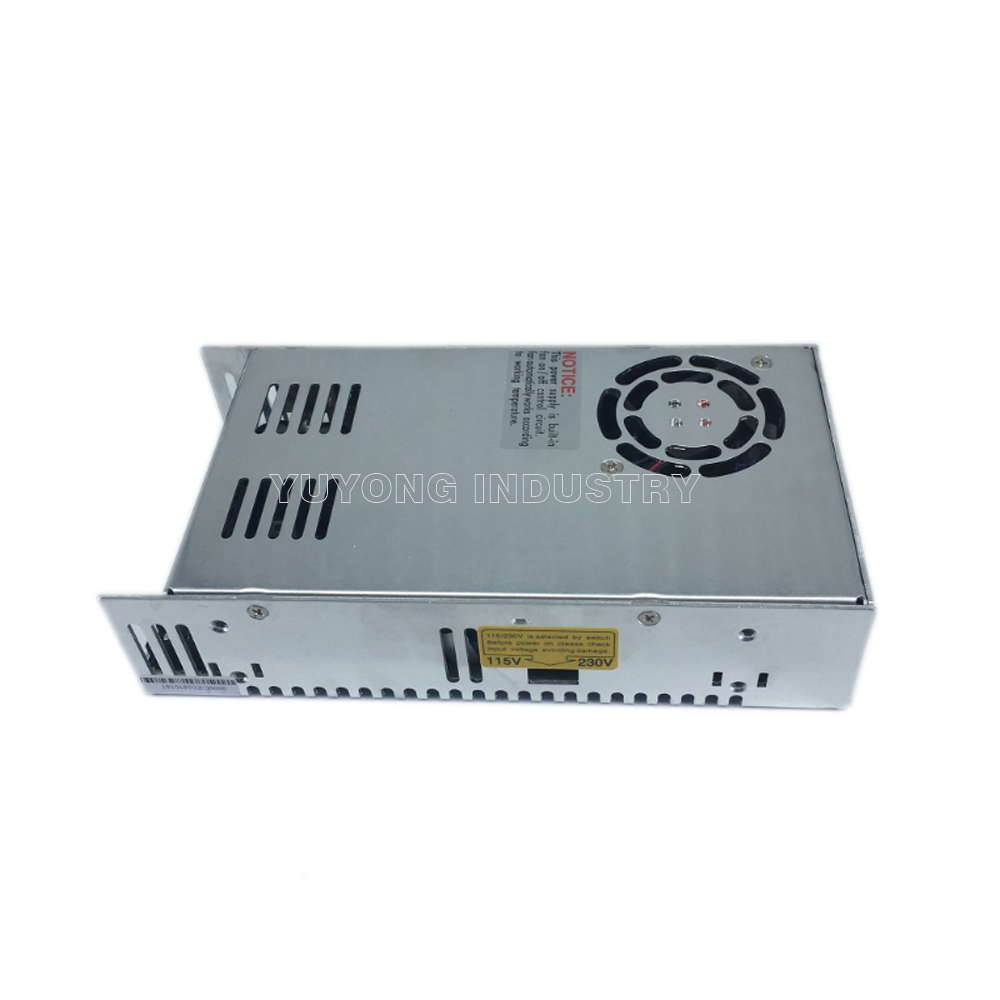

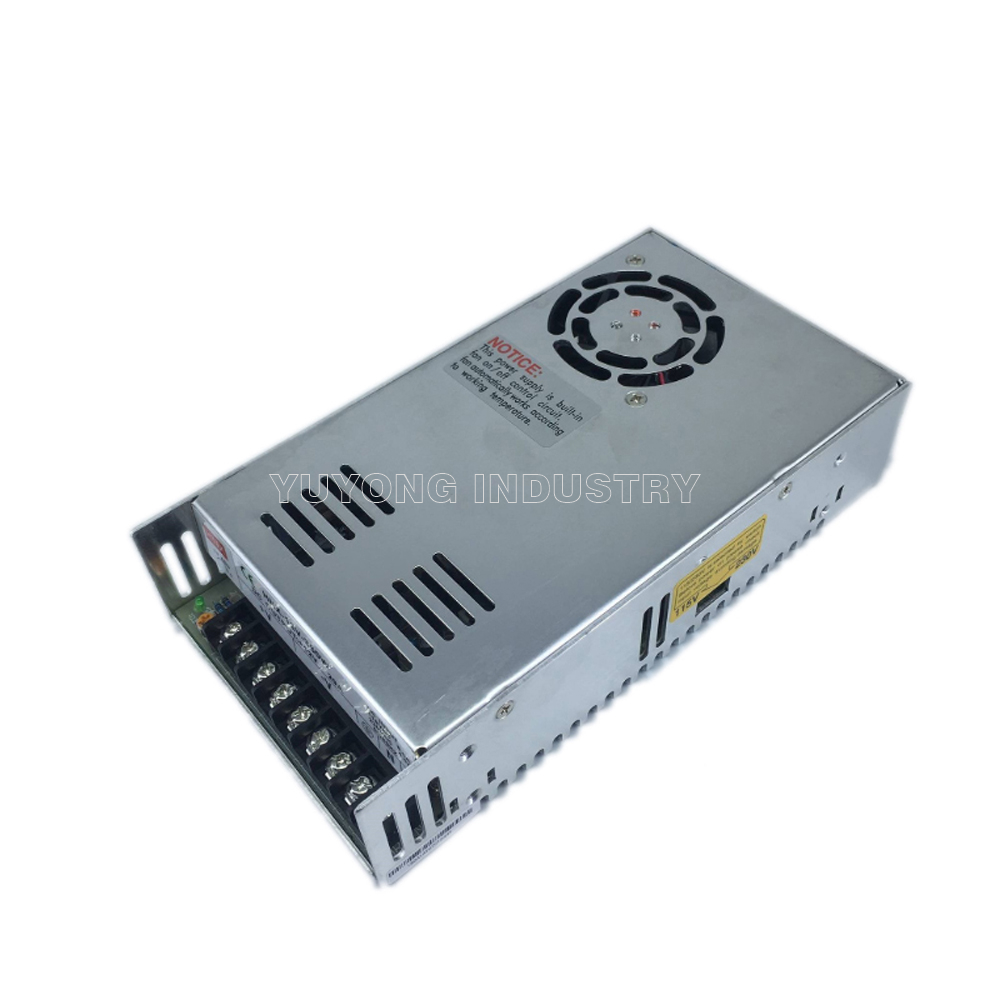

S-350-24 Switching Power Supply 350W 24V 14.6A 115Vac or 230Vac
Details:
S-350 350W AC/DC Single Output Power Supply is a single-output enclosed type power supply with 30mm of low profile design. Adopting an input of 115 VAC or 230 VAC (select by switch). A built-in long life fan allows S-350 to work from -30ºC to +70ºC with full load. Delivering an extremely low no load power consumption (less than 0.75W), S-350 allows the end system to easily meet the worldwide energy requirement. S-350 has complete protection functions and 5G anti-vibration capability.
Specifications:
- Output Voltage-Channel 1: 24 V
- Output Power: 350.4 W
- Open Frame/Enclosed: Enclosed
- Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 254 VDC to 370 VDC
- Output Current-Channel 1: 14.6 A
- Mounting Style: Chassis
- Length: 215 mm
- Width: 115 mm
- Height: 30 mm
- Input Frequency: 47 Hz to 63 Hz
