R4 ZZ Ball Bearings

8.57 USD 53.00 USDPrice range: 8.57 USD through 53.00 USD

SKU: N/A Category:

Description

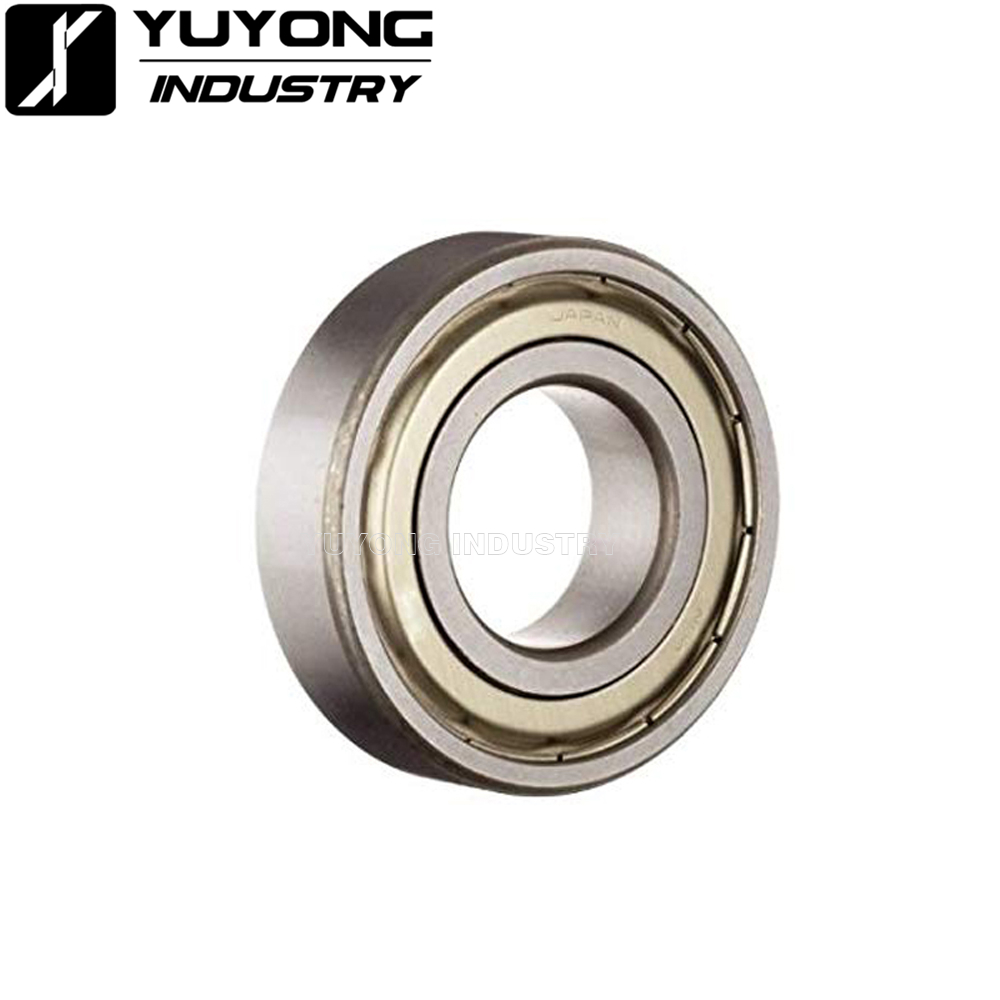

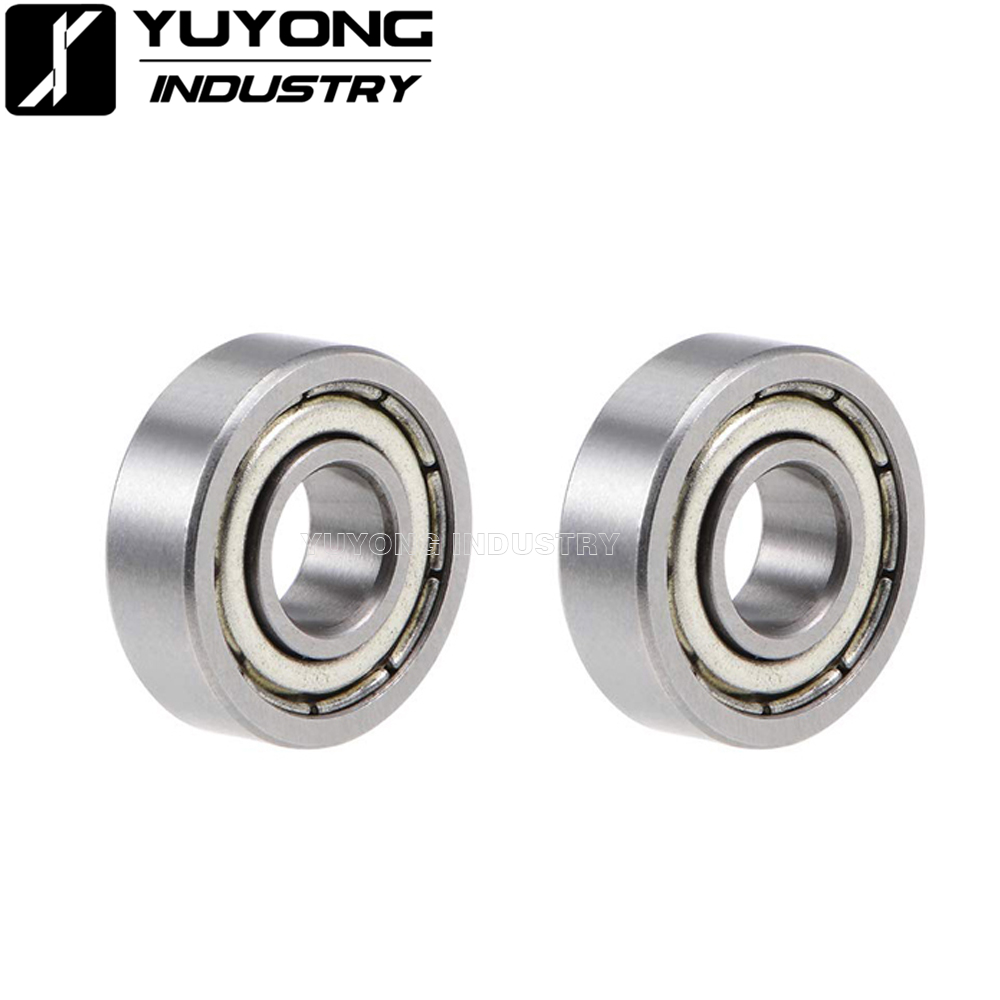

These R4ZZ Ball Bearings (1/4″ x 5/8″ x 0.196″) are a single-row bearing that supports radial loads, made with Chromium Steel providing superior quality and durability.

They comes pre-lubricated and shielded to keep the lubricant in and contaminants, dirt and debris out.



Specifications:

  • Model: BE0014
  • Size: R4ZZ
  • Material: Steel

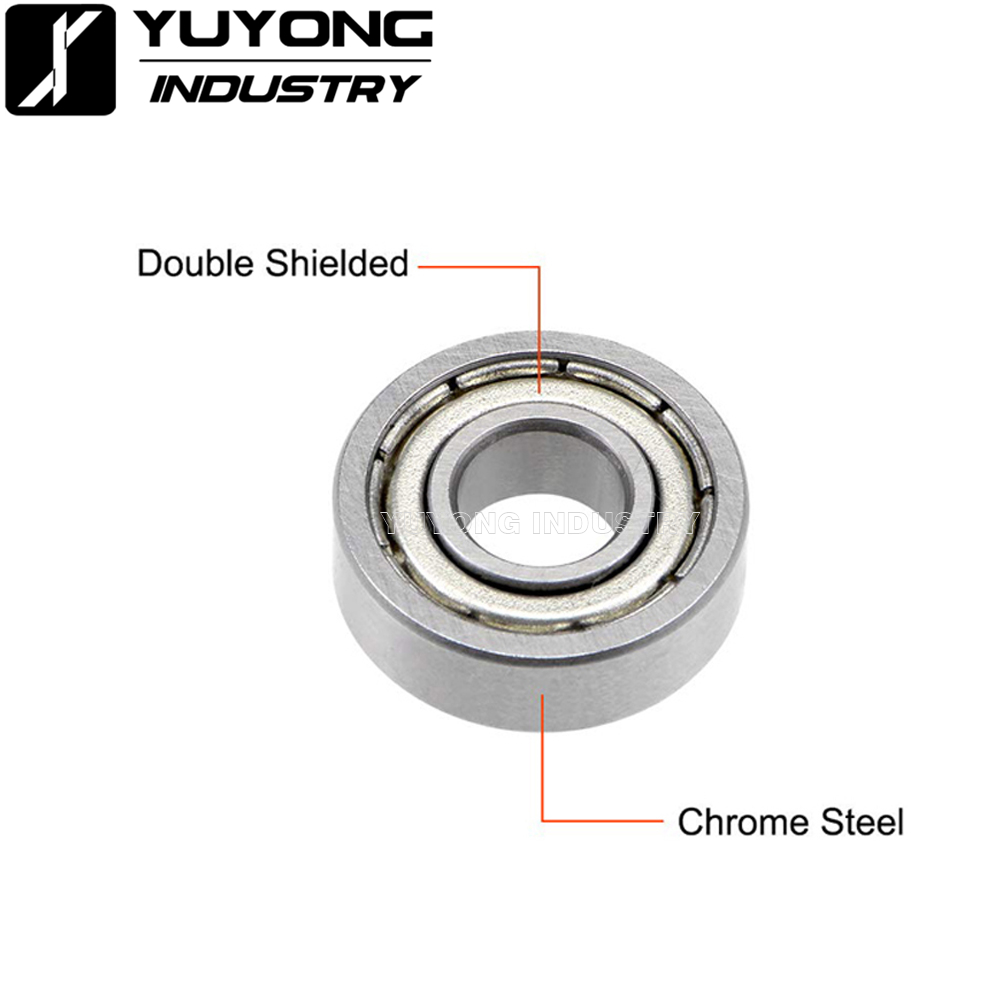

  • Protection: Metal Shield on both sides
  • Greased / Lubricated: Yes
  • Bore Diameter: 6.35mm / 0.25 inch
  • Outside Diameter: 15.875mm / 0.625 inch;

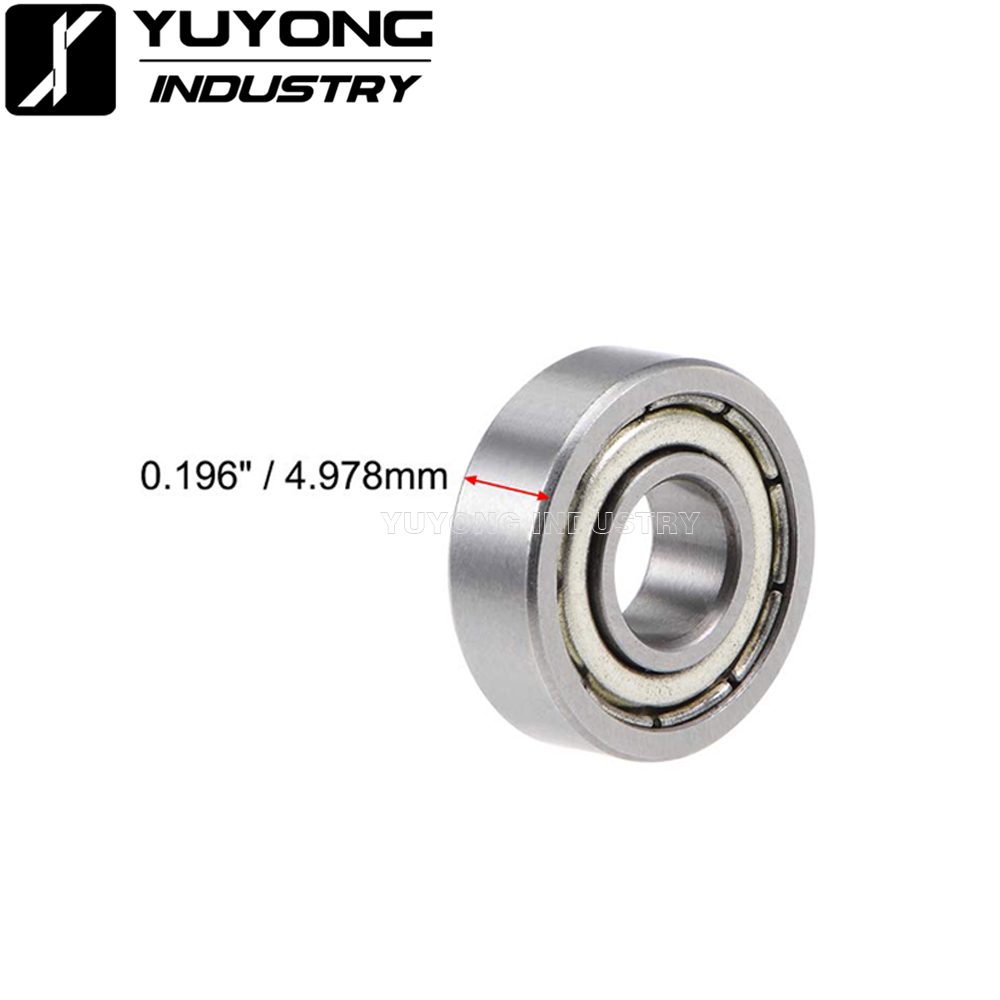

  • Width: 4.9784mm / 0.196 inch;
  • Fillet Radius: 0.0508mm / 0.002 inch
  • Supported Revolutions per Minute (RPM): 38,000
  • Dynamic Load Rating: 1489 N
  • Static Load Rating: 618 N

Additional information

Weight 0.1 kg
