Screw Driven 1000mmx1500mm Latest V2.3 with Tensioning System WorkBee CNC Full kit Wood Metal Engraver Milling Machine

The WorkBee CNC Full Kit have been version 2.3 after many big changes and upgrades.Expecially the latest Version add Tingle Tensioning System which solve the problem of whipping when for long length or faster speed,it allows the Lead screw to be placed under a higher amount of tension which minimises lead screw ‘whip’ allowing faster feed rates to be achieved.It make the Lead Screw Smooth and precise.

It has been carefully designed and can accurately cut foams, woods, plastics and aluminium to 0.05-0.2mm accuracy or better.With a WorkBee CNC Kit you can manufacture functional engineering parts, toys, signs, or whatever you can imagine without leaving the workshop.

Mach3 Bundle(Use Mach3 Software) or GRBL Bundle(Use GRBL Software) or CNC USB Bundle(Use CNC USB Software) are perfect for the Full Kit.For More Info,please click here.

15x30mm Wide Drag Chain Combo for More Wire Cables Bundle.

1.5KW/2.2KW 110V or 220V 7 Series-4 Bearings High Speed Fine Spindle for Choice.

What’s 7 Series Bearings Spindle?

The 7 Series Bearings are Angular Contact Ball Bearings,There is a contact angle between the ferrule and the ball,Can withstand large axial loads,Most of the two bearings are used together, such as back-to-back and face-to-face,it’s expensive,used for High Speed and High Precise Occasion.4 Bearing are more stable.

Compatible Material for Cutting/Milling/Engraving:

• Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam


This Full Kit Includes:

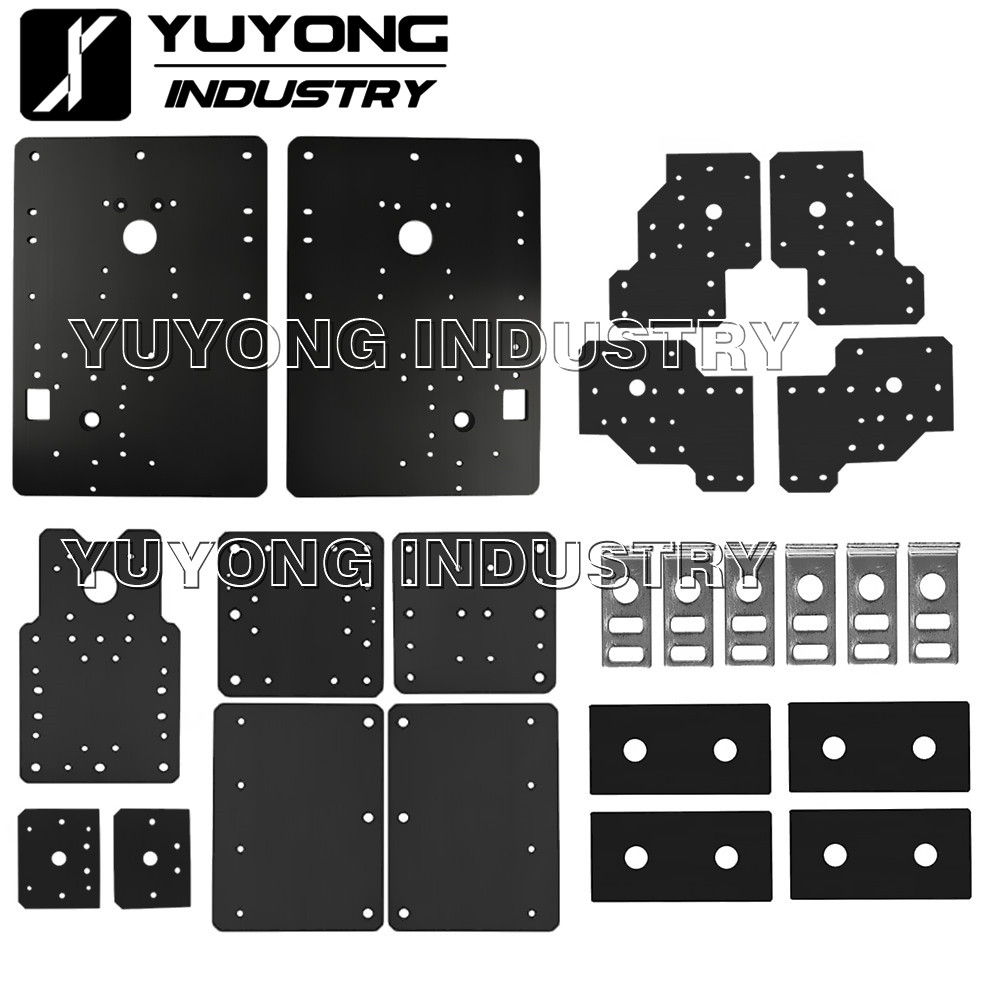

• WorkBee CNC Mechanical Kit
• 4 x Nema23(2.5N.m) Stepper Motors
• Cable Drag Chain Bundle
• Wiring Cable Kit

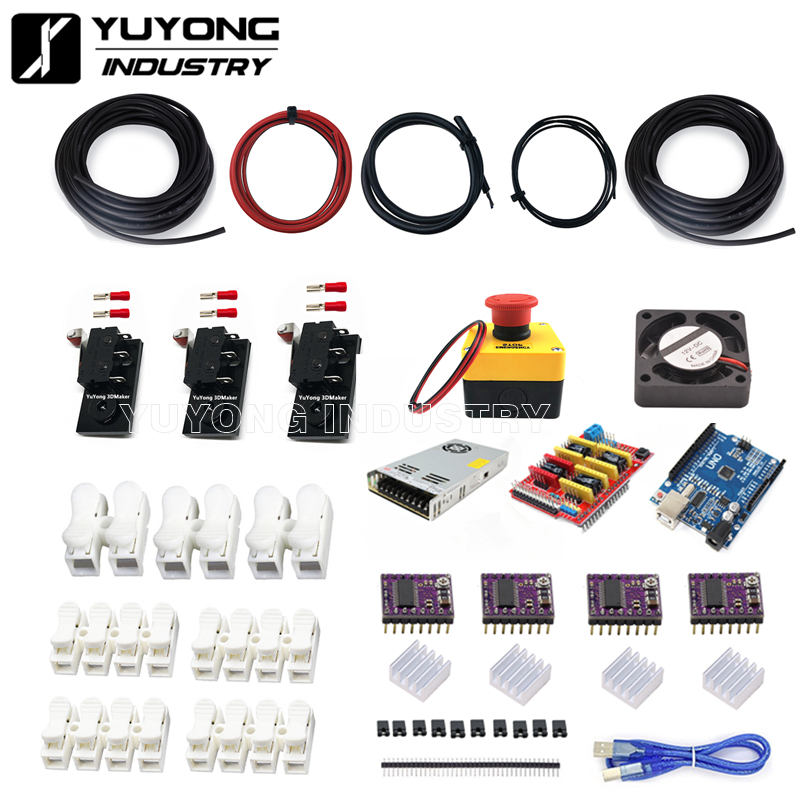

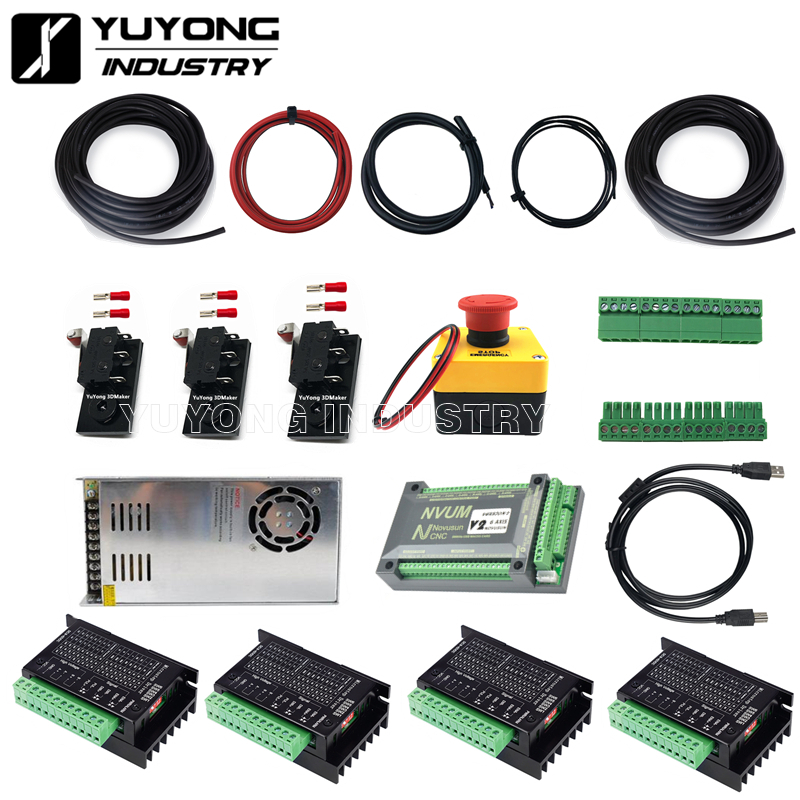

• Mach3 or GRBL or CNC USB Controller Bundle
• 1.5kW/2.2kW Air Cooled or Water Cooled Spindle Bundle
• All Extrusions are M5 Tapped as where it is necessary

Specs of Nema 23 Stepper Motor:

• NEMA 23
• Shaft Size: 8mm
• Step Angle: 1.8°
• Holding Torque:  2.5N.m
• Rated voltage:  3.6V
• Rated current:  3A

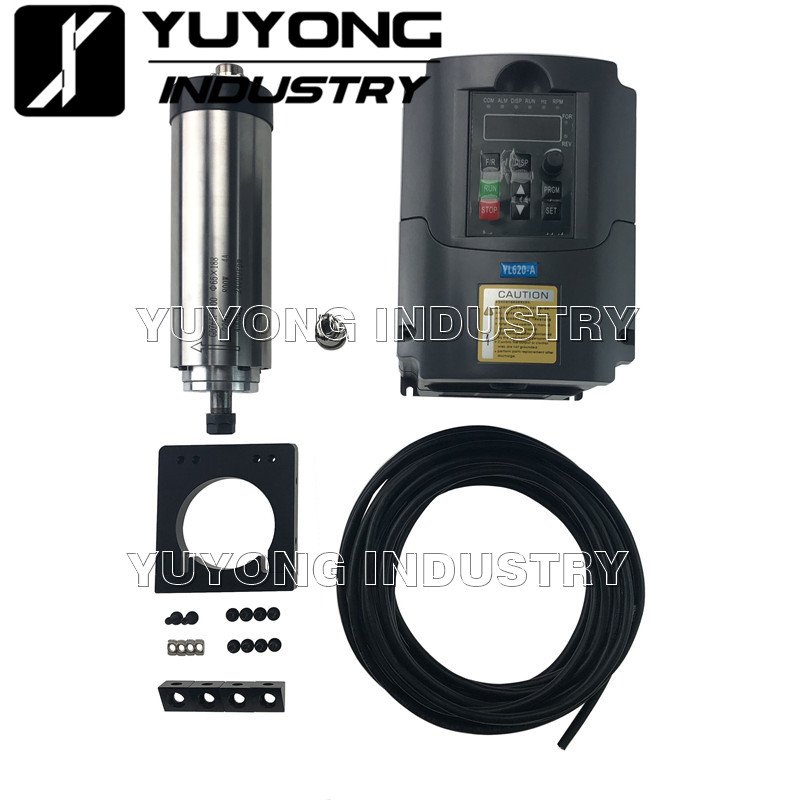

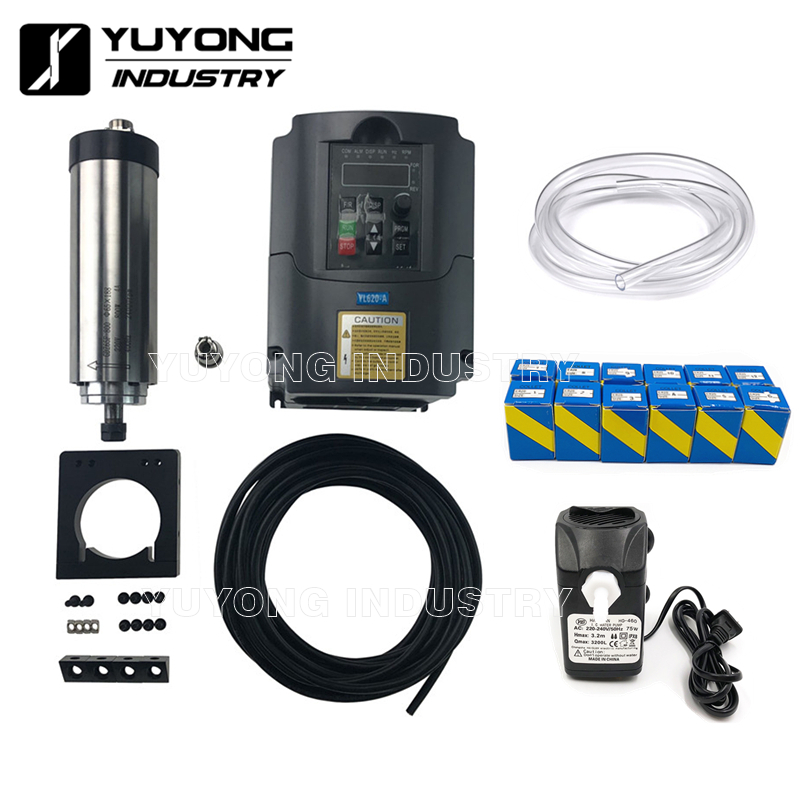

Specs of 1.5 kW Air/Water Cooled Spindle:

• 1.5kW Air Cooled Spindle Net weight: 2.6kg
• 1.5kW Air Cooled Spindle Spec: φ 65 x 188mm
• 1.5kW Water Cooled Spindle Net weight: 3.5KW
• 1.5kW Water Cooled Spindle Spec: φ 65 x 210mm
• Power: 1.5 kW
• Voltage: 220 ~250 V or 110 V
• Frequency: 400 Hz
• Speed: 8000-24000 R/min
• Air/Water Cooling
• Run-out off: less than 0.005 mm
• Grease Lubrication
• VFD Inverter 1.5 kW 220 V or 110 V
• Collet: ER11

Specs of 2.2 kW Air/Water Cooled Spindle:

Please note: MDF Table and Drill Bits are Not included with this kit.

The WorkBee CNC Complete Kit Specs:

CNC Complete Kit500mmx750mm300X520mmYY-WBL-02750mmx750mm550X520mmYY-WBL-03750mmx1000mm550X770mmYY-WBL-041000mmx1000mm800X770mmYY-WBL-051000mmx1500mm800X1270mmYY-WBL-061500mmx1500mm1300X1270mm
