SD20 Waterproof Male and Female Connector

Description

These SD20 waterproof connectors are a great way to connect stepper motors and etc to your custom case. With IP68 rating they will keep your connections clean and dry.

Specification:

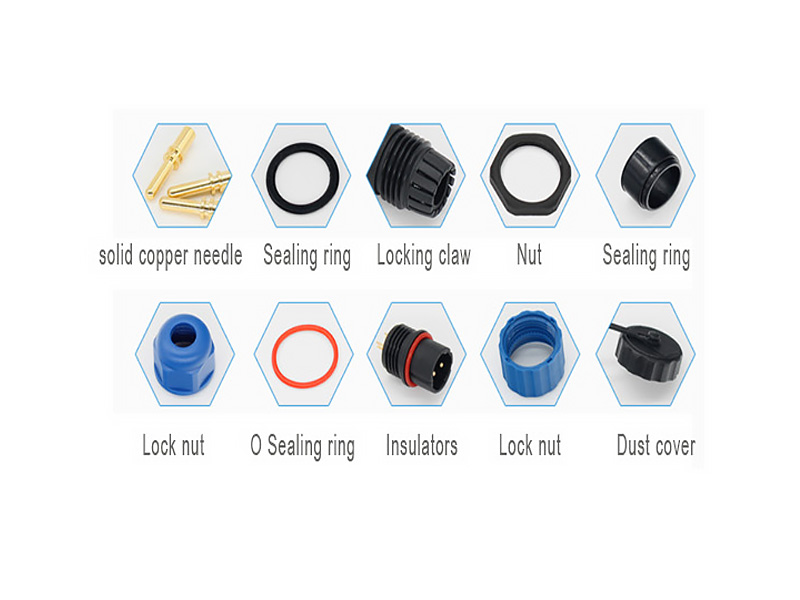

• Item Name:SD20 Waterproof male and female Connector
• Material: Nylon
• Welding pinhole: beryllium bronze, gold-plated style
• Sealing ring: Silicone
• Shell gender: male and female
• Connection method: threaded connection

1. Working temperature: -45°C~85°C
2. Relative humidity: 90%~95% (40±2°C)
3. Salt fog: 48h in 5% NaC1 fog
4. Tightness: IP68
5. Applicable wire diameter: Φ8.0~12.0mm
6. Mechanical life: 500 times
7. Insulation resistance: 500M Ω
8. Working current: 2P/3P=10A, 4P/5P/7P/6P/9P=5A
9. Contact resistance: Φ1.8 = 2M Ω, Φ1 =5M Ω
10.  Working voltage and withstand voltage Working voltage: 250V (AC) Withstand            voltage: 2500V (AC)

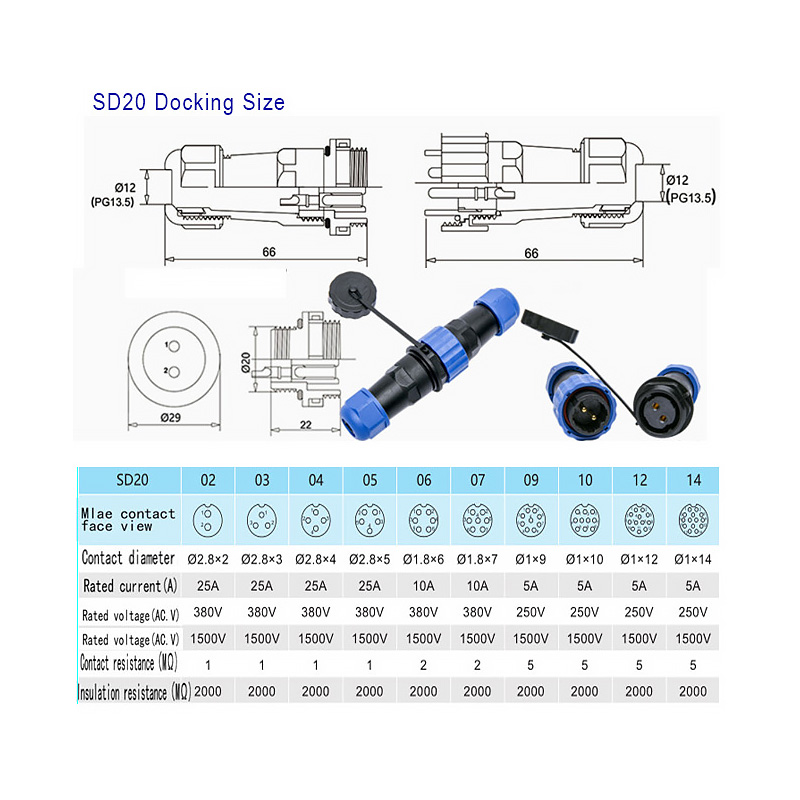

• Connector Type: 2 Pin/3 Pin/4 Pin/5 Pin/6 Pin/7 Pin/9 Pin/10 Pin/12 Pin/14 Pin
