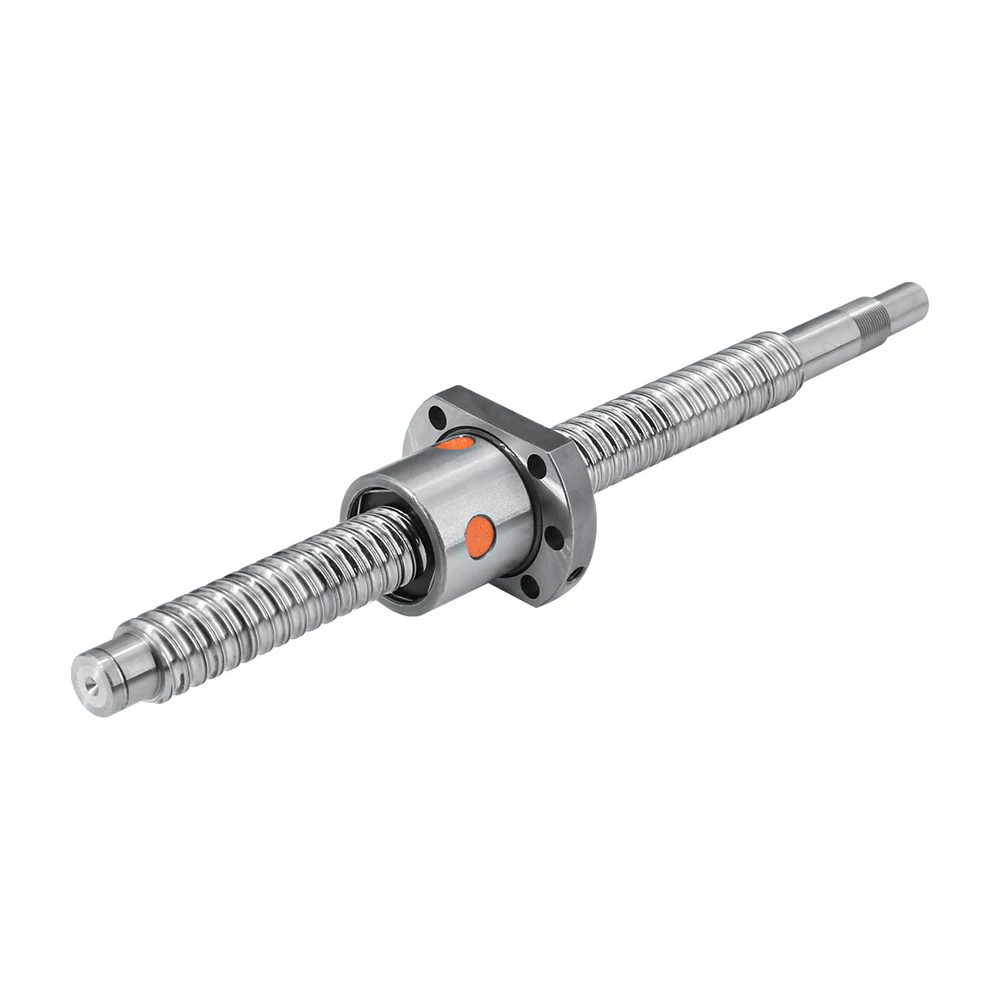

SFU1610 Ball Screw Rod 1000-1550mm

Description

Ball Screw is one of the most efficient mechanisms of generating linear motion and axial positioning in machines. It is efficient because it is precise, fast and almost frictionless. The steel balls between the screw shaft and the free axial moving nut enables for smooth and harmonic motion with minimum backlash.

Features

• Product Name: End Machine Ball Screw
• Manufacturing Process: Rolled Thread
• Material: Bearing Steel
• Model: SFU1610
• Diameter: 16mm
• Pitch: 10mm
• Color: Silver
• Length: 1 000mm, 1050mm, 1100mm, 1150mm, 1200mm, 1250mm, 1300mm, 1350mm, 1400mm, 1450mm, 1500mm, 1550mm (is the overall length, Including end machining part)

Package Includes

• 1x SFU1610 Ball screw with end machining
• Ball screw Nut x1

Attention:

• Ballnut fixing and dismounting requires professional tools or done by professional stuffs, otherwise, we will not take any responsibility if there was any damage done by yourself !!
