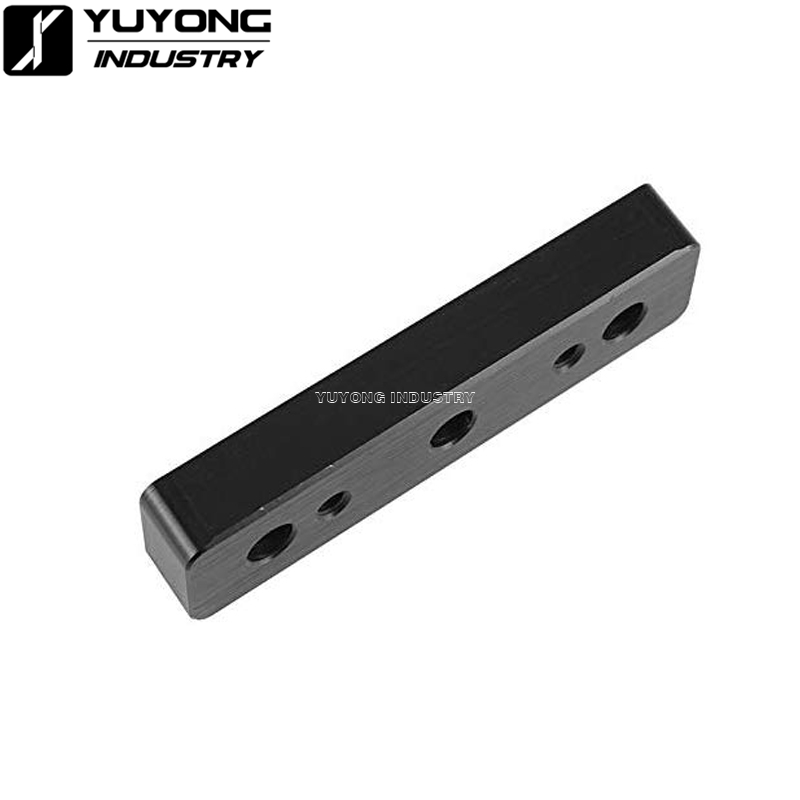

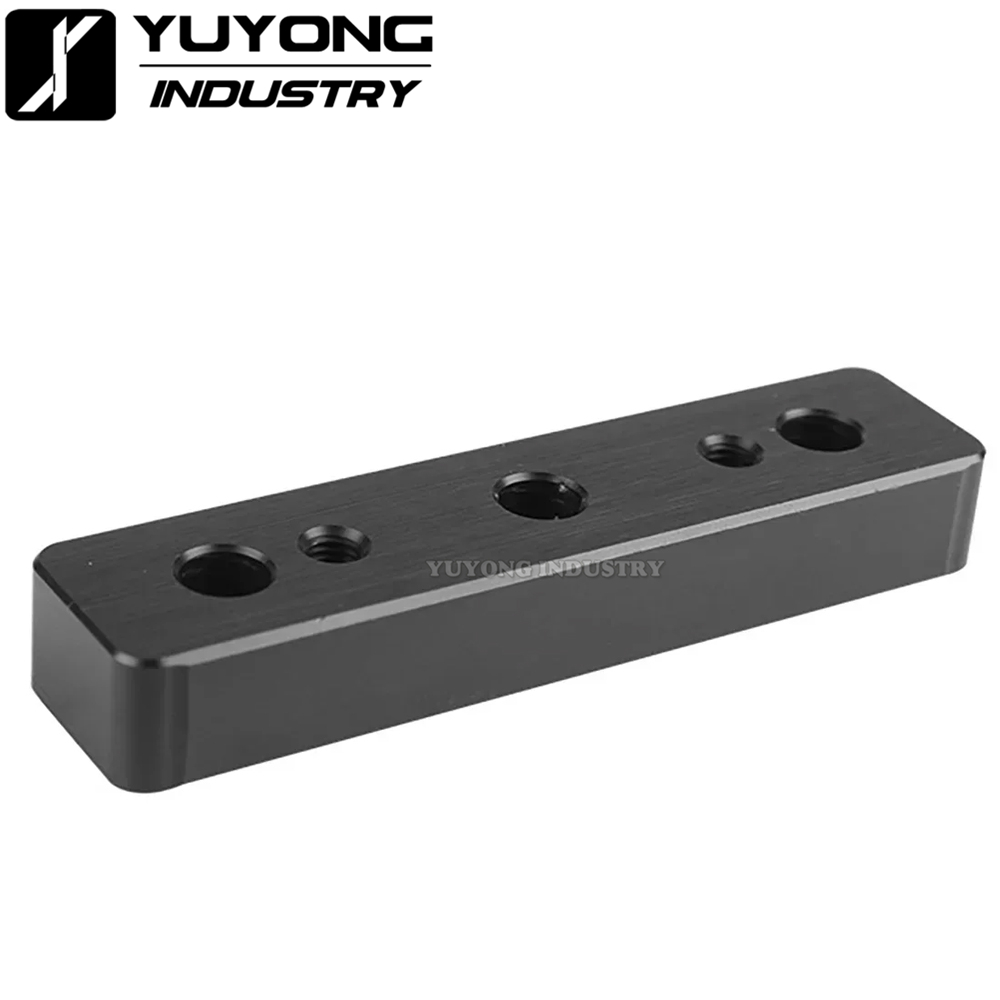

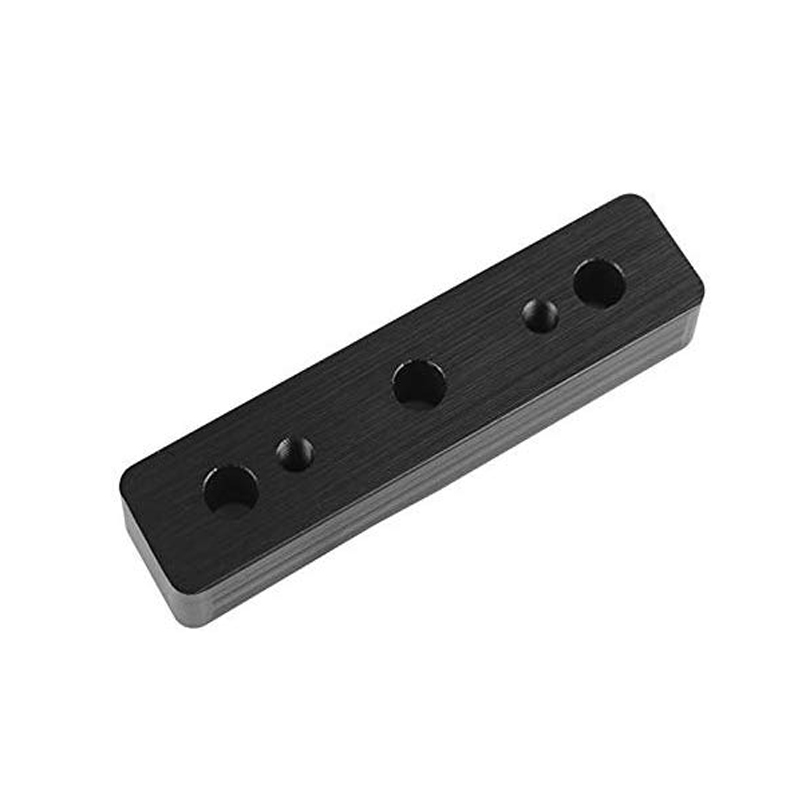

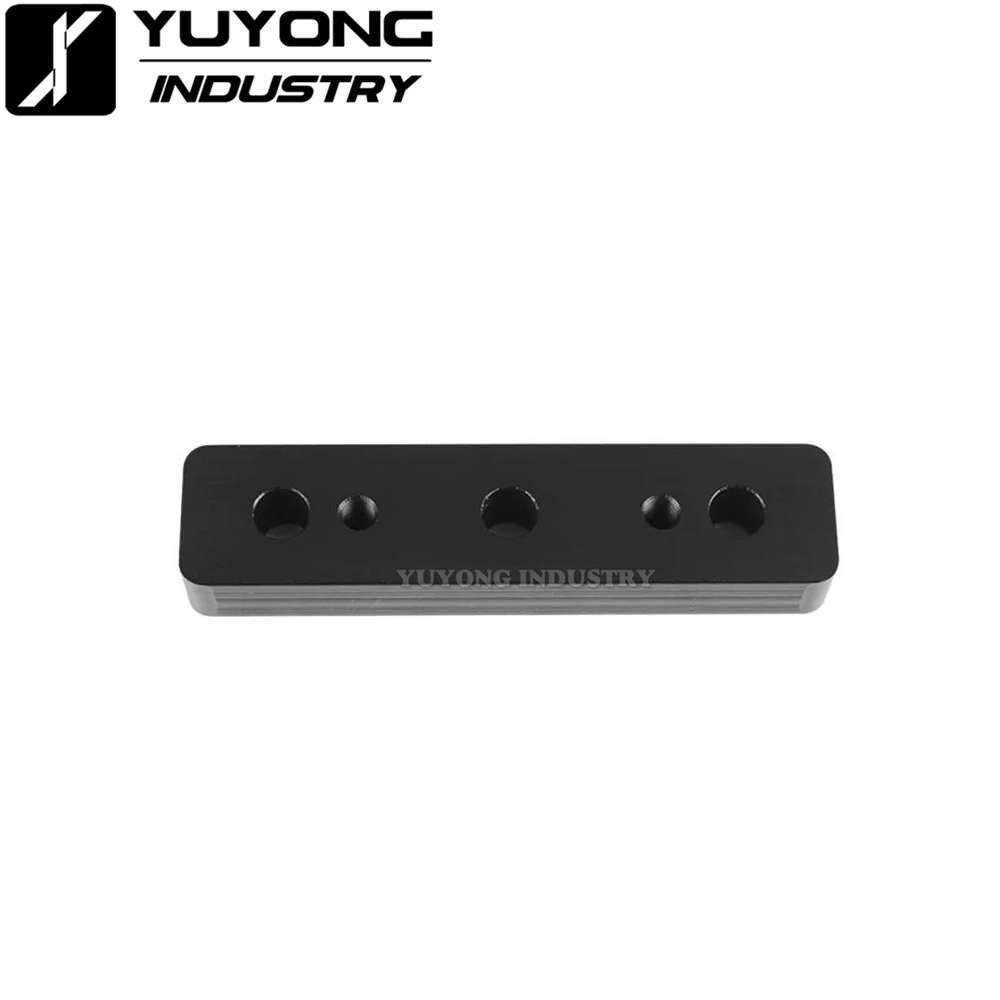

Spacer Block

Description

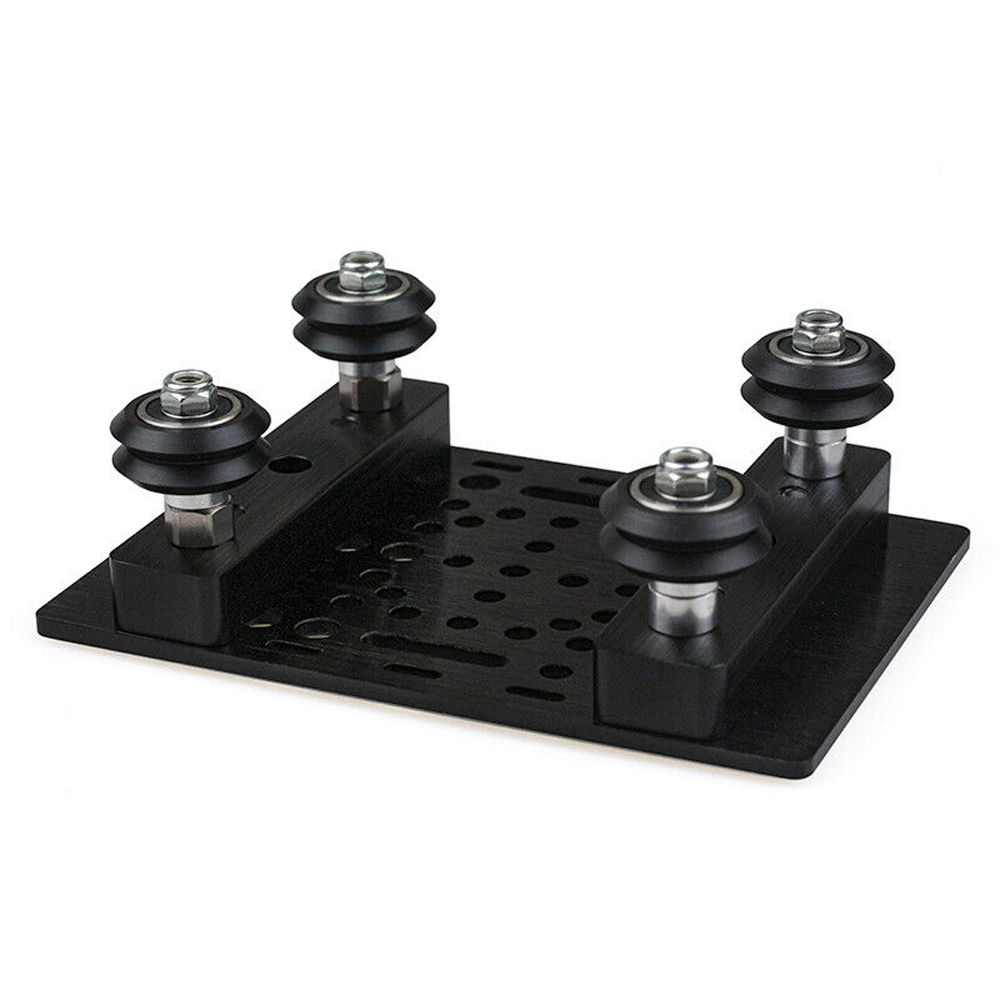

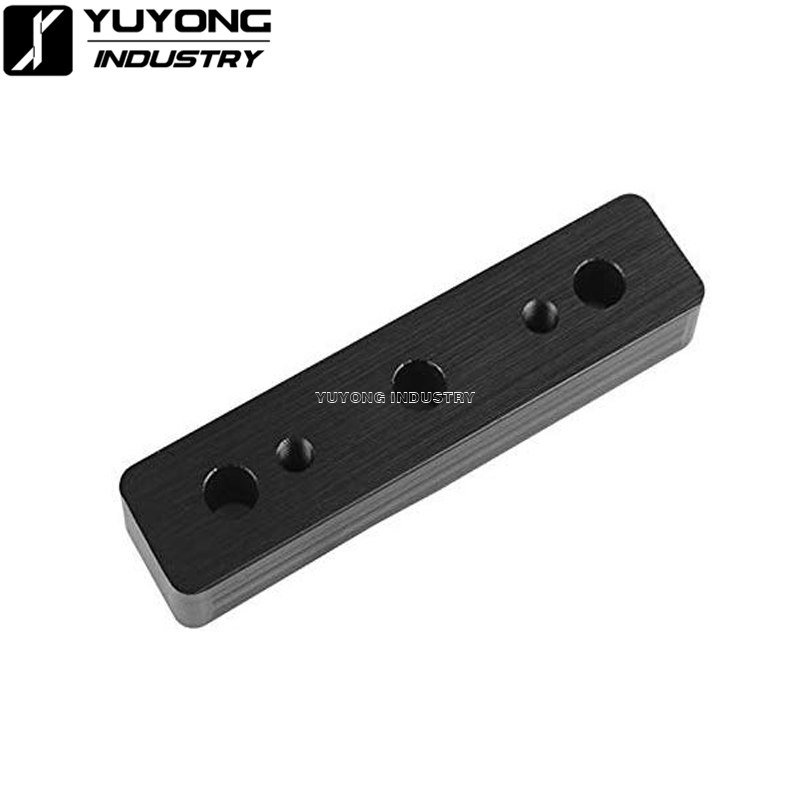

This is the V-Slot Spacer Block.  It was specially designed to be used in conjunction with the V-Slot Gantry Plate.

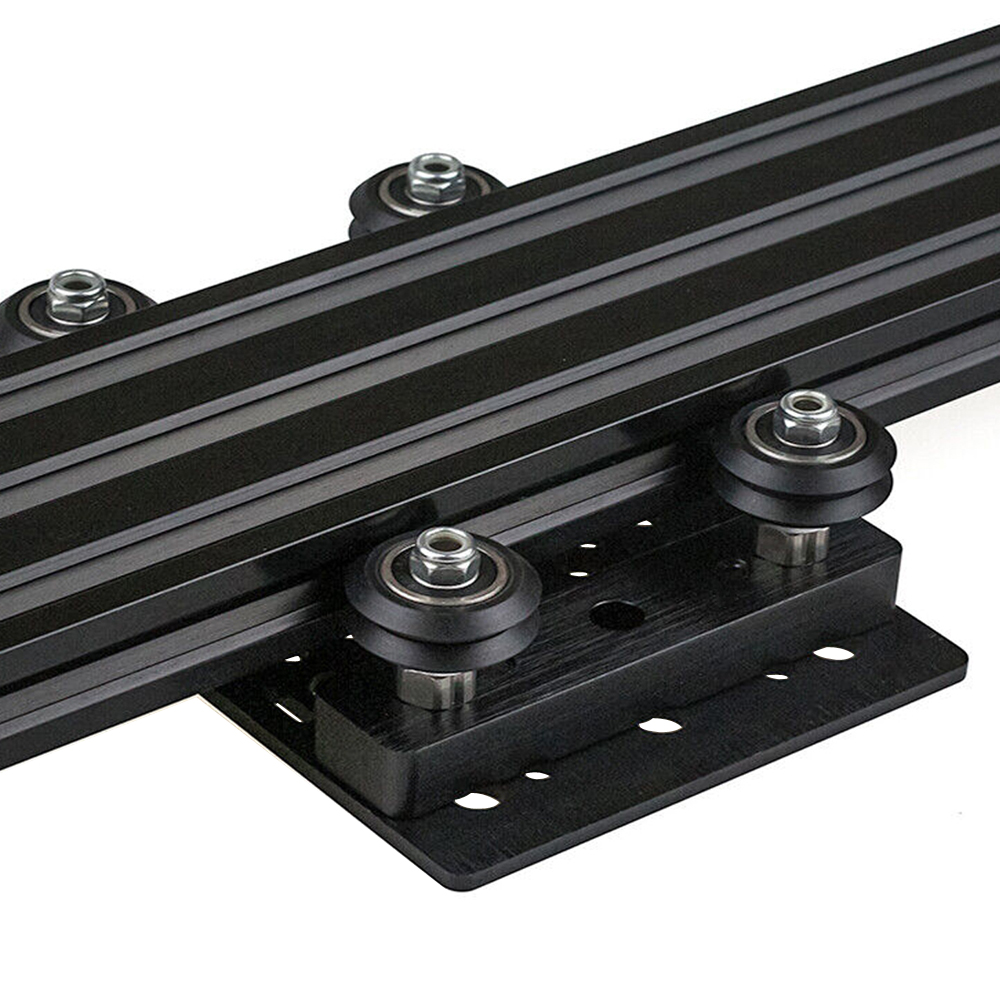

It allows you to raise the V-Slot Gantry Plate up away from the rail 12mm so that you can run transmission components such as a belt drive or threaded rod underneath the V-Slot Gantry Plate.

Feature

This is the V-Slot Spacer Block. It was specially designed to be used in conjunction with the V-Slot Gantry Plate.
It allows you to raise the V-Slot Gantry Plate up away from the rail 12mm so that you can run transmission components such as a belt drive or threaded rod underneath the V-Slot Gantry Plate.

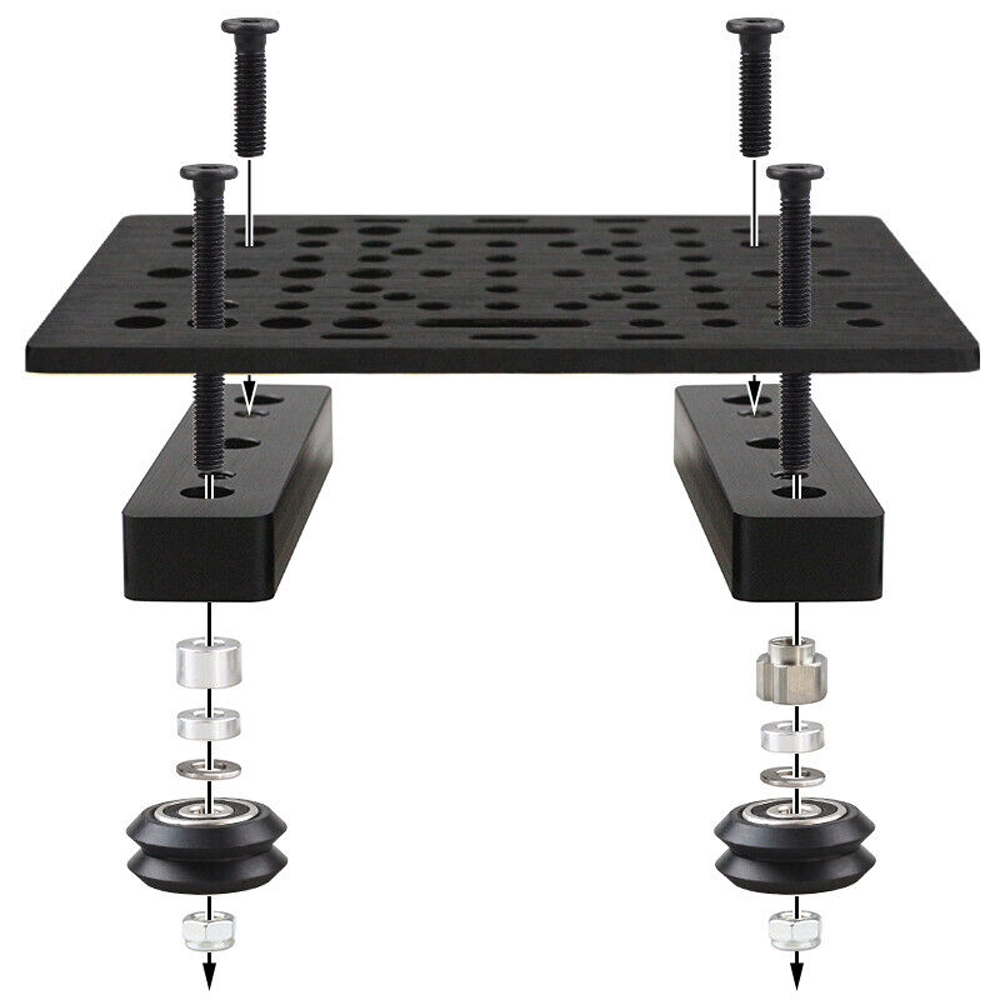

M5 tapped holes to allow mounting to the V-Slot Gantry Plate.
3 holes that allow for mounting of Dual V-Wheels.
Width Mates to another plate allowing for the spacing of a gantry or other system

Specifications

• Material: 6061 Aluminum

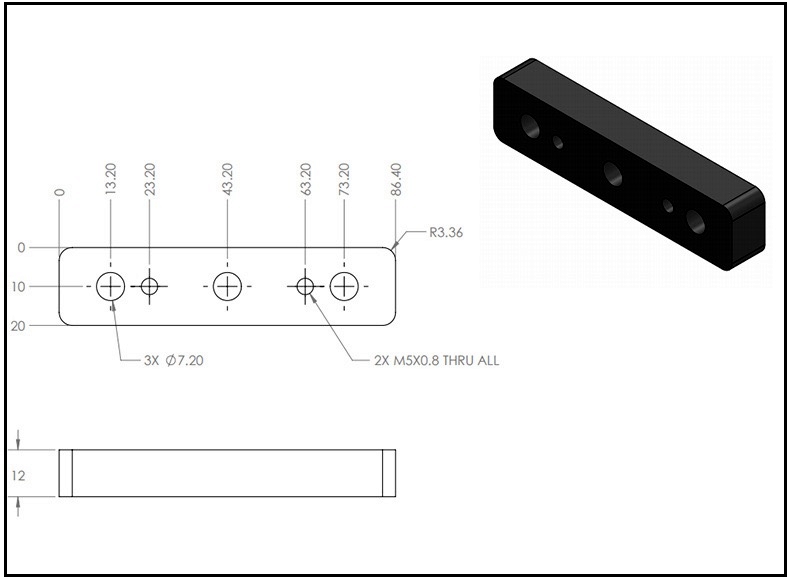

• Dimensions: 86 x 20 x 12mm
• Color: Black Anodised
