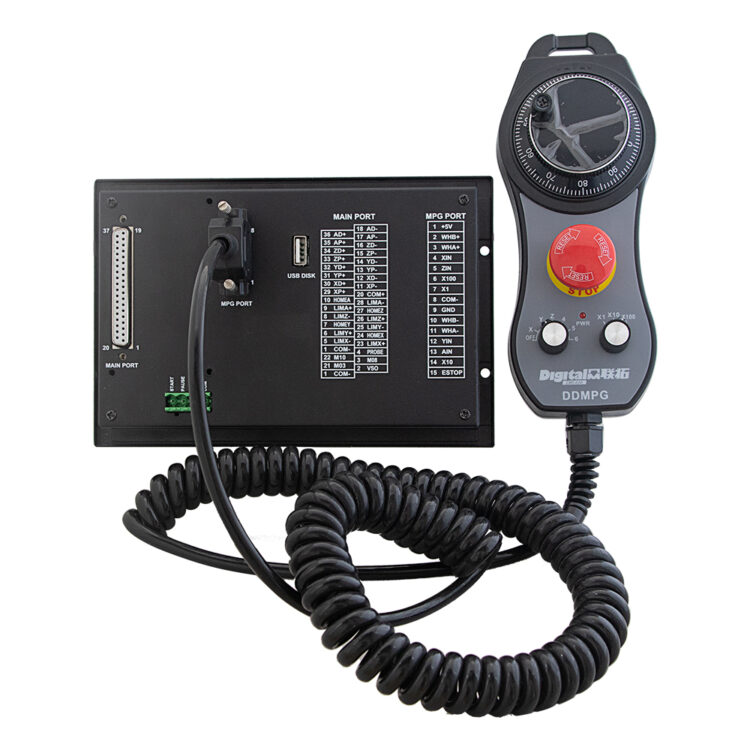

Supporting DDCSV4.1 DDCSV3.1 DDCS-EXPERT M350 Standard Electronic Handwheel MPG Plug and Play, No Welding required

 M350 standard electronic handwheel

Introduction:

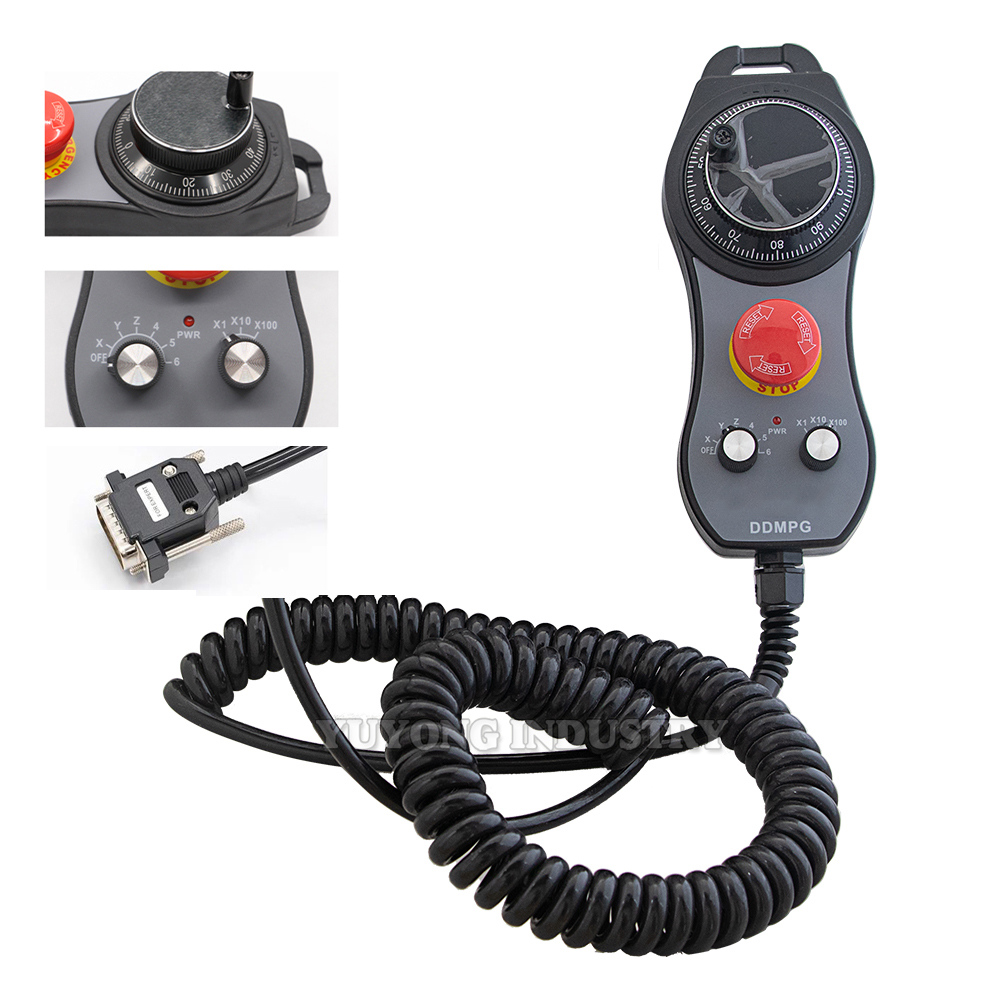

CNC 4-axis handheld controller MPG pendant, with x1, x10, x100 optional, you are bidding for a complete MPG pendant unit with emergency stop function for 4-axis CNC machine tools, it is equipped with our popular 4 Axis processing MPG unit and proportional selector, LED indicator also send feedback about equipment status from CNC machine tool to user.

-All wiring is isolated from the MPG unit, and an easy-to-install wiring diagram is provided. It is suitable for commercial machines that replace jog control units or other computer-based controllers. This adds great control flexibility to the system.

Parameter:

x1, x10, x100 switch
-X, Y, Z, 4th axis selector switch (5th, 6th)
-LED indicator
-High-quality professional chassis

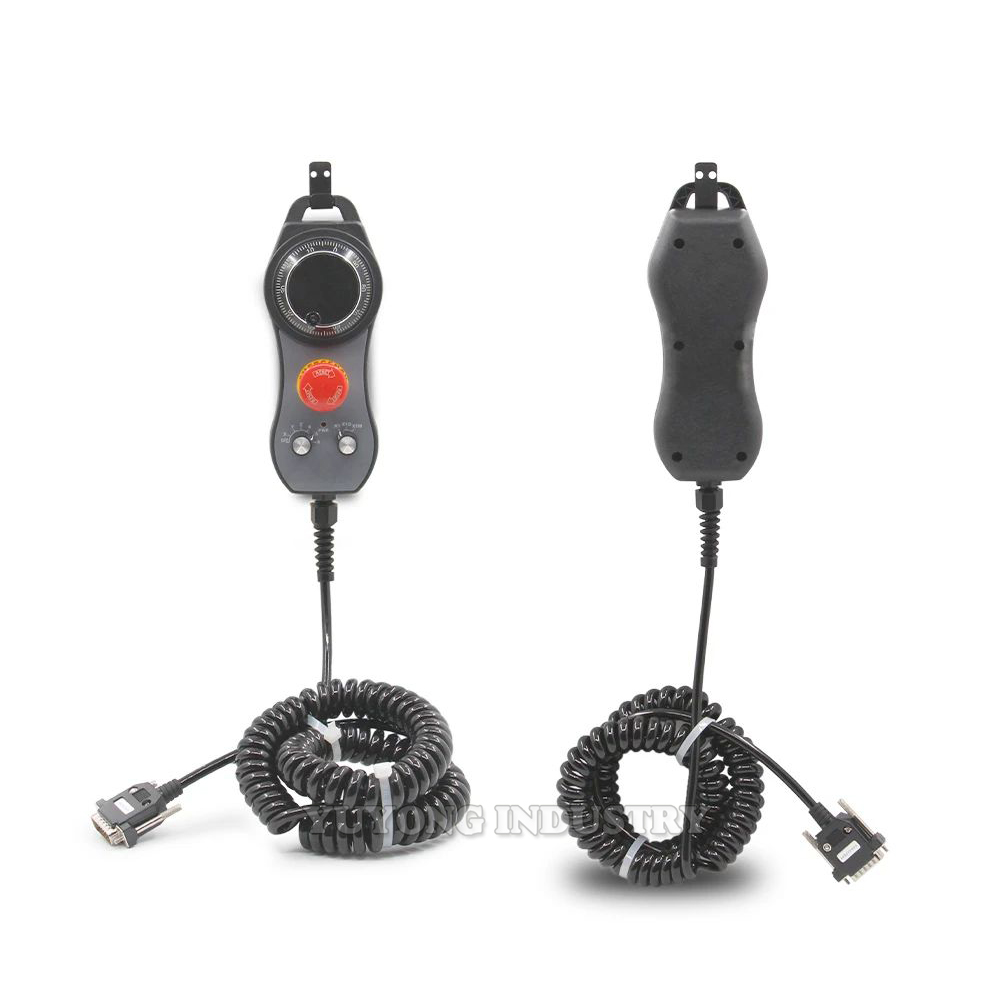

-6 feet can extend high quality shielded cable
-The magnetic base can be placed anywhere on the steel surface of the machine
-Phase output is A, /A and B, /B;
-TTL output, drive capability + -20mA;
