Through wall Welding-free Plug-in Terminal Block

Description

10 Sets/Lot Through wall Welding-free Plug-in Terminal Block

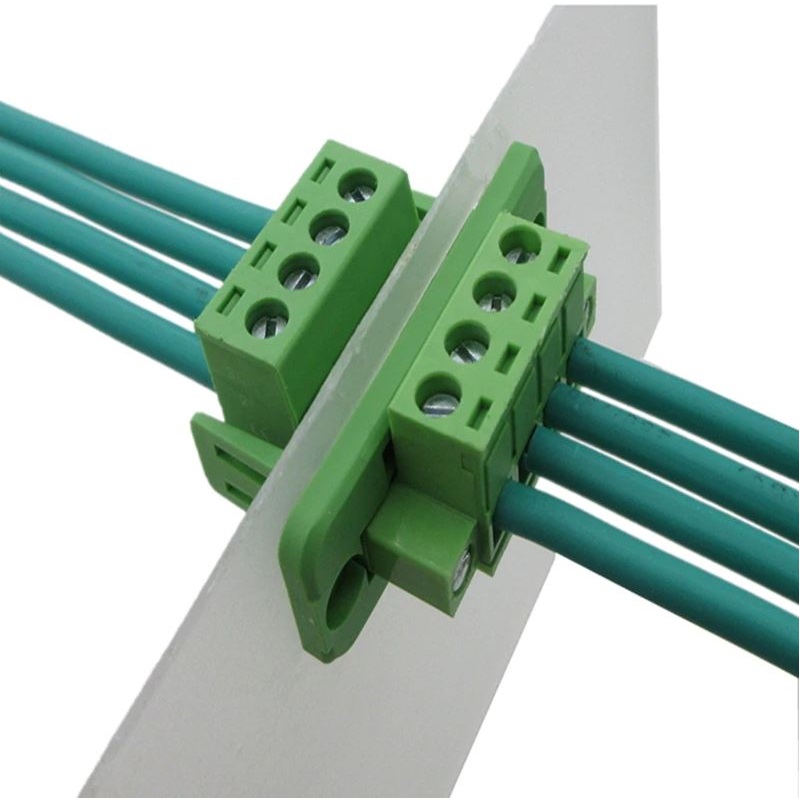

These Through-Wall Connector Terminal Blocks are a simple and efficient and method of terminating your electrical connections.

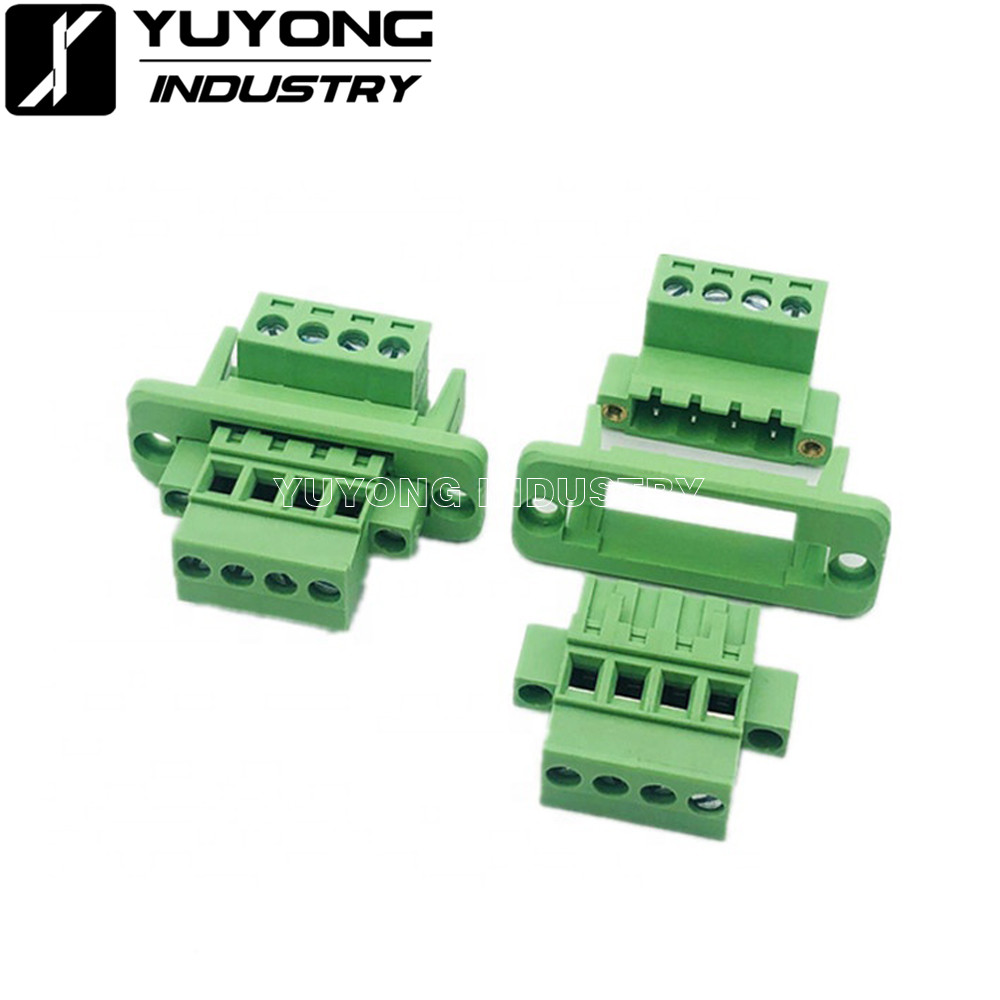

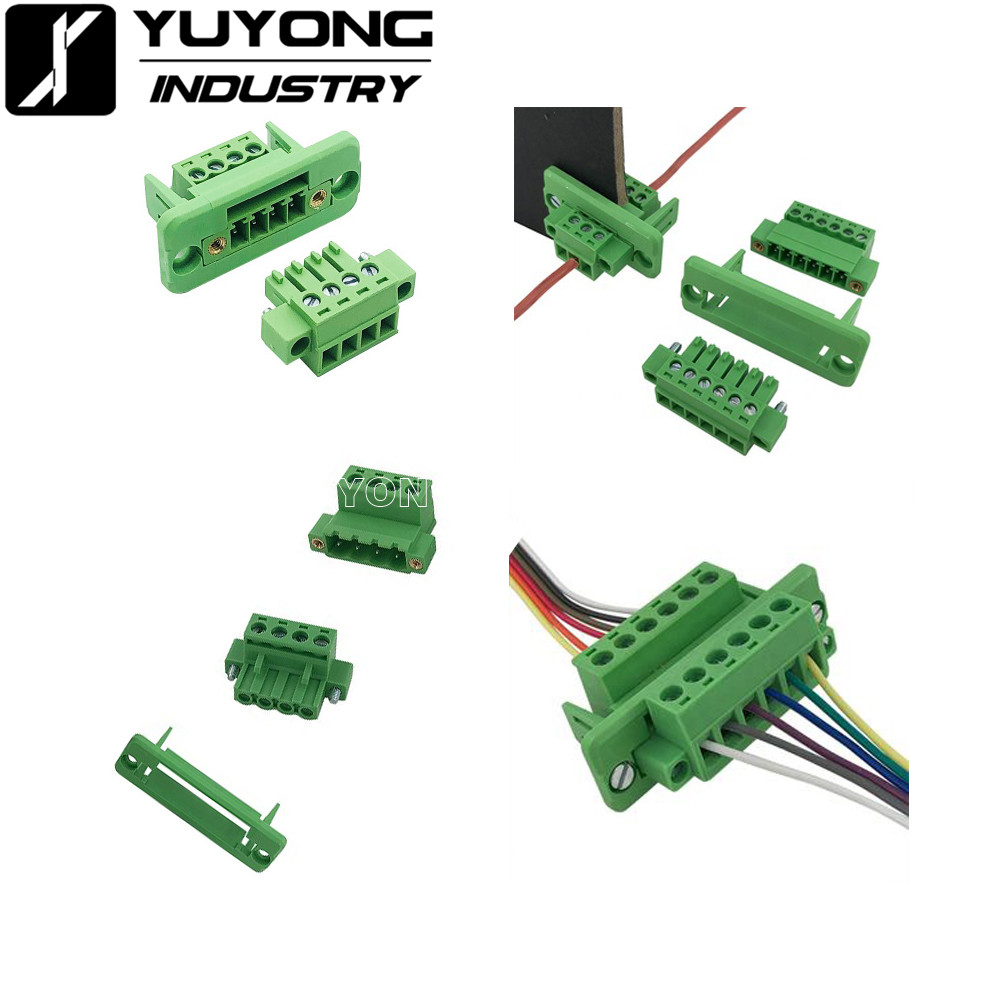

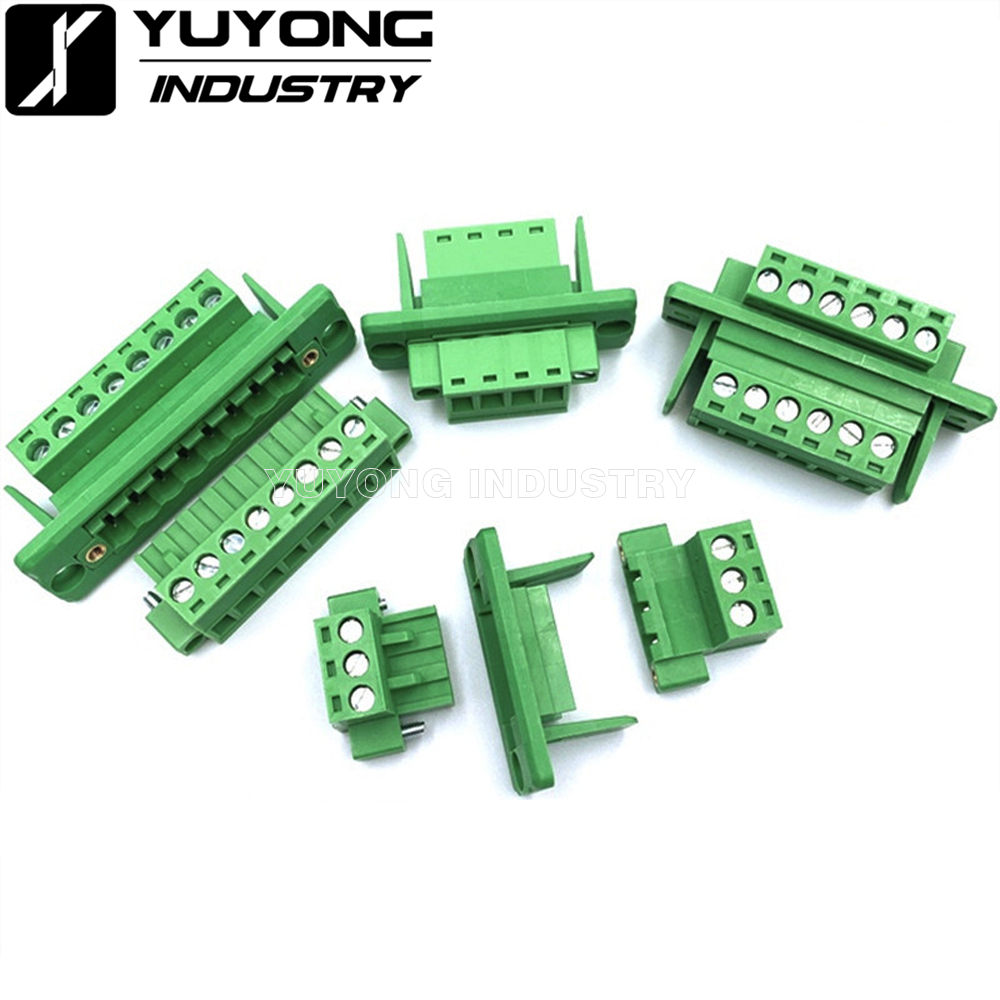

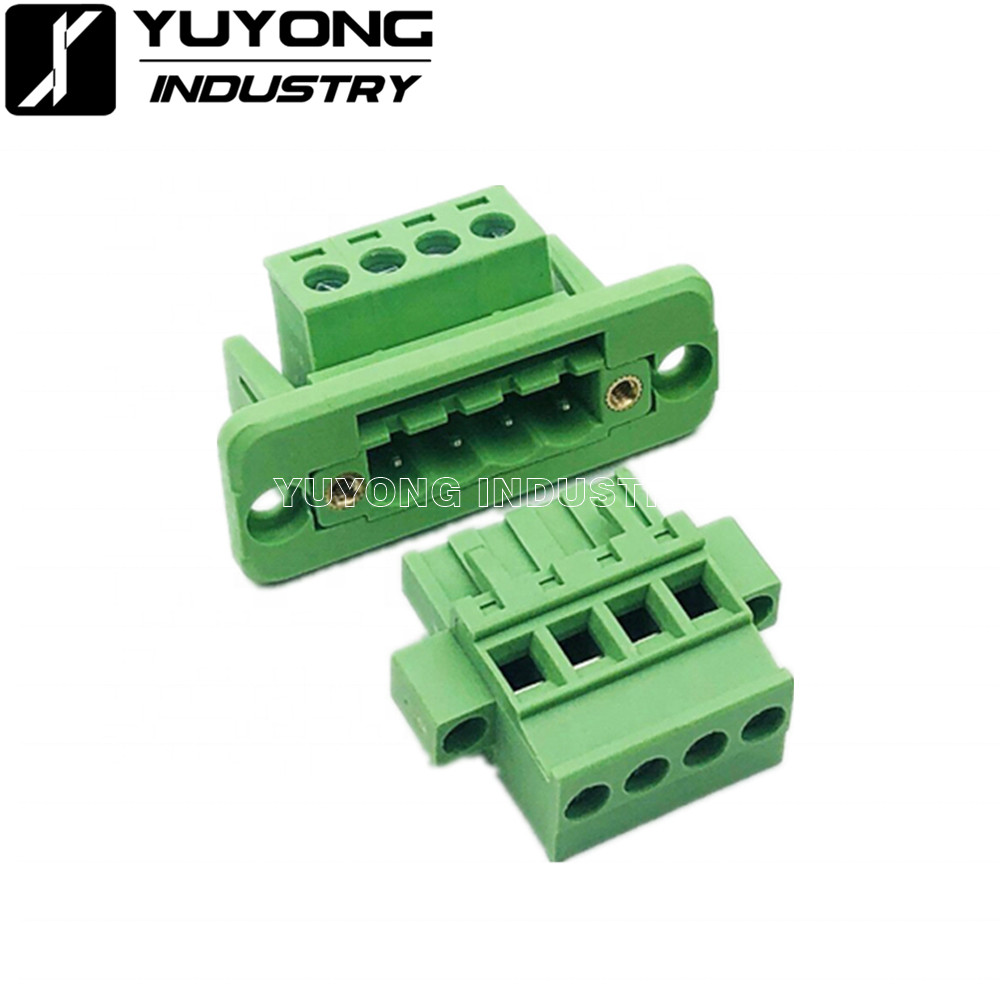

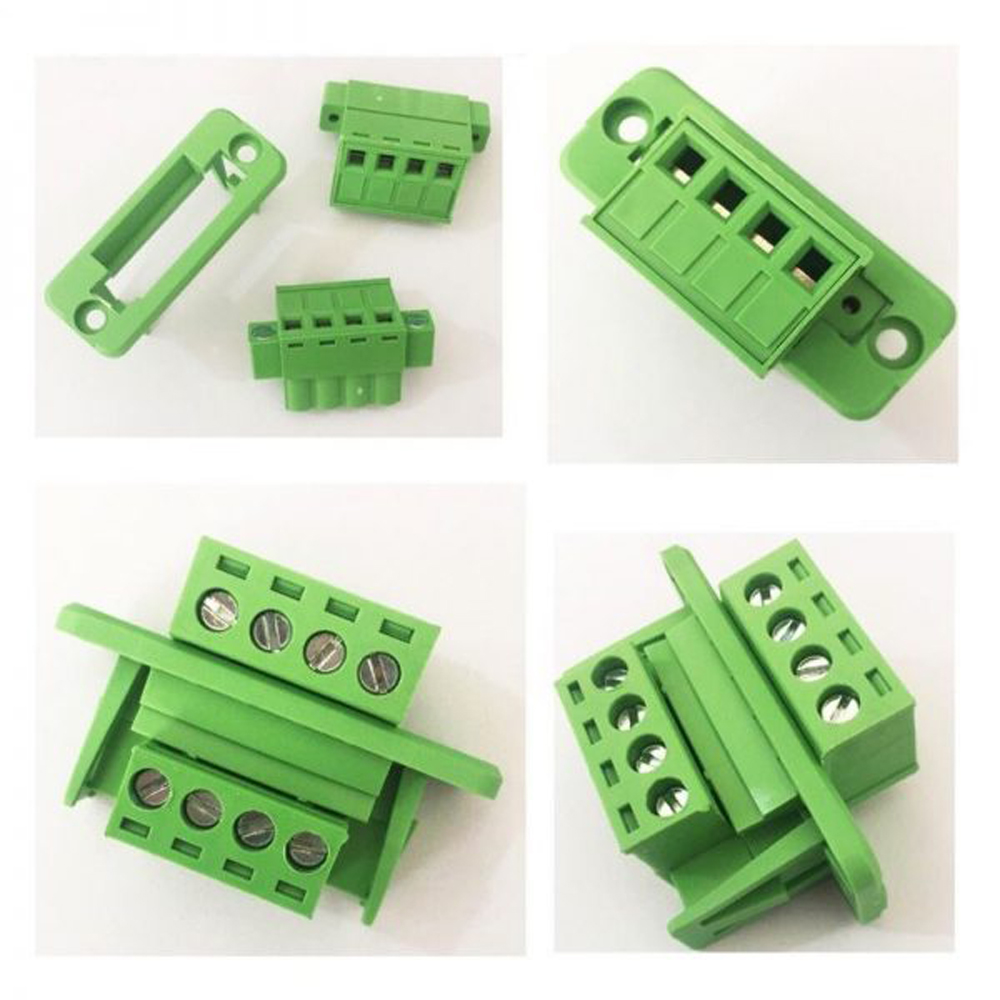

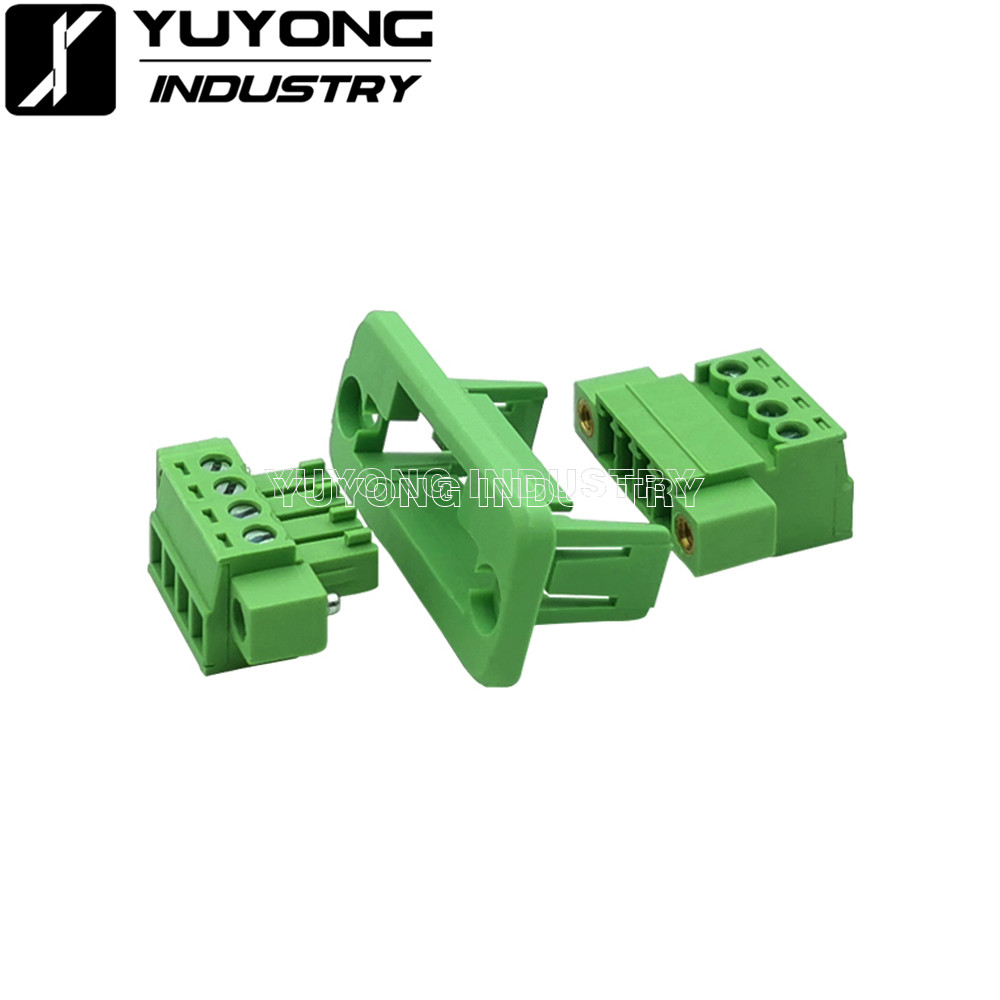

These Connector Blocks comes in a pack of Male connector, Female connector and Through-Wall mounting bracket.

5.08 mm / 3.81 mm Male Female Screw Terminal Pair Set PCB CNC Flux Workshop

Specification

• Qty: 10 sets/lot
• Pitch: 3.81mm/5.08mm

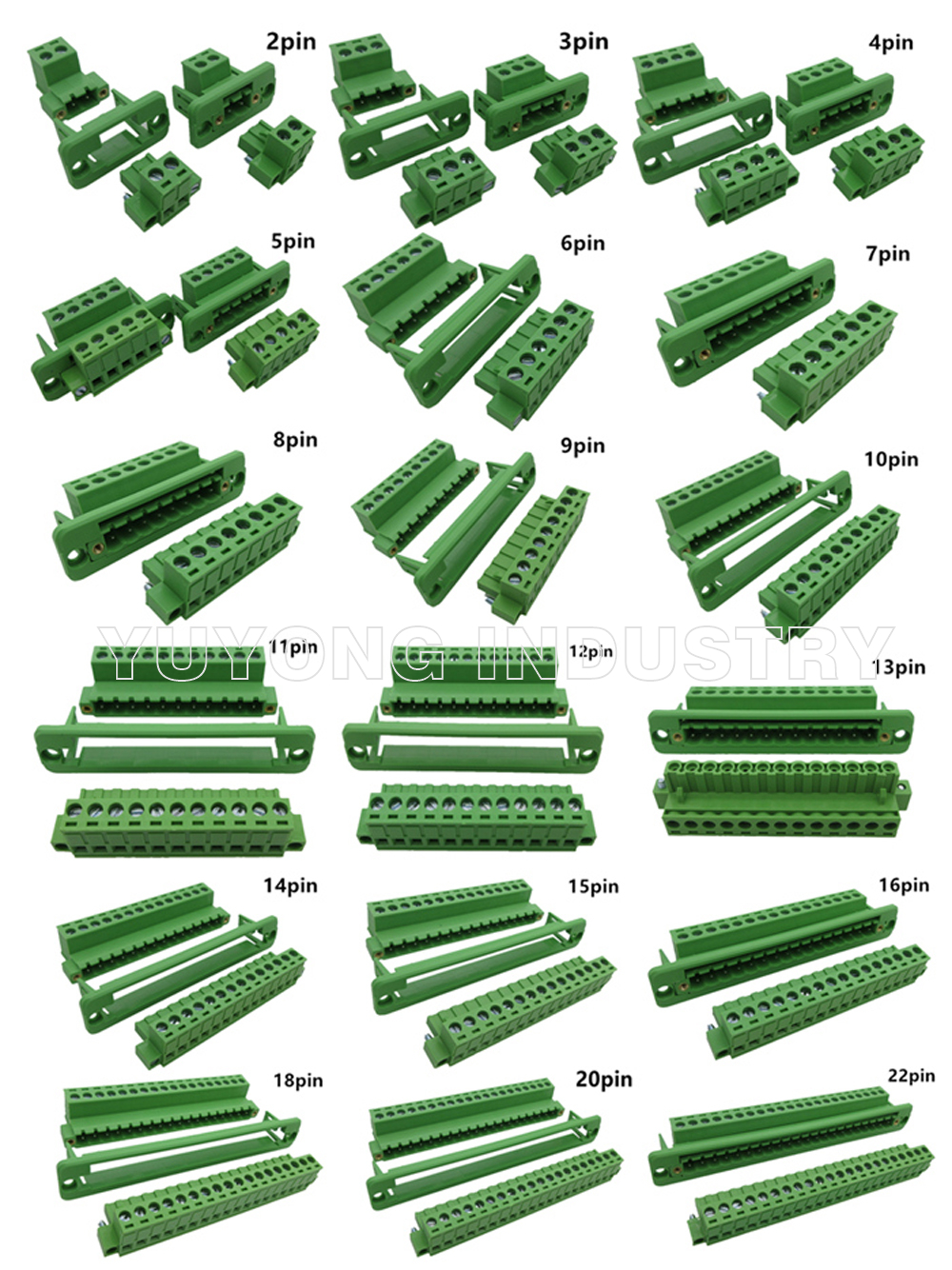

• Polos: 2~12P
• Main Colour:Green
• Country of Manufacture:China
• Minimum Operating Temperature:-40°C
• Maximum Operating Temperature:105°C
• Soldering Temperature:250℃/5s ( ±10℃)

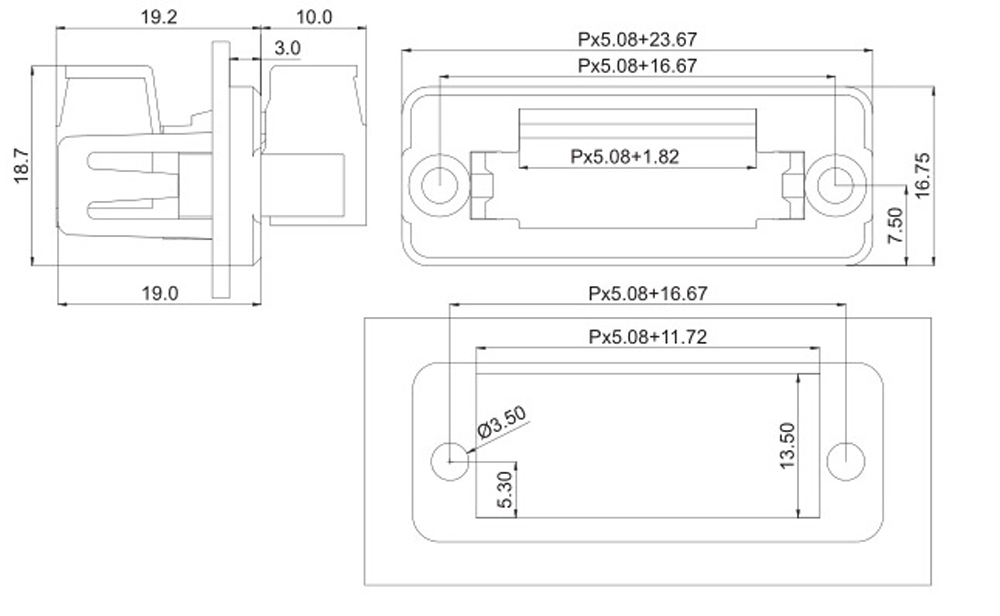

• Pin Pitch:5.08 / 3.81 mm
• Maximum Voltage Rating:300 V
• Maximum Rating Current:20 A
• Connector Type:Plug-in Screw type

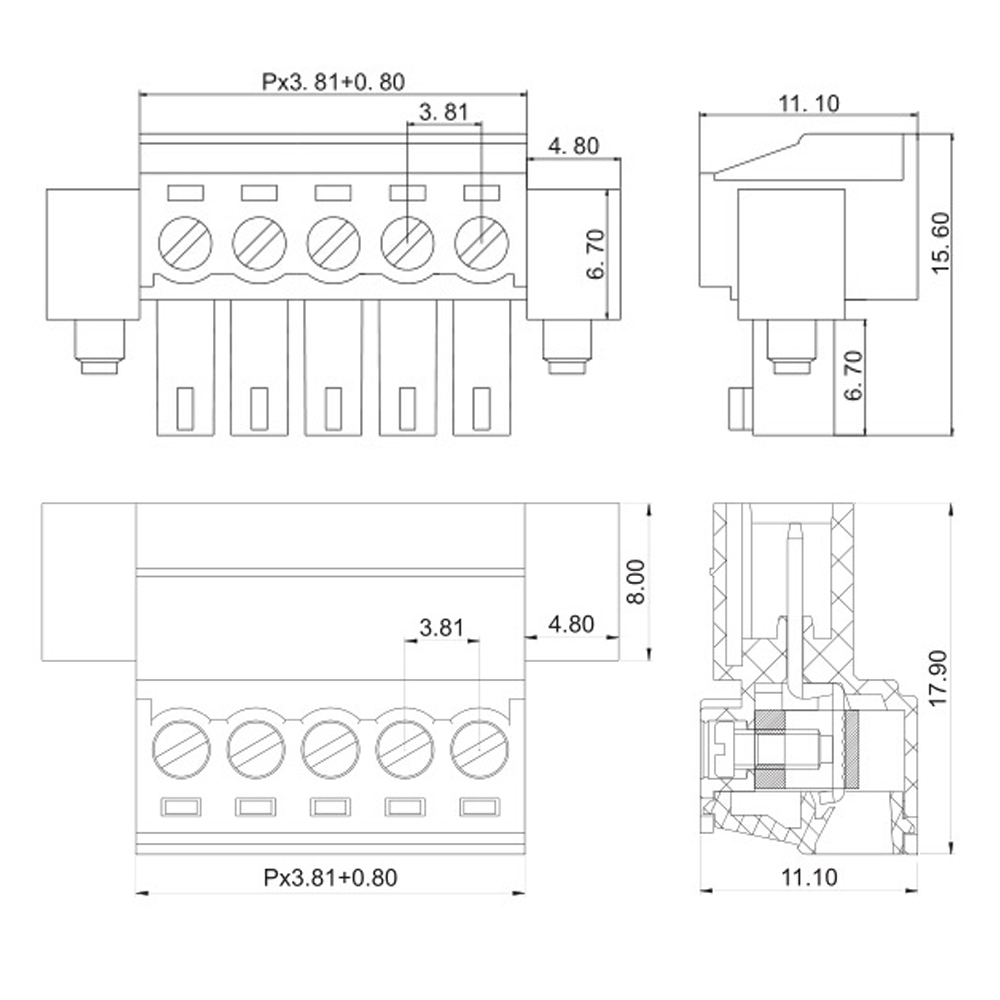

• pitch 3.81mm
• Poles: 2-12P
• Screw: M2、Steel、Zinc plated
• Contact: phosphor bronze Ni plated
• Wire cage: Brass、Ni plated or Steel Zinc plated
• Qty: 10Sets

• pitch 5.08mm:
• Poles: 2-12P
• Screw: M2.5、Steel、Zinc plated
• Contact: phosphor bronze Ni plated
• Wire cage: Brass、Ni plated or Steel Zinc plated
• Qty: 10Sets
