Name: Tingle Tensioning System Upgrade
SKU: YY-TTSU
Price: 19.73 USD
Availability: InStock

Description

Tingle Tensioning System Upgrade – Enhanced Tensioning for WorkBee, Lead & C-Beam CNC

Upgrade your machine with this Tingle Tensioning System Upgrade. Designed for screw driven WorkBee, Lead, and C-Beam CNC machines, this kit provides enhanced tensioning components to keep your drive system accurate and stable.

The Tingle Tensioning System Upgrade includes all necessary brackets, hardware, and adjustment components. No lead screw is included, making it a cost-effective option if your existing screw is still in good condition.

Compatible with WorkBee, Lead, and C-Beam machine systems, this Tingle Tensioning System Upgrade maintains optimal tension for smoother motion and repeatable cuts. Ideal for CNC enthusiasts and workshop upgrades.

Key specs:

Type: Tingle Tensioning System Upgrade
Includes: Brackets, hardware, adjustment components
Excludes: Lead screw
Compatibility: WorkBee, Lead, C-Beam screw driven machines
Application: CNC tensioning upgrade

Whether you’re replacing worn parts or upgrading your machine, this Tingle Tensioning System Upgrade delivers smoother motion and tighter tolerances.

The design integrate many suggestions,feedbacks from customers,forums,changing,testing,upgrading…,so the Tensioning system born,it solve the whipping problem of WorkBee effectively,it’s enhanced but econimic upgrade, this system can be used on any Lead screw actuator including the Lead CNC and other C-Beam machine system.

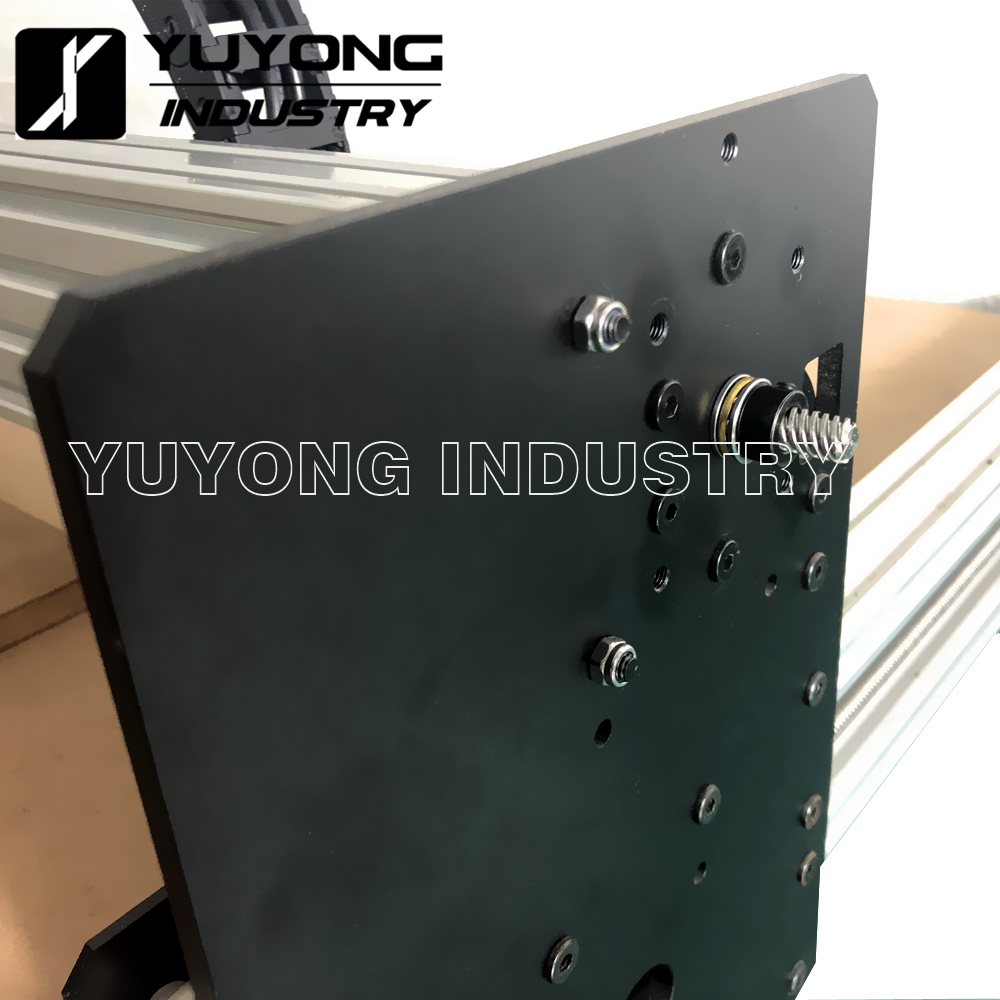

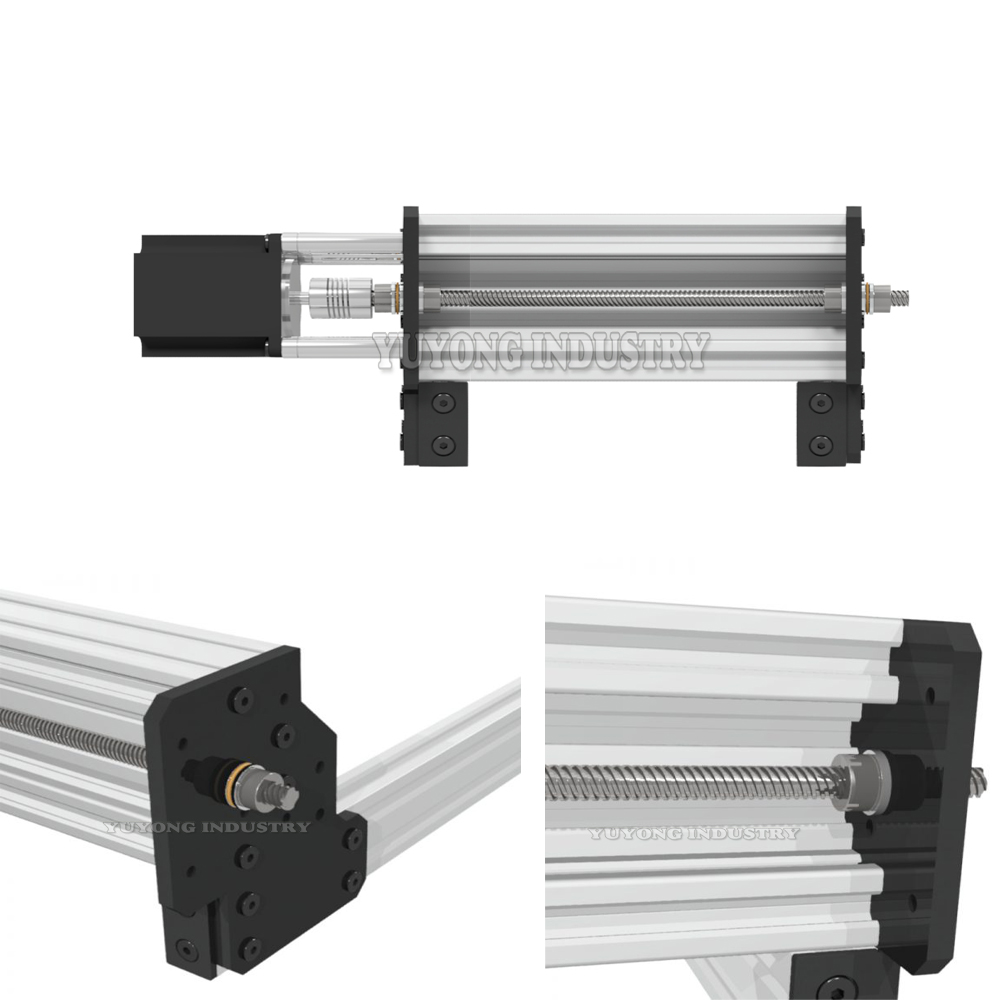

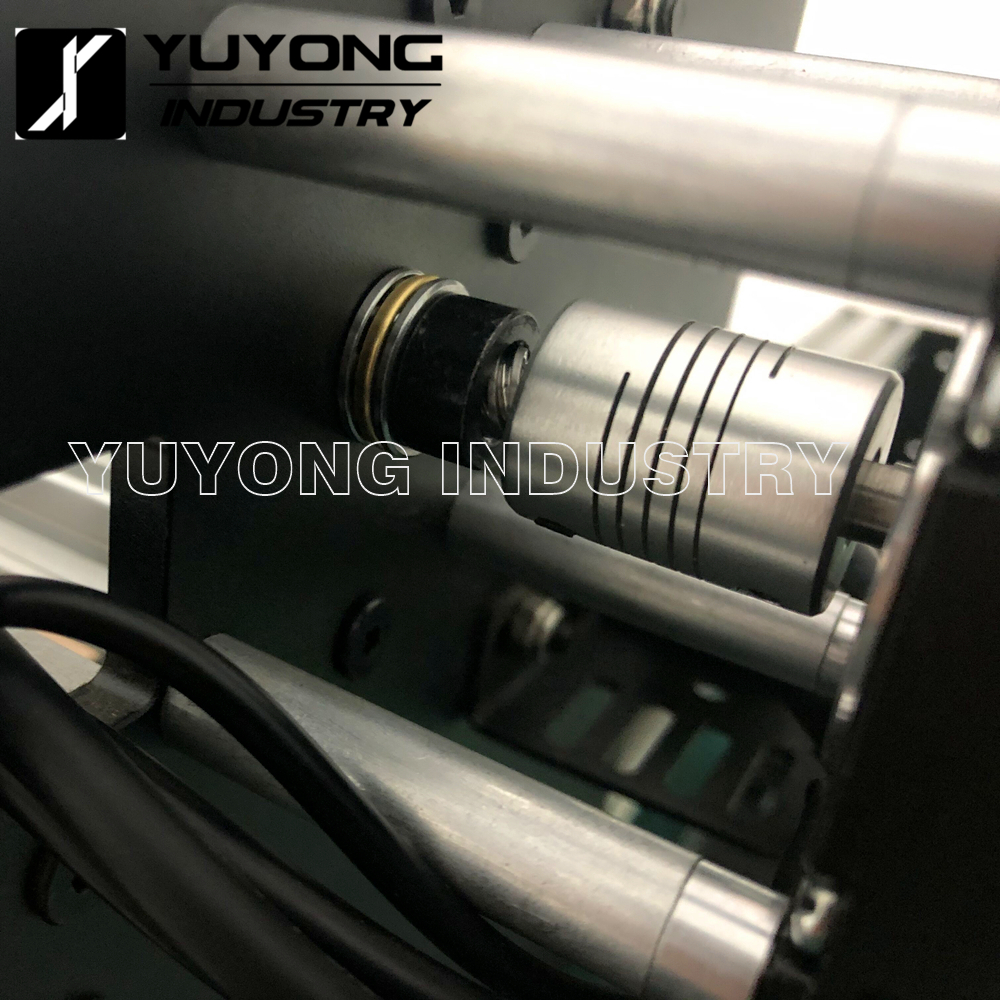

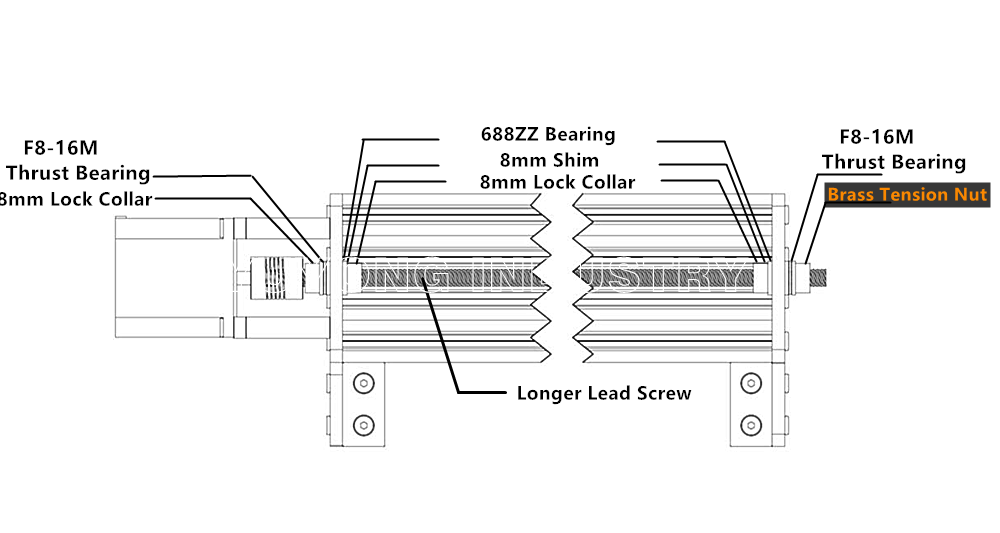

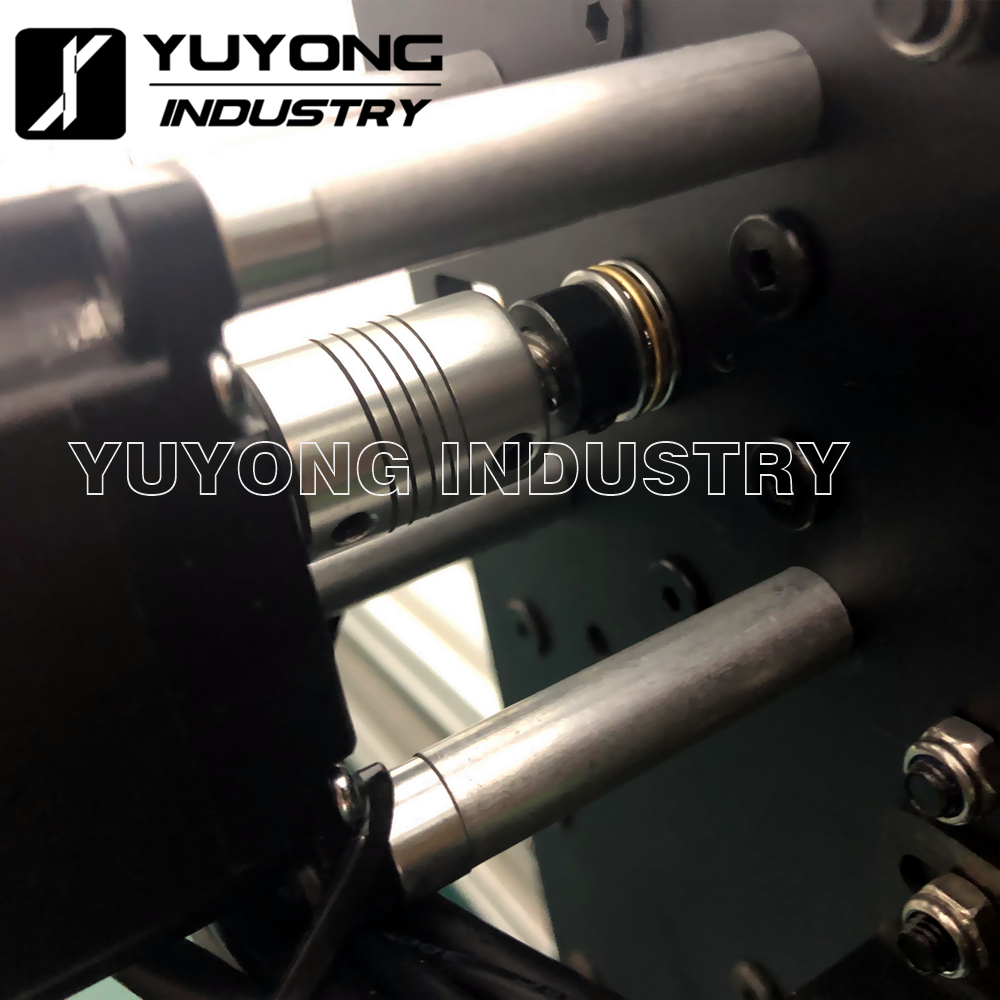

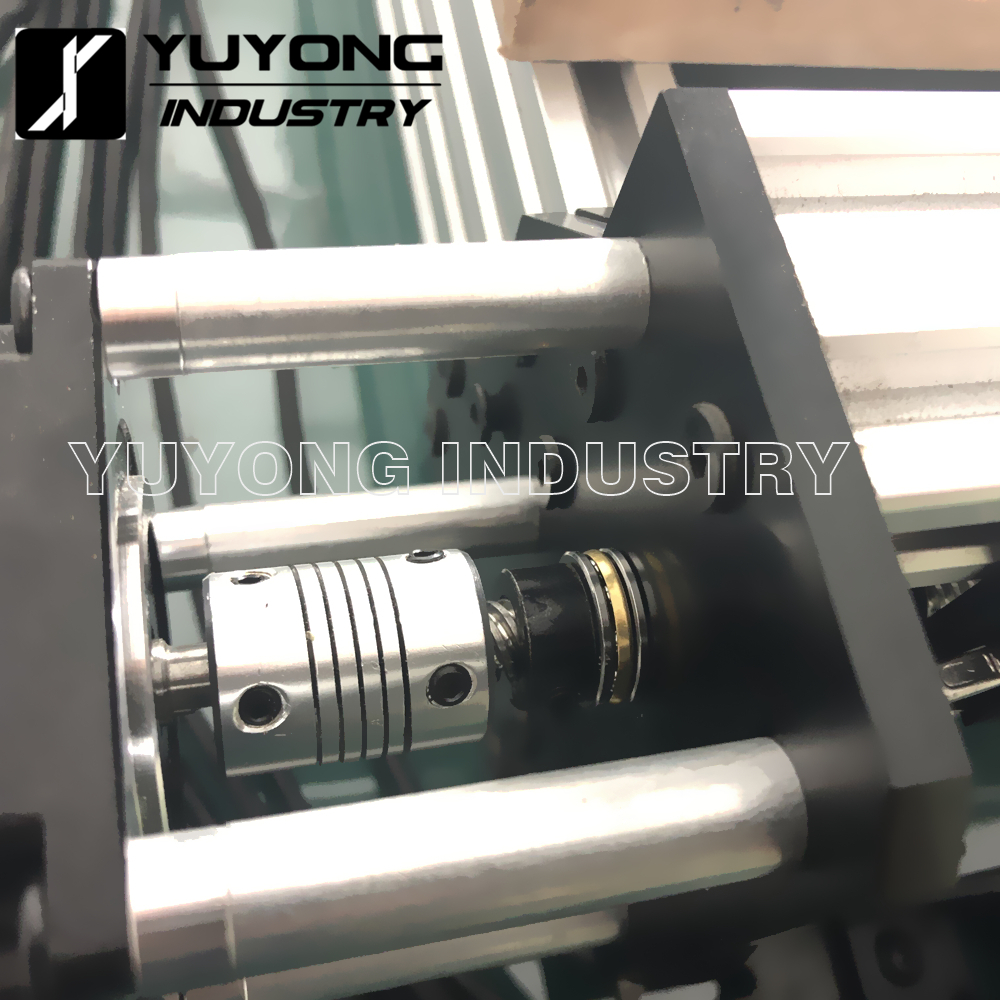

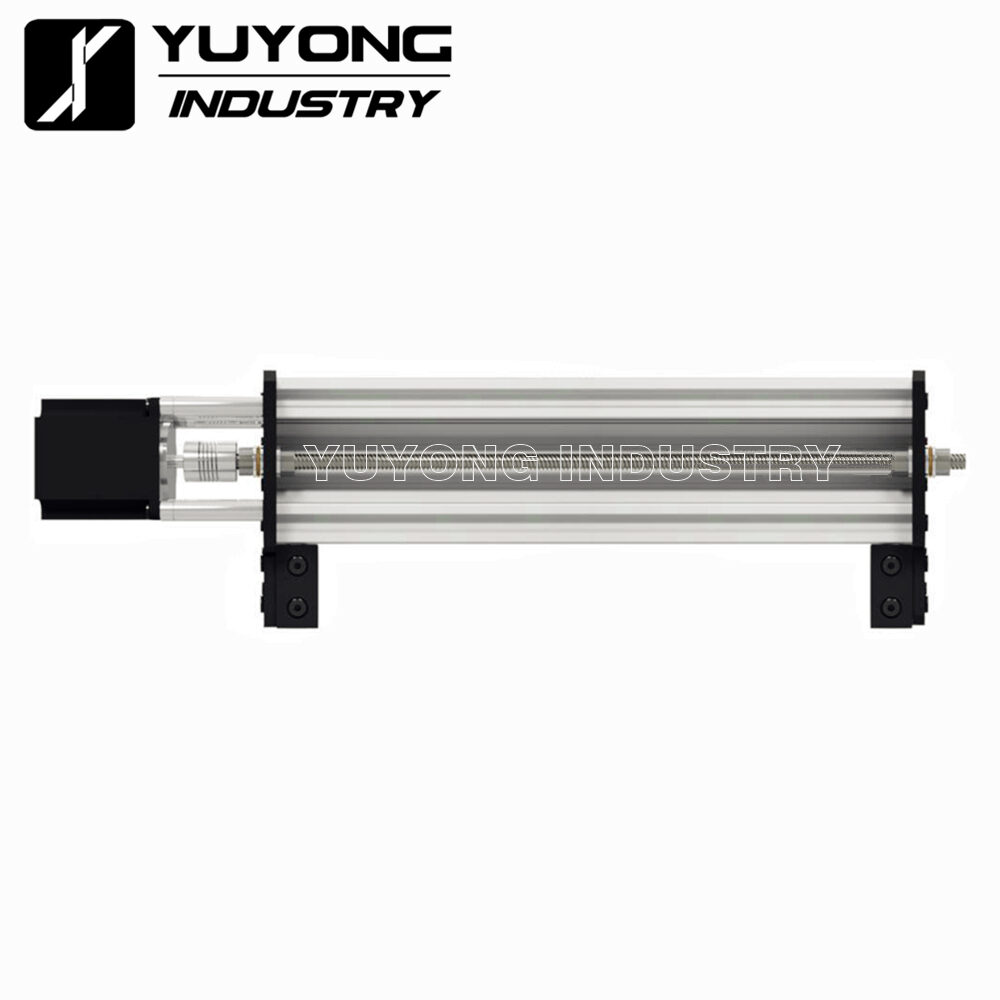

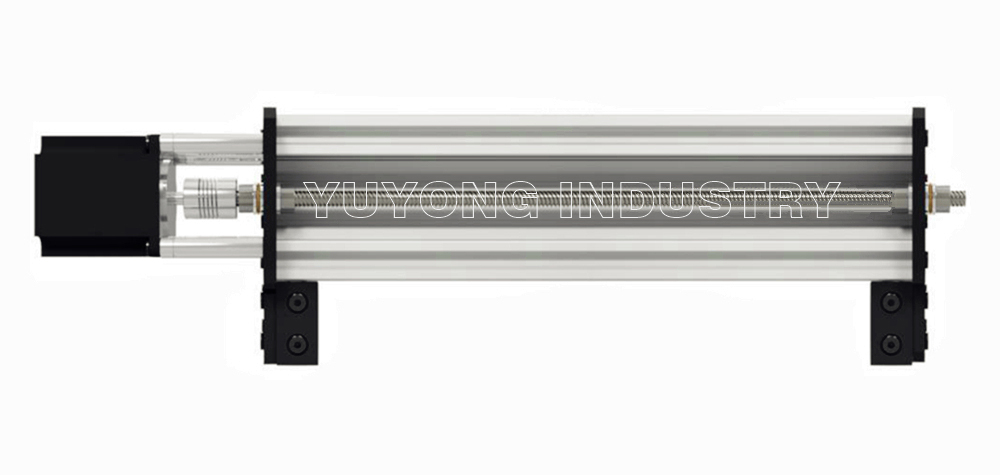

The New Tensioning System installed on the WorkBee CNC uses the plate orientation with the recess for the 688ZZ Bearing facing inwards. The Thrust Bearing is placed on the outside of the plate and held in place with an additional Brass Tension Nut. With the tension Nut so the Lead Screw can be placed under tension directly onto the Thrust Bearings.

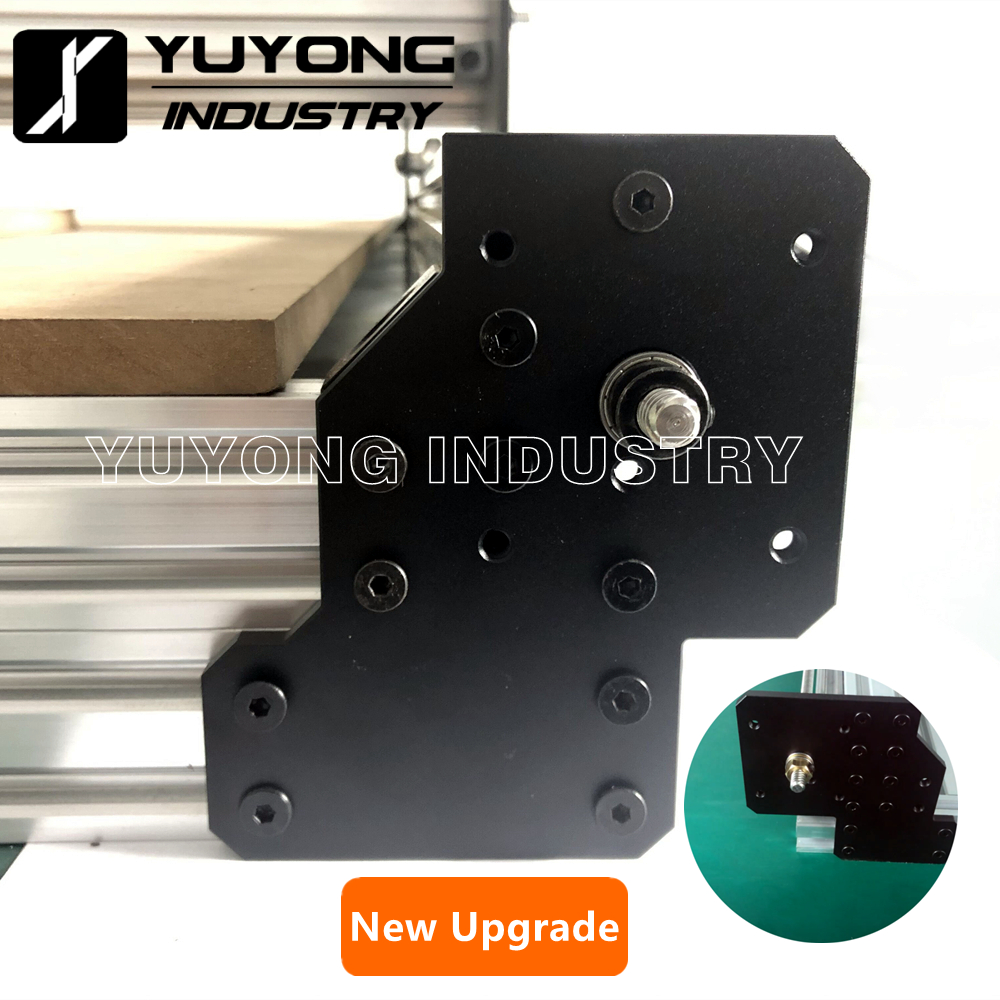

New Upgrade: We have replaced the lock collar with Brass Tension Nut to prevent the lead screw from loosening!

Note: If you have lengthened Lead Screw,then this is the right buying.

E-Manual is available.

Not Sure Which one to Buy?

WorkBee V2.0

If your WorkBee is V2.0 (With Lengthened Lead Screw and Lead Screw Tensioner), you do not need to purchase additional Lead Screws.

WorkBee V1.0

If your WorkBee is V1.0 (Without Lengthened Lead Screw and Lead Screw Tensioner), you need to purchase additional Lead Screws.

The Kit Incldues:

6 x F8-16M Thrust Bearing
3 x 8mm Lock Collar
12 x 6mm Aluminium Spacer
12 x 55mm Low Profile Screw
3x Tension Nut

Additional information

Weight	0.5 kg
Dimensions	30 × 10 × 10 cm
