V-Slot Mini V Linear Actuator (Belt Driven)

76.30 USD127.53 USD

SKU: N/A Category:

Description

This V-Slot Mini V Linear Actuator (Belt Driven) kit utilises standard v-slot parts to create a very simple but powerful belt-driven linear actuator. The belt-driven linear actuator takes advantage of the v groove and uses the precise and strong mini v wheels for smooth linear motion. The linear actuator can be used for a whole host of applications, from a simple camera slider to a modular 3D Printer design.

Because this kit uses all standard v-slot parts it can be easily combined with more of these actuators, other types, or a design of your own to quickly build a functional machine.

Specifications:

  • Belt Driven GT2-2M Timing Belts
  • Travel distance:
      • 500mm is ~15″ (380mm)
      • 1000mm is ~35″ (880mm)
  • Accuracy: 0.003″ ~0.007″ (0.10mm ~0.20mm)
  • Accuracy Positioning: 0.260mm
  • Max Force: 2.5lb (11N)
  • Max Speed: ~10000 mm/min

Lengths are available as follows:

  •   V-Slot 2020 (Silver or Black) 250mm  500mm  1000mm
  •   V-Slot 2040 (Silver or Black) 250mm  500mm  1000mm
  •   V-Slot 2060 (Silver or Black) 250mm  500mm  1000mm
  •   V-Slot 2080 (Silver or Black) 250mm  500mm  1000mm

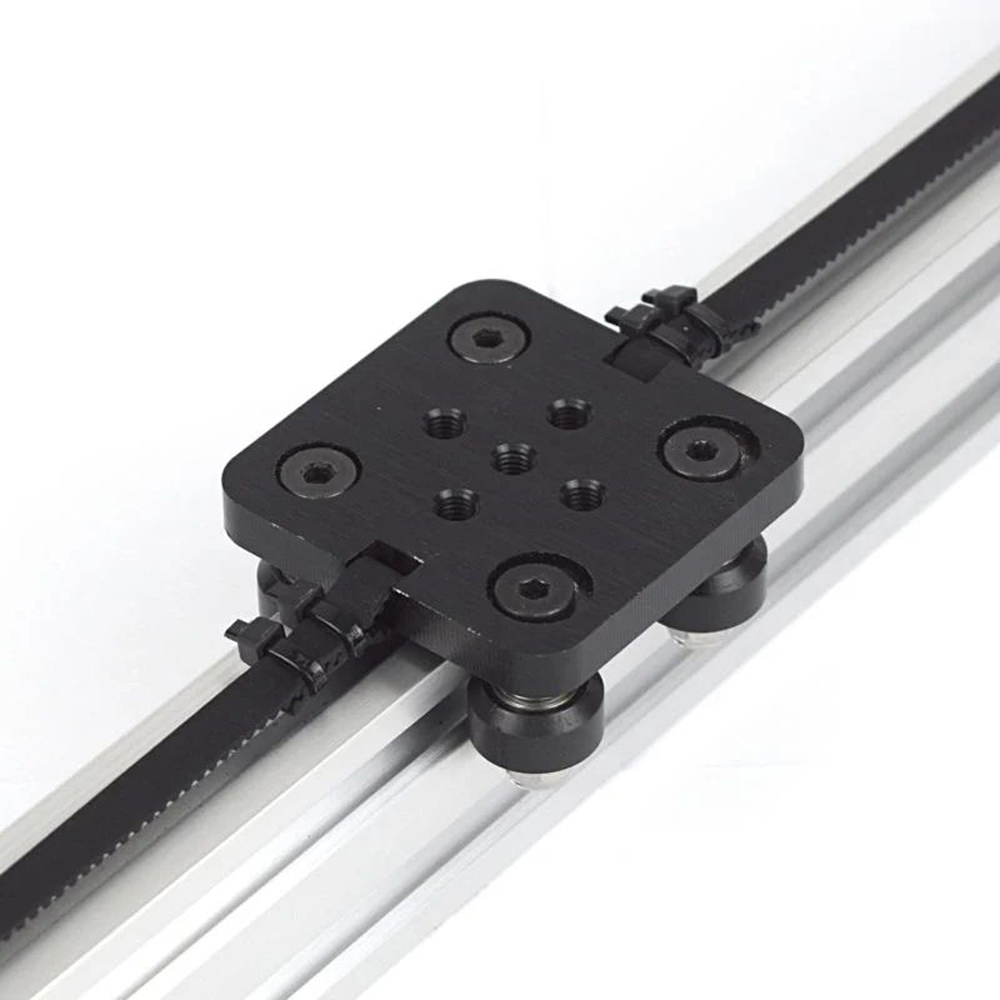

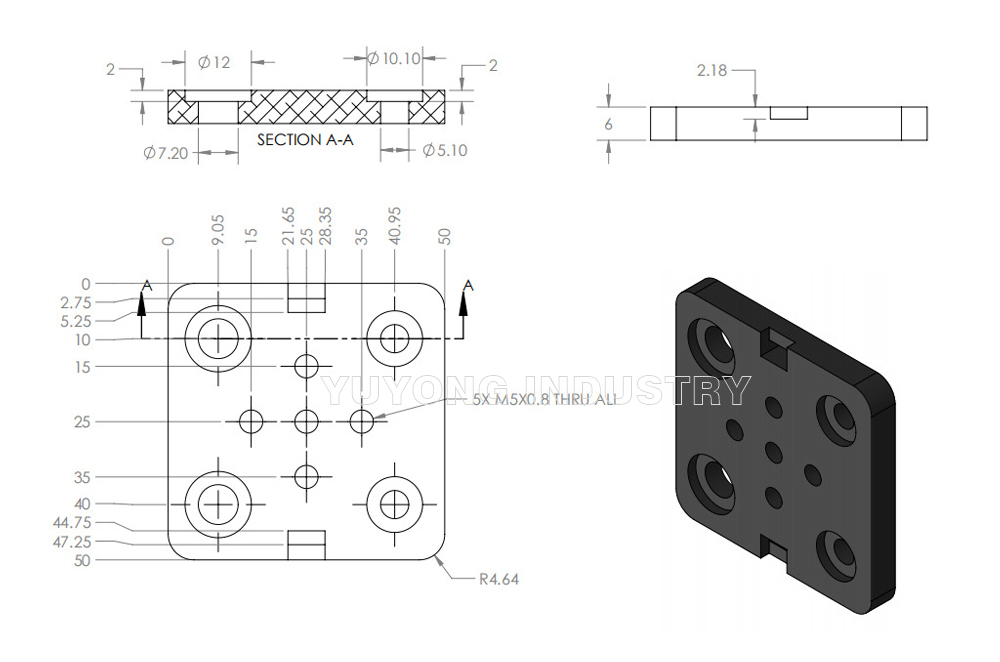

Mini V Wheel Plate:

One Kit Including:

  • 16 x M5-Low-Profile-6mm
  • 4 x M5-Low-Profile-25mm
  • 1 x M5-Low-Profile-35mm
  • 4 x Button-Head-Screws M3-12mm
  • 8 x Aluminium-Spacer-6mm
  • 2 x Eccentric-Spacer-6mm
  • 8 x Double-Tee-Nut
  • 4 x Delrin-Mini-V-Wheel-Kit
  • 1 x Smooth-Idler-Pulley-Kit
  • 1 x GT2-Pulley-30-Tooth
  • 1 x Mini-V-Wheel-Plate
  • 1 x NEMA17-Motor-Mounting-Plate
  • 4 x Cable-Ties
  • 2 x Linear Actuator End Mount
  • 1 x GT2-Timing-Belt(915mm/1220mm/2134mm/Custom length)
  • 1 x V-Slot-Linear-Rail (250mm/500mm/1000mm/Custom length)
  • 1 x NEMA17-Stepper-Motor-76oz*in
