V-Slot NEMA 17 Linear Actuator Bundle

Description

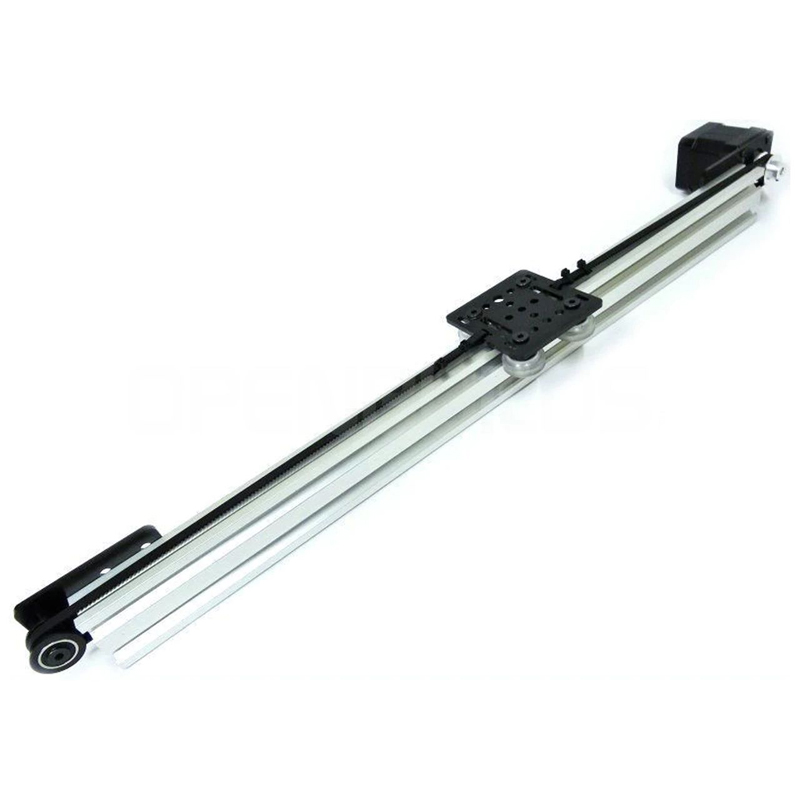

This V-Slot Linear Actuator (Belt Driven) is a fast and easy solution to a V-Slot Gantry System.

Specifications:

• Belt Driven GT2-2M Timing Belts
• Travel distance:
  250mm is ~4 (107mm)
  500mm is ~14″ (345mm)
  1000mm is ~33″ (845mm)
  1500mm is ~47″ (1190mm)
• Accuracy: 0.003″ ~0.007″ (0.10mm ~0.20mm)
• Accuracy Positioning: 0.260mm
• Max Force: 2.5lb (11N)
• Max Speed: ~10000 mm/min

Length are available as follows:

•   V-Slot 2020 (Silver or Black) 250mm  500mm  1000mm
•   V-Slot 2040 (Silver or Black) 250mm  500mm  1000mm
•   V-Slot 2060 (Silver or Black) 250mm  500mm  1000mm
•   V-Slot 2080 (Silver or Black) 250mm  500mm  1000mm

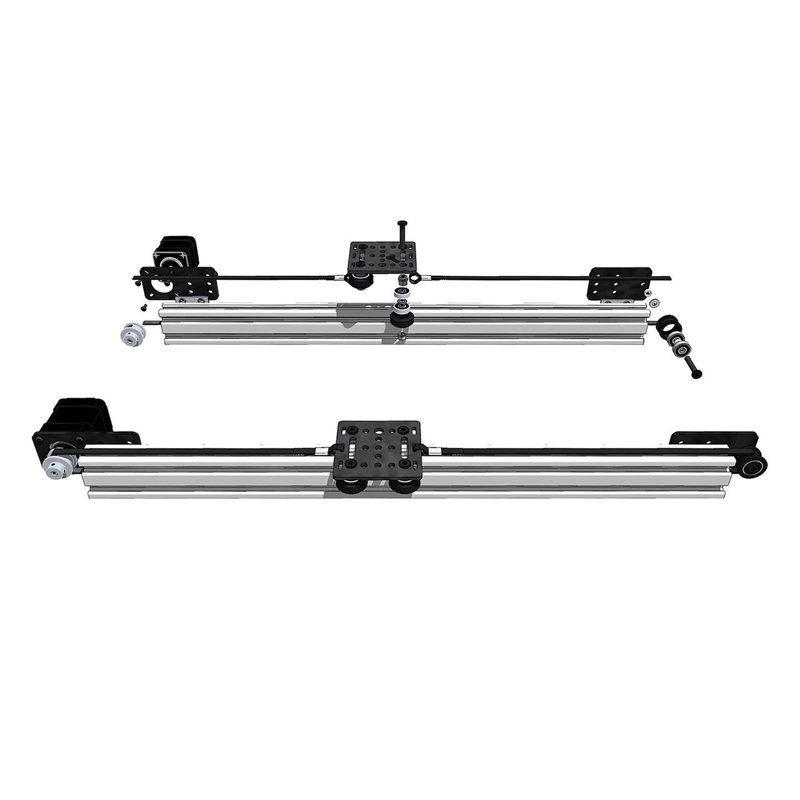

This is a self-assembly kit comes with parts below :

• 1 x 3mm Aluminium-Spacer
• 4 x Cable-Ties
• 2 x Double-Tee-Nut
• 1 x GT2-Pulley-30-Tooth
• 1 x Idler-Pulley-Plate
• 4 x M3-Socket-8mm
• 4 x M5-Low-Profile-8mm
• 1 x NEMA17-Motor-Mounting-Plate
• 1 x NEMA17-Stepper-Motor-76oz*in
• 1 x Smooth-Idler-Pulley-Kit
• 1 x V-Slot-Gantry-Plate(Small Or Large)
• 1 x GT2-Timing-Belt(915mm/1220mm/2134mm)
• 1 x V-Slot-Linear-Rail(250mm/500mm/1000mm)
• 2 or 3 x 6mmAluminium-Spacer(Depending on gantry plate choice)
• 4 or 6 x Delrin-Solid-V-Wheel-Kit  (Depending on gantry plate choice)
• 2 or 3 x Eccentric-Spacer-Mini-6m (Depending on gantry plate choice)
• 4 or 6 x M5-Low-Profile-25mm(Depending on gantry plate choice)

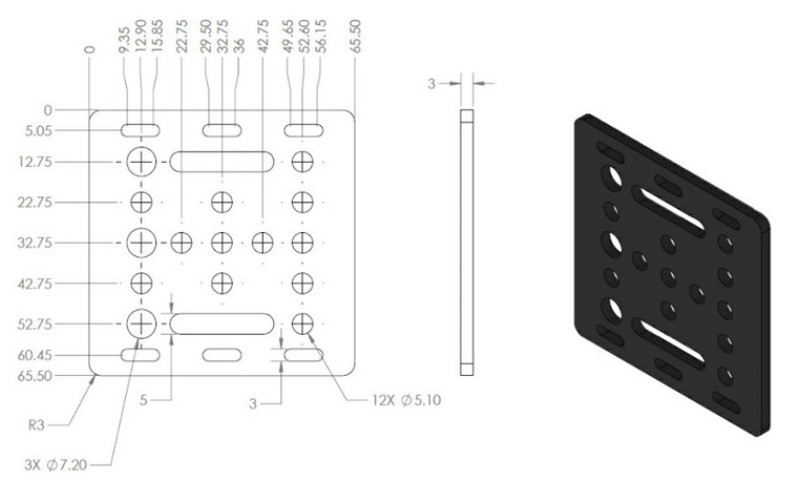

Small gantry plate:

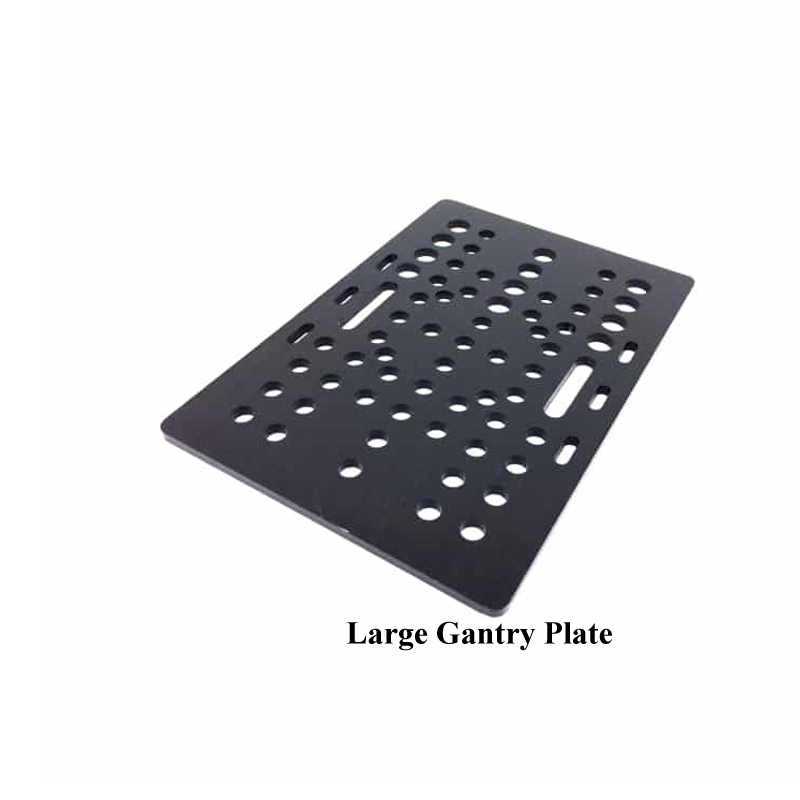

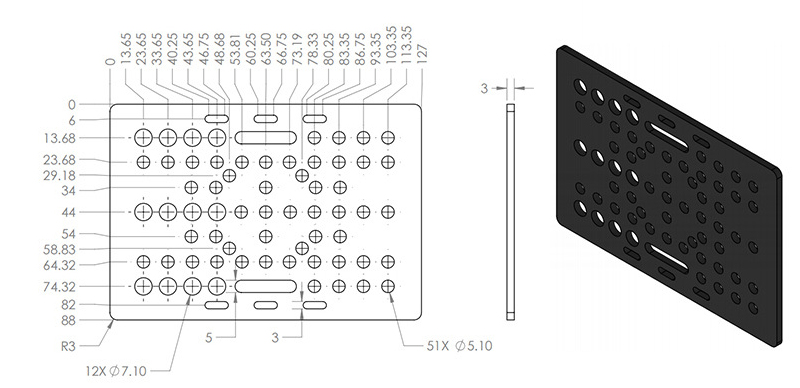

Large gantry plate:

This kit utilises standard v-slot parts to create a very simple but powerful belt driven linear actuator.The belt driven linear actuator takes advantage of the v groove and uses the precise and strong delrin solid v wheels for smooth linear motion. The linear actuator can be used for a whole host of applications, from a simple camera slider, to a modular 3D Printer design.

Because this kit uses all standard v-slot parts it can be easily combined with more of these actuators, other types, or a design of your own to quickly build a functional machine.



In addition to the rail options, we also have the option between the small v-slot gantry plate, or the full size v-slot gantry plate.If you choose the full size v-slot gantry plate you have the option to have 6 delrin solid v wheels instead of 4 that is used on the smaller plate.

With the small v-slot gantry plate the travel of the actuator is 85mm less than the extrusion length. For the full size v-slot gantry plate  the travel of the actuator is 110mm less than the extrusion length.
