7510 Black QueenAnt PRO Full Kit

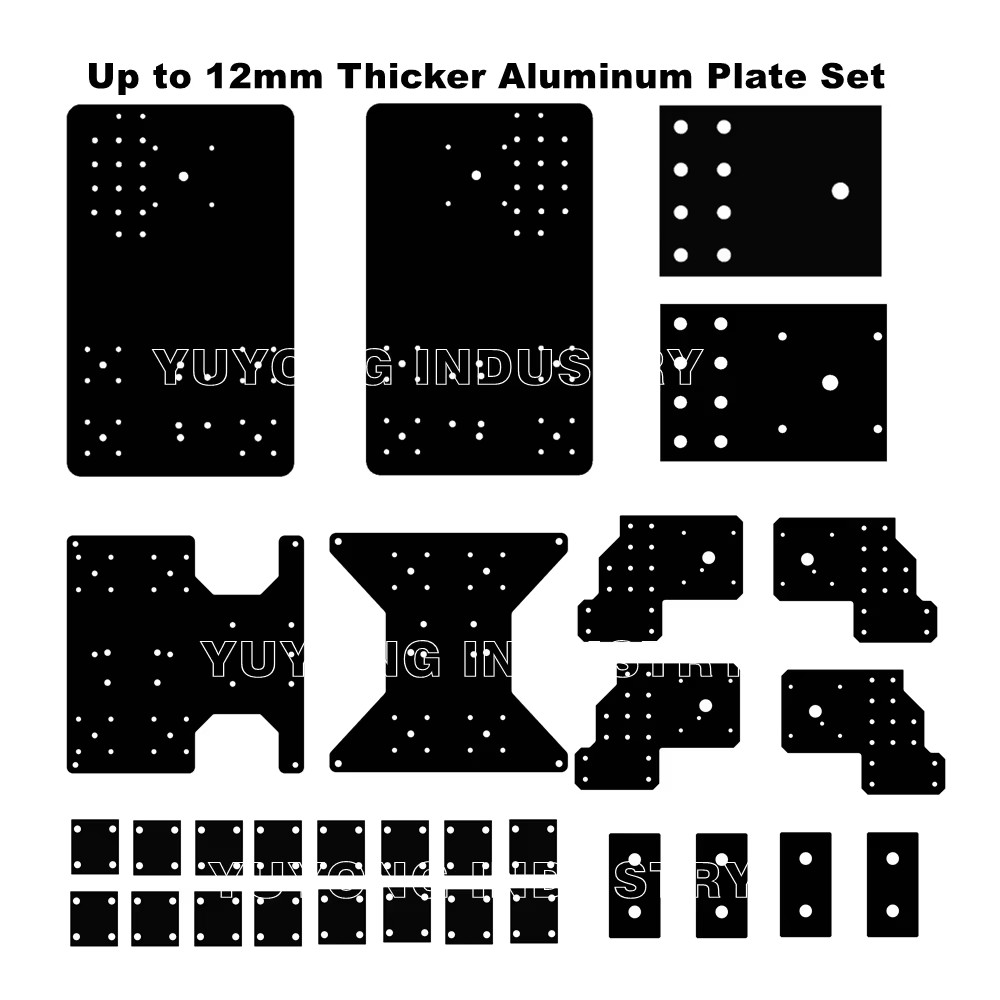

1.750mm x 1000mm QueenAnt PRO Mechanical Kit

2.4 x Close-Loop Motors and Close-Loop Driver 2.45N.m/3.6N.m(Optional)

3. Cable Drag Chain Bundle

4. Controller Bundle OFF-LINE/MK4-V/CNC USB/DSP A11 (Choose 1 of 4, Highly Recommend OFF-LINE)

Drive characteristics:
Model:HBS57
Type: DSP Closed loop stepper drive
Maximum peak current: 5A
Impulse response frequency: 200KHz
Micro-stepping driver: 2-256ppr
Voltage: DC24-48V
Protective function: Over voltage, over current, tracking error, over proof
Signal input Compatible:5-24V signal (Don’t need a resistor)
Control Way: 32 bit DSP Vector Closed Loop
Advantage: No step to lose, Low noise, little vibration and high efficiency, low heat

Motor electric parameter:
Shaft Diamater:8mm
Step angle/phase: 1.8 Degree
Hold torque: 2.45N.m/3.6N.M
Encoder: 1000line
Rated voltage/current: 4.2A
Resistance: 0.85ohm
Inductance: 3.6mH
Class of insulation: B

In many cases, if cables are directly exposed to the outside, they will soon wear out, become damaged, or be compromised due to various factors, and may even pose safety hazards. This cable drag chain system is designed to protect the wiring of the CNC machine. It not only extends the service life of the cables but also offers many advantages. It is a dynamic cable protection system, and each individual link of the cable drag chain can be opened—a feature not available in smaller drag chains. Furthermore, if needed, you can shorten or lengthen the drag chain by removing or adding links.
