Blue Flexible Shaft Coupler

Description

Blue Flexible Shaft Coupler

Widely used in blowers, 3D printer, DIY robots, CNC machine, stepper motors, etc. Similar to rigid clamp couplings ,Blue Flexible Shaft  Coupler is used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.

• * Made from aluminum alloy material to reduce inertia
• * Rigid coupling,high torque with rigidity,low inertia and excellent sensitivity
• * No rotation gap, elastic action can make up for symmetrical angular misalignment
• * Maintenance-free, oil proof and corrosion resistance
• * Suitable for model car, model boat, hardware, , mechanical drive situations etc.
• NOTE:
• The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
• Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.
• Specifications:
• * 100% brand new and high quality
• * Material: Aluminium alloy
• * Color: Blue
• * Shaft: 3x5mm / 3x6mm / 3x8mm / 4x4mm / 4x5mm / 4x6mm / 4x7mm / 4x8mm / 5x5mm / 5x6mm / 5×6.35mm / 5x7mm / 5x8mm / 6x6mm / 6x7mm / 6x8mm / 6.35×6.35mm / 6.35x8mm / 7x8mm / 8x8mm are available for choice.

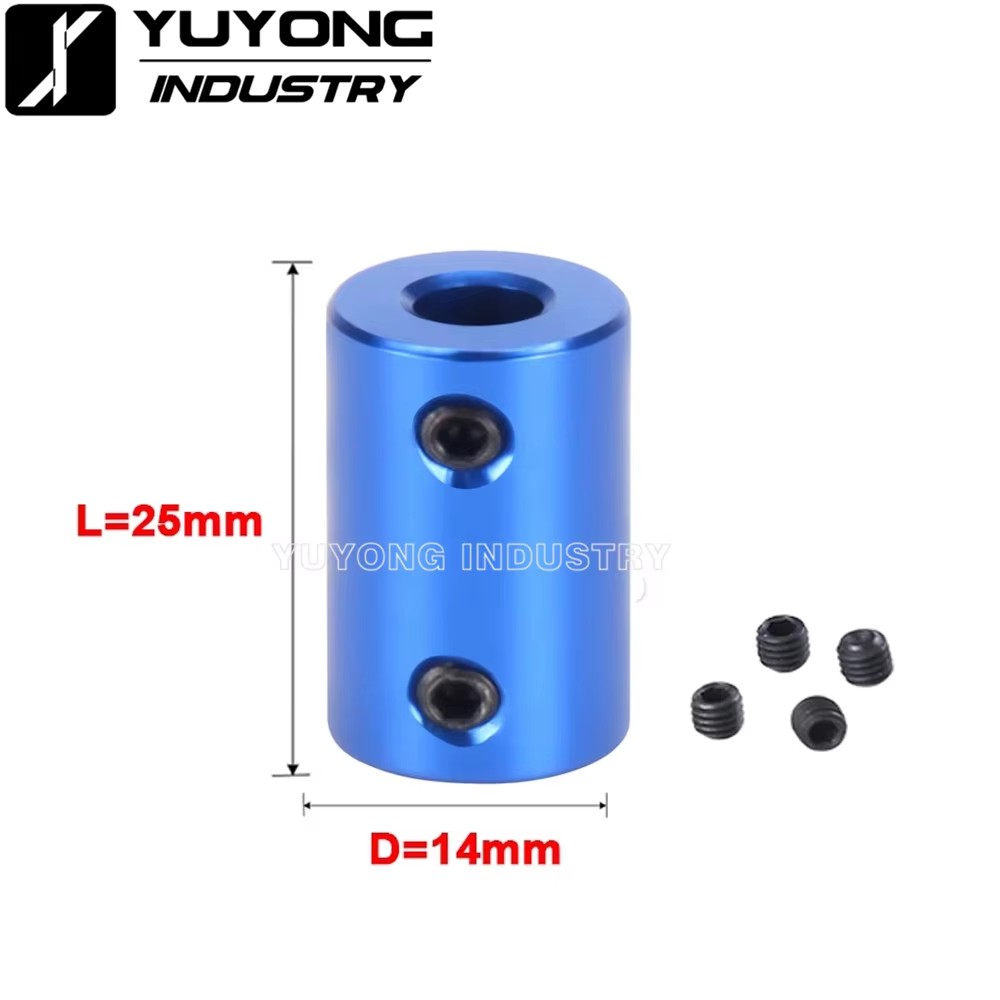

• * Length: 25mm
• * Outer Diameter: 14mm

• Note:
• *Please allow 1-3mm differs due to manual measurement.
• *The commodity picture is the material object photography, because the photography is the light as well as the display monitor is different, possibly has the chromatic aberration, the commodity take the material object as.
