Description

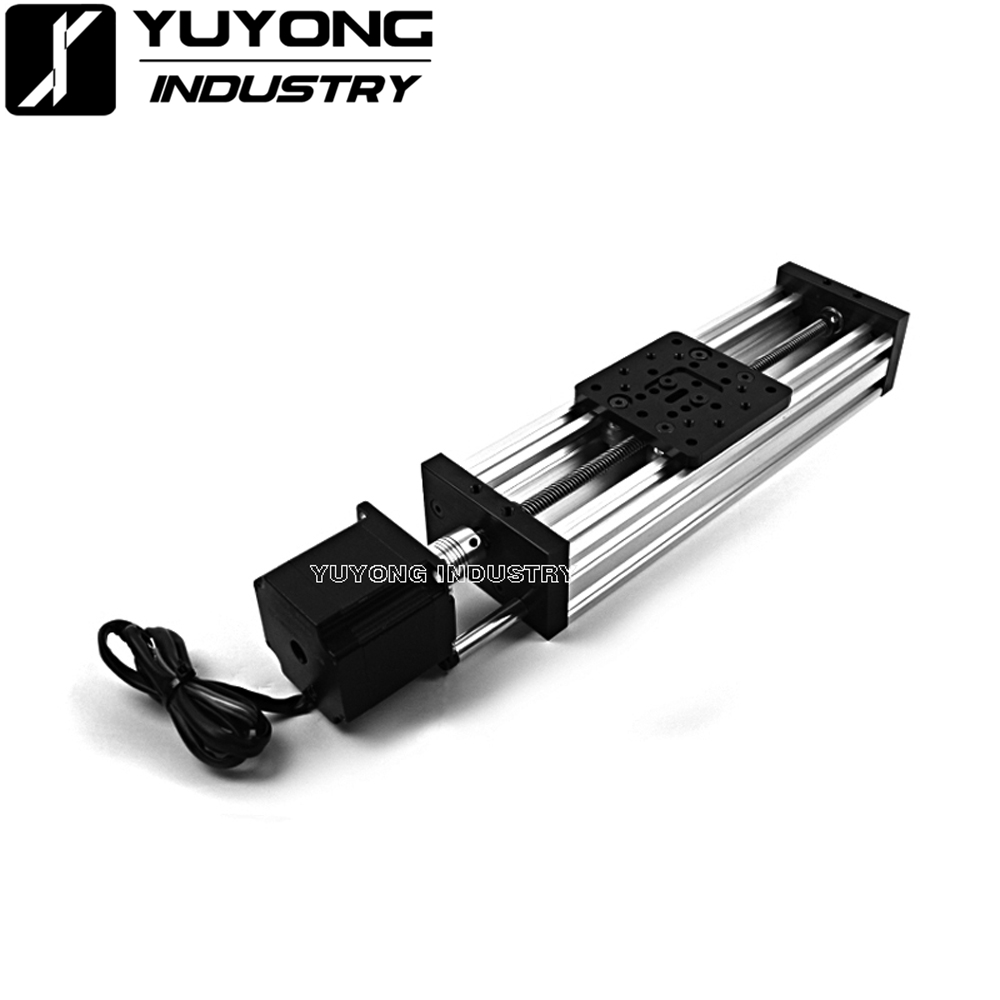

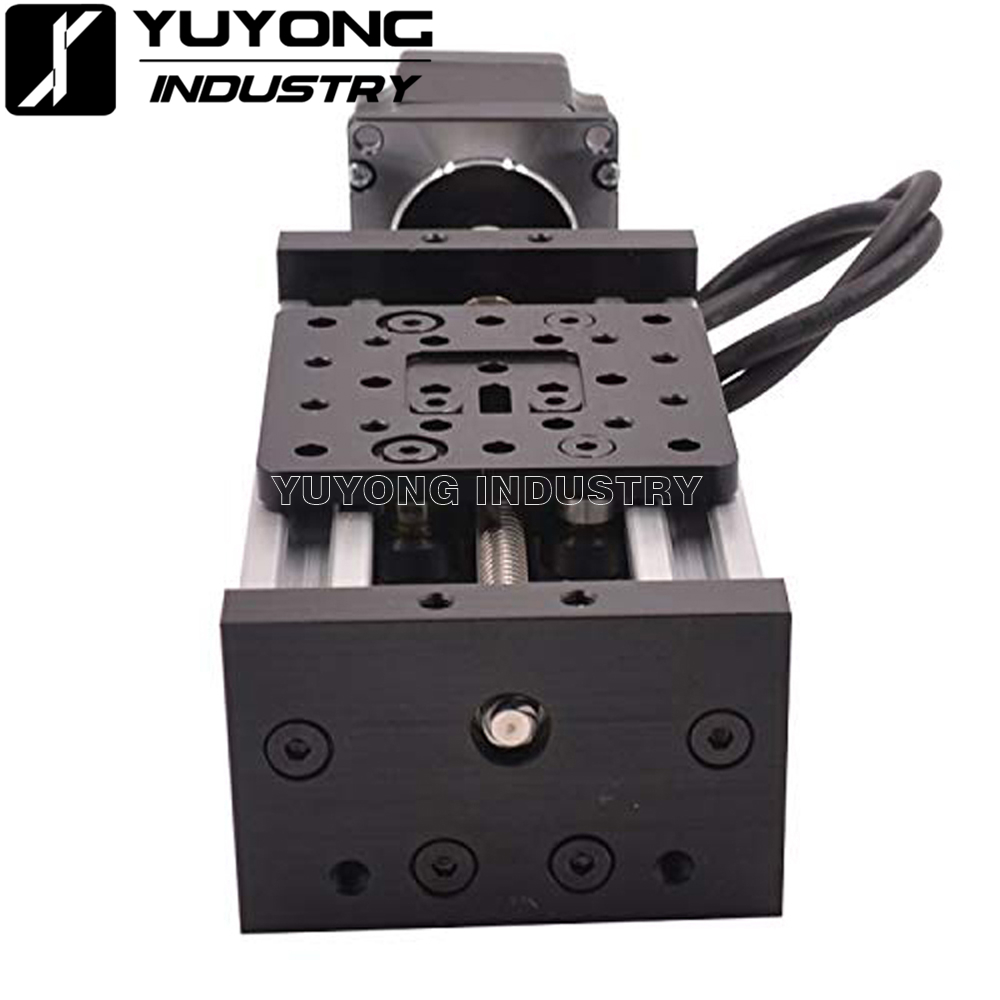

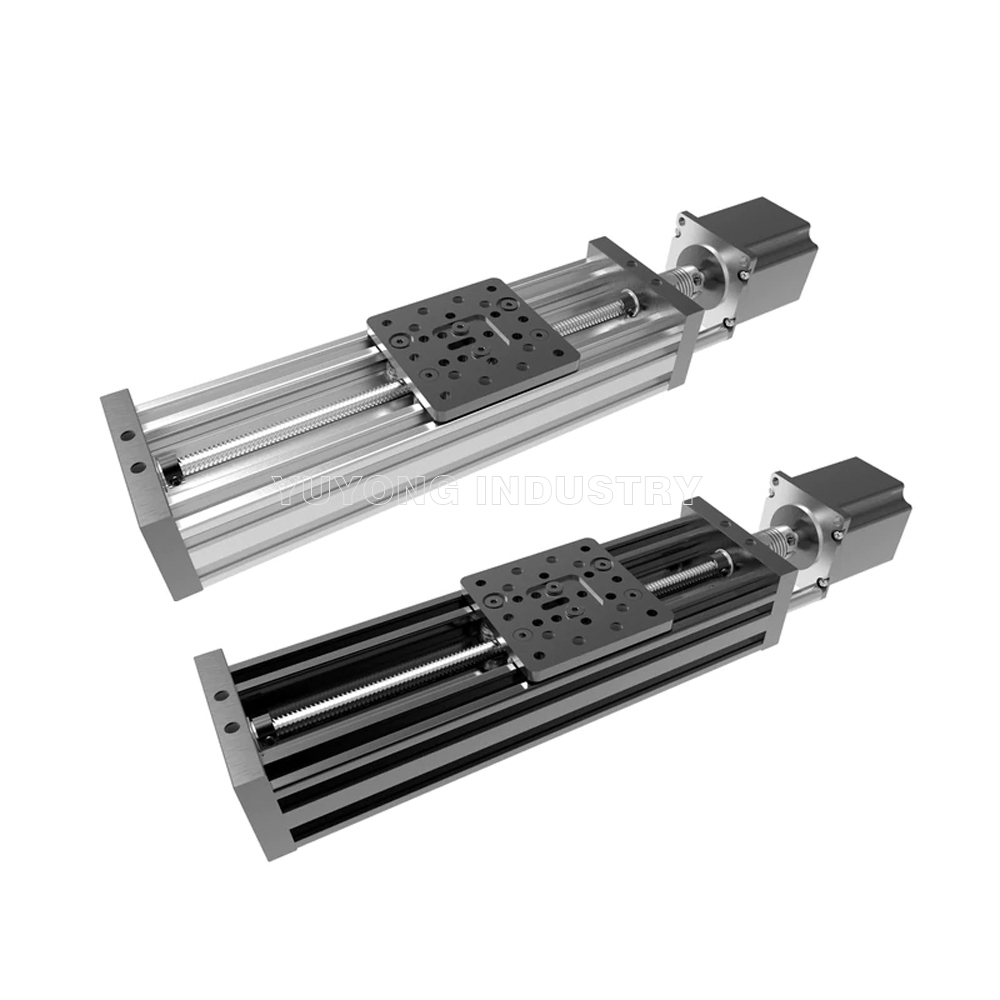

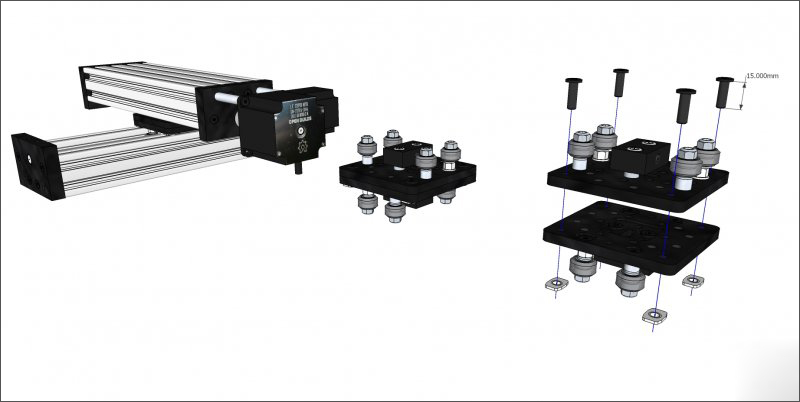

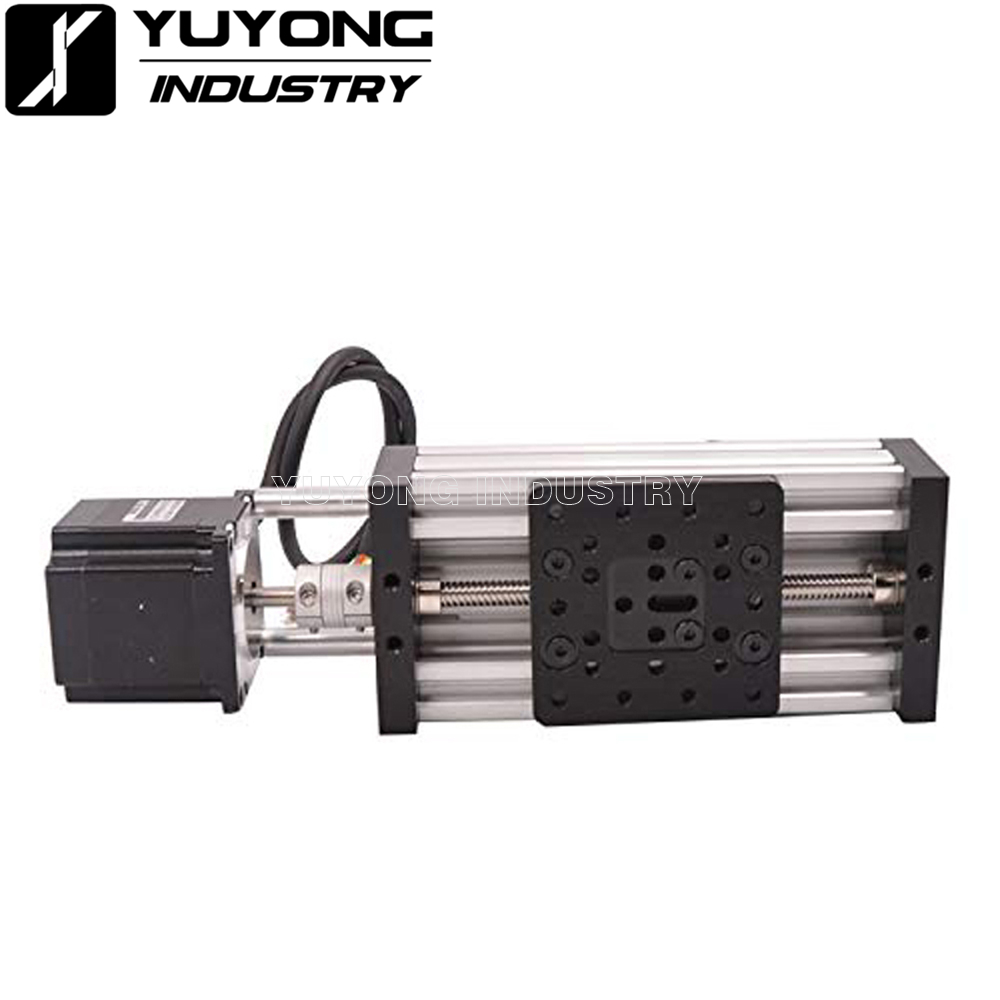

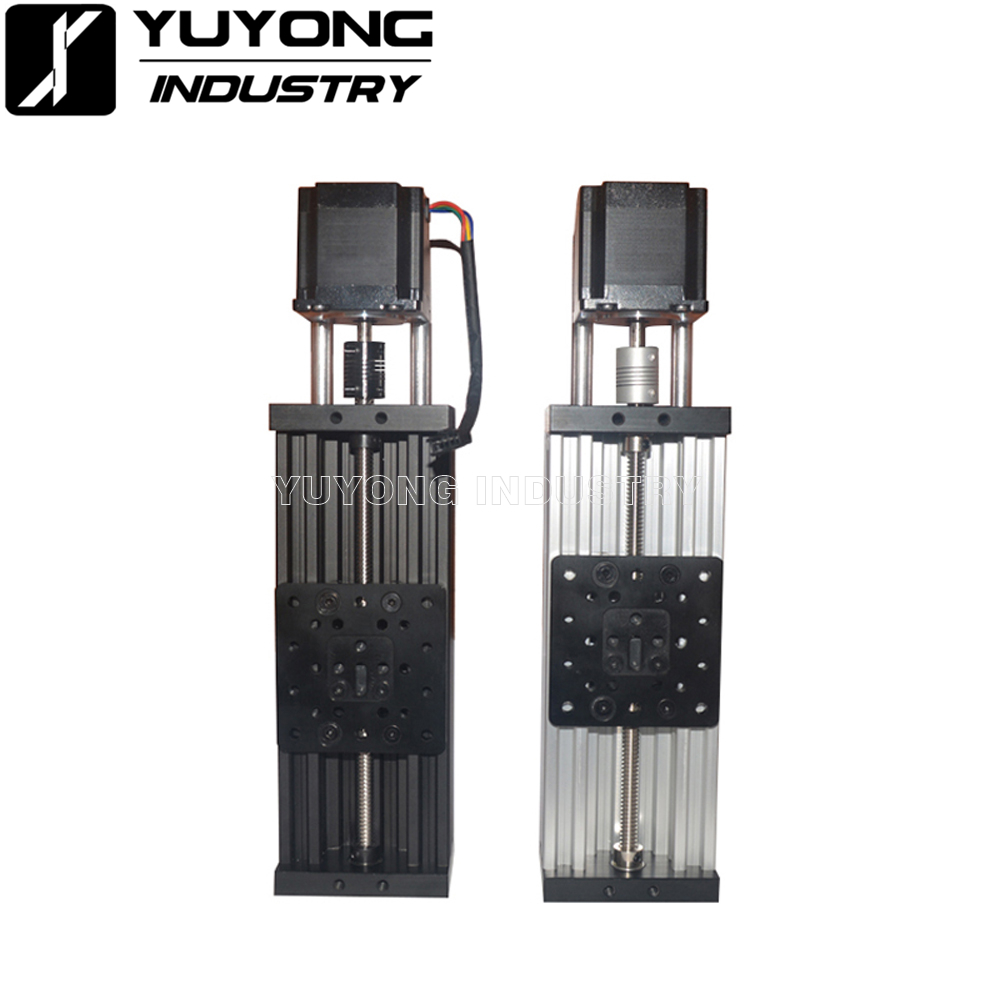

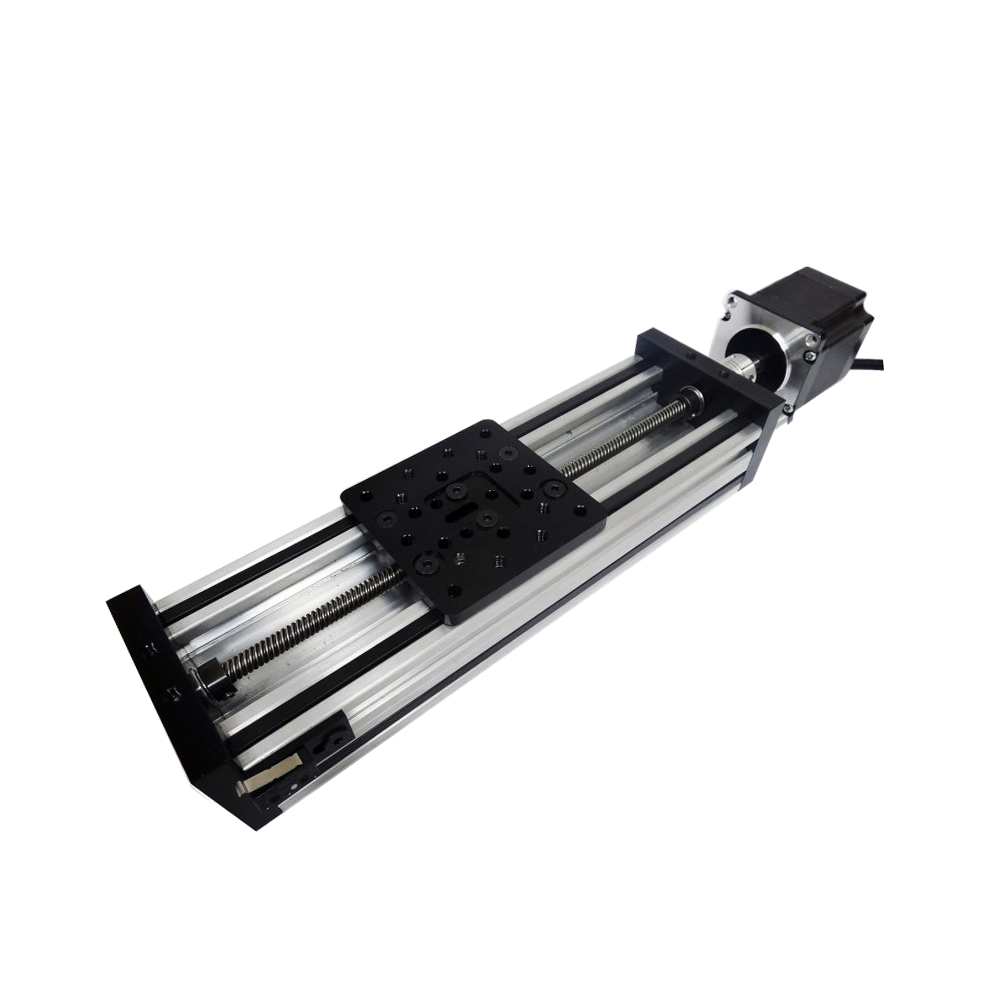

This kit combines the unique C-Beam linear rail with the C-Beam end mounts and gantry plate, plus other v-slot components, to make a simple linear actuator.
C-Beam has added strength through a C-Shape profile, and utilise the V-Slot system on all sides. This allows you to use V-Slot and C-Beam hand in hand on the same machine.

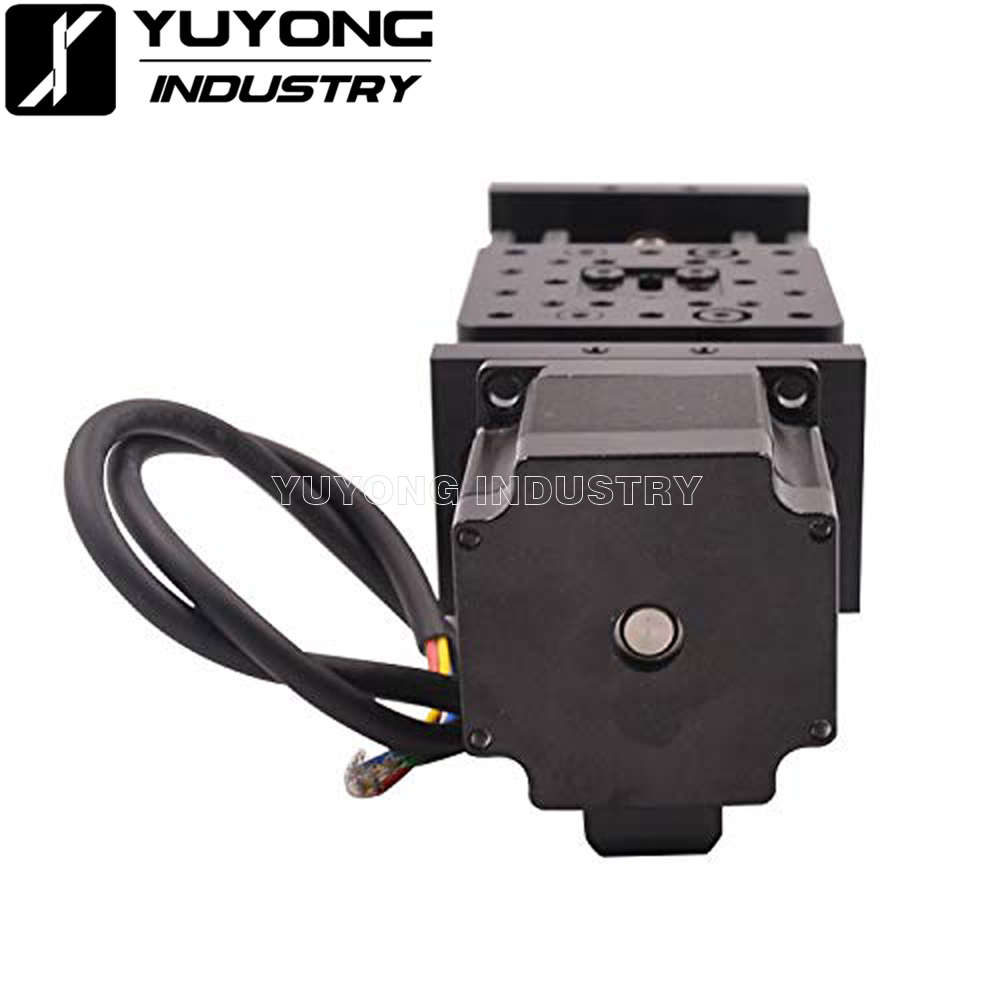

In this linear actuator kit, an ACME Lead screw system is used, driven by an optional NEMA23 stepper motor. This combination gives you a lot of power and precise movements.

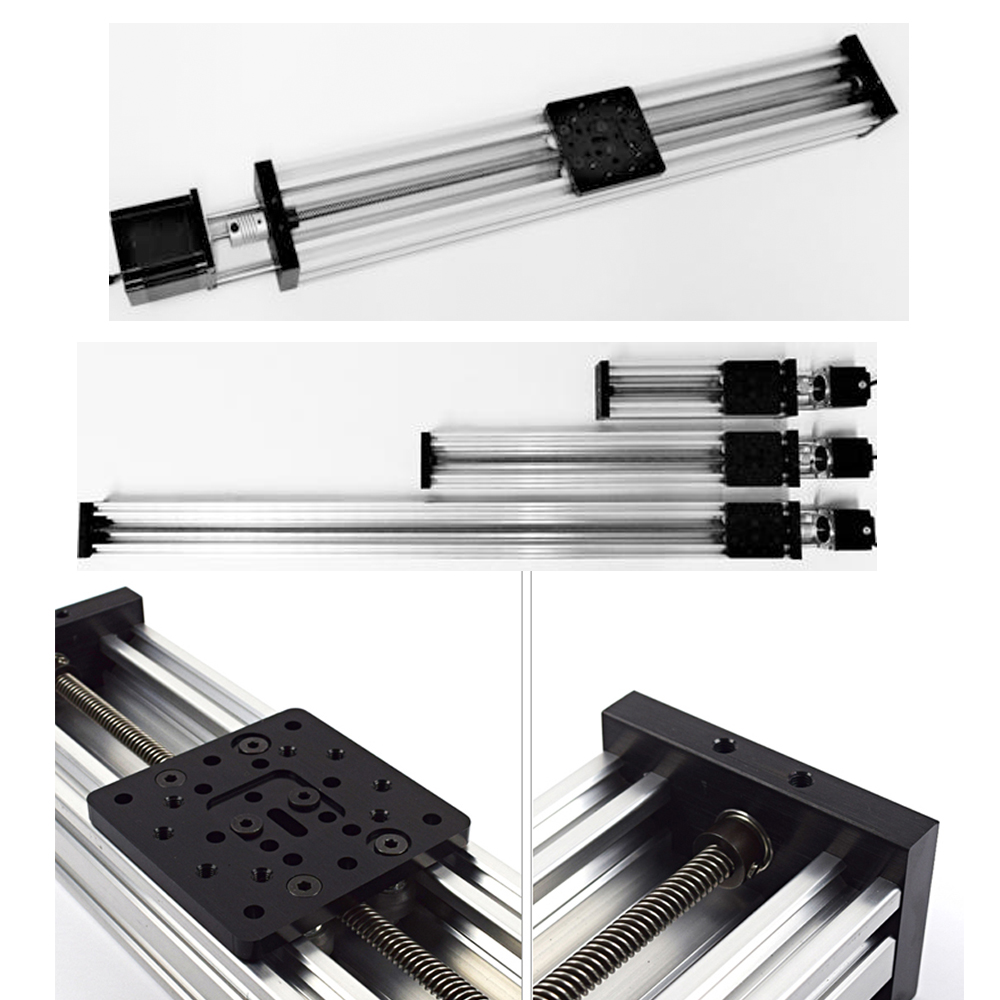

The linear actuator is available in standard lengths of 250/500/1000mm.
Actuator Specs:
- Travel for the 250mm version is 150mm
- Travel for the 500mm version is 400mm
- Travel for the 1000mm version is 900mm

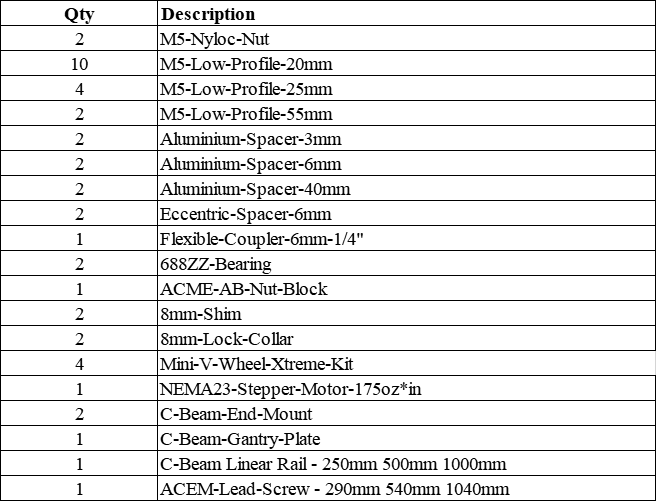

Bundle Includes:
-
- Mechanical Parts with a 1.26N.m/2.45N.m nema 23 stepper motor-high torque series.
