Description
Linear Actuator Kit

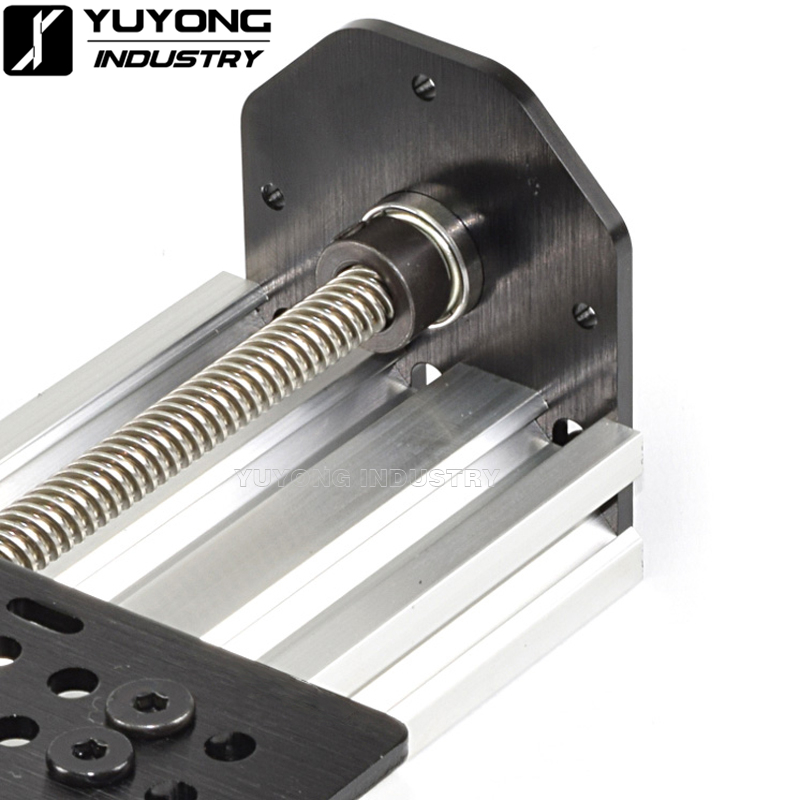

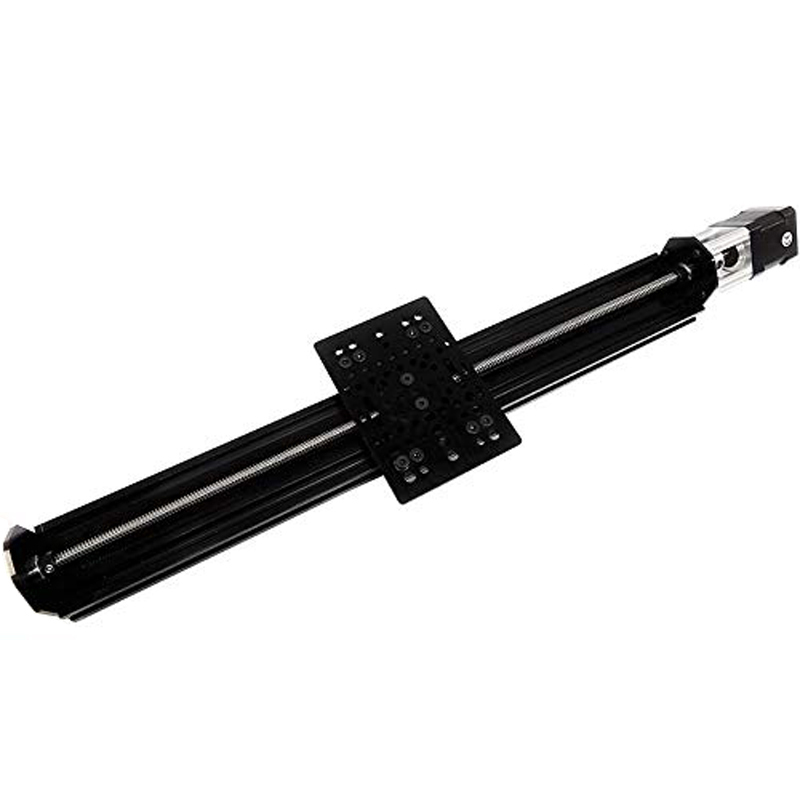

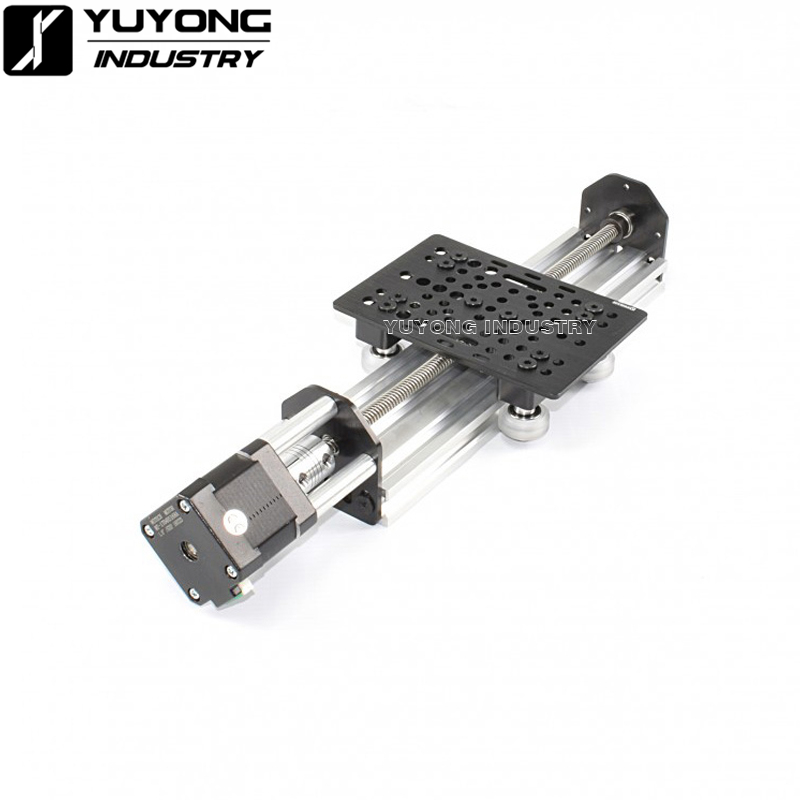

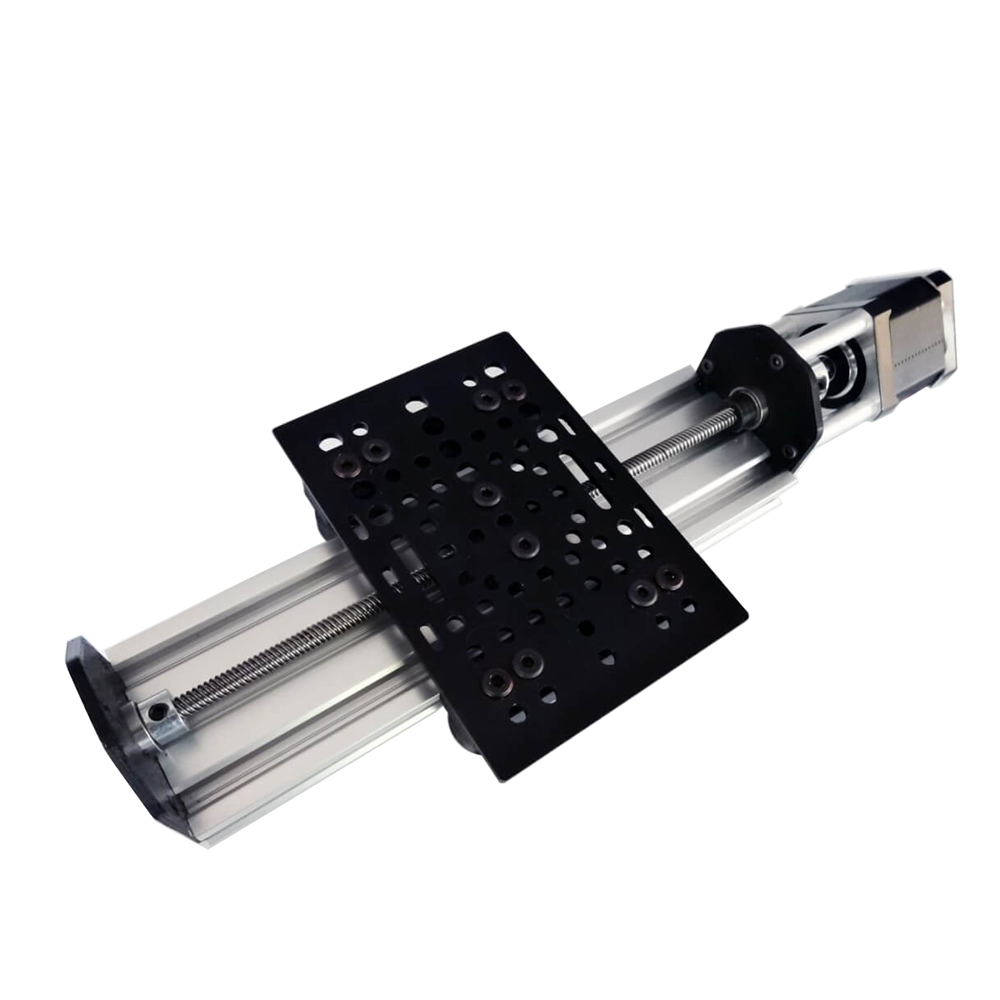

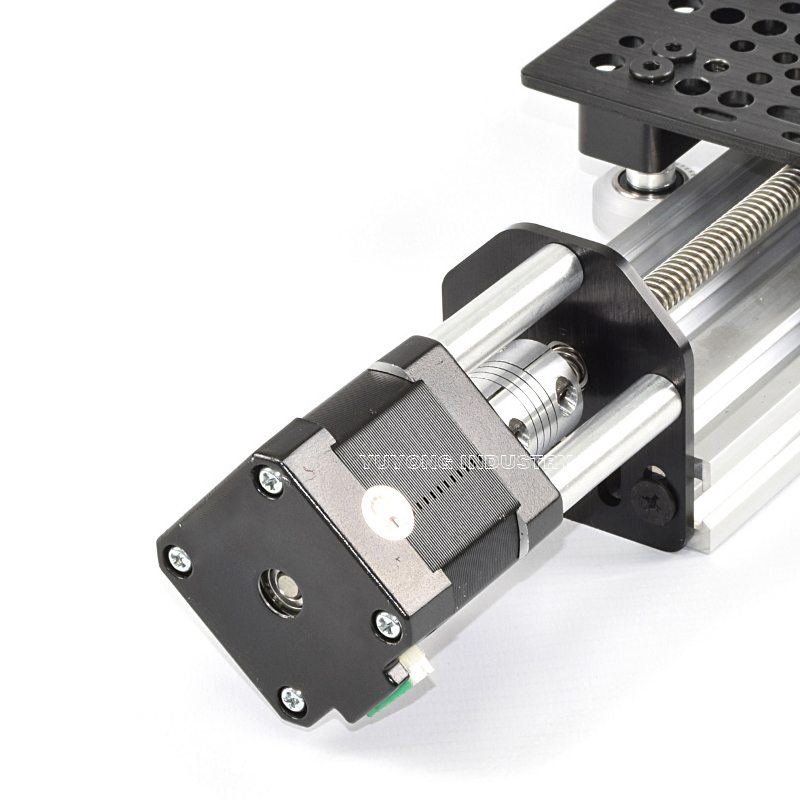

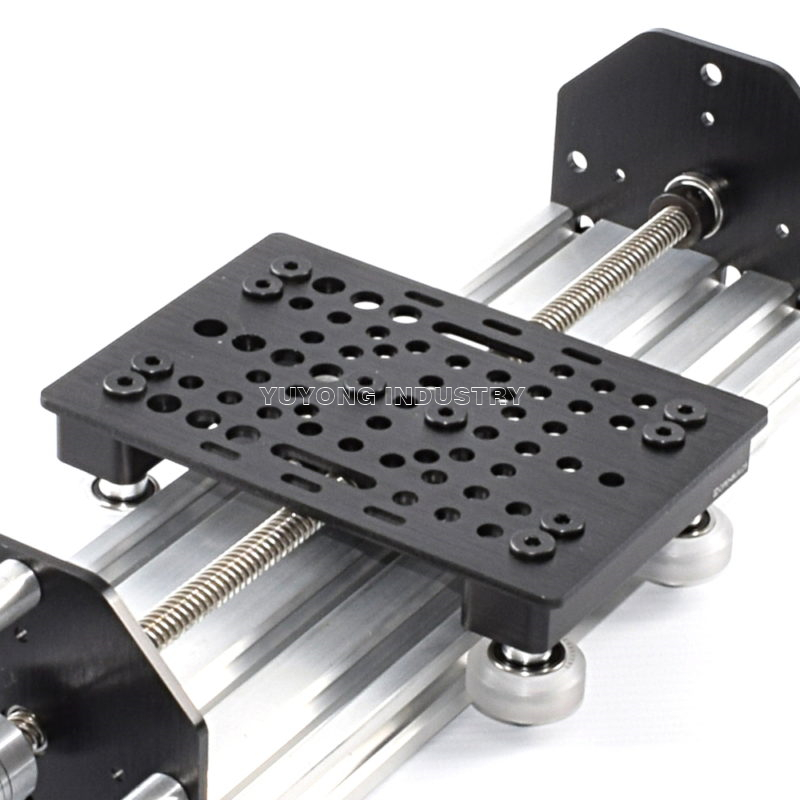

Linear Actuator Kit, This ACME Lead screw driven linear actuator uses standard v-slot parts to create a very simple but powerful lead screw driven linear actuator.
The linear actuator can be used for a wide range of applications, a standard-out example is the z-axis on a CNC machine,a similar set-up is used on our very own OX.
By using the v-slot system, this linear actuator takes advantage of the smooth and precise v-groove to create super accurate linear motion.
Because Linear Actuator Kit, This ACME Lead screw driven linear actuator uses standard v-slot parts to create a very simple but powerful lead screw driven linear actuator.kit uses all standard v-slot parts it can be easily combined with more of these actuators, other types, or a design of your own to quickly build a functional machine.
Linear Actuator Kit Specifications:
- Lead Screw Driven
- Travel distance:
- 250mm is ~6″ (150mm)
- 500mm is ~16″ (400mm)
- 1000mm is ~35″ (900mm)
- Accuracy: 0.001″ ~0.003″ (0.05mm ~0.10mm)
- Accuracy Positioning: 0.091mm
- Max Force: 26lb (115N)
- Max Speed: ~8000 mm/min

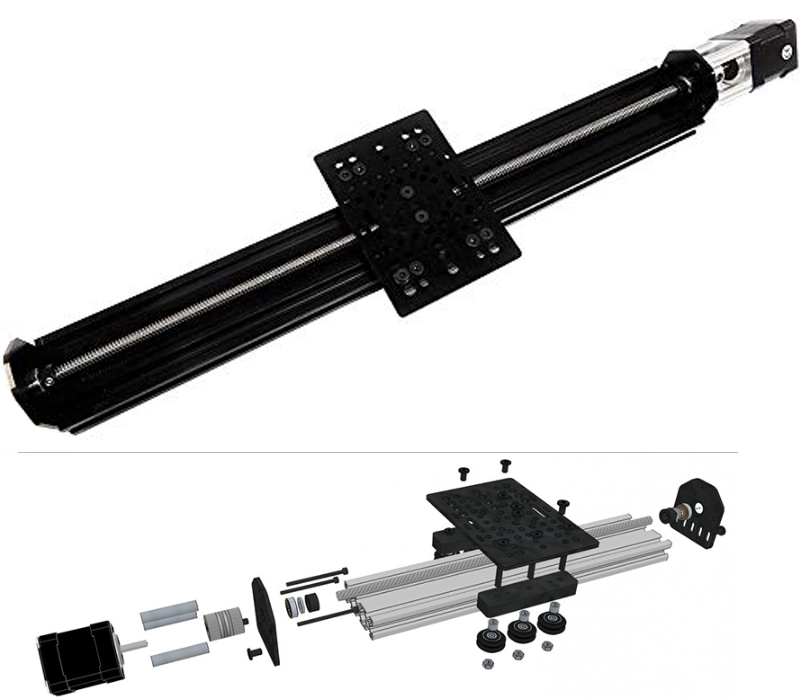

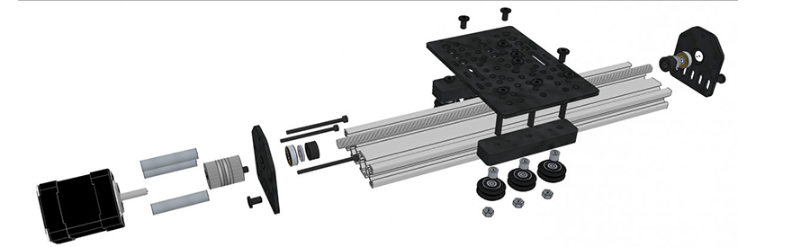

One Kit Including:
| Item | Quantity | M5-Low-Profile-15mm | 6 | M5-Low-Profile-40mm | 6 | M5-Low-Profile-55mm | 3 | Aluminium-Spacer-3mm | 6 | Aluminium-Spacer-6mm | 3 | Aluminium-Spacer-40mm | 3 | Eccentric-Spacer-Mini-6mm | 3 | Xtreme-Solid-V-Wheel-Kit | 4 | Spacer Block | 2 | 8mm-Shim | 2 | 8mm-Lock-Collar | 2 | Self-Tapping-Screw | 4 | 688ZZ-Bearing | 2 | M5 Nyloc-Nut | 3 | NEMA23-Threaded-Rod-Plate | 2 | Nema 23 Stepper Motor-175oz*in | 1 | ACME-AB-Nut-Block | 1 | Flexible-Coupler-8mm-1/4″ | 1 | V-Slot-Gantry-Plate | 1 | V-Slot-Profile Different Size with Length 250mm/500mm/1000mm | 1 | ACME-Lead-Screw T8-Optional 290mm/540mm/1040mm | 1 |
