V-Slot NEMA 17 Linear Actuator Kit

Description

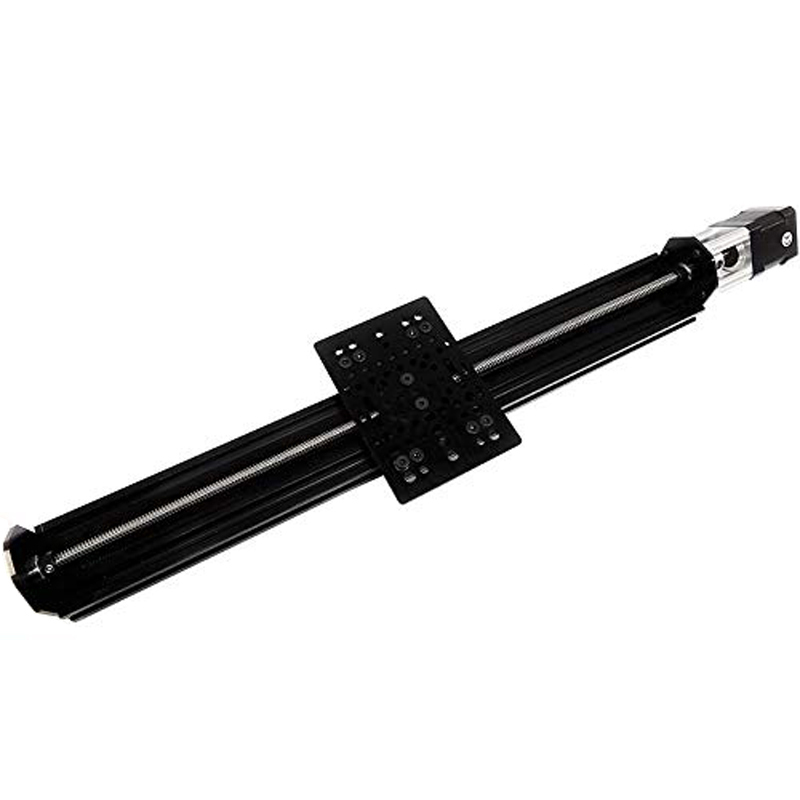

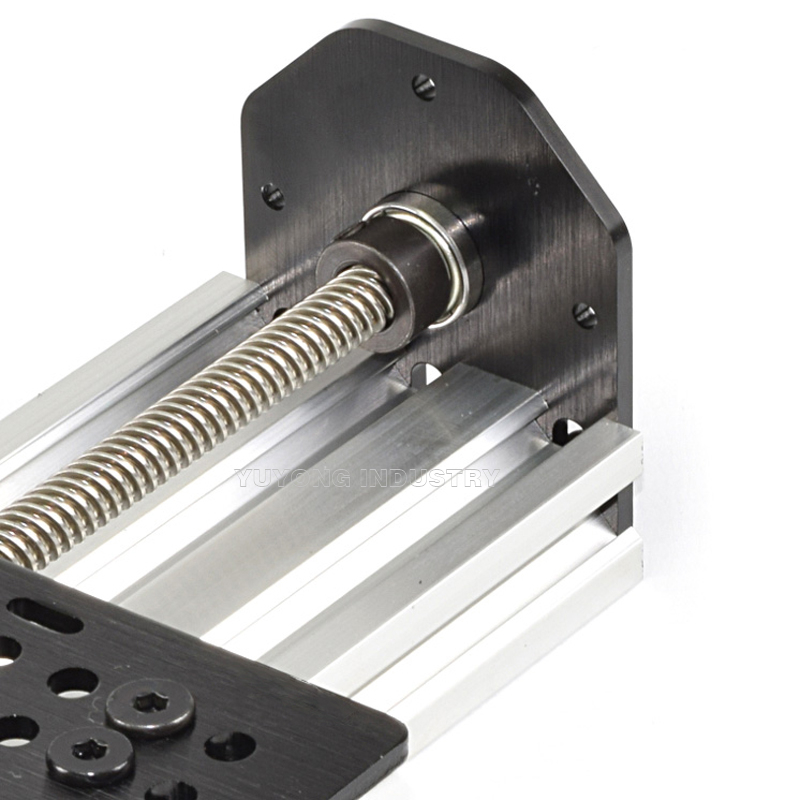

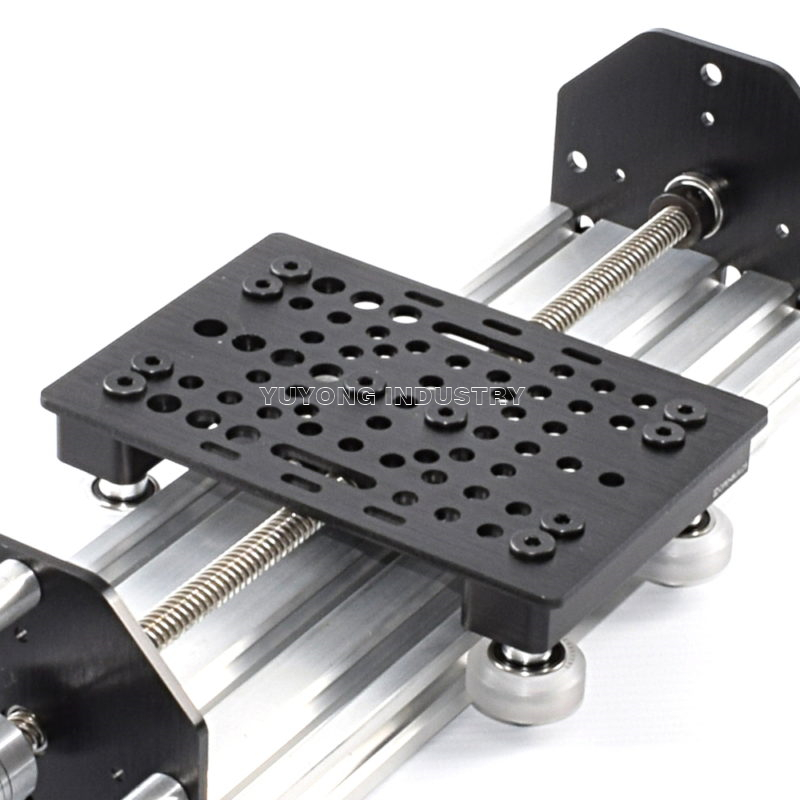

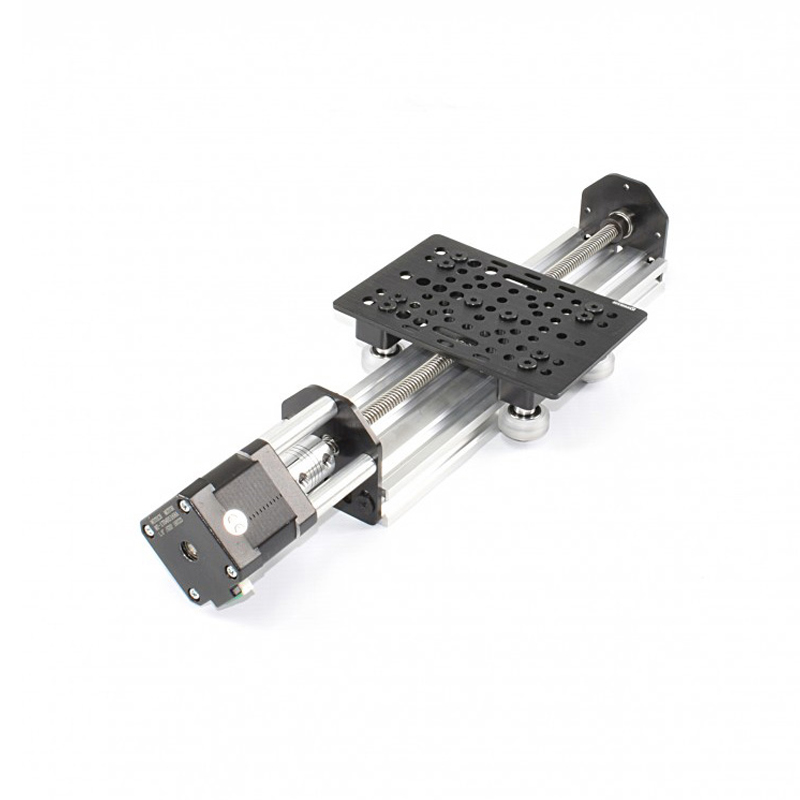

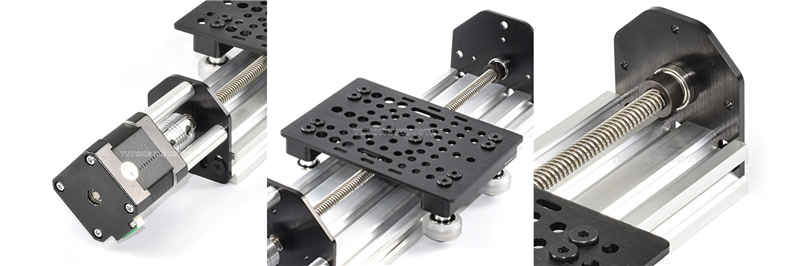

This ACME Lead screw driven linear actuator uses standard v-slot parts to create a very simple but powerful lead screw driven linear actuator.

The linear actuator can be used for a wide range of applications, a standard-out example is the z-axis on a CNC machine,a similar set-up is used on our very own OX.

By using the v-slot system, this linear actuator takes advantage of the smooth and precise v-groove to create super accurate linear motion.

Because this kit uses all standard v-slot parts it can be easily combined with more of these actuators, other types, or a design of your own to quickly build a functional machine.

Specifications:

Lead Screw Driven
Travel distance:
250mm is ~6″ (150mm)
500mm is ~16″ (400mm)
1000mm is ~35″ (900mm)
Accuracy: 0.001″ ~0.003″ (0.05mm ~0.10mm)
Accuracy Positioning: 0.075mm
Max Force: 13.5lb (60N)
Max Speed: ~8000 mm/min

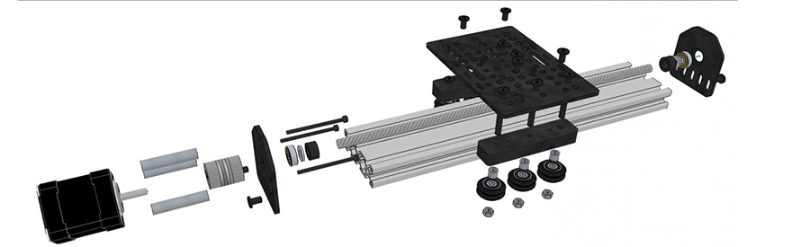

This is a self assembly kit comes with the following parts:

6 x M5-Low-Profile-15mm
6 x M5-Low-Profile-40mm
3 x M3-Cap-Head-Screws-45mm
6 x Aluminium-Spacer-3mm
3 x Aluminium-Spacer-6mm
3 x Aluminium-Spacer-40mm
3 x Eccentric-Spacer-Mini-6mm
4 x Xtreme-Solid-V-Wheel-Kit
2 x Spacer Block
2 x 8mm-Shim
2 x 8mm-Lock-Collar
4 x Self-Tapping-Screw
2 x 688ZZ-Bearing
2 x Nema 17-Threaded-Rod-Plate
1 x Nema 17 Stepper Motor-76oz*in
1 x ACME-AB-Nut-Block
1 x Flexible-Coupler-8mm-5mm
1 x V-Slot-Gantry-Plate
1 x V-Slot-Profile Different Size with Length 250mm/500mm/1000mm
1 x ACME-Lead-Screw T8-Optional 290mm/540mm/1040mm
