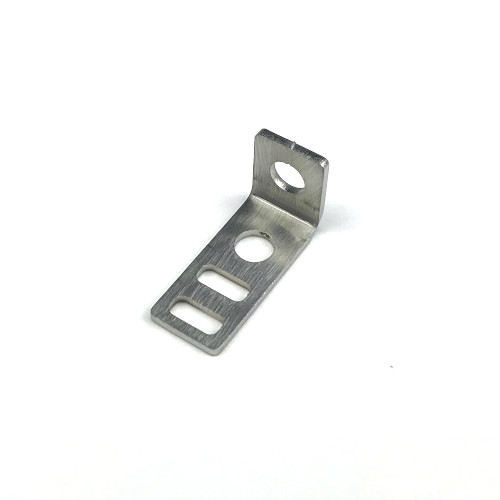

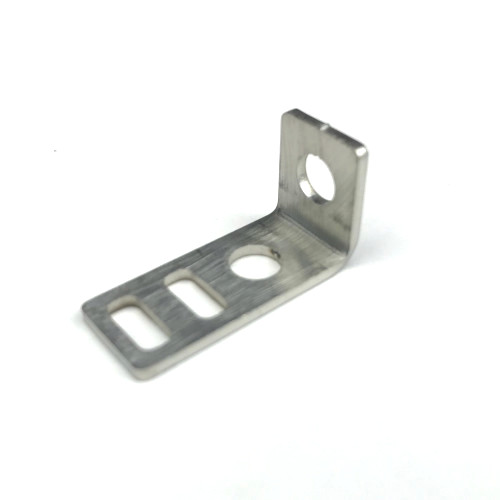

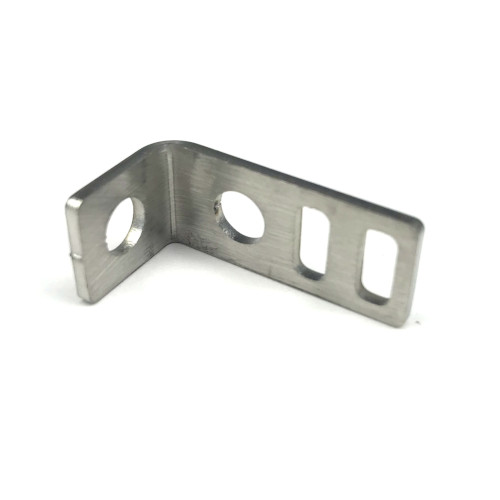

L Type belt mount plate

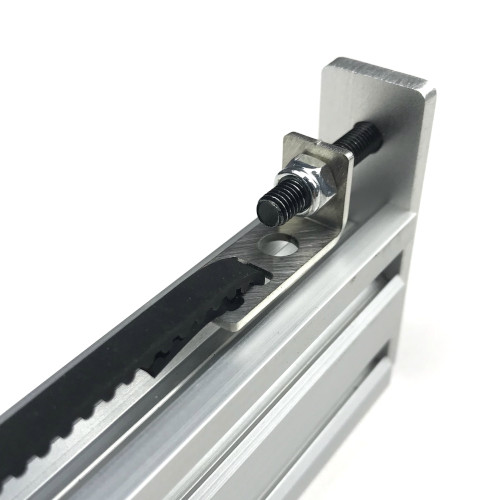

This Belt Mount Plate L Type gives an easy way to attach the ends of an open ended belt to V-Slot or other t-slot extrusion. The belt is wrapped through the slots and over itself like a typical back pack strap. To tension the belt, attach one end then tension the belt as a second clip is attached. Using the perpendicular hole, a M5 screw and nut can be used as a tensioner.

Both G2T and GT3 belts can be secured using these Belt Mounting Plates. These are also called Belt Clips.



  • Size: 26.5 x 11 x 14mm
  • Material: Stainless Steel
  • Finish: Raw
