QueenAnt PRO CNC Kit V2 500x750mm With ATC Option

2,070.00 USD 2,500.00 USDPrice range: 2,070.00 USD through 2,500.00 USD

QueenAnt PRO CNC Kit V2 – 1610 ball screw, linear rail upgraded. Full kit for precise engraving & milling. Silver or black. Upgrades from WorkBee & QueenBee.

SKU: N/A Category:

Description

QueenAnt PRO CNC Kit V2 – 1610 Ball Screw Linear Rail Full Kit for Precise Engraving

Build a high-precision machine with this QueenAnt PRO CNC Kit V2 Featuring 1610 ball screw drive and linear rail upgrades, this full kit delivers smoother motion, higher accuracy, and greater rigidity than standard CNC routers. Whether you’re upgrading an existing machine or building a new one, this kit gives you the foundation for a capable CNC system.

The QueenAnt PRO CNC Kit is designed for engraving, milling, and cutting on wood, acrylic, MDF, and soft metals. Ball screws reduce backlash and maintain accuracy under load, while linear rails minimize friction and play. The rigid frame keeps vibration low, so you get clean cuts and consistent results across large workpieces. The 1610 ball screws provide fast travel with precise positioning, making this kit suitable for both fine detail work and heavier cutting tasks.

This QueenAnt PRO CNC Kit .includes everything needed for assembly: frame, motion system, motors, and hardware. Just add your controller, spindle, and power supply. Available in black or silver finish, it’s an ideal upgrade from WorkBee or QueenBee machines. The kit is designed for straightforward assembly with standard tools, and all mounting hardware is included. Whether you’re upgrading an existing machine or building a new one, this QueenAnt PRO CNC Kit V2 delivers the precision and reliability you need.

Key specs:

  • Model: QueenAnt PRO V2

  • Drive: 1610 Ball Screw

  • Upgrade: Linear Rail Finish: Black / Silver

  • Compatibility: Upgrade from WorkBee, QueenBee

  • Applications: Engraving, Milling, Cutting

  • Type: Full CNC Kit

Whether you’re upgrading an existing machine or building a new one, this QueenAnt PRO CNC Kit V2 delivers the precision and reliability you need for your CNC projects.

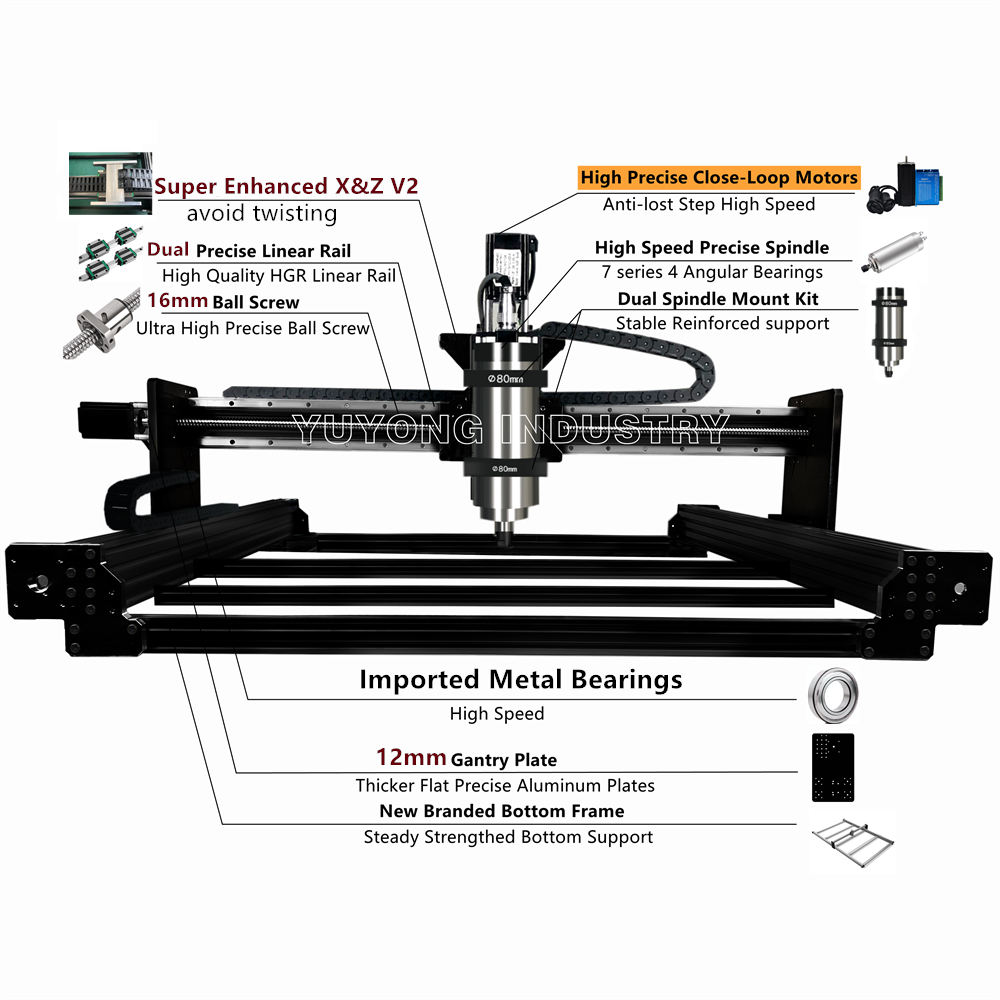

QueenAnt PRO CNC Kit V2 with 1610 ball screw and linear rail upgrade



Compatible Material for Cutting/Milling/Engraving:

Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam…..

QueenAnt PRO CNC Kit V2 with 1610 ball screw and linear rail upgrade

This QueenAnt PRO CNC Kit  Includes:
  • ​QueenAnt PRO CNC V2 Mechanical Kit
  • ​1610 Big Diamater Precise Ball Screws
  • ​4 x Close-Loop 3.6N.m Stepper Motors with Close-Loop Drivers
  • ​OFF-LINE or DSP or Mach3 or CNC USB Controller Bundle
  • ​1.5kW/2.2kW Air Cooled or Water Cooled Spindle Bundle

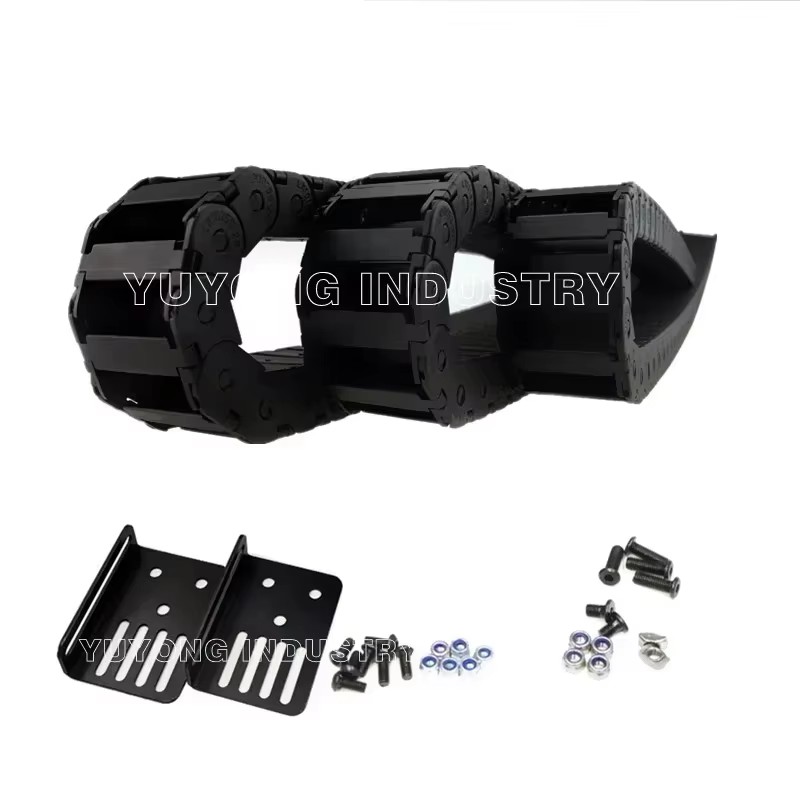

  •  Cable Drag Chain Bundle
  •  ​Wiring Cable Kit
  •  ​XYZ Touch Probe
  •  ​Drill Bits
  •  ​All Extrusions are M5 Tapped as where it is necessary

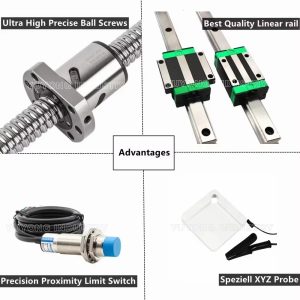

  • 1610 ball screw on the QueenAnt PRO CNC Kit V2 for minimal backlashPackaged QueenAnt PRO CNC Kit V2 ready for shipping and assembly





controller options



Angled view of Lead CNC Full Kit for carving, engraving and milling

YY PI-GRBLHAL

Industrial GRBLHAL CNC controller kit, open-source industrial-grade firmware, high step rate, reliable for DIY CNC routers, laser engravers and industrial small machining equipment.

 Top view of Lead CNC Full Kit showing work area

YY ESP32S-GRBL

WiFi + Bluetooth GRBL CNC controller kit, wireless remote control by phone/tablet, supports USB connection, ideal for laser engraving, desktop CNC and DIY motion projects.

 Top view of Lead CNC Full Kit showing work area

OFF-LINE

Offline CNC motion controller kit with touch screen, built-in independent system, reads G-code via U-disk, works without computer for stable standalone engraving & milling tasks.

Complete parts layout of the Lead CNC Full Kit including frame, motors and wiring

MK4-V

4-axis USB CNC motion control kit compatible with Mach3 software, high pulse frequency, supports stepper & servo motors, stable PC-based control for CNC router, milling and engraving machines.

Complete parts layout of the Lead CNC Full Kit including frame, motors and wiring

DSP A11

Handheld offline CNC controller, no computer required, U-disk reading, power-off resume, breakpoint memory, simple operation for industrial routers.

Packaged Lead CNC Full Kit ready for shipping and assembly

EC500

Ethernet Mach3 CNC controller kit, strong anti-interference, long-distance stable communication, supports 3–6 axis, stepper & servo drive, ideal for high-precision engraving and milling.

ATC option

This 5-tool linear automatic tool changer is specially developed for CNC router spindles,which painstalkingly developed by the YUYONG INDUSTRY Team after extensive development and testing.

It realizes automatic tool changing by tightening and loosening the lock nut. When the program sends a tool change command, the mechanism releases the lock nut to unload the current cutter, then moves to the target tool position, and tightens the nut again to clamp the new cutter. The whole tool swap process runs automatically according to the G-code, without manual cutter replacement by operators. It saves downtime between different machining procedures and guarantees consistent processing quality.



A dust shield is equipped for this ATC unit. During machining, it prevents wood chips and debris from splashing onto the tool magazine, spindle, guide rails and tool holders. It avoids sawdust accumulation on the automatic tool change mechanism, reduces abrasion caused by fine wood dust, and keeps the tool change action stable and smooth.

Advantages

✅ 5-position linear tool magazine, supports pre-installation of 5 different cutters

✅ Tool clamping & releasing driven by nut tightening and loosening, stable and reliable

clamping force

✅ Automatic tool change triggered by G-code program, no manual cutter swap required

✅ Equipped with dust shield to block flying chips and protect internal moving parts

✅ Transparent cover enables real-time visual observation of the tool change procedure

✅ Simple structure, easy to install, disassemble and perform routine maintenance

✅ Precision matched structure, ready to fit standard CNC spindle

ATC Specification

Magazine Type: Linear Automatic Tool Changer

Tool Capacity: 5 cutters

Clamping Principle: Automatic clamping and releasing via tightening & loosening lock nut

Matching Object: CNC router spindle

Control Logic: Automatic tool change following G-code instructions



Please note that if you need the ATC function, you are welcome to contact us for consultation. Currently, it is only compatible with the Mach3 controller, and support for more controllers will be added later.

Also, adding this function requires an extra fee of $399. If you need it or have any ideas, please feel free to contact us anytime.

Additional information

Weight 78 kg
Dimensions 162 × 22 × 22 cm
Color

Industrial Black, Sleek Silver

size

500×750

Controller

Offline DDCSV4.1 Control, DSP-A11 Control, MK4-V Mach3 Control

Spindle

1.5KW Air Cooled, 1.5KW Water Cooled, 2.2KW Air Cooled, 2.2KW Water Cooled
