QUEENBEE ULTRA CNC Full kit Linear Rail upgraded precise CNC router Engraving machine with Brand New Tensioning system

$1,090.00$1,539.00

100USD discount over 1000USD, Coupon Code: JATH878D

500USD Big Discount over 2300USD, Coupon Code: D4YPAK89

Description

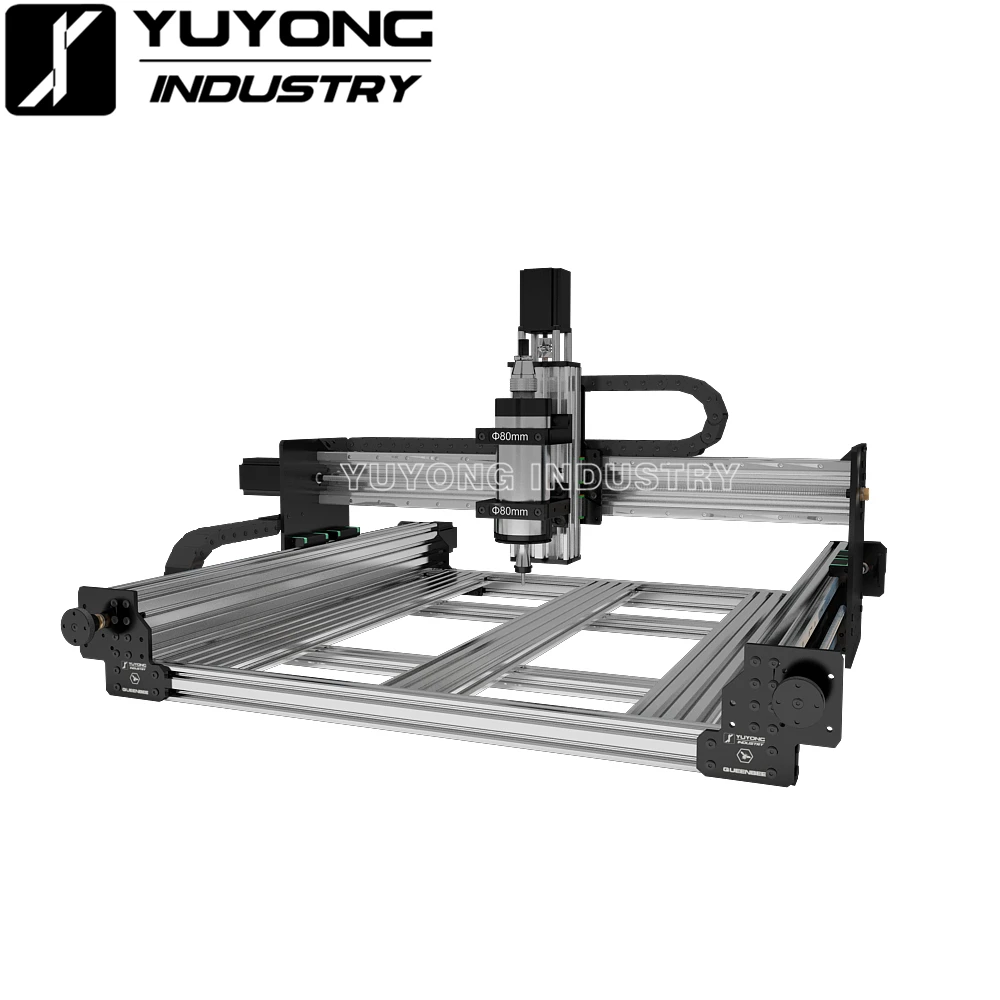

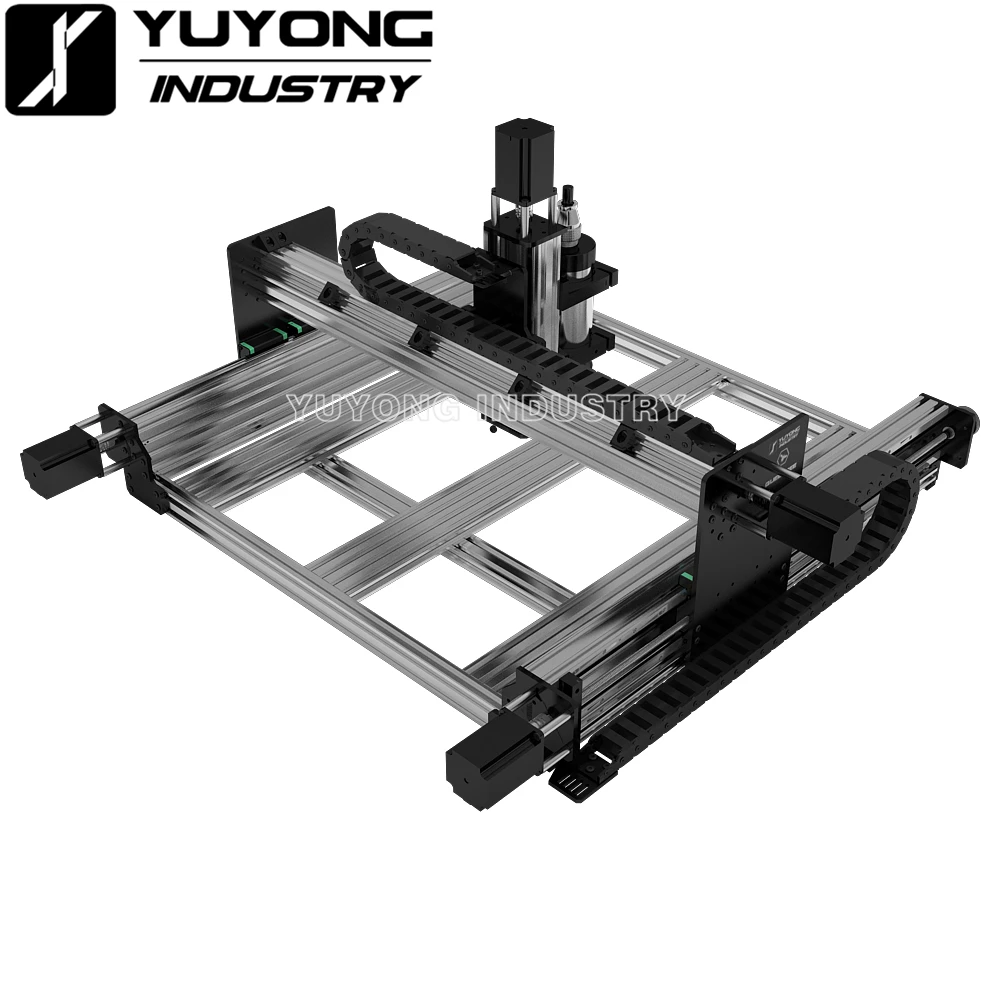

QueenBee ULTRA CNC Machine Full kit with Brand New Tensioning system

The YUYONG INDUSTRY QueenBee ULTRA is a super Performance Improvement version,High-rigd and High-Precision CNC machine with Full Track Linear Rail Upgrade based on very well-received WorkBee CNC machines.

Its many super upgrades have greatly improved the mechanical performance of the entire machine in terms of frame design or rigidity and precision.

With Full Series size,no matter Cutting or 3D carve wood,pcb plastics, aluminum, etc. to create beautiful intricate 3D carvings, inlays, furniture, signs, plaques, amazing works of art and so much more. All can be achieved here!

Note:

  1. Express(Fedex/UPS/DHL/TNT etc)—-DDU(Not include tax).Please kindly leave messages for declare amount in invoice.

  2. Seller’s shipping method: DDP(Include tax),just shipping time is long,at present have been supported EU,AU,US,CA,ZA,BR,ASIN part Countries,for other countries,please contact us to check if your country is in.

  3. RU: Special Line(No Tax.)

  • The YUYONG INDUSTRY QUEENBEE is Universal and Interchangeable.
  • The YUYONG INDUSTRY QUEENBEE Machine has passed QA and QC after many tests.All are Real Product Photos.
  • If you need Black Extrusion Version,please contact us to get the price difference.

Compatible Material for Cutting/Milling/Engraving:

  • Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam

This Full Kit Includes:

  • QueenBee ULTRA CNC Mechanical Kit
  • 4 xNema23(2.45N.m) Stepper Motors
  • Cable Drag Chain Bundle
  • Wiring Cable Kit
  • Mach3 or GRBL or CNC USB or OFF-LINE Controller Bundle
  • 1.5kW/2.2kW Air CooledorWater Cooled Spindle Bundle
  • All Extrusions are M5 Tapped as where it is necessary
QueenBee PRO Mechanical Kit  +  4pcs x 2.45N.m Nema23 Stepper Motors  +  Cable Drag Chain Bundle

Specs of Nema 23 Stepper Motor:

  • NEMA 23
  • Shaft Size: 1/4″
  • Step Angle: 1.8°
  • Holding Torque:  2.45N.m
  • Rated voltage:  3.6V
  • Rated current:3A

Cable Chain Add-On Pack

The Cable Drag Chain system is installed to protect the wiring of

the CNC Machine. Due to the moving axis on the machine a

dynamic cable protection system is required.

Our 15x30mm Cable Drag Chains have each individual link able   to be opened up, this is an incredibly useful feature the the

smaller drag chains do not have. Drag chains can be shortened

or lengthened by simply removing or joining links of the chain.

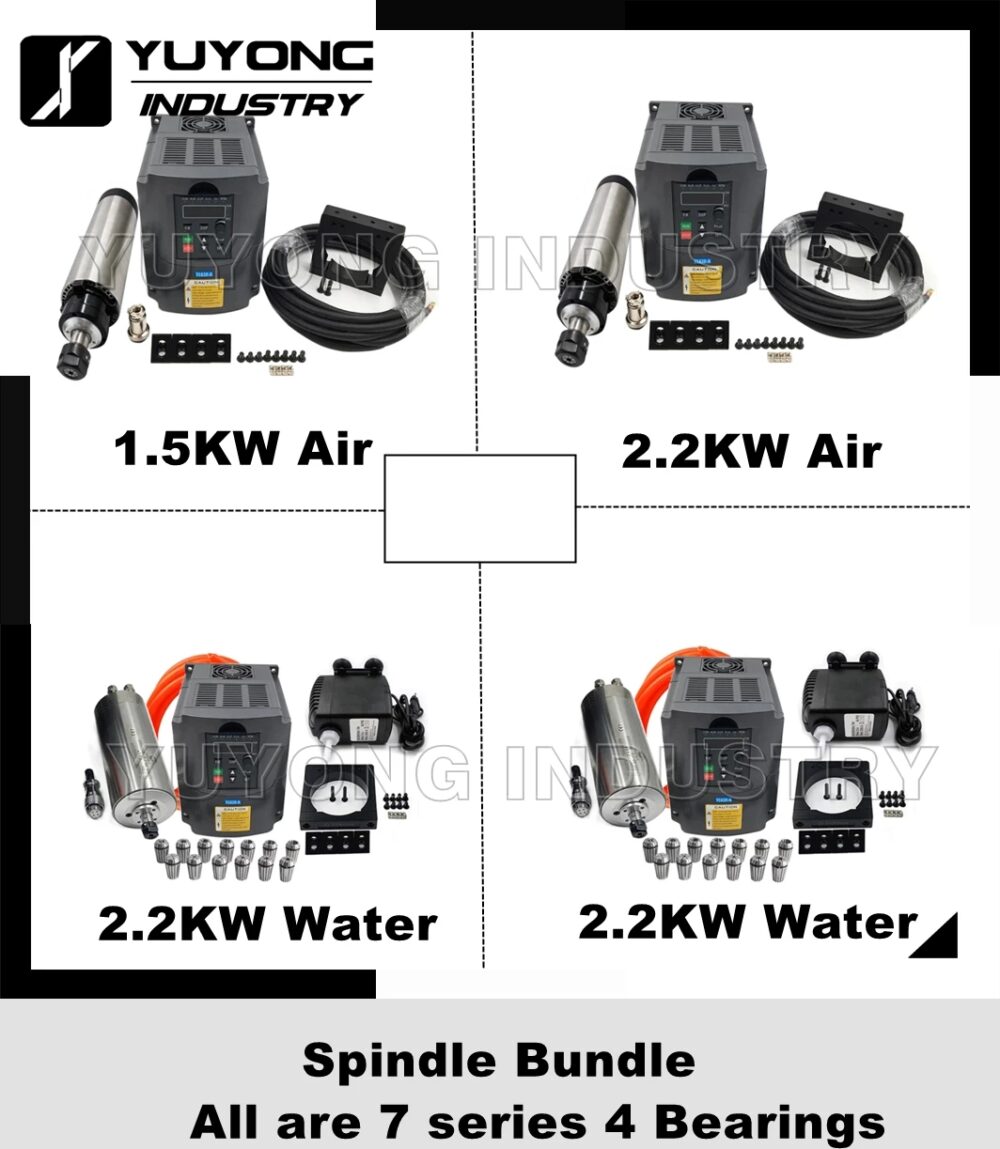

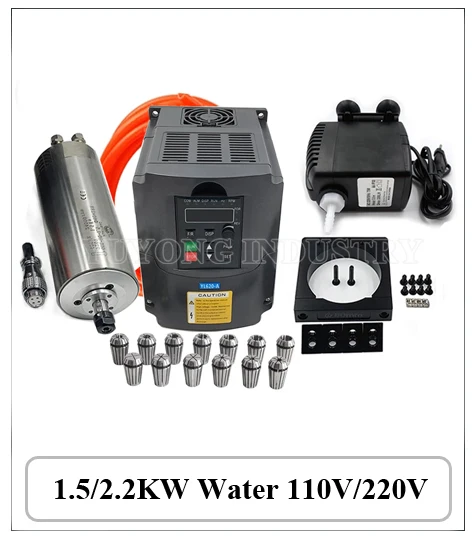

Spindle Bundle Options:

1.5/2.2KW Air/Water-Cooled spindle bundle

The Water Cooled Spindle is a heavy duty router, and due to the water cooled system, is comfortably capable of running for a long time without stopping. This makes it ideal for long, complicated jobs or applications.air-cooled engines are that they are lighter without the use of radiators, water pumps, thermostats, coolant, or hoses.The spindles are all made of Changsheng , and the quality is guaranteed.

The VFD Inverter in this bundle is high quality from a well respected brand; Huanyang – an industry leader in CNC machining.

It contains all the hardware for mounting a 1.5/2.2kW Air/Water Cooled Spindle on QueenBee Ultra.

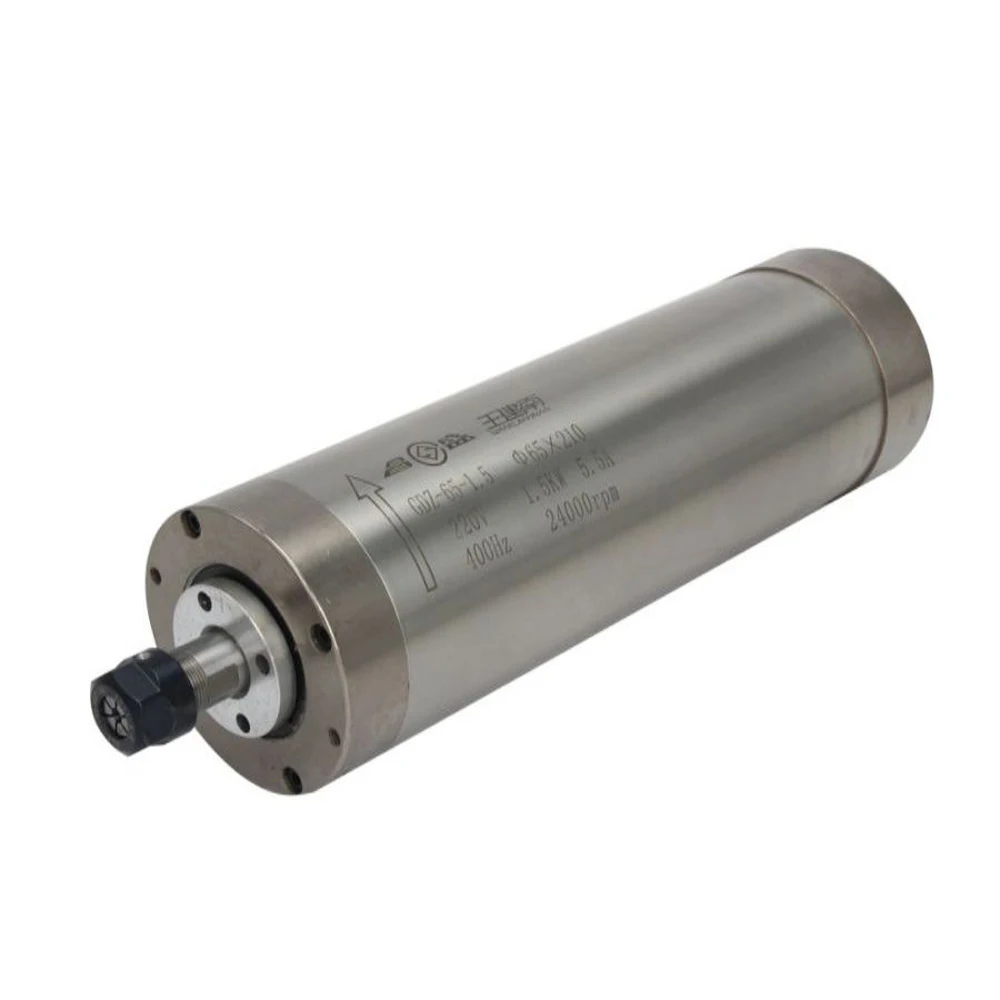

Specs of 1.5 kW Air/Water Cooled Spindle:

  • 1.5kW Air Cooled Spindle Net weight: 2.6kg
  • 1.5kW Air Cooled Spindle Spec: φ 65 x 188mm
  • 1.5kW Water Cooled Spindle Net weight: 3.5KW
  • 1.5kW Water Cooled Spindle Spec: φ 65 x 210mm
  • Power: 1.5 kW
  • Voltage: 220 ~250 V or 110 V
  • Frequency: 400 Hz
  • Speed: 8000-24000 R/min
  • Air/Water Cooling
  • Run-out off: less than 0.005 mm
  • Grease Lubrication
  • VFD Inverter 1.5 kW 220 V or 110 V
  • Collet: ER11

Specs of 2.2 kW Air/Water Cooled Spindle:

  • Net weight: 5.3kg/6.2kg
  • Spindle Spec:φ 80 x 210mm/φ 80 x 235mm
  • Power: 2.2 kW
  • Voltage: 220 ~250 V or 110 V
  • Frequency: 400 Hz
  • Speed: 0-24000 R/min
  • Water Cooling
  • Run-out off: less than 0.005 mm
  • Grease Lubrication
  • VFD Inverter 2.2KW 110V or 220V
  • Collet: ER20
  • Sizes: 1mm, 2mm, 1/8″, 4mm, 5mm, 6mm, 1/4″, 7mm, 8mm, 9mm, 10mm, 11mm, 1/2″, 13mm

Controller Systems Option

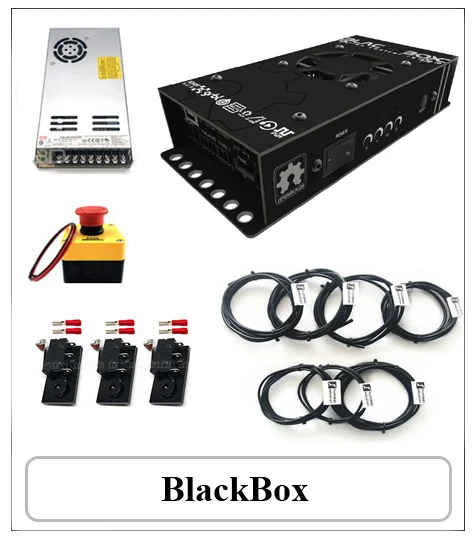

  • BlackBox Controller Bundle

Our all-in-one plug and play OpenBuilds BlackBox Motion Control System is revolutionizing CNC.
CNC Routers, Plasma Cutters, Laser Cutters or any other CNC Machine the BlackBox will handle the job thanks to its multiple connection options. The OpenBuilds Xtension Wiring EcoSystem makes it super easy to connect with any tool head without comprising on security thanks toour multiple limit switches.

  • 4 Axis UC300-Mach3-USB port

The UC300 is a upgrade of NVUM,it overcome many shortcomings of NVUM,Super stable and Interference,it use Mach3 software,which is professional choice on CNC machine due to many Power Features.

For Details:https://www.aliexpress.com/item/1005002312332131.html?spm=2114.12010612.8148356.15.56863720A1C0YA

  • CNC USB-USB port Industrial Grade Controller

The CNC USB Controller use CNC-USB software,with Industrial Standard Design,Using professional-level control software, it is suitable for: digital control milling machine, CNC engraving machine, CNC plasma, laser cutting, foam cutting, four-axis CNC, laser engraving, CNC dispensing machine, CNC dispensing machine, CNC SMT placement machine.

For Details:https://www.aliexpress.com/item/33036851776.html?spm=2114.12010612.8148356.5.2aac4488rONPyV

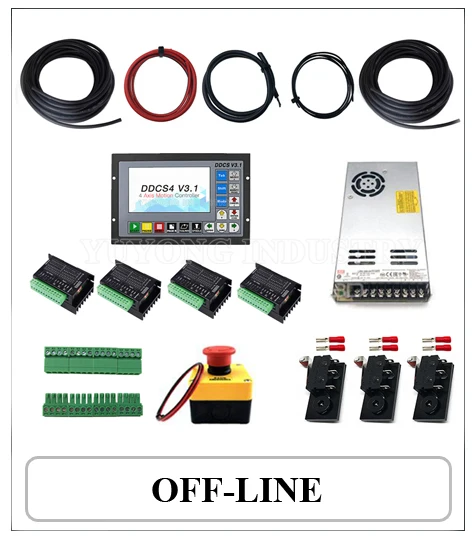

  • OFF-LINE Own Control System

The DDCSV3.1 is a powerful Off-line Controller with Own control system,can update to new system at fixed period,It gets rid of the limitation that the controller needs to be connected to the PC, due to no need to use USB cables and software,it Avoid frequent disconnection when using USB cable to connect controller to PC.

For Details:https://www.aliexpress.com/item/4001015209103.html?spm=2114.12010612.8148356.15.2aac4488HDuvAw

  • High Torque GRBL

The High Torque GRBL Electronic Bundle breaking the current limit.It allow the GRBL controller to use with our High Torque Motors Better by aHigh Performance Stepper Motor Adapter Modules.It use the improved version original UNO + CNC Shielded,can support the latest V1.1h.

For Details:https://www.aliexpress.com/item/1005001709989511.html?spm=2114.12010612.8148356.11.63b9741eHGy67M

Please note:

  • MDF Table and Drill Bits areNotincluded with this kit.
  • We do not provide technical support for software debugging.
  • Any Mains power connections must be installed by a Licensed electrician or suitability qualified person

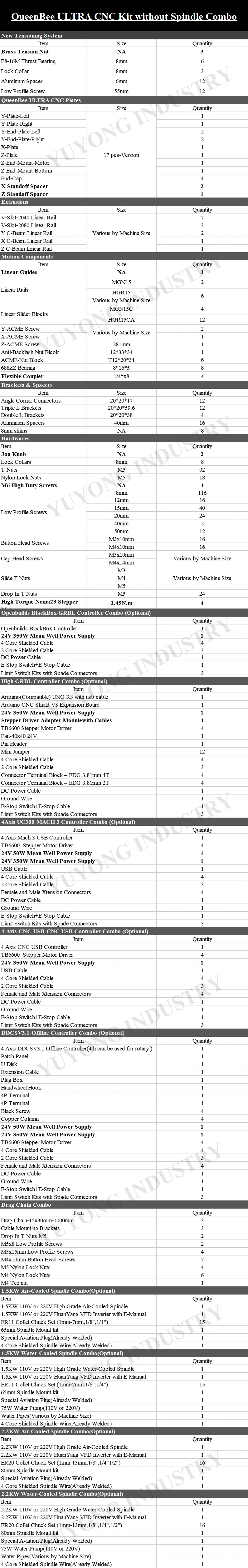

————————————-Part List————————————

Original Name of QueenBee

The Original QueenBee is designed by CNC 3D,which located in Queensland, one year ago,David Nestor of CNC 3D introduced us to this QueenBee and other their machines when order from us.

The Original QueenBee is also great work,with X Y Z thickened gantry plate to increase Strength and overall rigidity,use the precise Linear Rail Guide System to Replace rolling Wheels.But There may some limitmations on Lead Screw Assembly and Frame rebuilding of WorkBee, and also redesigning of X Y Z Gantry Plates and End plates. These Enhanced upgrades to make sure the CNC machine become a very power CNC machine. So We rename it “QueenBee Ultra”!

Why need to Upgrade?

The WorkBee is a popular and well-designed CNC machine, it use V Wheel system to assembly X Y Z Axis to roll,If you have ever assembled a machine, you will know how frustrating it is to adjust the wheel to the same force balance.And Also,the wheel system only bear one direction force.When you put heavy spindle on Z Axis or Load on X Axis,the Wheels are not enough to support the weight,uneven force caused flex of X And Z Axis long term.

YUYONG INDUSTRY is committed to overcoming shortcomings and providing integrated solutions,Taller and thickened Plates with upgraded Linear Rails increased rigidity of the linear rails to make the machine more stable,at same time reduce the flex of X And Z axis,this allow the machine to support more heavier parts and bigger size.

On the other hand,the QueenBee ULTRA make a smooth and precise surface when milling soft metals such as aluminum or other materials via it’s stability,greatly reduce the hedging during V Wheel Working.This provides more possibilities for increasing speed and high feed.

So there may a necessary to upgrade your machine.

Why Choose Linear Rail Guide?

There are many upgrade system can be used on CNC machines, such as Rod Linear Motion,Gear System,Linear Rail Guide system and other system.But after many testing and comparing,Linear Rail Guides are considered to be the most comprehensive system with its own structural characteristics.

Linear guides are generally used in linear reciprocating motion applications, and have higher load characteristics than linear bearings, bear a certain torque coefficient, and can achieve high-precision linear motion under high load conditions.

It is a kind of rolling guide, in which the steel ball rolls infinitely between the slider and the guide rail, so that the load platform can easily move along the guide rail with high precision and linear motion, and the friction coefficient is reduced to 50% of the usual traditional sliding guide, can easily achieve high positioning accuracy. The design of the terminal unit between the slider and the guide rail makes the linear guide rail bear the load in all directions, such as up, down, left, and right at the same time. The patented recirculation system and simplified structural design make the linear guide more smooth and low-noise movement.



Advantage:

  • Low noise during high-speed operation

  • New guide rail wear resistance

  • High precision and easy to disassemble

  • Simple assembly and universal accessories

  • Low cost and good efficiency

  • Its excellent characteristics have been widely used on industry, medical, science, defence, mining, construction, transportation.

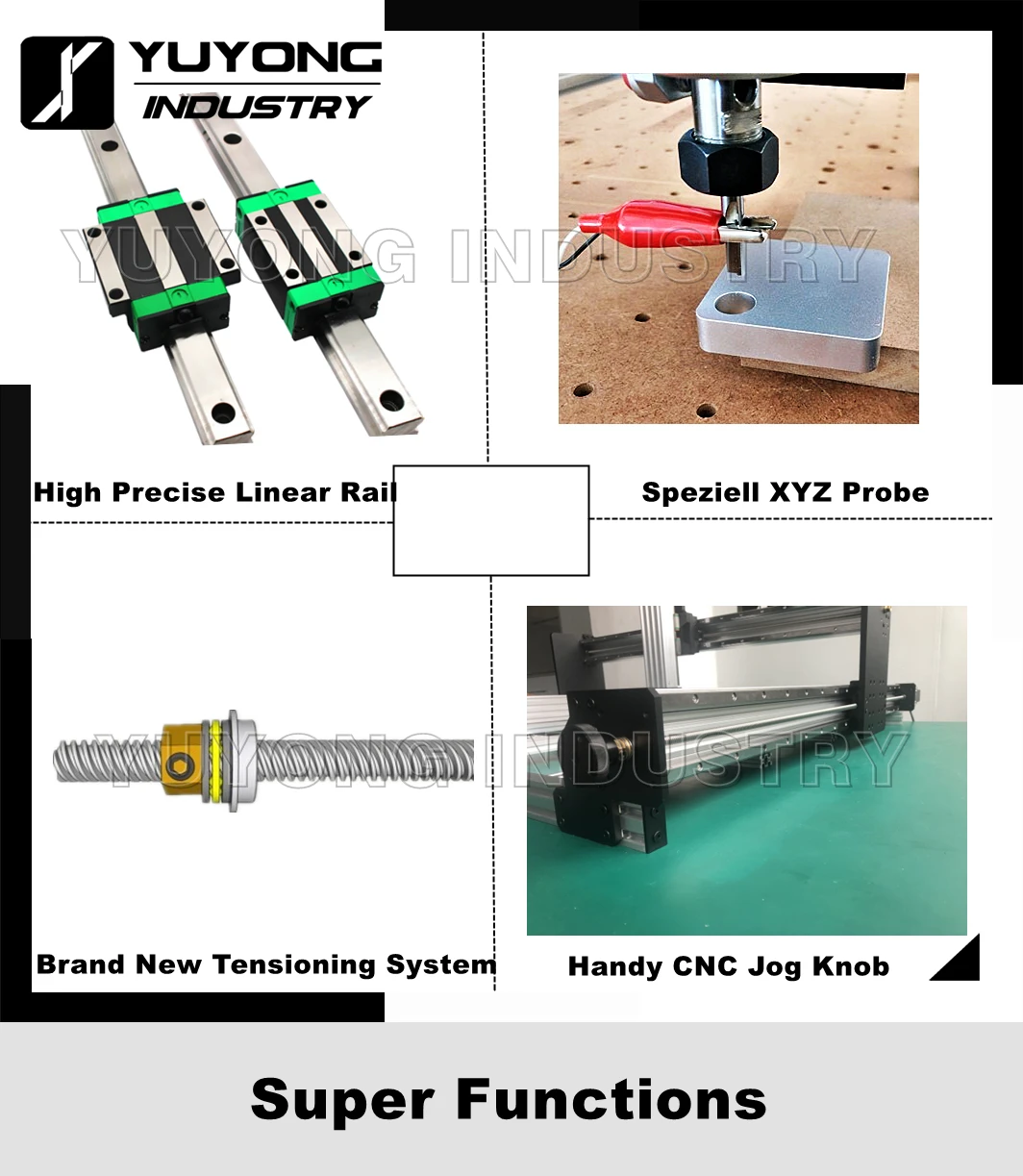

Queenbee ULTRA Upgrade Features

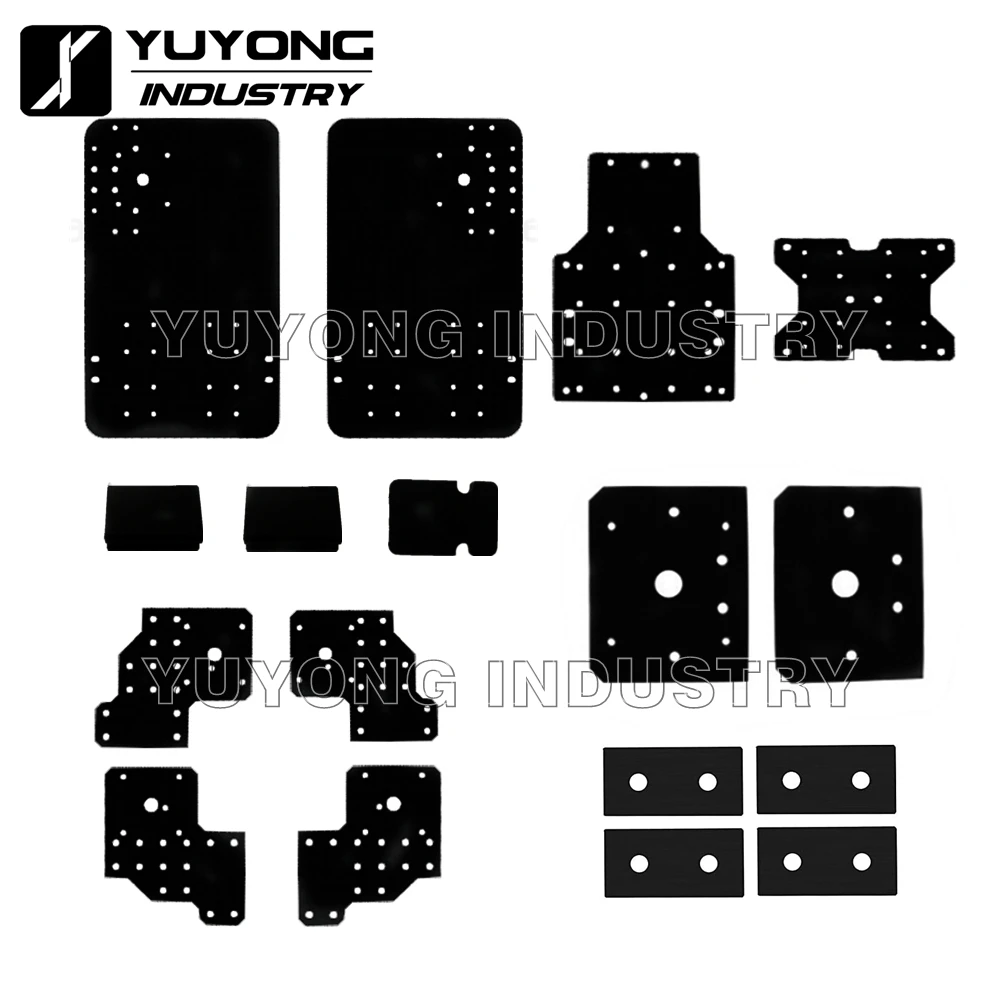

  • High Precision CNC processing Deluxe Thickened QueenBee Plates

  • Integrated dedicated Nut Block Spacer

  • High precision Ultra Mute Linear Rail System

  • Brand New Lead Screw Locking Tensioning System

  • Convenient Jog Knob for Y and A Axis.

  • New Designed Extended Y End Plates to match the Nut blocks and Lead Screw in order to increase the rigidity of Y Axis.
  • The back support which firmly attached to X Axis using the black corner connectors,can prevent Flex farthest and increase the rigidity,as well as burden more heavy parts.
  • Thickened Y Plates with Dual Linear Sliders to reduce any change of twist on Axis.
  • All-New Reinforced “Cross” Frame to make the base stable and strengthening.
  • Further Strength and consolidate the stability of bottom frame.
  • High strength Slide T nuts to replace Drop In T nuts,make the Linear rail fixed on Aluminum Extrusion better.

P.S:

When upgrading your workbee machine to QueenBee ULTRA , you almost need to disassembly the whole mahine.
Lubricant for the bearings is applied when they are manufactured however routine maintenance and re-lubricating is recommended, especially in high dust applications such as MDF.
Thanks to OpenBuilds LLC, Ooznest, CNC3D,Carbide 3D,etc for their first design,then we can share,build and develop them.Finally achieved our QueenBee ULTRA.
“V-Slot” and ” C-Beam” are registered trademarks of OpenBuilds LLC as released under the Creative Commons Licence “Attribution-ShareAlike”
All our components are designed to work and are fully compatible with the products produced by OpenBuilds.

———————————–Email:contact@yuyong-industry-1-5b6c71.ingress-baronn.ewp.live——————————-

Additional information

Weight 78 kg
Dimensions 162 × 24 × 25 cm
