Description

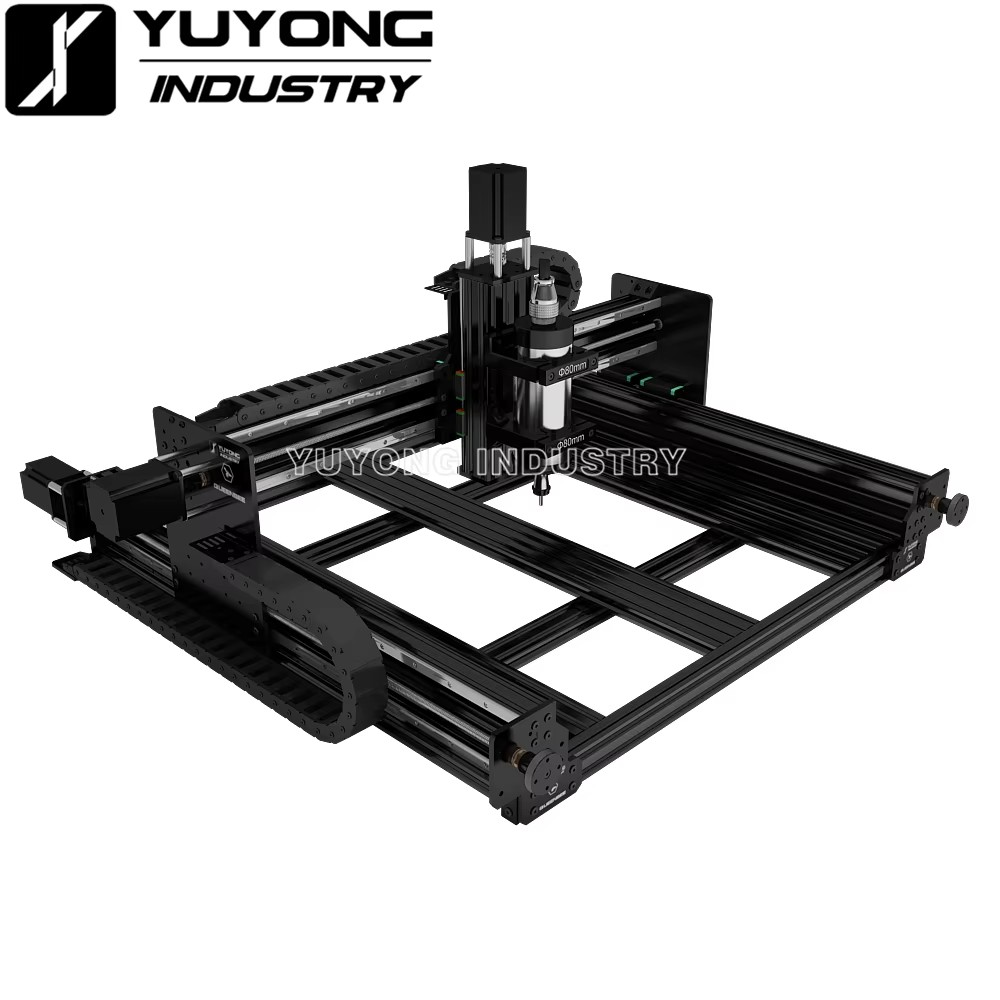

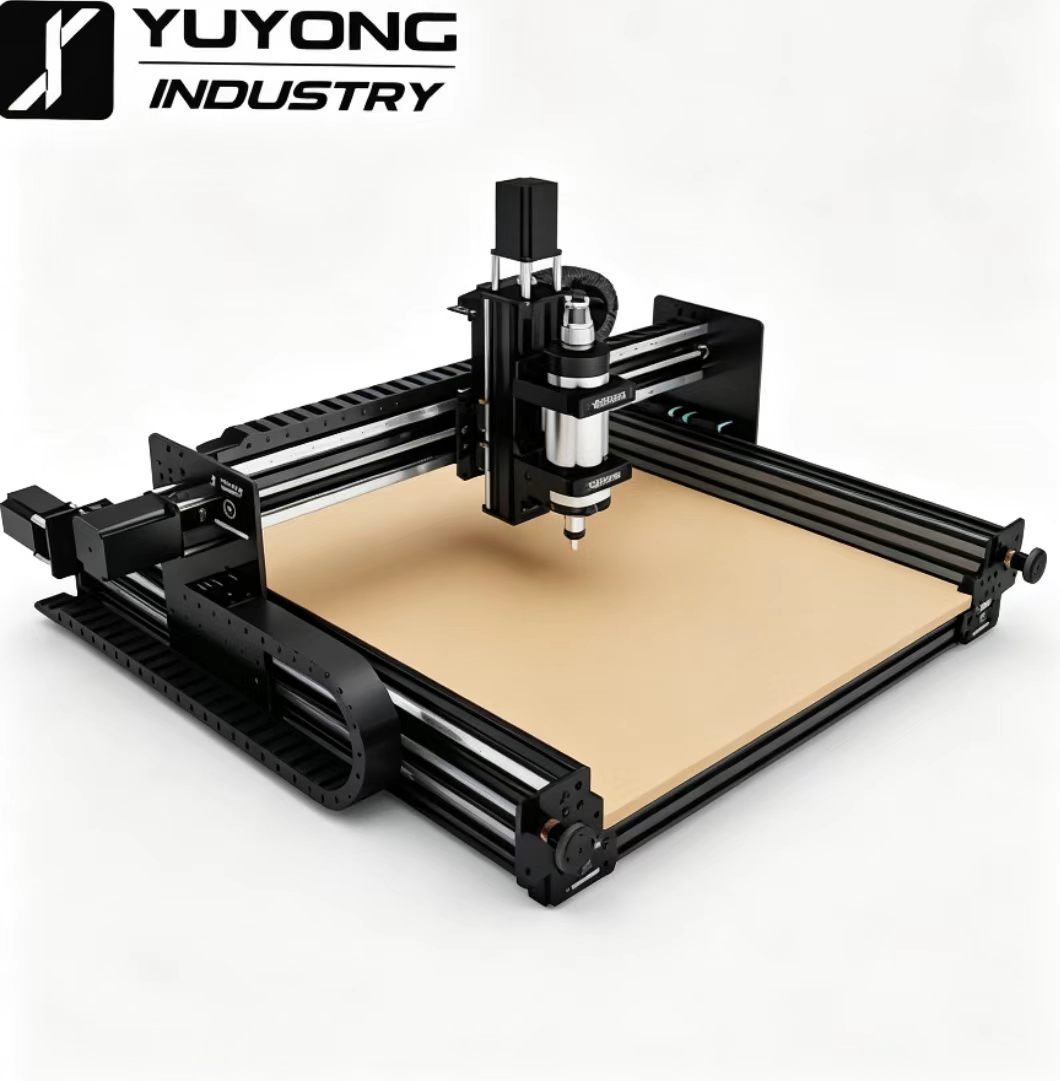

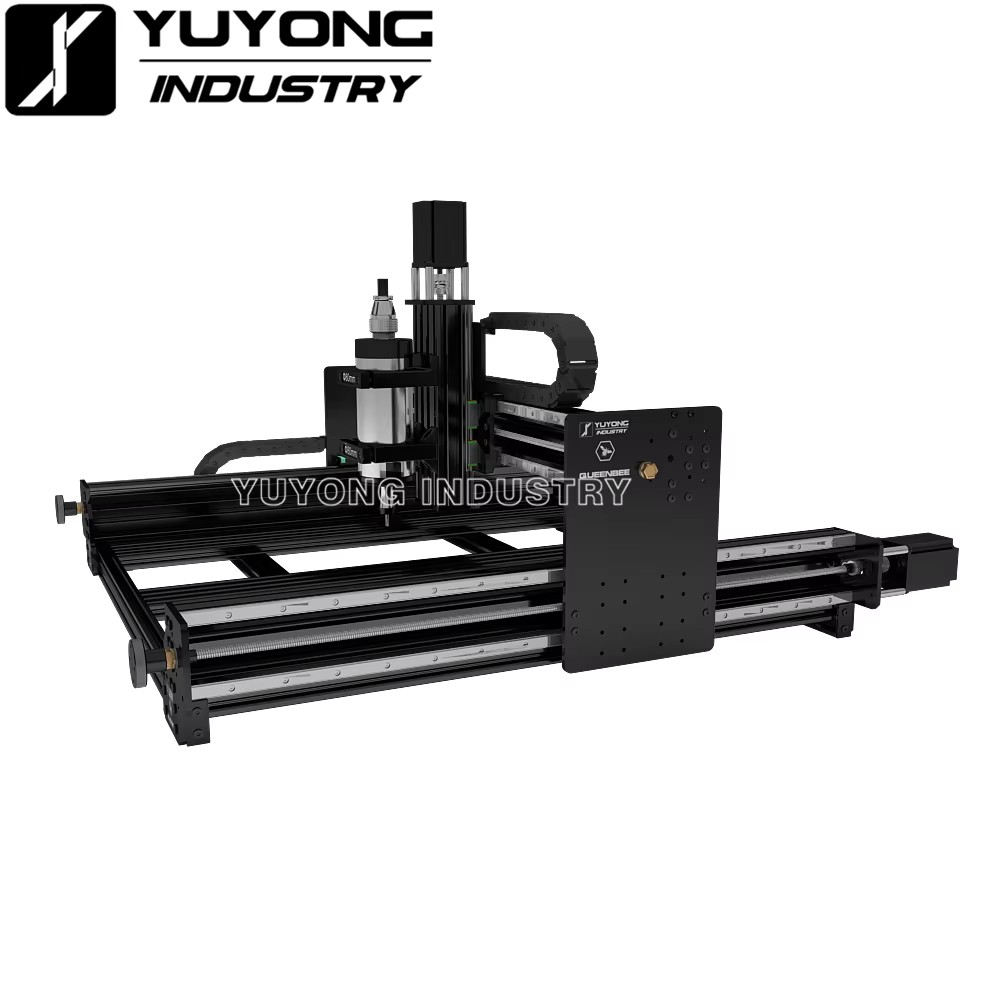

• Black QueenBee ULTRA CNC Machine Full kit with Brand New Tensioning system

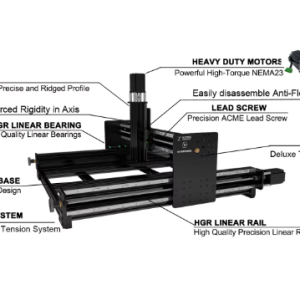

• The YUYONG INDUSTRY QueenBee ULTRA is a super Performance Improvement version, High-rigidity and High-Precision CNC machine with Full Track Linear Rail Upgrade based on very well-received WorkAnt CNC machines.
• Its many super upgrades have greatly improved the mechanical performance of the entire machine in terms of frame design or rigidity and precision.
•

• Note:

  * Our company QUEENBEE is Universal and Interchangeable.
  * The YUYONG INDUSTRY QUEENBEE Machine has passed QA and QC after many tests.All are Real Product Photos.
  * If you need Black Extrusion Version,please contact us to get the price difference.

• QUEENBEE ULTRA Mechanical Kit Specification

•

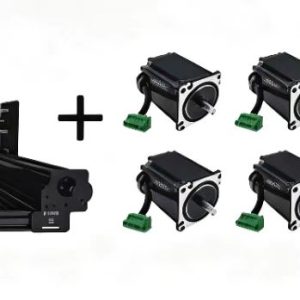

QueenBee PRO Mechanical Kit + 4pcs x 2.45N.m Nema23 Stepper Motors + Cable Drag Chain Bundle

This Full Kit Includes:

* QueenBee ULTRA CNC Mechanical Kit
* 4 xNema23(2.45N.m) Stepper Motors
* Cable Drag Chain Bundle
* Wiring Cable Kit
* Mach3 or GRBL or CNC USB or OFF-LINE Controller Bundle
* 1.5kW/2.2kW Air Cooled or Water Cooled Spindle Bundle
* All Extrusions are M5 Tapped as where it is necessary

Compatible Material for Cutting/Milling/Engraving:

* Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam

Specs of 1.5 kW Air/Water Cooled Spindle:

* 1.5kW Air Cooled Spindle Net weight: 2.6kg
* 1.5kW Air Cooled Spindle Spec: φ 65 x 188mm
* 1.5kW Water Cooled Spindle Net weight: 3.5KW
* 1.5kW Water Cooled Spindle Spec: φ 65 x 210mm
* Power: 1.5 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 8000-24000 R/min
* Air/Water Cooling
* Run-out off: less than 0.005 mm
* Grease Lubrication
* VFD Inverter 1.5 kW 220 V or 110 V
* Collet: ER11

Specs of 2.2 kW Air/Water Cooled Spindle:

* Net weight: 5.3kg/6.2kg
* Spindle Spec:φ 80 x 210mm/φ 80 x 235mm
* Power: 2.2 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 0-24000 R/min
* Water Cooling
* Run-out off: less than 0.005 mm
* Grease Lubrication
* VFD Inverter 2.2KW 110V or 220V
* Collet: ER20
* Sizes: 1mm, 2mm, 1/8″, 4mm, 5mm, 6mm, 1/4″, 7mm, 8mm, 9mm, 10mm, 11mm, 1/2″, 13mm

Specification of Nema 23 Stepper Motor:

* NEMA 23
* Shaft Size: 6.35mm
* Step Angle: 1.8°
* Holding Torque: 2.45N.m
* Rated voltage: 3.6V
* Rated current:3A

Please note:
* MDF Table and Drill Bits are Not included with this kit.
* We do not provide technical support for software debugging.
* Any Mains power connections must be installed by a Licensed electrician or suitability qualified person
