T8 Anti Backlash Spring

Description

T8 Anti Backlash Spring

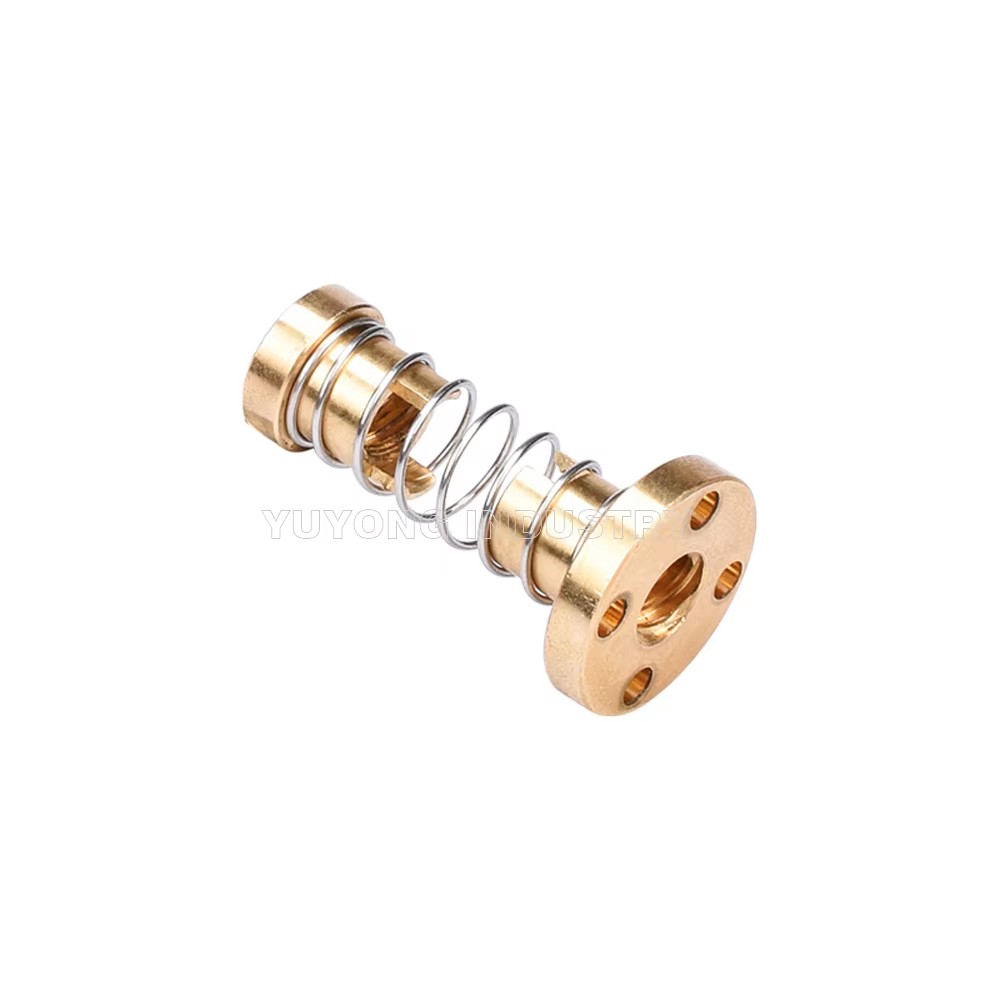

This T8 Anti Backlash Spring Nut features a mounting flange with four un-tapped holes for M3 screws. It is intended for use with Tr8×8(P2) leadscrews, which are 8mm-diameter rods with four independent trapezoidal threads spaced 2mm apart. One full revolution of such a rod will result in a 8.0mm linear displacement of the traveling nut.

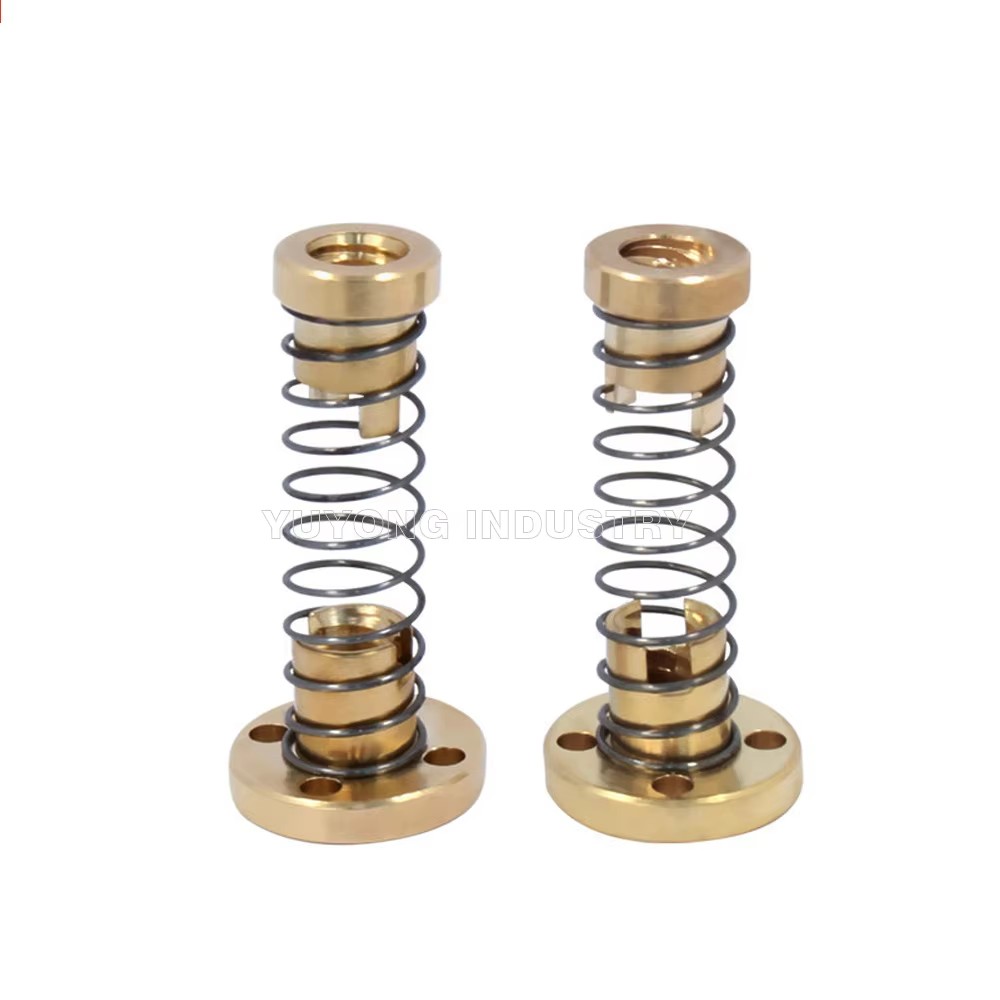

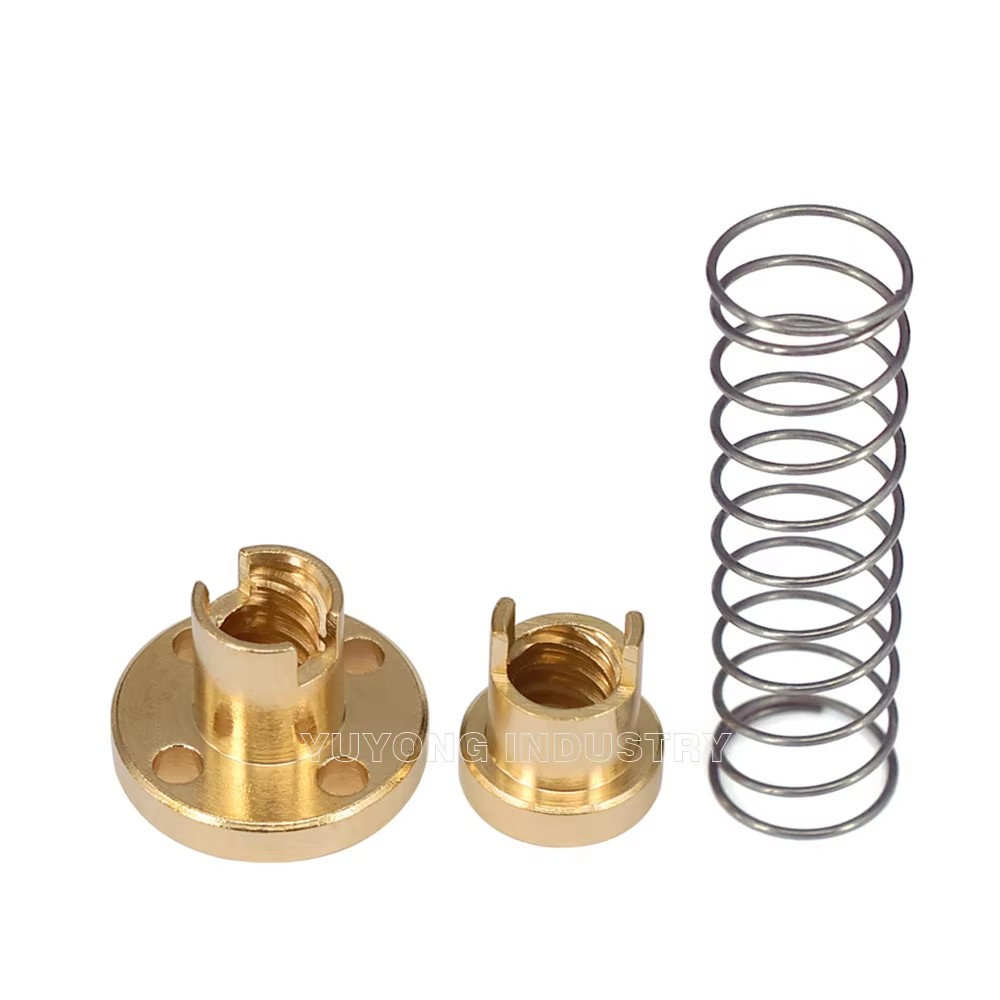

There are 2 brass threaded sections, one with a sleeve. The threaded sections are placed under pressure (to reduce backlash) by a spring.
Suitable for 3D printer T8 lead screw

• Product Details

• * Material: Brass
• * Color: Golden
• * Size:TR8x2 TR8x4 TR8x8
• * Height: 2 mm
• * Small Diameter: 16mm
• * Large Diameter: 22mm
• * Mounting Holes: 3mm
• * Thread: 8mm
• * Lead: 2mm/4mm/8mm
• * Pitch: 2mm
• *Starts: 1/2/4
• * (If your lead screw is bought from my store, please choose ：Lead 8mm ) And if your lead screw has 4 threads (as shown in the picture), please select Lead 8mm
