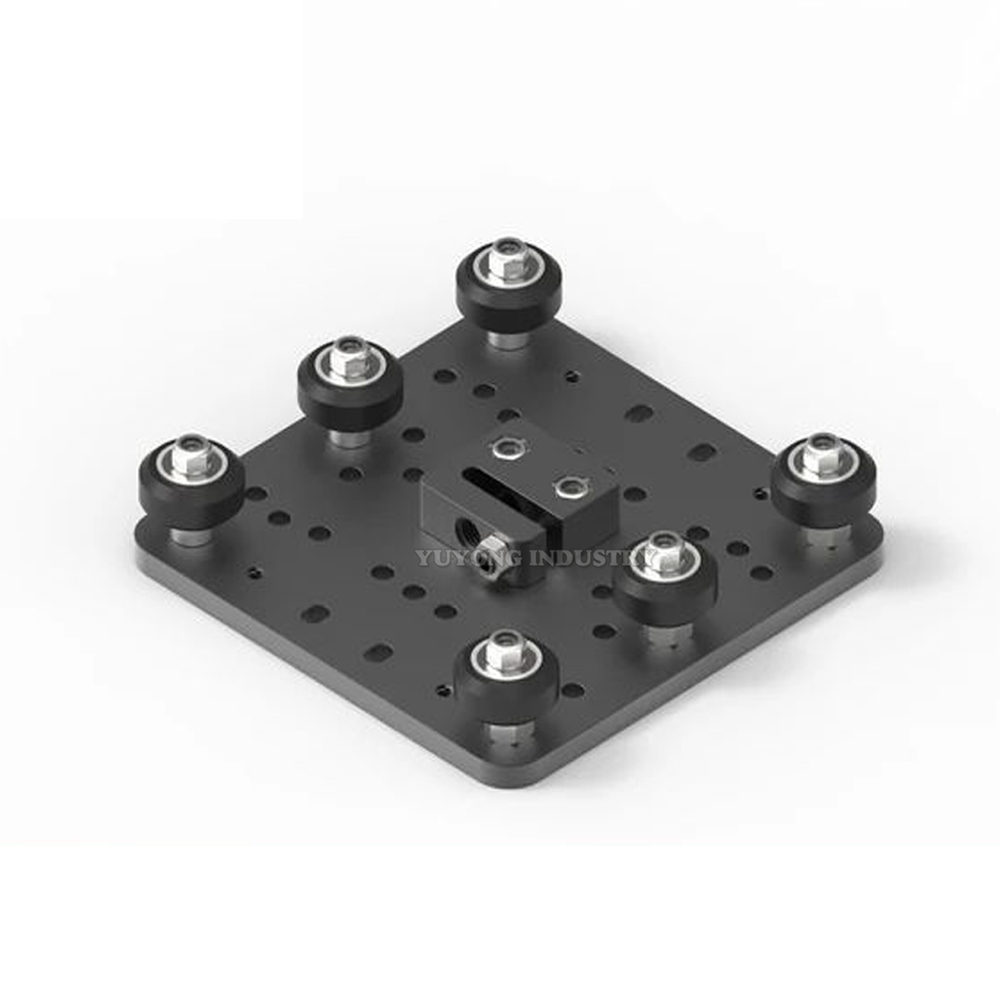

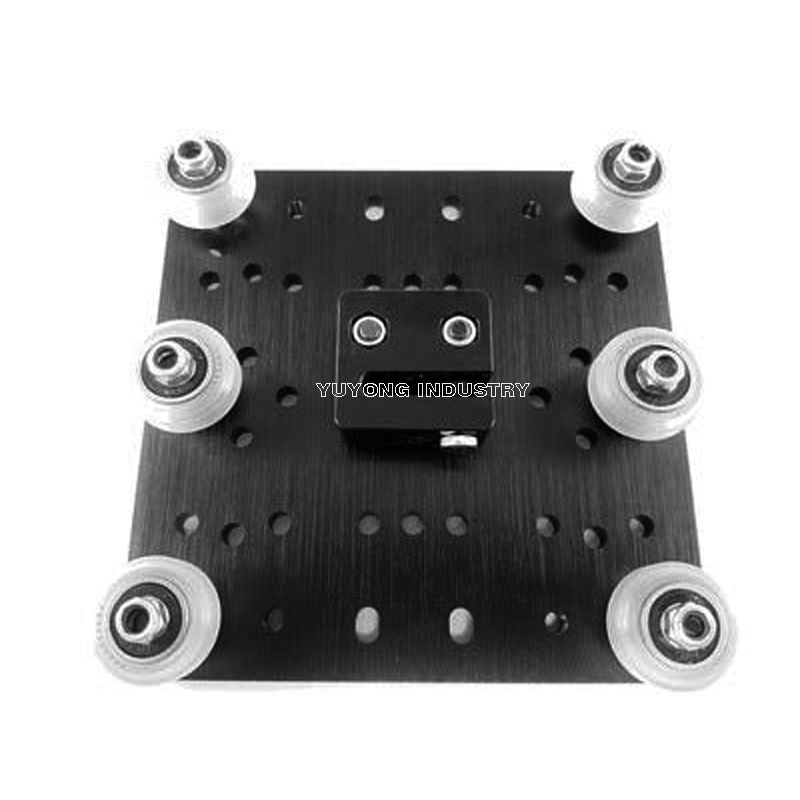

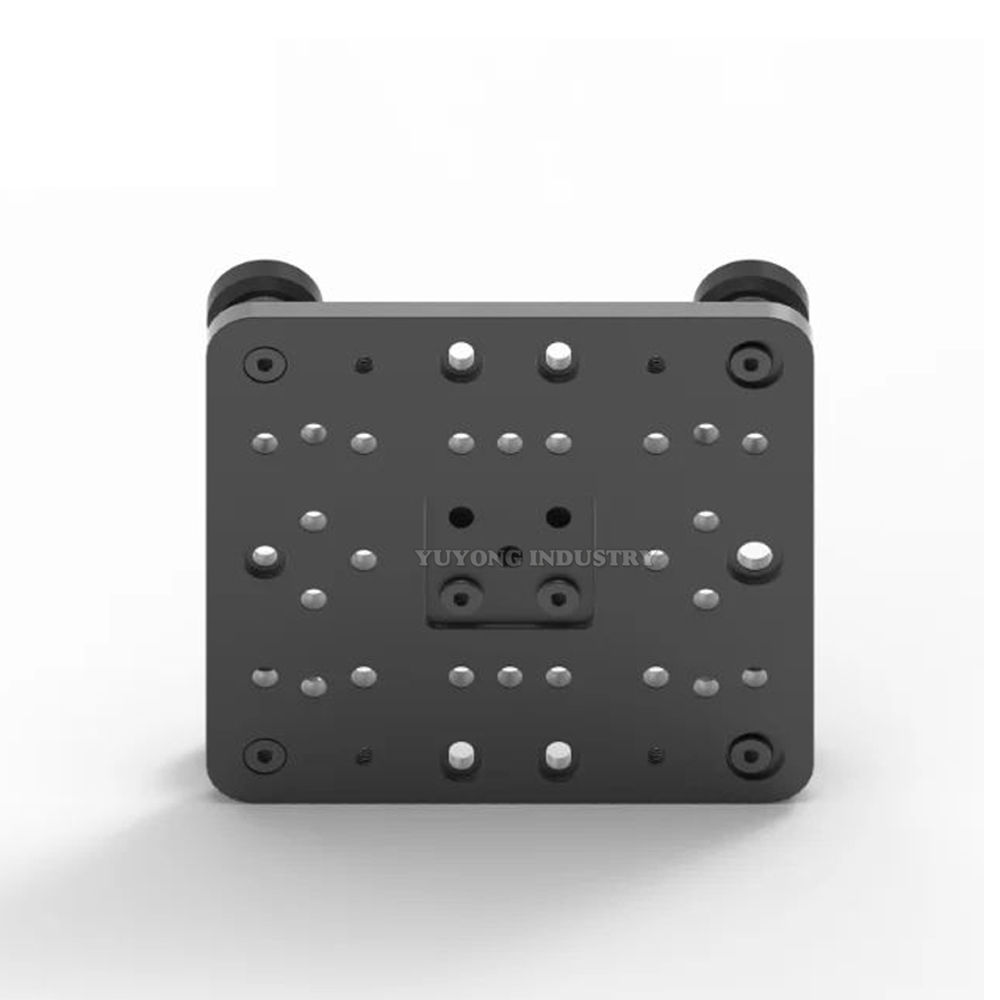

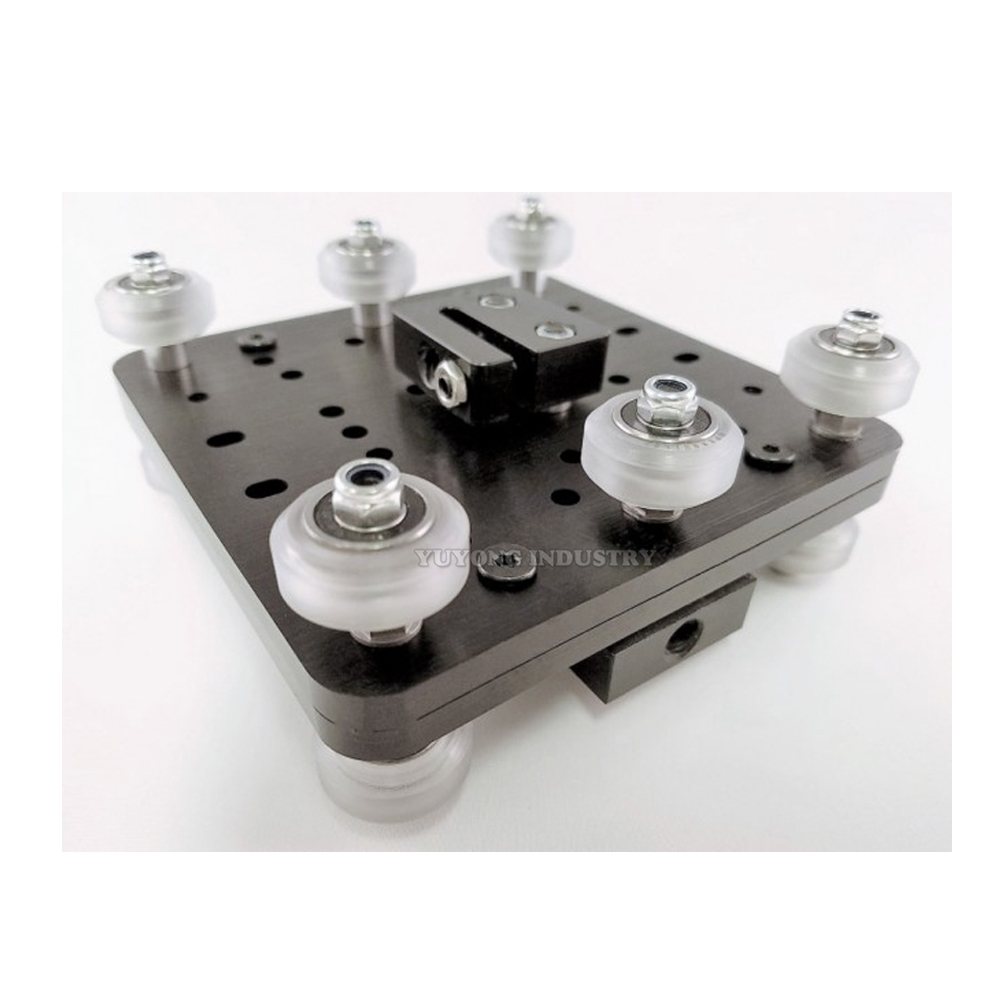

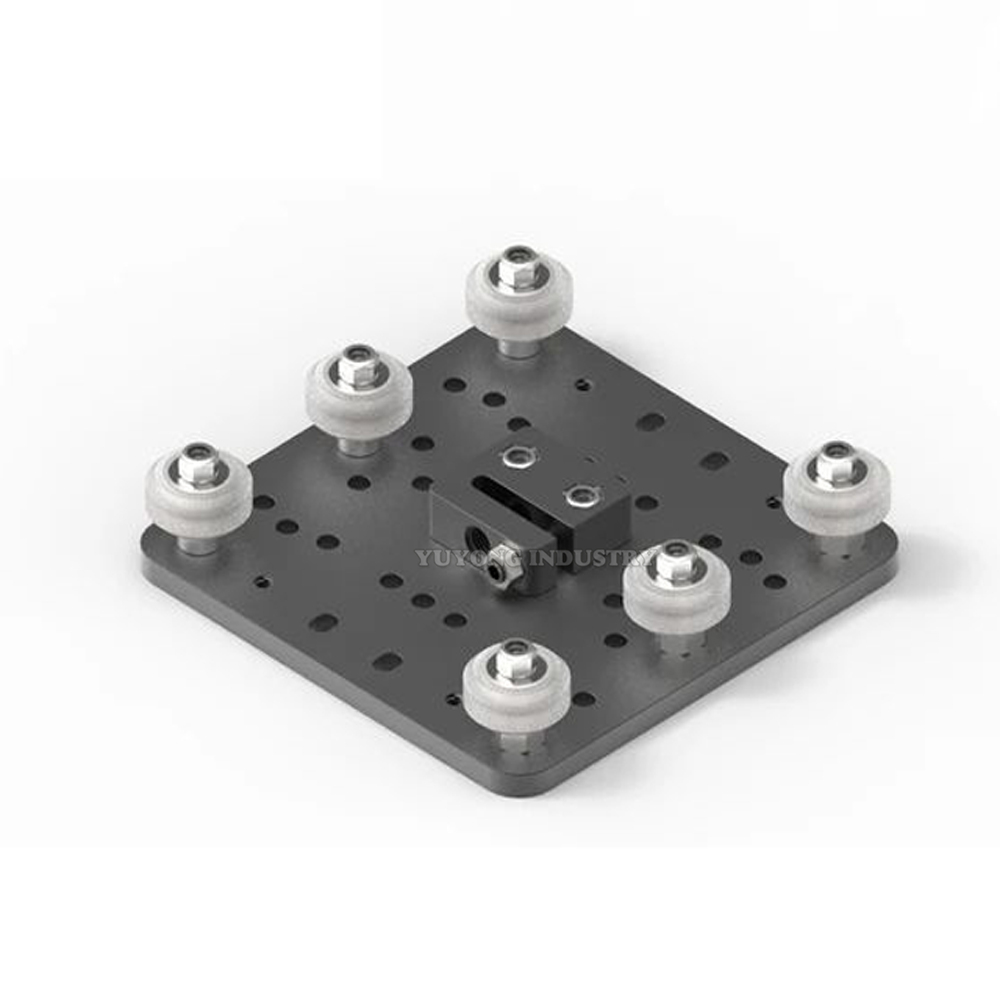

XLarge C-Beam Gantry Bundle

Description

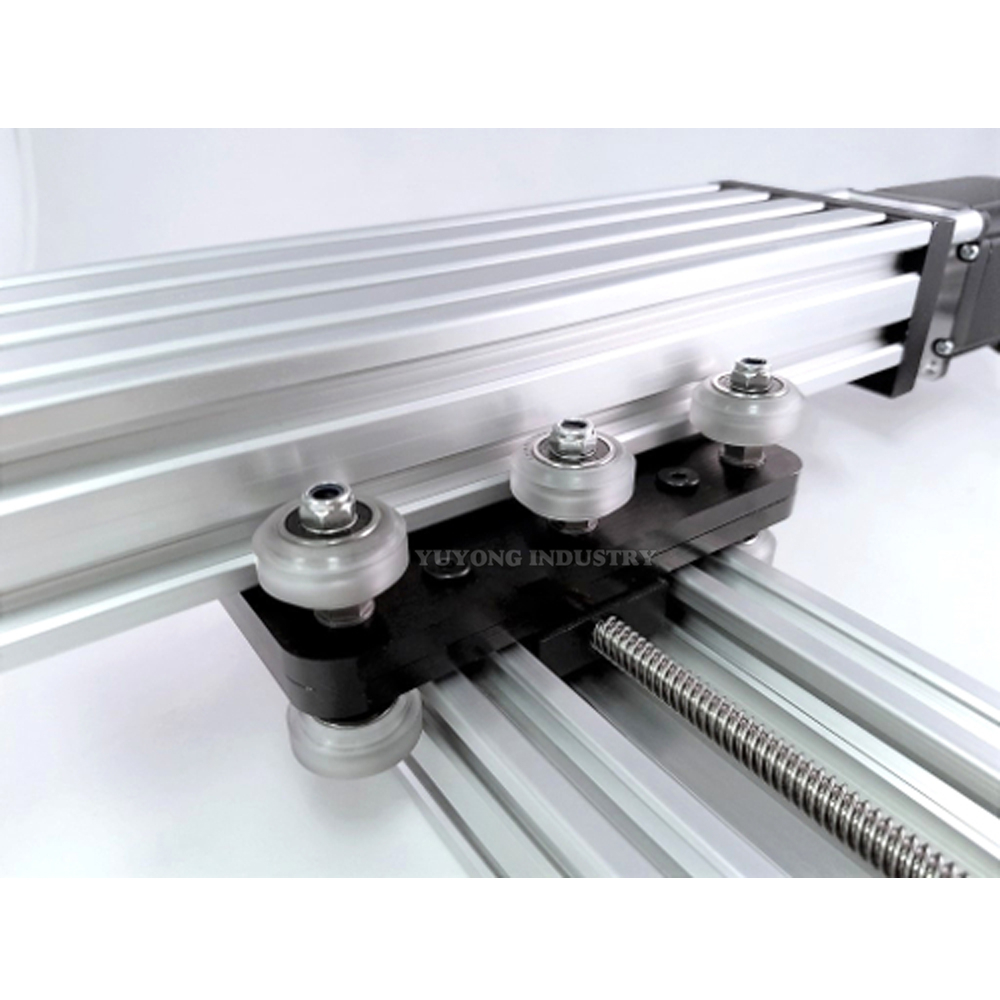

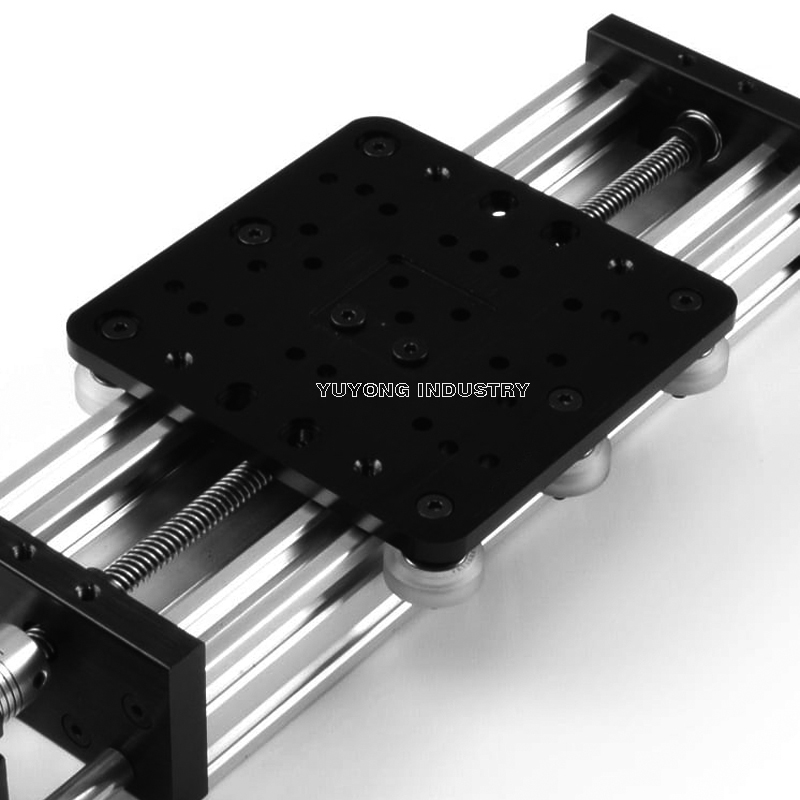

This Bundle allows a C-Beam Gantry Plate – XL to run along with the C-Beam Linear Rail system, with the wheels on the outside and nut block on the inside.

• This is a self-assembly kit and comes with the following parts:

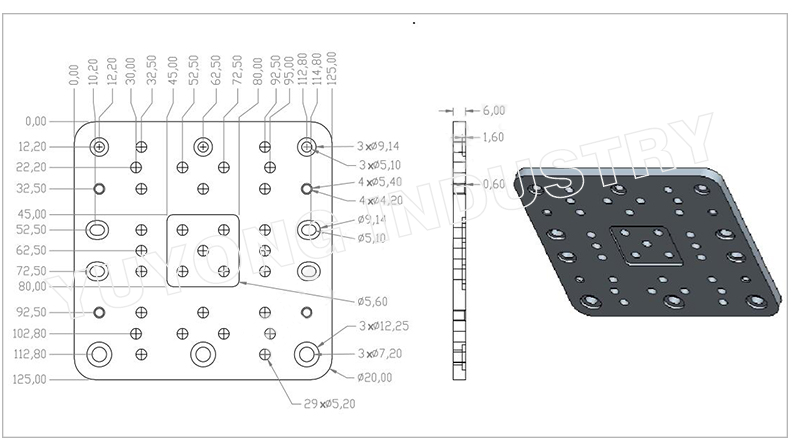

  1 x C-Beam XL Gantry Plate
  6 x Solid V Wheel Kit (Black or Clear)
  3 x 6mm Aluminium Spacer
  3 x 6mm Eccentric Spacer
  6 x 30mm M5 Low Profile Screw
  1 x ACME Anti-Backlash Nut Block
  2 x 20mm M5 Low Profile Screw
  2 x 3mm Aluminium Spacer
  2 x M5 Nyloc Nut
