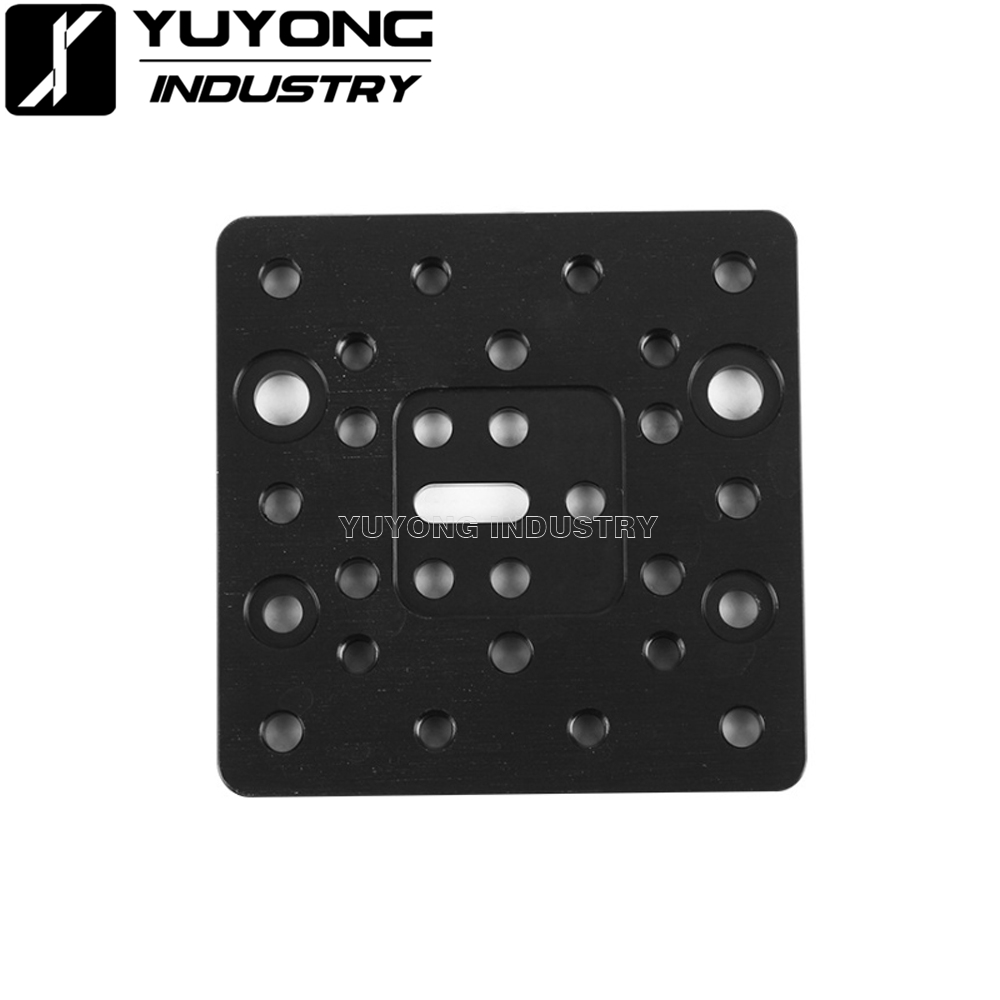

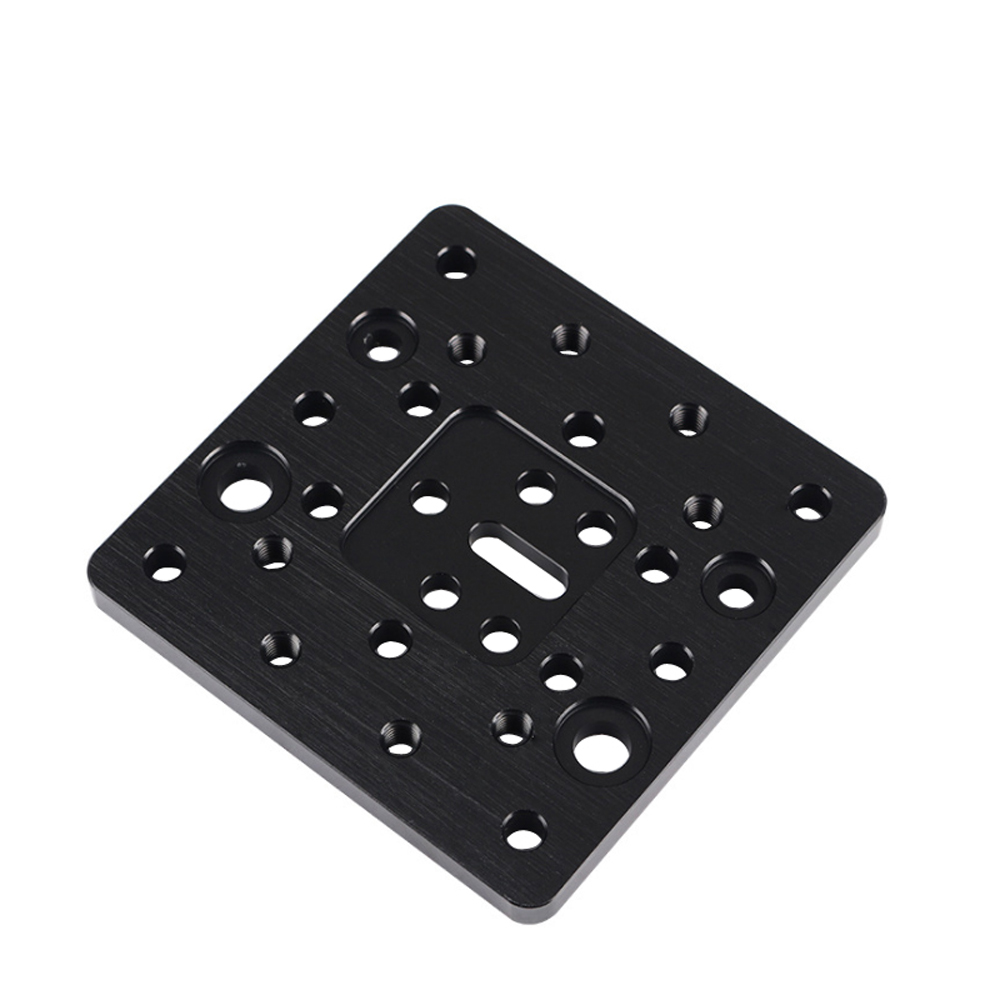

C-Beam Gantry Plate

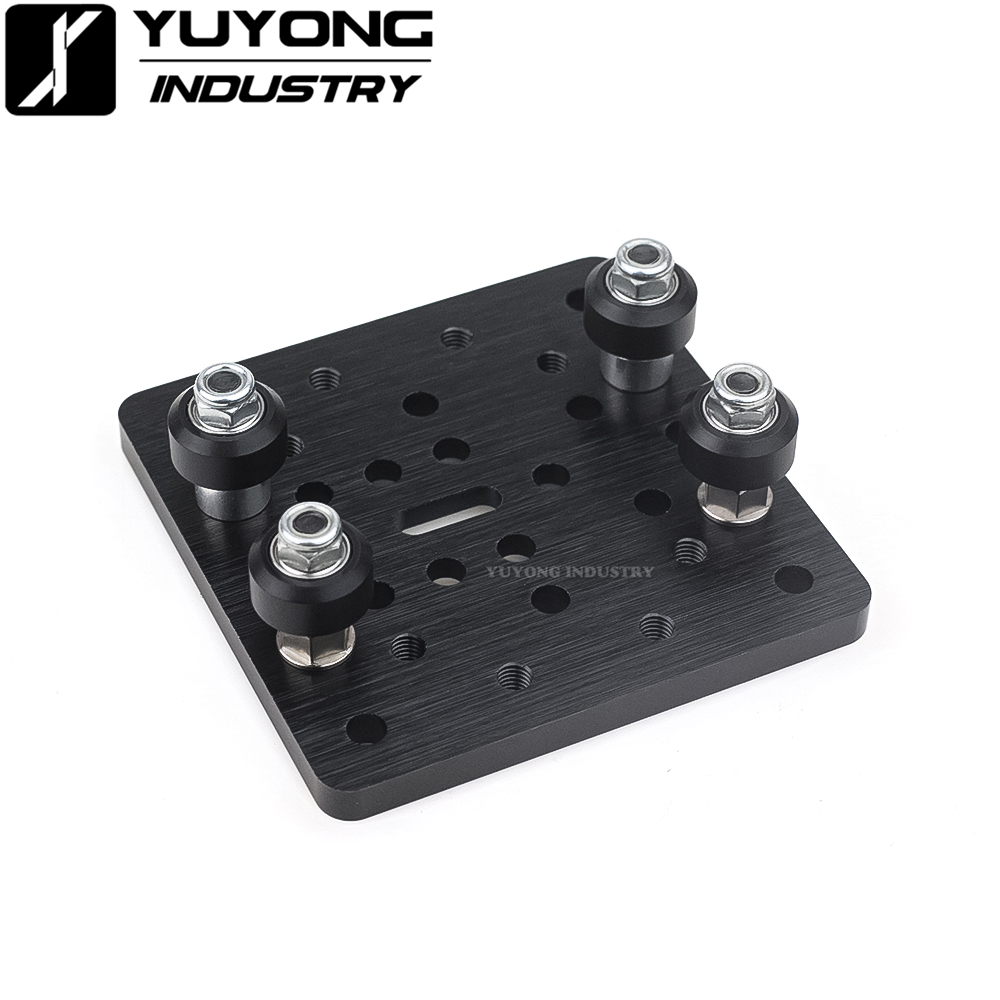

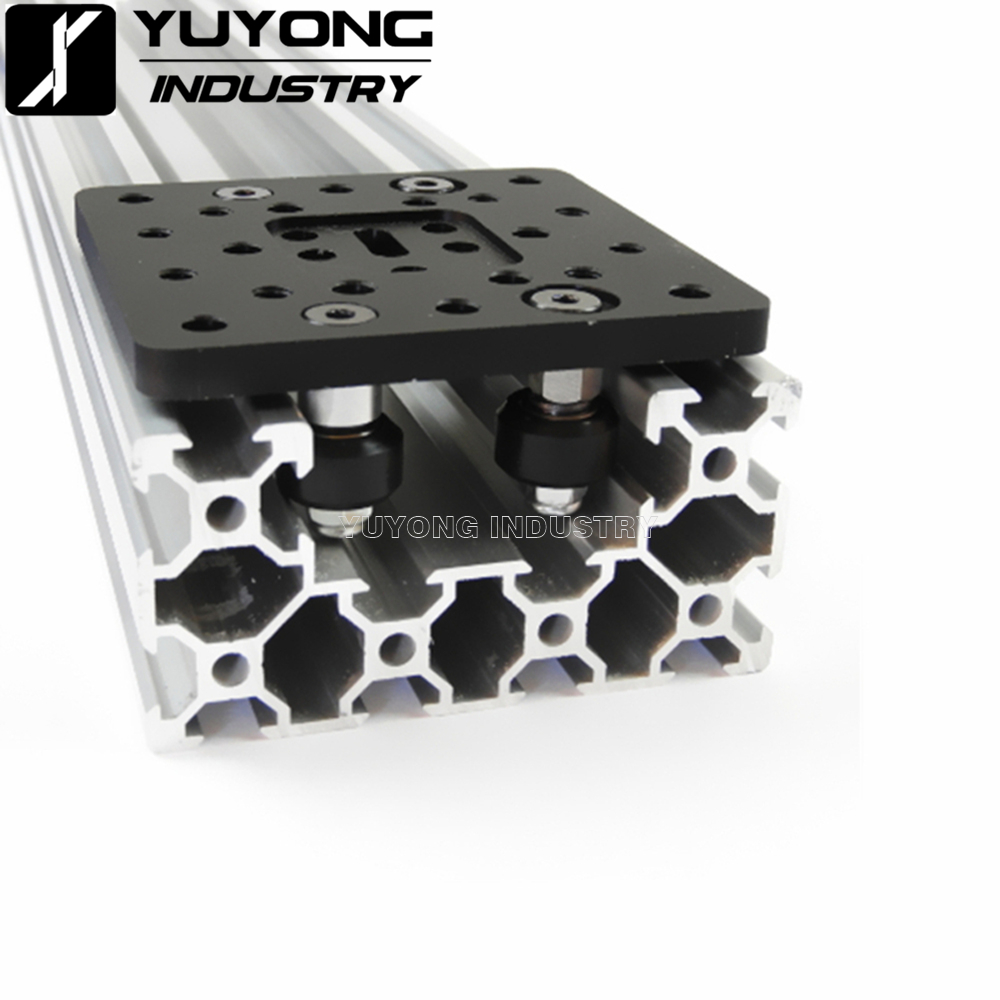

Accommodates up to 4 mini v wheels. Easily configured to station wheels inside C-Beam Linear Rail track for a compact gantry cart footprint. Alternate the mounting on slimmer V-Slot Linear Rail to position wheels on the outermost portion of the rail. Recessed and pre-tapped holes for professional flush mounts holes for professional flush mounts.

Product Features:

C-Beam and V-Slot compatible
Countersunk holes
Pre-tapped holes
Center recess
Multiple mounting configurations

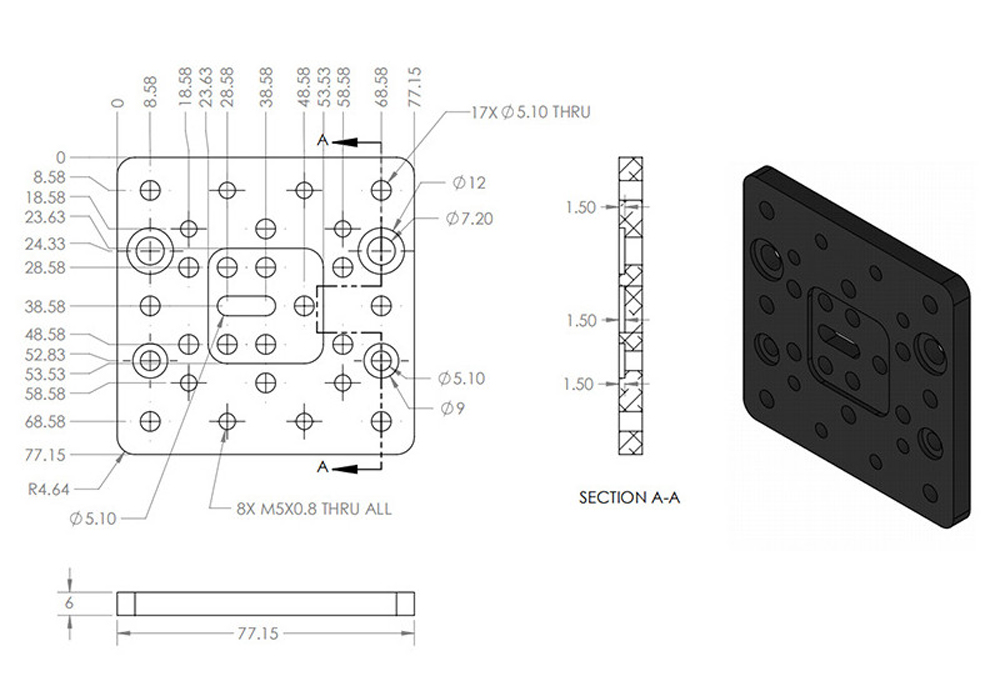

Product Specifications:

Size: 77.15 x 77.15mm
Thickness: 6mm
Material: 6061 – T5 Aluminum
Finish: Brushed and Anodized
Color: Black
