Description

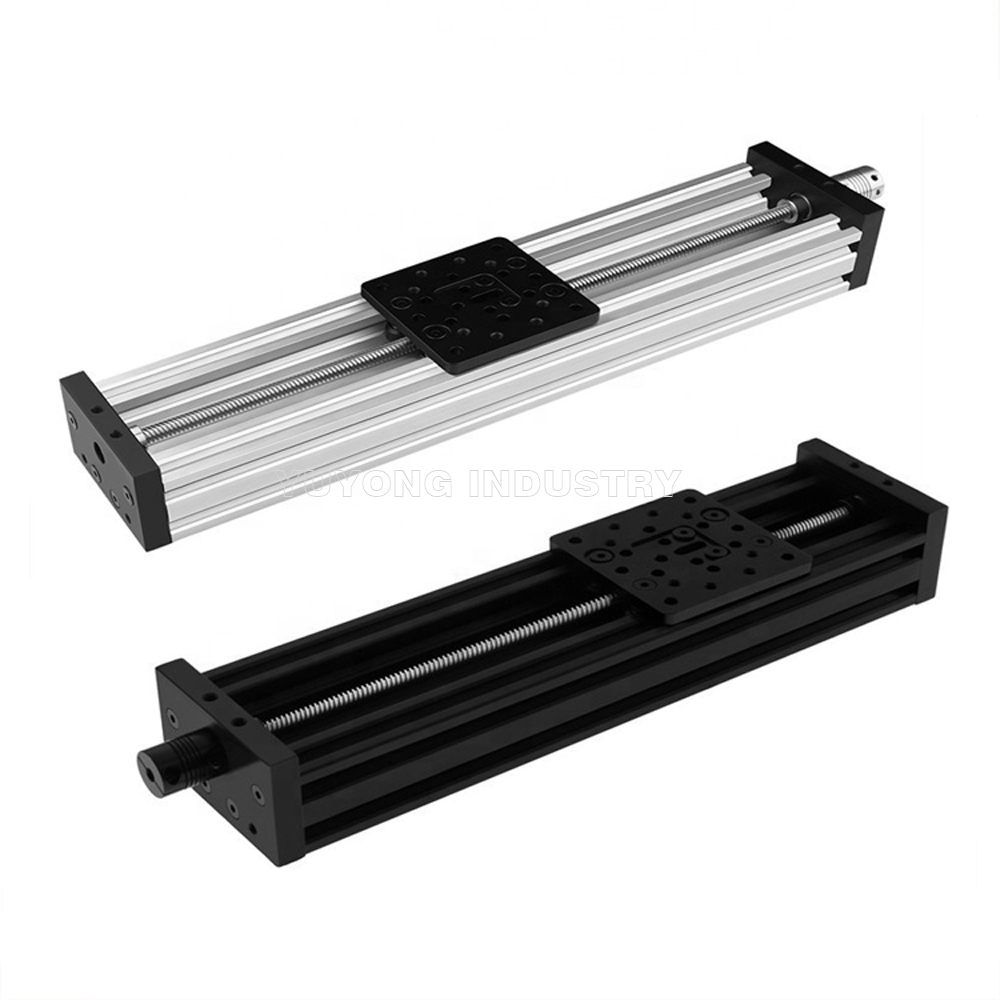

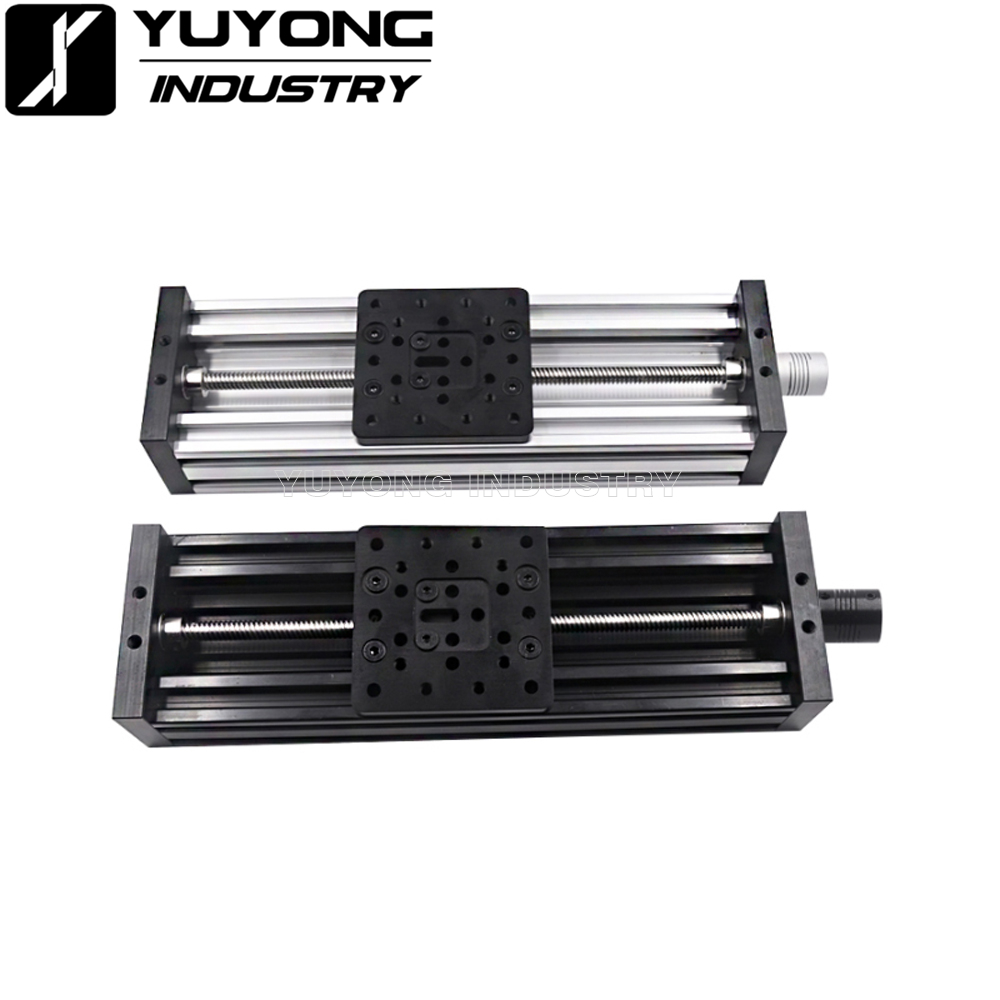

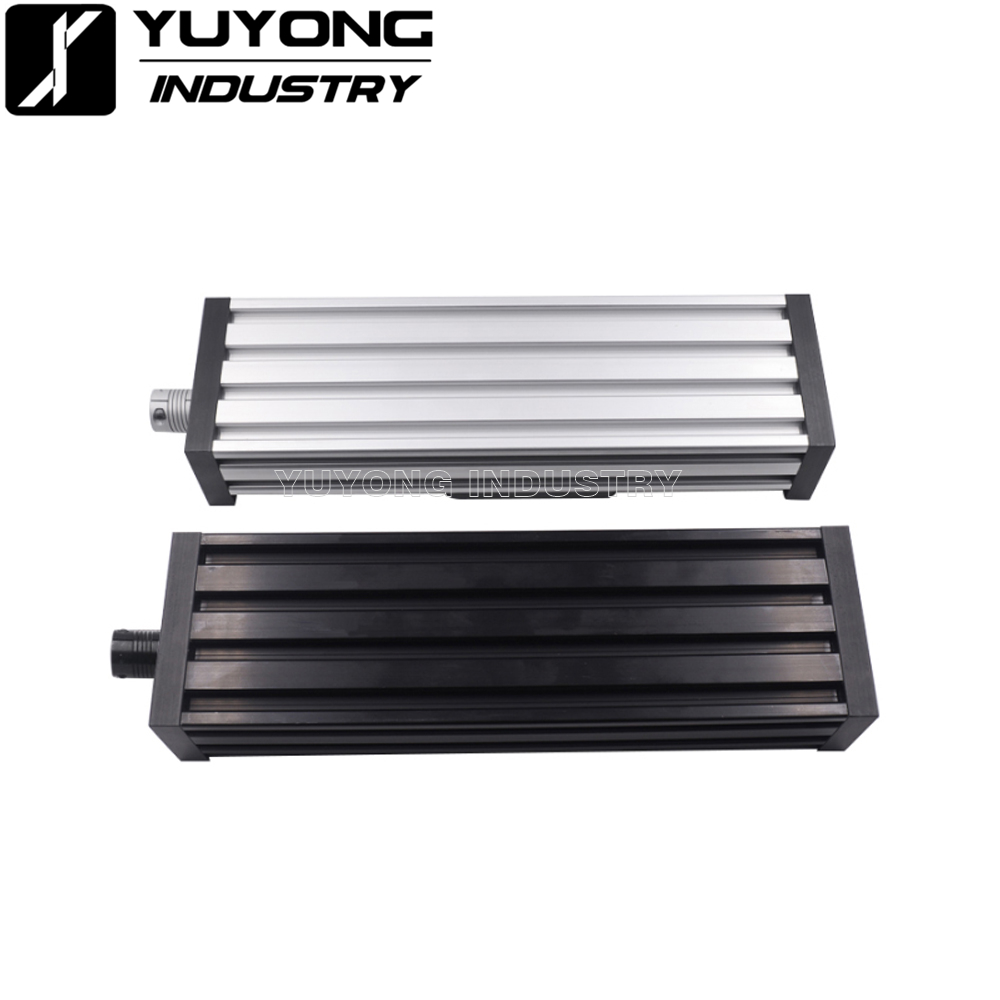

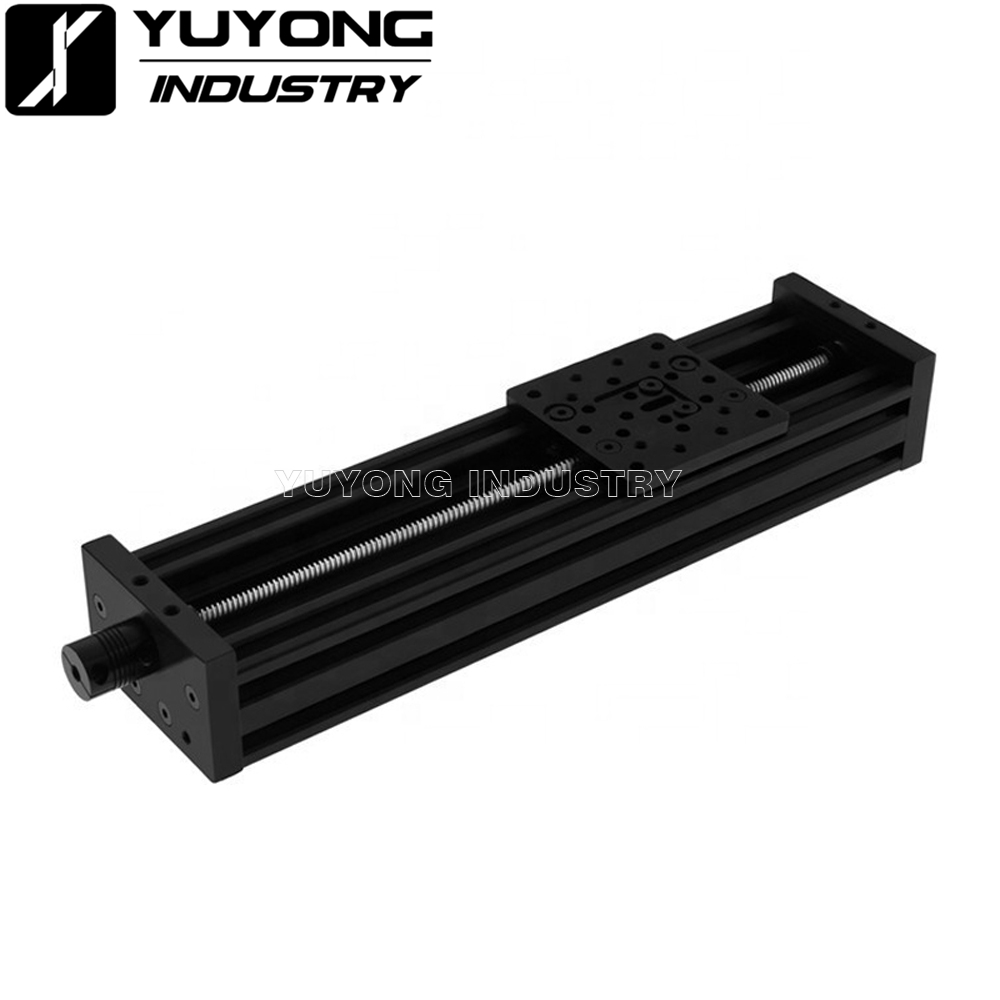

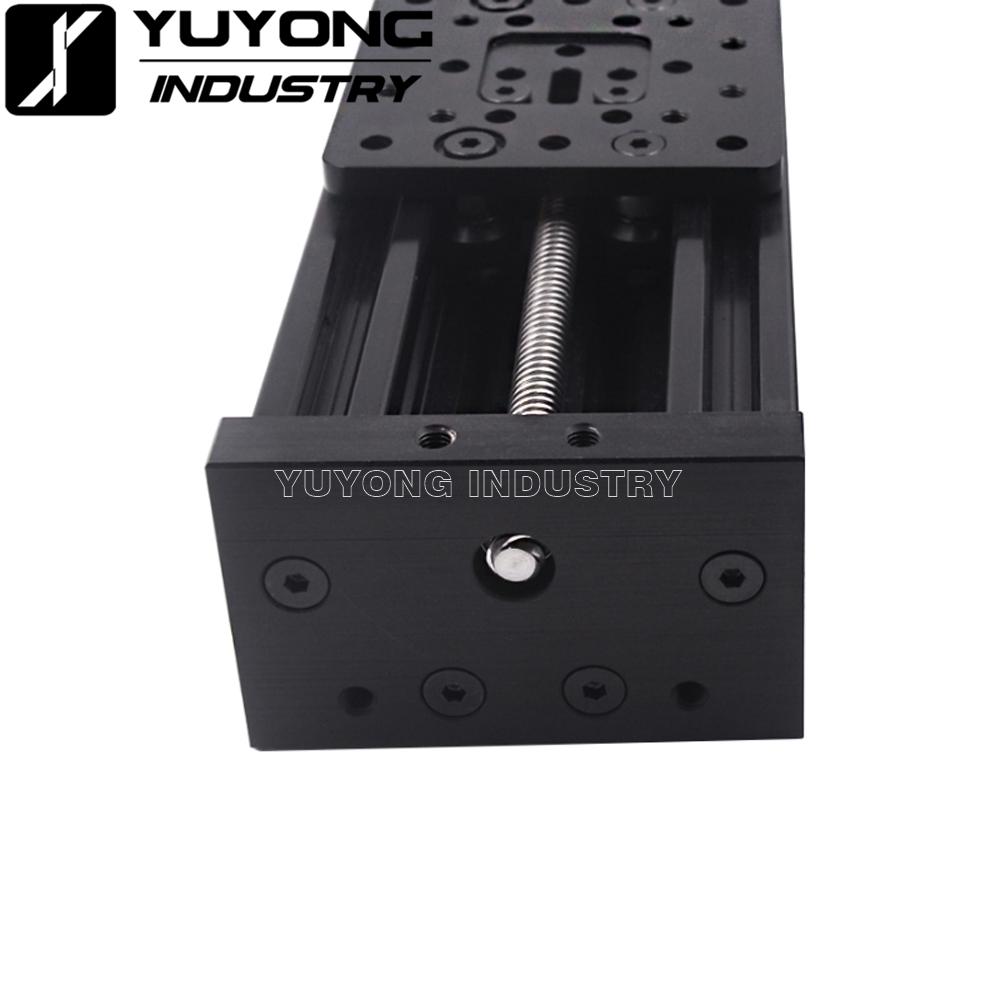

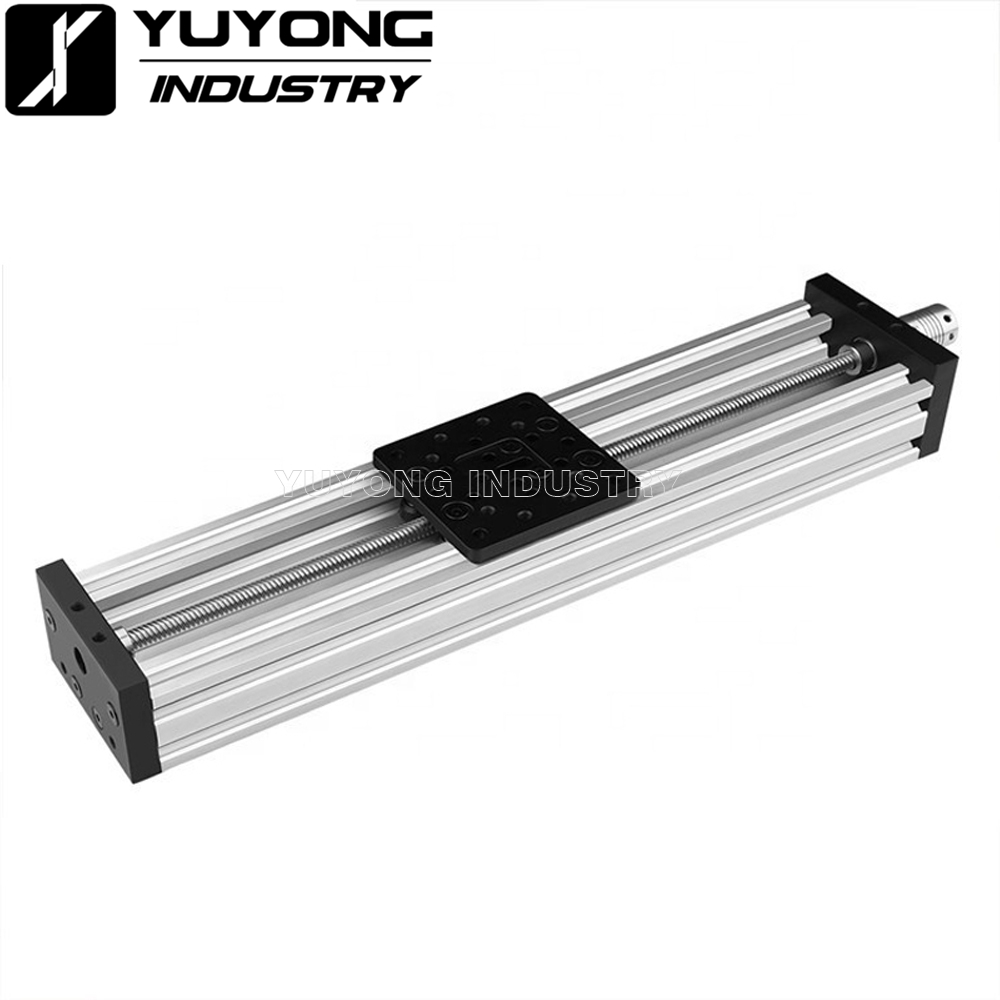

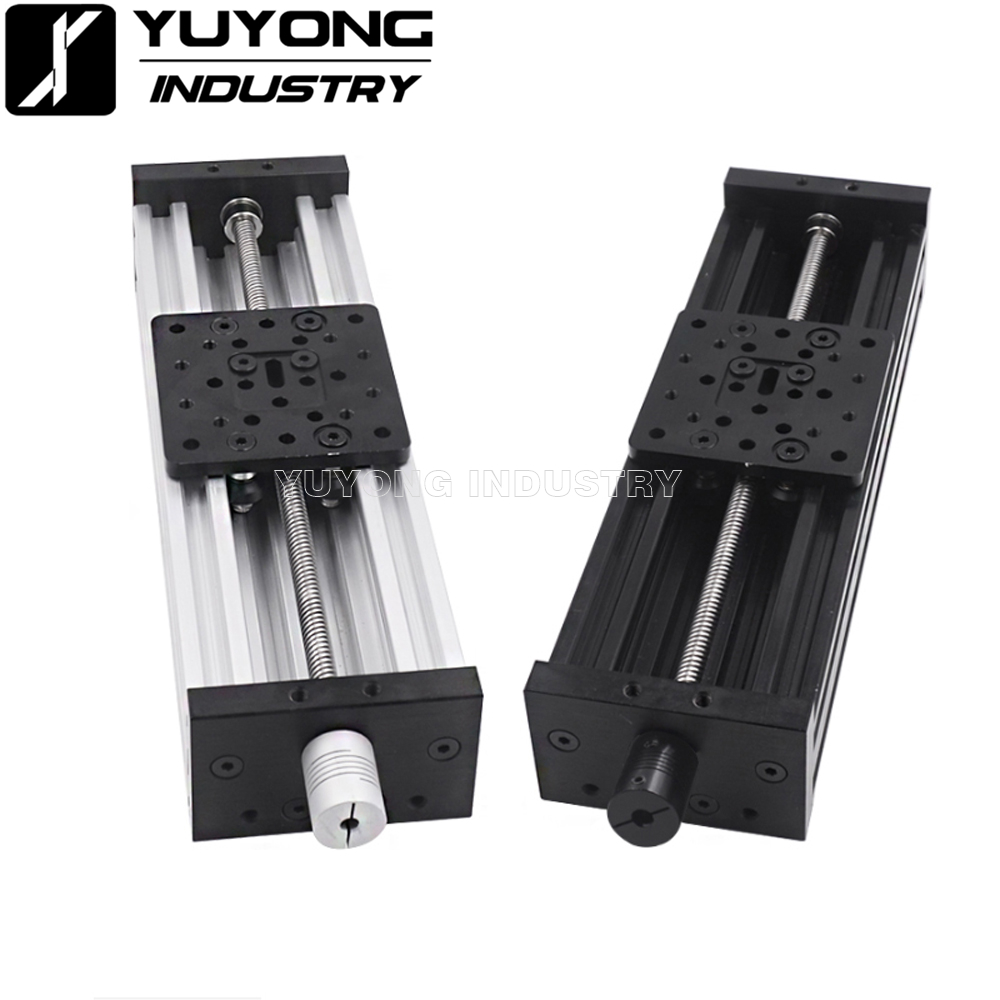

Z-Axis T8 lead screw C-Beam CNC sliding linear actuator bundle kit
This C-Beam Linear Actuator is a strong and sturdy actuator which uses our C-Beam Extrusion. This Actuator is the basis of our Lead CNC and our WorkBee CNC Machines.
Product Details:
- Model: 4080
- Type: slide table
- Color: Black +Silver / Black
- Material: aluminum +plastic

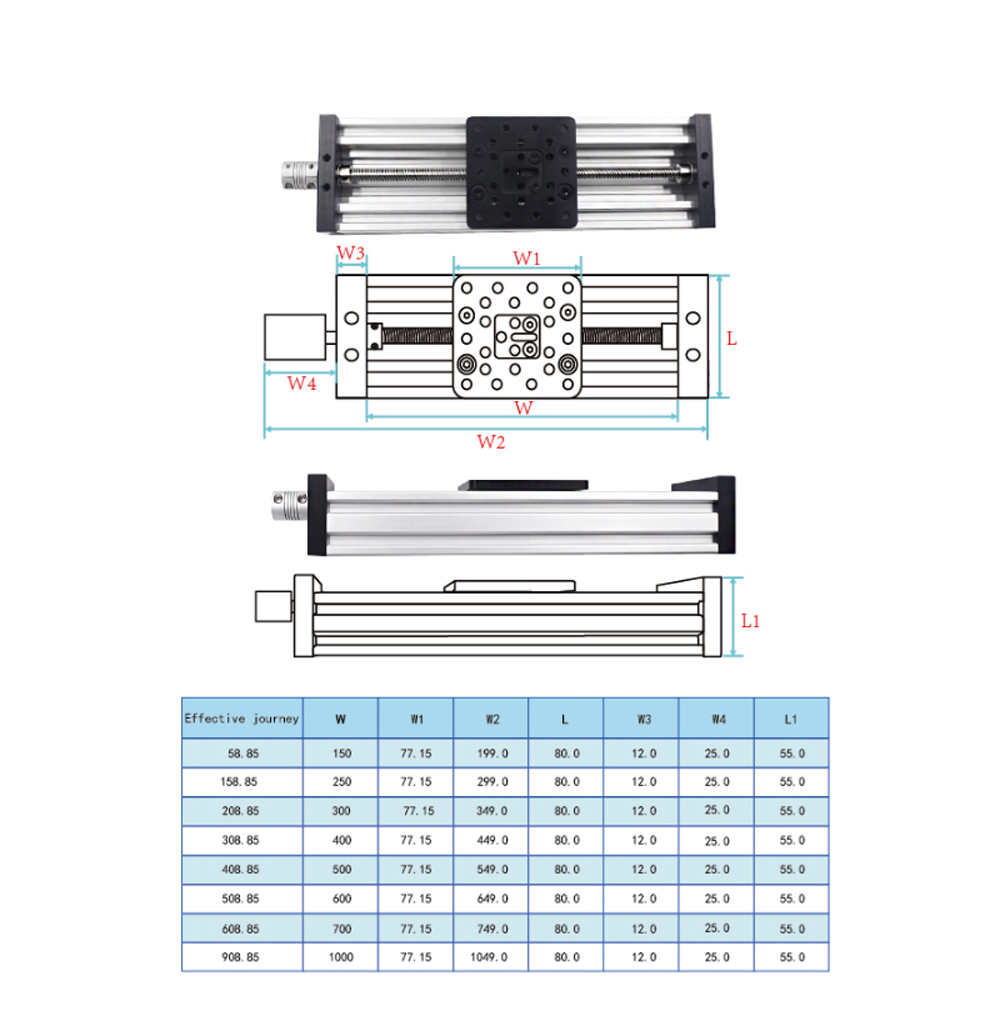

- Dimensions: length 199mm,width 80mm,height 55mm
- Trapezoidal screw : diameter 8mm,pitch 2mm , lead is 2mm , 4mm , 8mm
Note:
- Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
This is a self assembly kit
One Kit Including:
| Qty | Description |
| 2 | 8mm-Shims |
| 10 | M5-Low-Profile-20mm |
| 4 | M5-Low-Profile-25mm |
| 2 | Aluminium-Spacer-3mm |
| 2 | Aluminium-Spacer-6mm |

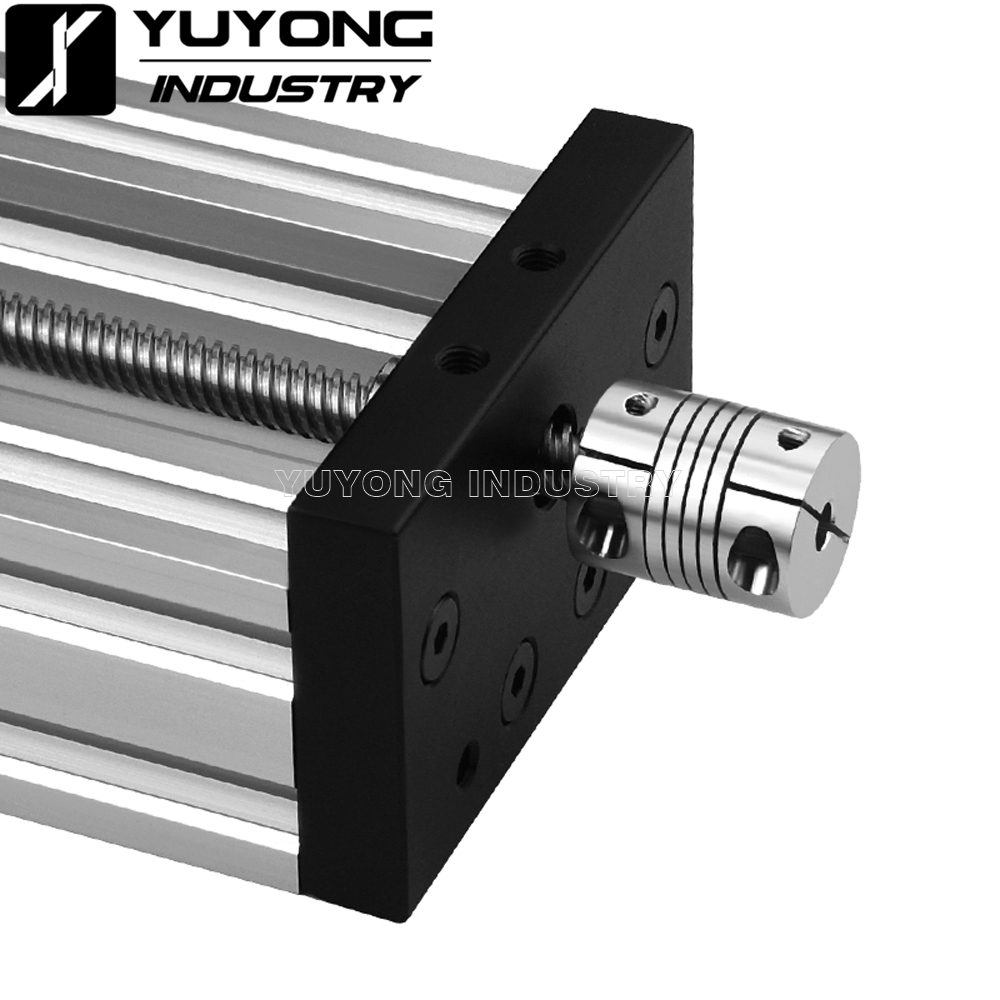

| 1 | Flexible-Coupler-6mm-1/4″ |
| 2 | Eccentric-Spacer-6mm |
| 1 | ACME-Anti-Backlash-Nut-Block |
| 2 | 688ZZ-Bearing |
| 2 | M5-Nyloc-Nut |
| 2 | 8mm-Lock-Collar |
| 4 | Mini-V-Wheel-Xtreme-Kit |
| 2 | C-Beam-End-Mount |
| 1 | C-Beam-Gantry-Plate |
| 1 | C-Beam Linear Rail Optional 150mm/200mm/250mm/500mm/1000mm |
| 1 | ACME-Lead-Screw Optional lead 2mm/4mm/8mm |
